Product Introduction

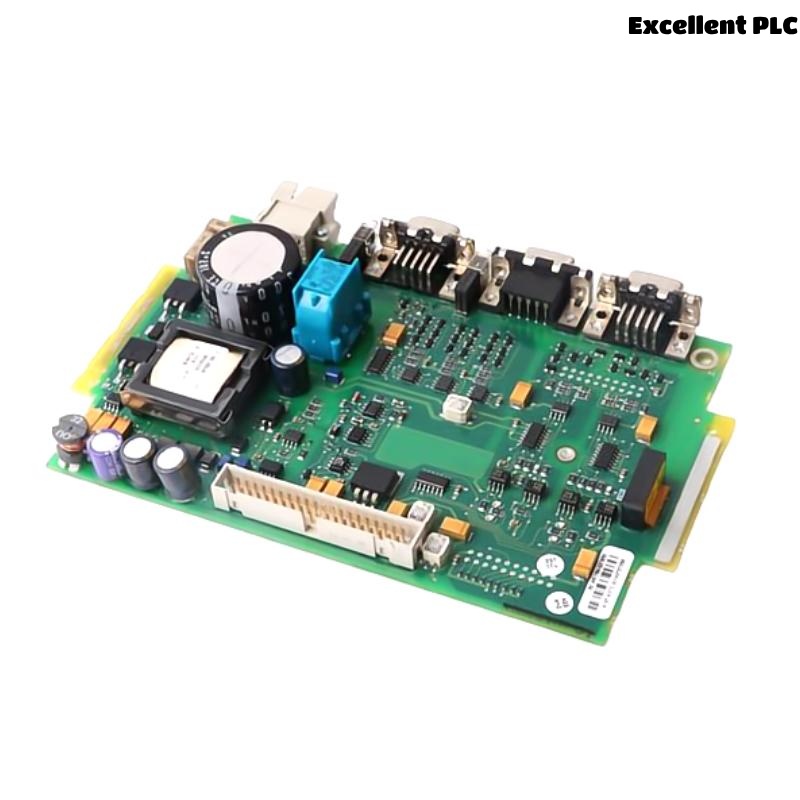

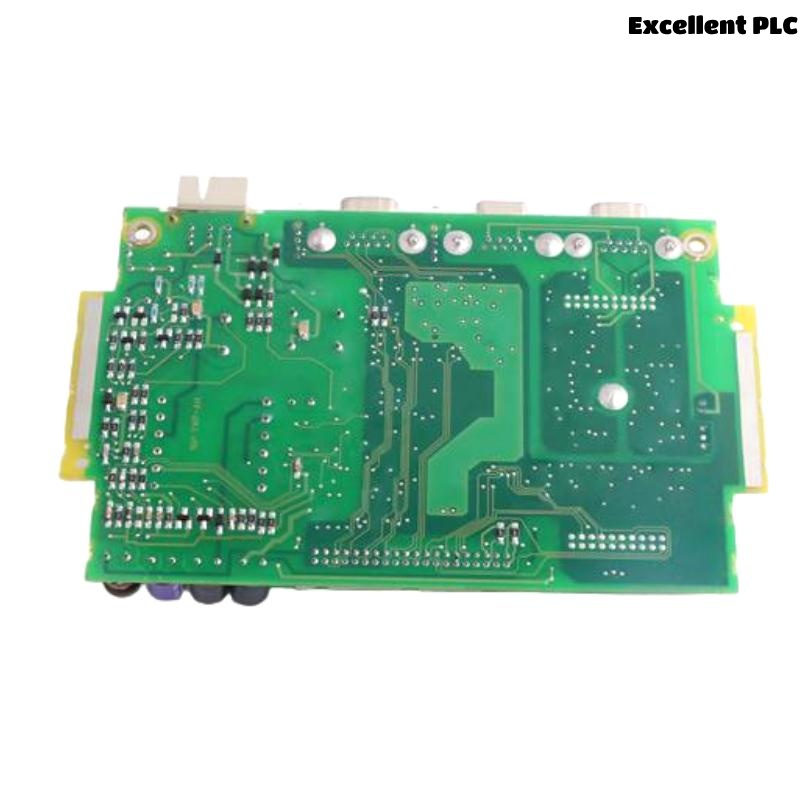

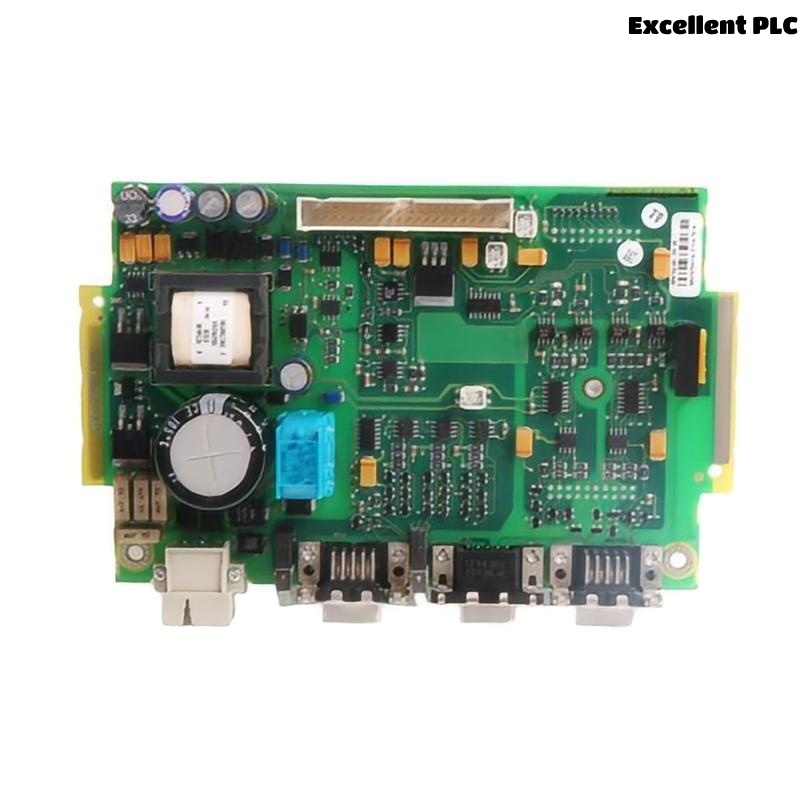

The ABB DTCA721A 3EST92-481 Interface Module is an integral component within ABB’s Symphony Plus or Advant OCS DCS (Distributed Control System) platforms. It plays a crucial role in ensuring seamless communication between field instrumentation and control processors by acting as a reliable interface layer. Engineered for industrial automation and process control applications, this module supports high-accuracy data acquisition, signal conditioning, and robust isolation features that contribute to safe and efficient plant operation.
ABB designed the DTCA721A to offer long-term reliability under harsh conditions, with advanced diagnostics, modular architecture, and compatibility with other ABB control system components. It is typically installed in I/O stations or subsystem panels and ensures that analog or digital signals from sensors and actuators are accurately relayed to controllers or processing units.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Interface Module |
| Model Number | DTCA721A |
| Order Code | 3EST92-481 |
| Manufacturer | ABB |
| System Compatibility | Symphony Plus / Advant OCS DCS |
| Function | Interface for signal processing and I/O |
| Mounting Type | Rack-mounted (I/O subsystem installation) |
| Input Types Supported | Analog/Digital signals |
| Communication Protocol | Proprietary ABB communication protocols |
| Power Supply Voltage | 24 V DC typical |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH non-condensing |
| Isolation | Galvanic isolation between field and system |
| Dimensions (W x H x D) | 30 x 170 x 160 mm |
| Weight | 0.45 kg |
| Certifications | CE, RoHS, UL |
| Diagnostic Features | Built-in self-test, fault monitoring |
Product Applications
The ABB DTCA721A 3EST92-481 Interface Module is widely used in industrial automation environments, especially in applications requiring high system reliability and signal integrity. Key areas include:
-
Oil and Gas Processing Plants: For controlling and monitoring pipelines, compressors, and refinery operations.
-
Power Generation Facilities: Used in turbine control, generator monitoring, and auxiliary systems.
-
Chemical and Petrochemical Plants: Interfaces with sensors to track process variables like pressure, temperature, and flow.
-
Water Treatment Plants: Facilitates data acquisition from pH meters, flow sensors, and actuators.
-
Metallurgy and Mining: Interfaces with harsh environment sensors and supports heavy-duty automation.
Product Advantages
-
High Signal Integrity: Offers superior analog and digital signal conditioning and filtering.
-
Robust Isolation: Ensures safe separation between system electronics and field signals.
-
Easy Integration: Seamlessly integrates with ABB’s DCS systems, minimizing setup time.
-
Compact and Modular Design: Saves space in control cabinets while enabling modular expansion.
-
Reliability in Harsh Environments: Designed for industrial-grade performance even in extreme temperatures or dusty environments.
-
Diagnostic and Monitoring Tools: Advanced diagnostics for predictive maintenance and fault localization.
-
Low Power Consumption: Efficient power usage reduces overall energy cost.
-
Long Operational Life: High-quality components ensure long-term reliability.
-
Certified Compliance: Meets global industrial safety and compliance standards.
Frequently Asked Questions (FAQ)
-
What is the main role of the ABB DTCA721A 3EST92-481 Interface Module?
It acts as a communication bridge between field devices and the control system, converting and isolating signals for accurate data transfer. -
Which ABB control systems support this module?
It is compatible with ABB Symphony Plus and Advant OCS distributed control systems. -
Does this module support analog and digital signals?
Yes, it supports both analog and digital inputs and outputs depending on configuration. -
Is the module suitable for harsh industrial environments?
Yes, it is designed to operate reliably under temperature extremes and electrical noise common in industrial settings. -
Can the module be replaced without shutting down the system?
Hot-swapping is generally not recommended unless specified by system guidelines. -
What diagnostic features does it have?
Built-in self-tests and fault monitoring help detect issues early and assist with maintenance. -
What power supply voltage is required?
Typically, the module uses a 24 V DC power supply. -
Are there any certifications for safety and quality?
Yes, it complies with CE, RoHS, and UL standards. -
How does the module protect against electrical interference?
It includes galvanic isolation and filtering to reduce effects of electromagnetic interference. -
Can it be used in existing older ABB systems?
Yes, it supports backward compatibility with legacy Advant OCS systems as well as newer platforms.
