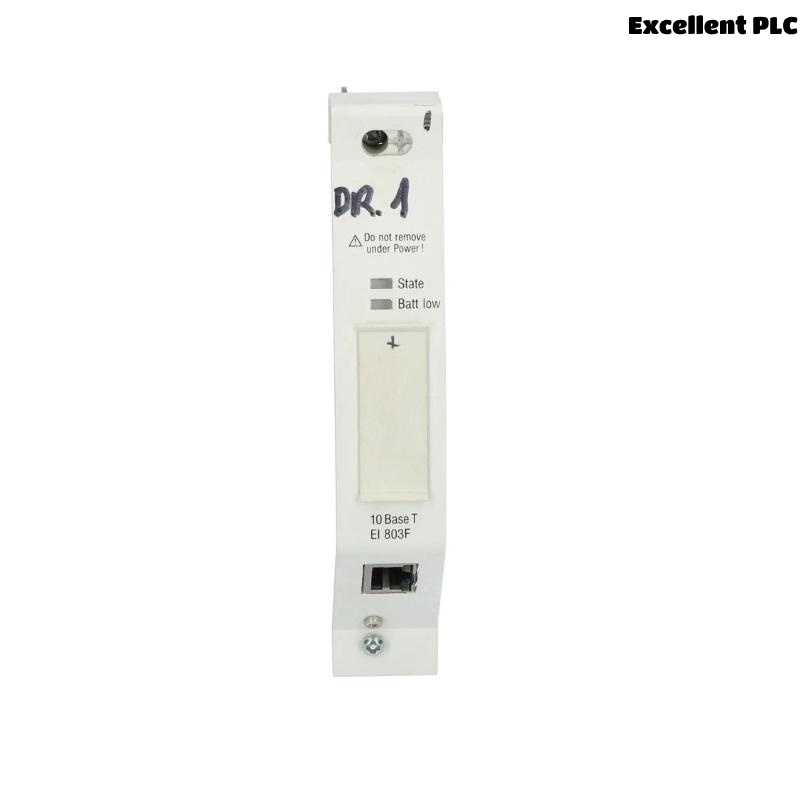

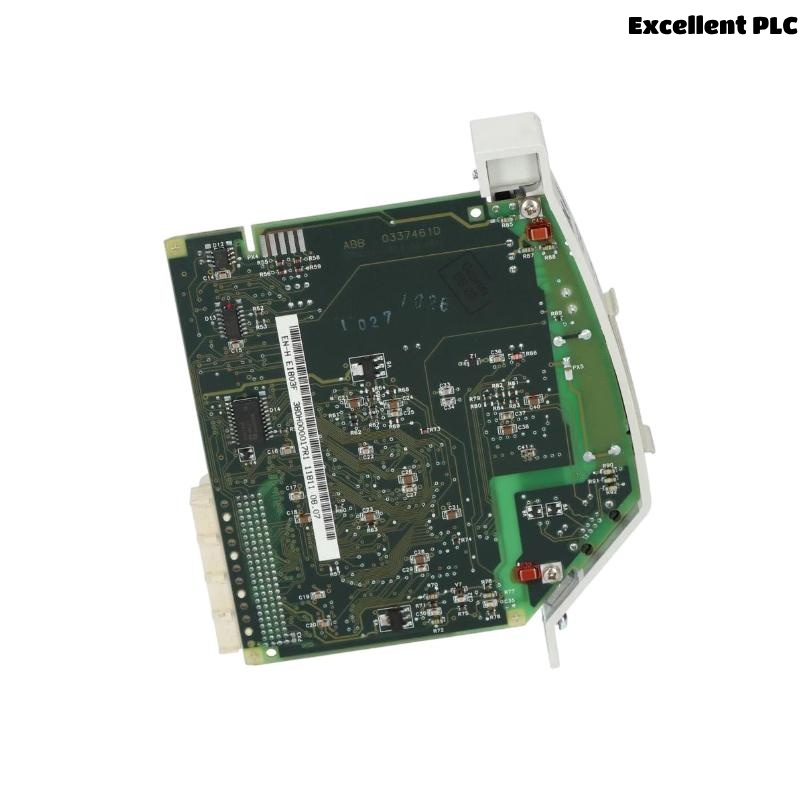

ABB EI803F 3BDH000017R1 Ethernet Module

Product Overview

The ABB EI 803F (3BDH000017R1) Ethernet Module is a high-performance communication interface designed for ABB’s industrial control and automation systems. As part of ABB’s renowned automation product line, this Ethernet module enables seamless, reliable, and high-speed communication between controllers, field devices, and supervisory systems within a distributed control system (DCS) or programmable logic controller (PLC) network.

The EI 803F module provides robust Ethernet connectivity, ensuring reliable real-time data transmission across various network architectures. It supports essential industrial communication protocols and is suitable for critical applications in industries like power generation, oil & gas, water treatment, and manufacturing where stable, high-speed networking is vital.

Key Features

• High-speed Ethernet communication for real-time industrial networking.

• Supports standard industrial protocols for seamless integration.

• Rugged design suitable for demanding industrial environments.

• Provides galvanic isolation for safe and interference-free data transmission.

• DIN-rail mounting for easy installation and system integration.

• Compact form factor for space-efficient cabinet layouts.

• Fully compatible with ABB control systems and automation solutions.

• Enhanced diagnostics and status indication for reliable operation.

• Stable operation across wide temperature and humidity ranges.

• Conforms to international industrial standards (CE, UL, RoHS).

Technical Specifications

Industry Applications

• Power Generation: Reliable Ethernet communication for plant control systems.

• Oil & Gas: High-speed data exchange in offshore platforms, pipelines, and refineries.

• Water & Wastewater Treatment: Stable networking for plant monitoring and automation.

• Manufacturing: Facilitates real-time communication in production lines and machine networks.

• Chemical Processing: Supports safe and efficient network integration in hazardous environments.

• Building Automation: Enables centralized control and monitoring over Ethernet networks.

Product Advantages

• Reliable Industrial Networking: Ensures consistent, interference-resistant Ethernet communication.

• Protocol Flexibility: Supports key industrial protocols for broad system compatibility.

• Compact Design: Space-saving form factor ideal for control cabinets with limited space.

• Safe Operation: Galvanic isolation protects both the module and connected equipment.

• Ease of Installation: DIN-rail mounting simplifies integration into new or existing systems.

• Wide Environmental Tolerance: Operates reliably across harsh industrial conditions.

• Enhanced Diagnostics: LED indicators provide clear status monitoring for maintenance and troubleshooting.

• Seamless ABB Integration: Designed to work optimally within ABB control architectures.

• Energy Efficient: Low power consumption suitable for energy-conscious operations.

• Certified Compliance: Meets global standards for safety, reliability, and environmental impact.

Frequently Asked Questions (FAQ)

1. What is the main function of the EI 803F module?
   It provides Ethernet communication capability for ABB control and automation systems.

2. What communication speeds does the EI 803F support?
   It supports standard 10/100 Mbps Ethernet networking.

3. Does the module include galvanic isolation?
   Yes, galvanic isolation ensures safe and interference-free operation.

4. What types of networks is this module suitable for?
   It is designed for industrial Ethernet networks, supporting TCP/IP and related protocols.

5. Can the EI 803F be mounted on a DIN rail?
   Yes, it features DIN-rail mounting for easy installation.

6. What is the operating temperature range of the module?
   The module operates from -20°C to +60°C.

7. Is the module compatible with non-ABB systems?
   While optimized for ABB systems, it can integrate into other systems supporting standard Ethernet protocols.

8. What certifications does the EI 803F hold?
   The module is CE, UL, and RoHS compliant.

9. What are the physical dimensions and weight?
   Dimensions: 125mm ×155mm ×28 mm; Weight: approximately 0.15 kg.

10. Is the module suitable for harsh industrial environments?
    Yes, its rugged design and wide environmental tolerance ensure reliable performance in demanding conditions.
