Product Introduction

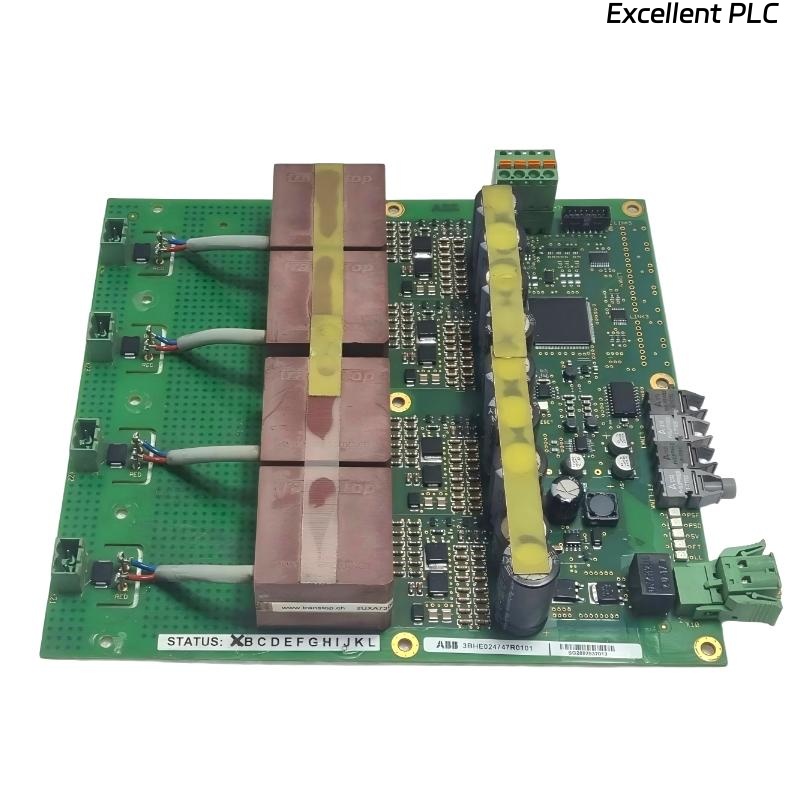

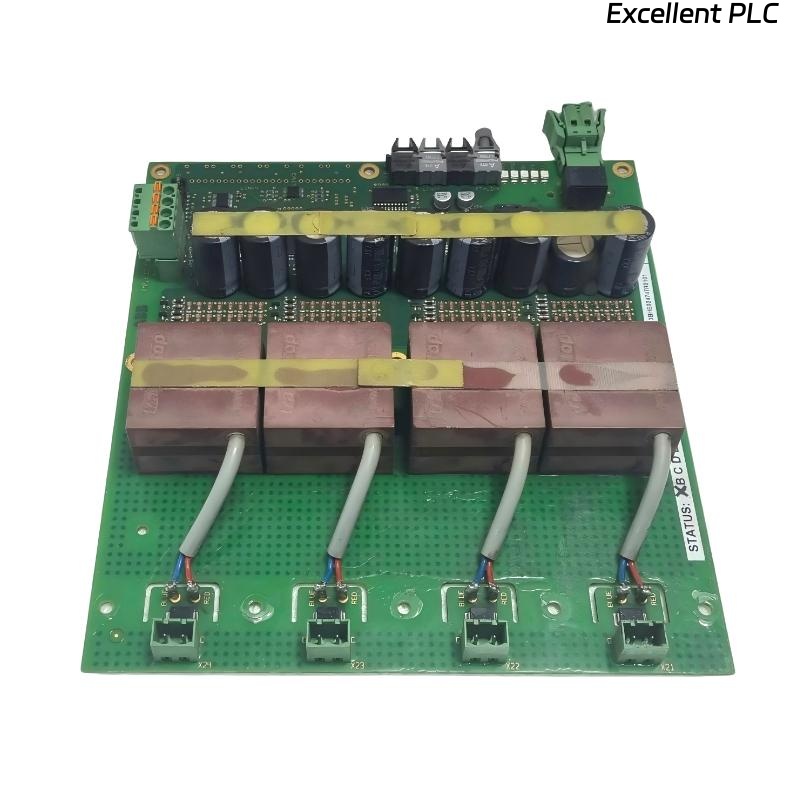

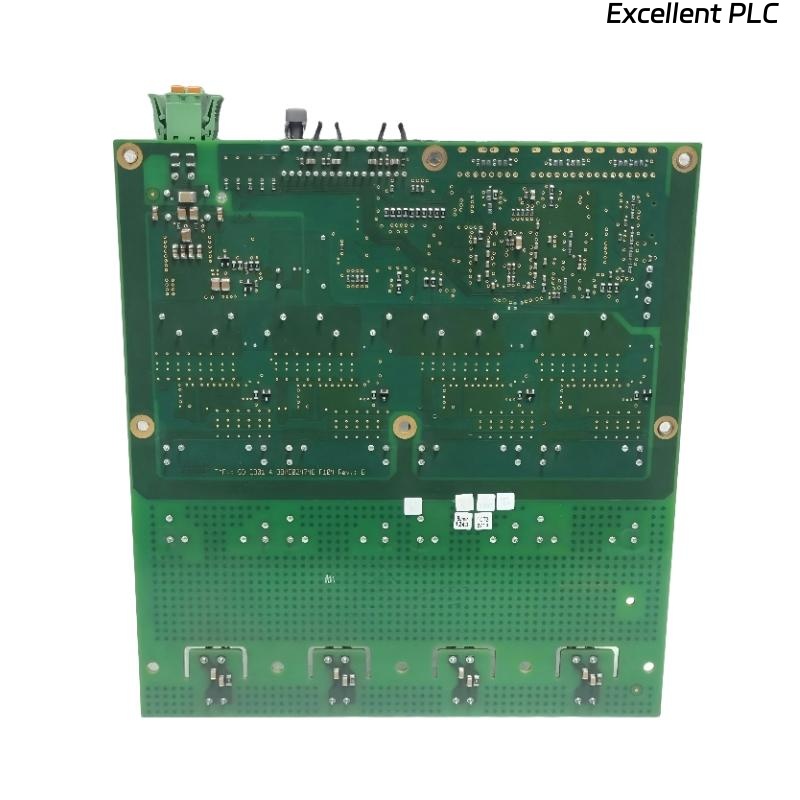

The ABB GD C801 A101 3BHE024747R0101 short-circuit protection board is a specialized protection circuit board designed for high-power ABB drives and converter systems . Its primary function is to safely short-circuit the DC bus voltage in the event of overvoltage or internal faults , thereby protecting sensitive semiconductor devices such as IGCTs and IGBTs .
The GD C801 A101 utilizes high-reliability components and a robust PCB design to ensure precise triggering and fast response, thereby preventing catastrophic failure in industrial drives. The board integrates trigger circuitry, sensing resistors, and control logic , allowing for seamless integration with drive control systems.
The crowbar board is crucial for ensuring reliability and safety in medium and high voltage drive applications , where sudden voltage spikes could damage power electronics. Its modular design makes it easy to install and maintain within ABB drive cabinets.
Technical specifications
| scope | Specification |
|---|---|
| Product Model | GD C801 A101 |
| Manufacturer | ABB |
| Part Number | 3BHE024747R0101 |
| Product Type | Crowbar Board |
| Function | DC bus overvoltage protection |
| Rated voltage | Nominal 3.3 kV |
| Current handling | Peak current up to 4000 A |
| Trigger Type | Fast response electronic trigger |
| Control interface | TTL/Logic Level Input |
| Response time | <5 microseconds |
| Number of components | >200 electronic components |
| PCB layer number | 4-layer high current PCB |
| Operating temperature range | -20°C to +65°C |
| Storage temperature range | -40°C to +85°C |
| Insulation resistance | >100 megohms |
| Dielectric strength | 2000 Vrms |
| Installation Type | Rack mount/slot mount |
| Connector Type | High current terminals and logic connectors |
| Dimensions (length × width × height) | 150×120×30 mm |
| weight | 0.8 kg |
| obey | CE、IEC 60204、RoHS |
Product Application
ABB GD C801 A101 crowbar boards are widely used in ABB power electronic systems, especially where overvoltage protection is critical .
Key applications include:
-
Medium Voltage Drives: Provides protection for ABB MV drives, preventing overvoltage damage to IGCT or IGBT modules.
-
Converter Unit: Acts as a safety device for the rectifier and inverter sections.
-
Industrial automation systems: Protecting sensitive components in high-power motor control units.
-
Energy storage systems: Protect DC bus electronics from voltage surges in batteries or capacitor banks.
-
Wind turbines and hydroelectric generators: Ensuring reliable protection of drive modules in renewable energy applications.
-
Robotics and heavy machinery: Protect power electronics from transient voltage spikes during high-load operation.
-
Customized power modules: Can be integrated into customized ABB power electronic assemblies.
Product Advantages
-
Fast overvoltage protection: Trigger circuit responds within microseconds to prevent component damage.
-
High Current Capability: Designed to safely handle peak currents up to 4000 A.
-
Reliable logic integration: compatible with ABB control signals to achieve seamless triggering.
-
Compact and modular design: fits into ABB racks and is easy to maintain or replace.
-
Robust thermal management: High-current PCB design dissipates heat effectively.
-
Durable Construction: High-quality PCB and components for industrial-grade reliability.
-
Enhanced safety: Protection against catastrophic failure of high-voltage drives.
-
Flexible installation: slot or rack mounting for multi-functional integration.
-
Compliance Certifications: Complies with RoHS, CE, and IEC industrial safety standards.
-
Maintenance-friendly layout: Connectors and components are arranged for easy servicing.
Frequently Asked Questions (FAQ)
-
What is the main function of the GD C801 A101 crowbar board? It provides overvoltage protection
for the DC bus system in ABB drives , preventing damage to power semiconductors. -
What is the peak current capability of this board? The board can handle up to 4000 A of peak current during a crowbar activation event .
-
What semiconductor devices can this Crowbar Board protect?
It can protect IGCT, IGBT and similar high-power semiconductor modules in drive systems . -
What is the response time of this board?
The response time of the GD C801 A101 is less than 5 microseconds , ensuring fast protection. -
How is the board triggered?
The board uses an electronic fast trigger circuit that is compatible with TTL or logic level inputs of ABB control systems. -
Can this board be used in medium voltage applications?
Yes, it is rated for 3.3 kV and is suitable for use with ABB medium voltage drives. -
What types of connections are there on the board? It has high current terminals
for the DC bus connections and logic connectors for the control interface . -
Is this motherboard compliant with industrial standards?
Yes, it complies with CE, IEC 60204 and RoHS standards. -
What is the operating temperature range?
The board can operate between -20°C and +65°C , making it suitable for industrial environments. -
Can the board be integrated into an existing ABB rack? Yes, it supports rack or slot mounting
for ABB drives and converter systems .
