Product Introduction

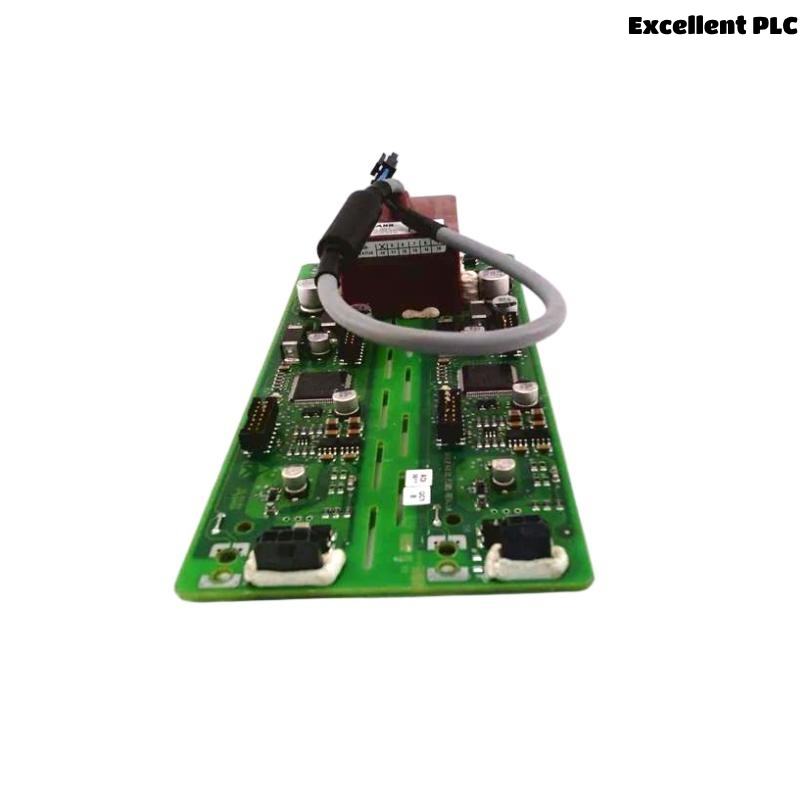

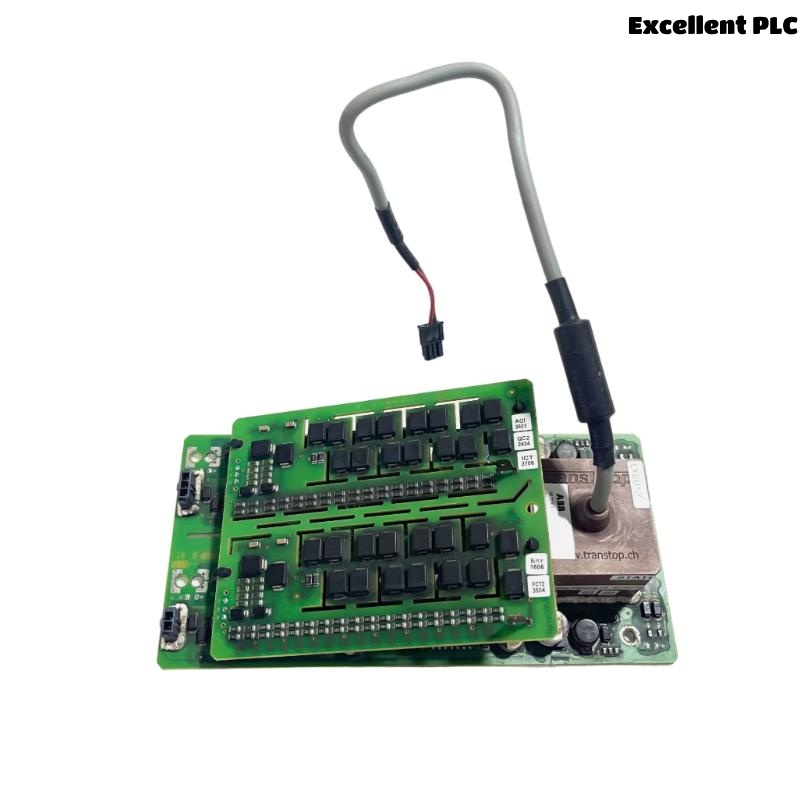

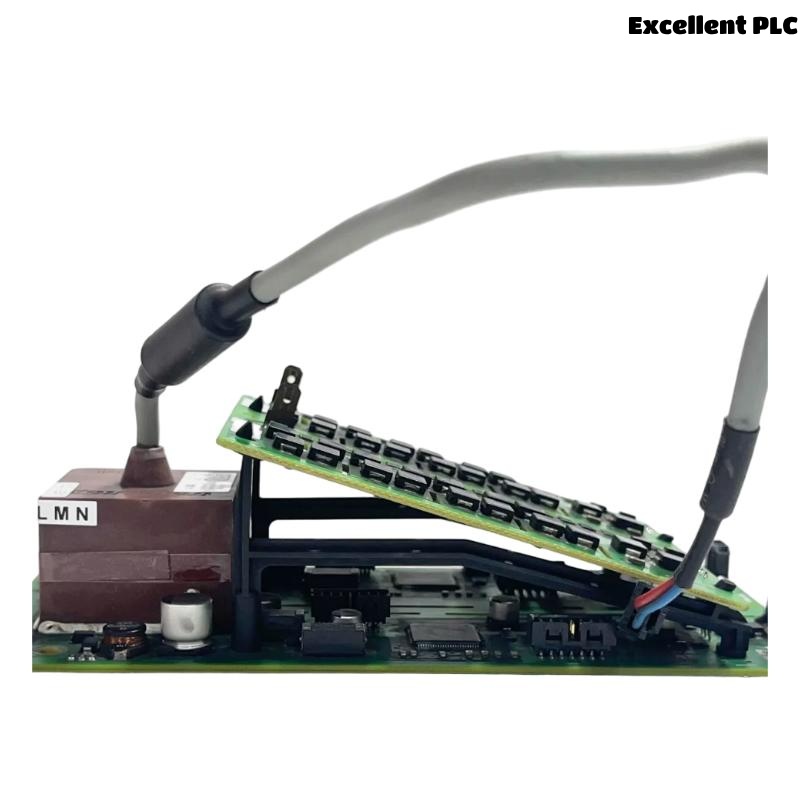

The ABB GD C806 B 3BHE036130R0101 is an advanced printed circuit board (PCB) designed to provide robust performance in industrial automation and control systems. Manufactured by ABB, a global leader in industrial technologies, this PCB board is part of the company’s comprehensive portfolio of industrial products tailored for high-performance applications.
The GD C806 B 3BHE036130R0101 PCB board stands out for its precision in delivering optimal control and monitoring, ensuring reliable operation in demanding environments. With its compact design, it integrates seamlessly into complex control systems, offering flexibility, reliability, and efficiency. This model is built to provide the highest level of reliability and stability, supporting a wide range of industrial applications where accuracy and durability are crucial.
Designed with modern technologies and stringent quality standards, the GD C806 B ensures minimal downtime, cost-effectiveness, and a long service life. Its flexible configuration options and advanced features make it an excellent choice for industries that require high-speed data processing, control accuracy, and fault tolerance.
Product Parameters
Below are the key technical specifications of the ABB GD C806 B 3BHE036130R0101 PCB board:
| Parameter | Specification |
|---|---|
| Model Number | GD C806 B 3BHE036130R0101 |
| Dimensions | 431 x 125 x 50 mm |
| Weight | 0.113 kg |
| Operating Temperature | -40°C to 85°C |
| Power Supply Voltage | 24V DC ±10% |
| Current Consumption | 120 mA |
| Input Voltage Range | 20-28 V DC |
| Output Type | Digital, Analog |
| Mounting Type | PCB Mountable |
| Max Load | 3 A |
Product Application
The ABB GD C806 B 3BHE036130R0101 PCB board is engineered to serve a wide range of applications within industrial automation systems. It is particularly well-suited for industries such as manufacturing, energy, and robotics, where reliable control and monitoring are essential. The board is designed to manage high-speed operations and ensures minimal delays in signal processing, making it an ideal choice for applications requiring real-time performance.
Some of the key applications of this PCB board include:
-
Motor Control: The board is designed to provide precise and efficient control over motor-driven systems, making it ideal for applications where motor speed, torque, and position need to be closely regulated.
-
Industrial Process Automation: The GD C806 B plays a crucial role in automating industrial processes, ensuring systems run efficiently, and operations remain seamless.
-
Energy Management: This PCB is essential in controlling and optimizing energy use in industrial power systems, helping reduce energy consumption and improve overall operational efficiency.
-
Robotics and Automation: It is used in various robotic applications, including controlling robotic arms and advanced machinery, ensuring smooth and precise movement.
-
Sensor Integration: The board supports a wide range of sensor technologies, making it ideal for use in environments requiring continuous monitoring of critical parameters such as temperature, pressure, and speed.
-
Data Acquisition: Its analog and digital output capabilities allow for effective data acquisition and processing, making it useful in research and testing applications.
Product Advantages
-
High Precision: The GD C806 B PCB board offers precise control, making it suitable for high-accuracy industrial applications, where every detail matters.
-
Durable and Reliable: With an operational temperature range from -40°C to 85°C, the board can withstand harsh industrial environments, offering long-lasting performance in tough conditions.
-
Compact and Lightweight: Its compact design (431 x 125 x 50 mm) and lightweight nature (0.113 kg) make it easy to integrate into tight spaces without sacrificing performance.
-
Low Power Consumption: Operating at 24V DC and drawing only 120 mA of current, the board is energy-efficient, reducing operational costs and environmental impact.
-
Versatility: The board supports both digital and analog outputs, offering versatile solutions for different industrial control systems.
-
Cost-Effective: By reducing energy consumption and improving system efficiency, the GD C806 B helps cut down operational costs, making it a highly cost-effective solution for large-scale industrial setups.
-
Easy Integration: The board’s PCB mountable design allows for easy installation and seamless integration into existing systems.
-
Enhanced Fault Tolerance: Its robust design ensures that it can handle unexpected operational conditions, contributing to minimized downtime and enhanced system stability.
FAQ
-
Q: What is the operating temperature range for the ABB GD C806 B 3BHE036130R0101?
A: The operating temperature range is from -40°C to 85°C. -
Q: What is the weight of the GD C806 B PCB?
A: The weight of the board is 0.113 kg. -
Q: What is the power supply voltage for this PCB?
A: The required power supply voltage is 24V DC ±10%. -
Q: What are the dimensions of the GD C806 B PCB board?
A: The dimensions are 431 x 125 x 50 mm. -
Q: What types of outputs does the GD C806 B support?
A: The board supports both digital and analog outputs. -
Q: How much current does the GD C806 B consume?
A: The current consumption is 120 mA. -
Q: Can this PCB board be used for energy management systems?
A: Yes, it is ideal for controlling and optimizing energy use in industrial power systems. -
Q: Is the GD C806 B PCB suitable for robotics applications?
A: Yes, it is well-suited for robotics, offering precise control for robotic arms and advanced machinery. -
Q: How is the GD C806 B PCB mounted?
A: The PCB is designed for easy PCB mounting, ensuring hassle-free integration into various systems. -
Q: Can the GD C806 B be used for industrial process automation?
A: Yes, it is specifically designed for use in industrial process automation systems, ensuring efficiency and reliability.
