Product Overview

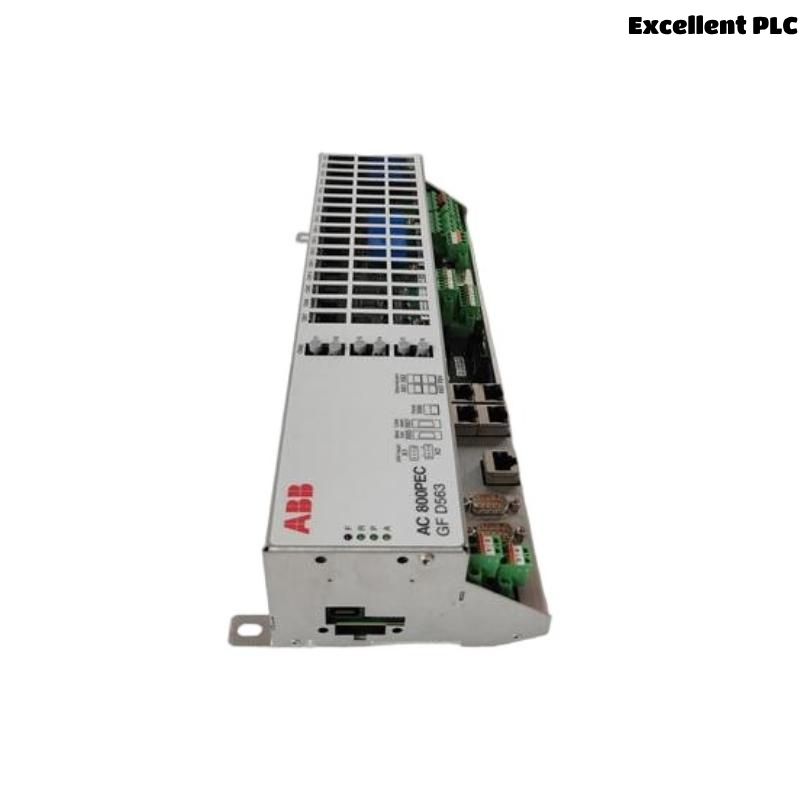

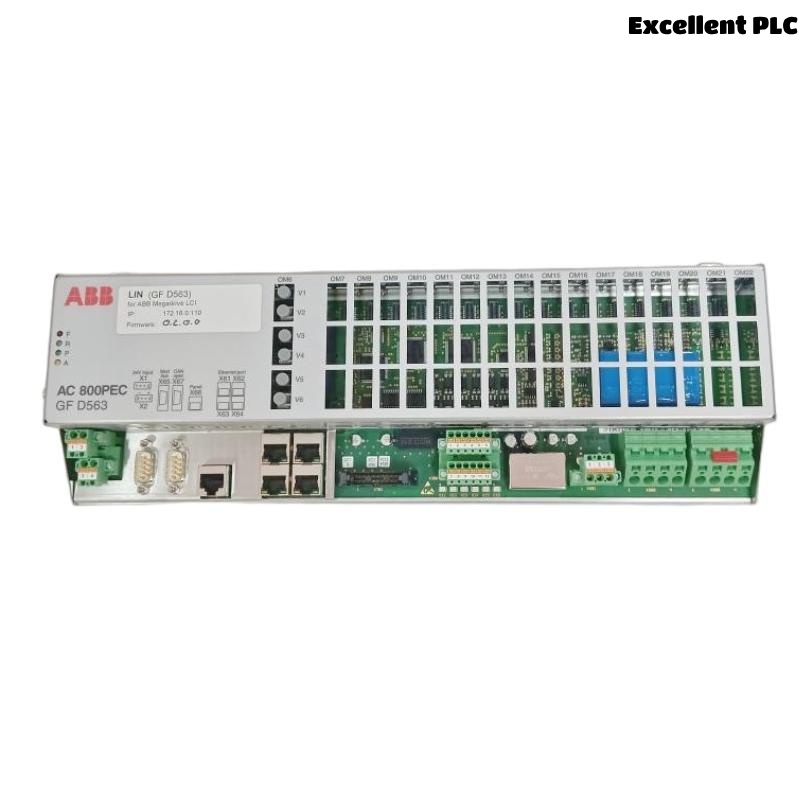

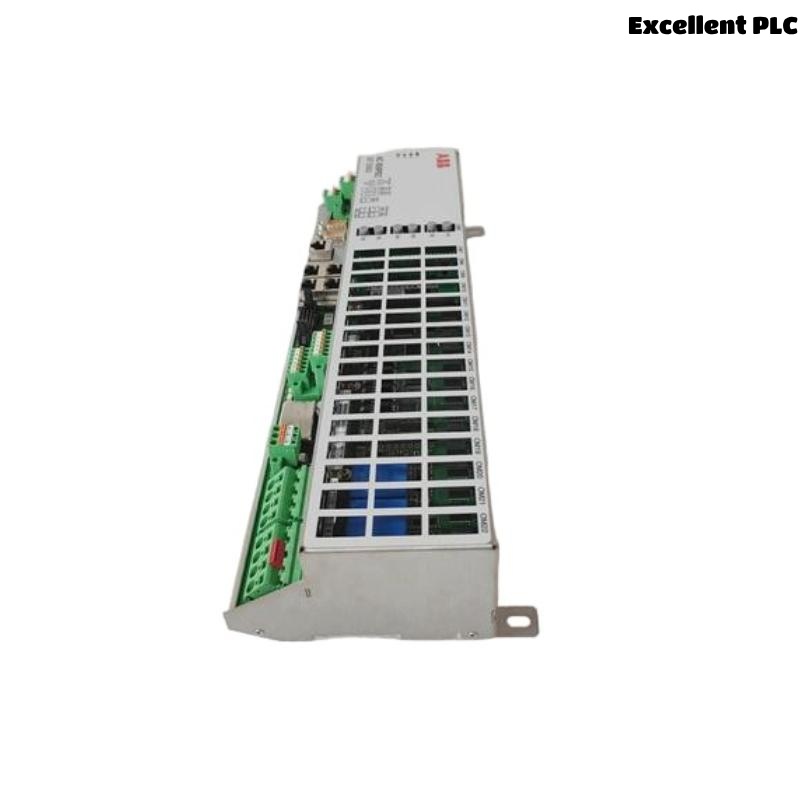

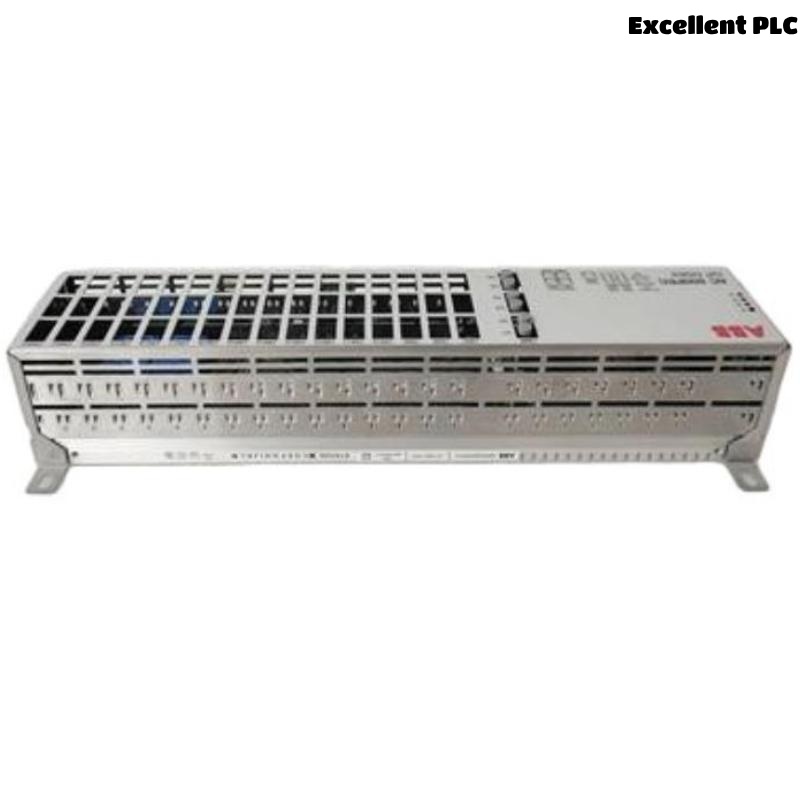

The ABB GFD563A101 3BHE046836R0101 Excitation Device Control Unit is a critical module designed to precisely regulate and control excitation in generator systems. It ensures stable voltage output and reliable operation in power generation environments. Engineered for robustness, this unit integrates advanced monitoring and diagnostic functions, enhancing the performance and safety of generator excitation systems. It is compatible with ABB excitation platforms and suited for a wide range of industrial applications.
Key Features
-
Precise control of generator excitation for stable voltage
-
Advanced monitoring and diagnostic capabilities
-
Robust design suitable for harsh industrial conditions
-
Seamless integration with ABB excitation systems
-
Enhances system reliability and performance
-
Supports various power generation applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | GFD563A101 |
| Part Number | 3BHE046836R0101 |
| Module Type | Excitation Device Control Unit |
| Manufacturer | ABB |
| Application | Generator excitation control |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 260 × 120 × 25 mm |
| Weight | 0.48 kg |
| Mounting | Panel or rack mounting |
| Safety Certifications | CE, UL |
Industry Applications
-
Power generation plants
-
Industrial power systems
-
Marine generator control
-
Renewable energy systems (hydro, wind)
-
Backup power systems
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the GFD563A101 unit?
It controls and regulates generator excitation to maintain stable voltage output.
Q2: Is it compatible with non-ABB excitation systems?
Primarily designed for ABB systems; compatibility with others may require integration verification.
Q3: Can it be used in renewable energy applications?
Yes, suitable for hydroelectric, wind, and other renewable generation systems.
Q4: Does it have built-in diagnostics?
Yes, it offers advanced monitoring and diagnostic functions.
Q5: What are the installation options?
Panel or rack mounting are supported.
Q6: Is it suitable for marine applications?
Yes, designed for marine generator control environments.
Q7: What is the operating temperature range?
-10°C to 55°C.
Q8: How does it improve system reliability?
By providing precise excitation control, it ensures voltage stability and reduces generator faults.
Q9: Does it support remote monitoring?
Yes, monitoring capabilities can be integrated with remote systems.
Q10: How can I obtain support or order this module?
Contact ABB authorized distributors or service centers for orders and support.
