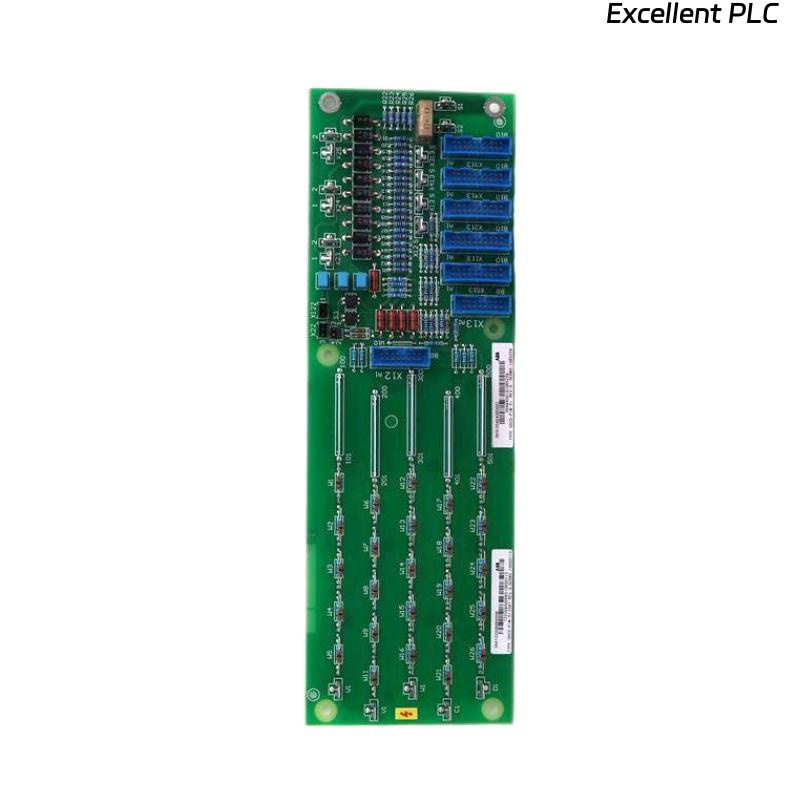

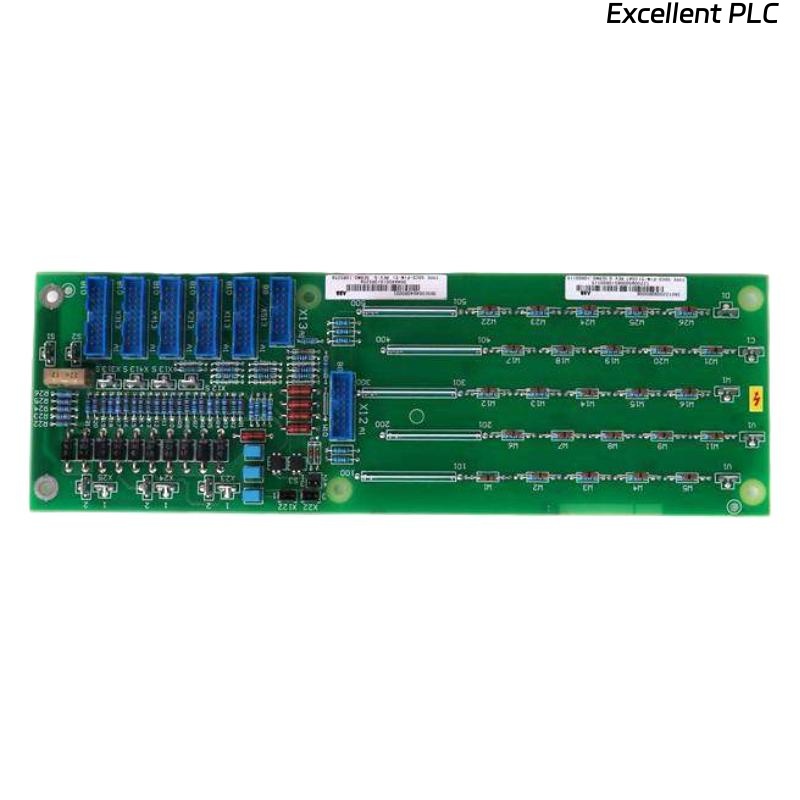

ABB GJR2370500R2 Control Module

Product Introduction

The ABB GJR2370500R2 Control Module is an advanced electronic unit designed for industrial automation and drive system applications. It functions as the primary processing and control element within ABB medium- and low-voltage drive systems, providing critical decision-making capabilities for motor control, system protection, and process automation.

This control module is engineered to interface with multiple input/output channels, communication buses, and power electronics components. It ensures precise execution of control algorithms, real-time signal processing, and robust monitoring of system conditions. The GJR2370500R2 is integral to ABB’s ACS and DCS drive families, where its reliable performance directly influences system stability, efficiency, and safety.

Equipped with advanced microprocessors, programmable logic, and diagnostic circuitry, this module delivers high-speed computation, accurate feedback control, and continuous system monitoring. Its industrial-grade construction guarantees resilience against voltage transients, electromagnetic interference, and thermal stress, making it suitable for demanding industrial environments.

---

Technical Specifications

---

Product Applications

The ABB GJR2370500R2 Control Module is used across a wide range of industrial applications that require high-performance control and precise system regulation:

• Variable Frequency Drives (VFDs): Performs real-time motor speed and torque control.

• Process Automation: Coordinates control of valves, sensors, and actuators in DCS systems.

• Industrial Robotics: Manages precise motion control and position feedback for robotic arms.

• Power Generation Systems: Controls turbine and generator operations with reliable feedback.

• Conveyor and Material Handling: Ensures smooth acceleration, deceleration, and positioning control.

• HVAC and Pump Systems: Provides optimized energy-efficient control of motors and compressors.

Its compatibility with ABB drive and automation platforms makes it a versatile solution for maintaining operational stability, energy efficiency, and system safety.

---

Product Advantages

• High-Speed Processing: Equipped with a 100 MHz microcontroller core, enabling rapid execution of control algorithms.

• Multi-Signal Handling: Simultaneously processes analog and digital inputs and outputs for flexible control strategies.

• Robust Diagnostics: LED indicators, fault detection, and self-test routines simplify system monitoring and maintenance.

• Communication Versatility: Supports RS-485, CAN, Modbus, and proprietary ABB bus protocols for integration across multiple systems.

• Enhanced System Protection: Provides galvanic isolation to protect logic circuits from voltage transients and electrical noise.

• Industrial Reliability: Designed to operate under high EMI conditions and wide temperature variations.

• Compact Modular Design: Allows easy installation, replacement, and system expansion.

• Energy Efficiency: Low power consumption contributes to reduced thermal stress and operational cost.

• Scalable Integration: Compatible with multiple ABB ACS and DCS platform configurations.

• Maintenance-Friendly: Modular architecture facilitates rapid field replacement and upgrades.

---

FAQ

1. What is the main purpose of the ABB GJR2370500R2 Control Module?
   It serves as the central processing and control unit for ABB drives and automation systems, managing both analog and digital inputs and outputs.

2. Which ABB systems are compatible with this module?
   It is compatible with ABB ACS drive series, DCS systems, and other industrial automation platforms that utilize the ABB proprietary communication bus.

3. What types of signals can the module handle?
   The module supports analog signals (0–10 V, 4–20 mA) and digital logic signals (TTL/24 V) for flexible control applications.

4. Does it provide diagnostic features?
   Yes, it includes LED indicators, fault detection, and self-test routines to assist in system troubleshooting and monitoring.

5. How is the module connected to the control system?
   It can be installed via rack-mounted slots or plug-in connectors and communicates through RS-485, CAN, Modbus, and ABB proprietary bus.

6. What is the processing capability of the control module?
   The board features a 100 MHz microcontroller core, capable of high-speed computation for real-time control applications.

7. How does the module ensure electrical safety?
   It includes 1500 V DC galvanic isolation between input/output circuits and logic boards to prevent electrical faults from propagating.

8. Can it operate in harsh industrial environments?
   Yes, it is designed to operate across 0–60°C, with high EMI immunity and resistance to voltage transients.

9. What type of memory is included in the module?
   The module contains 512 KB RAM and 2 MB Flash storage for program execution and data logging.

10. How does the module contribute to system reliability?
    By executing precise control algorithms, providing fault detection, and isolating sensitive electronics, it ensures consistent performance and reduced downtime.

---
