Product Introduction

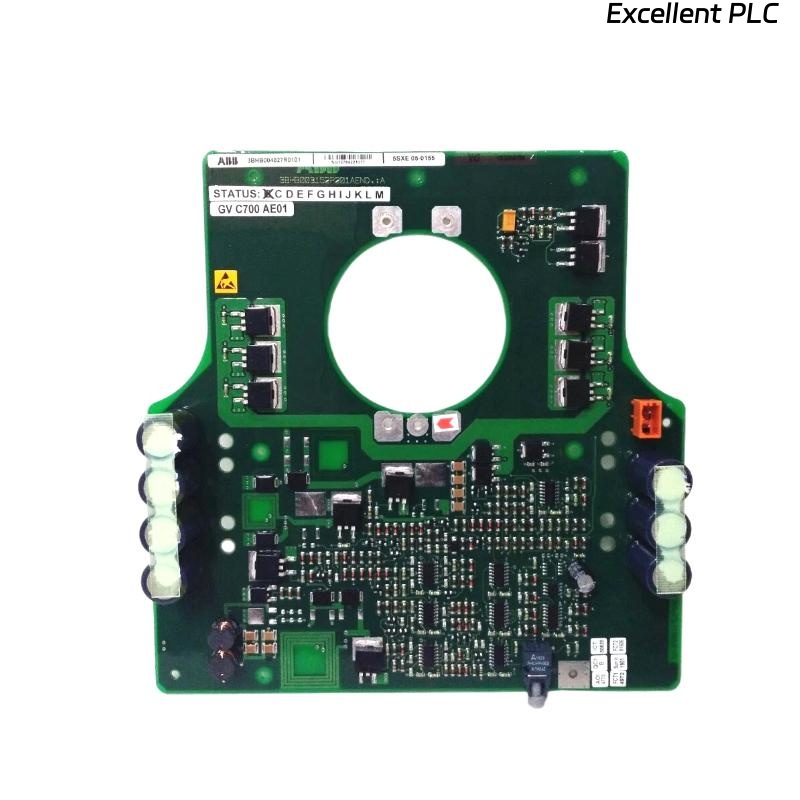

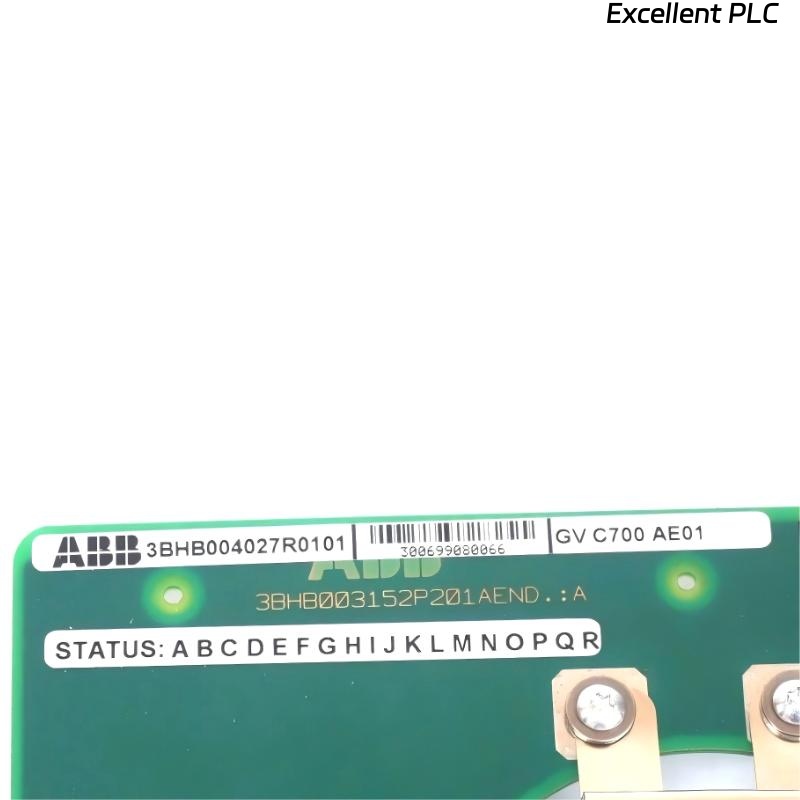

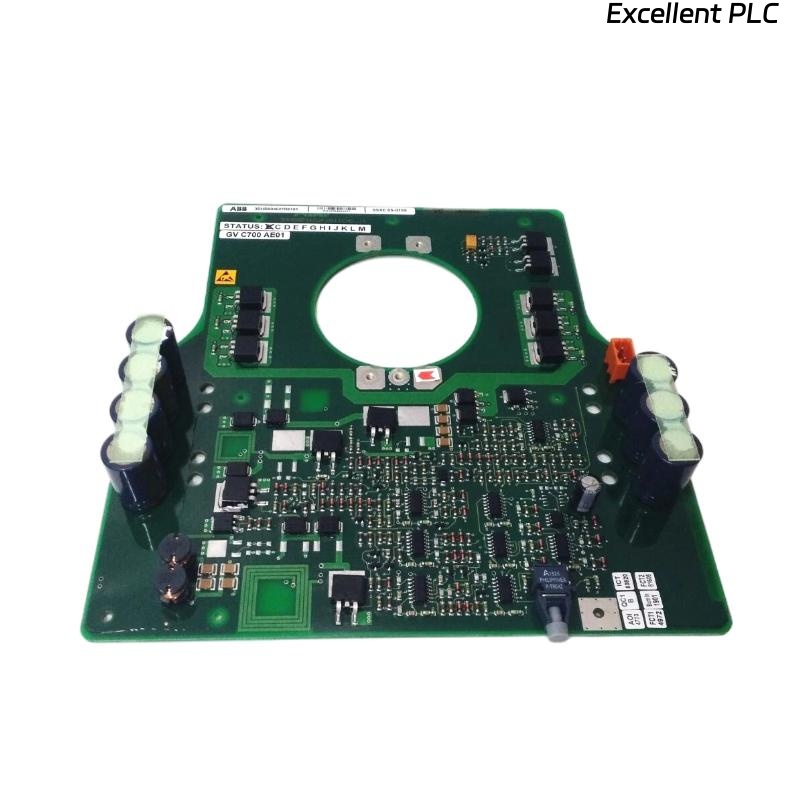

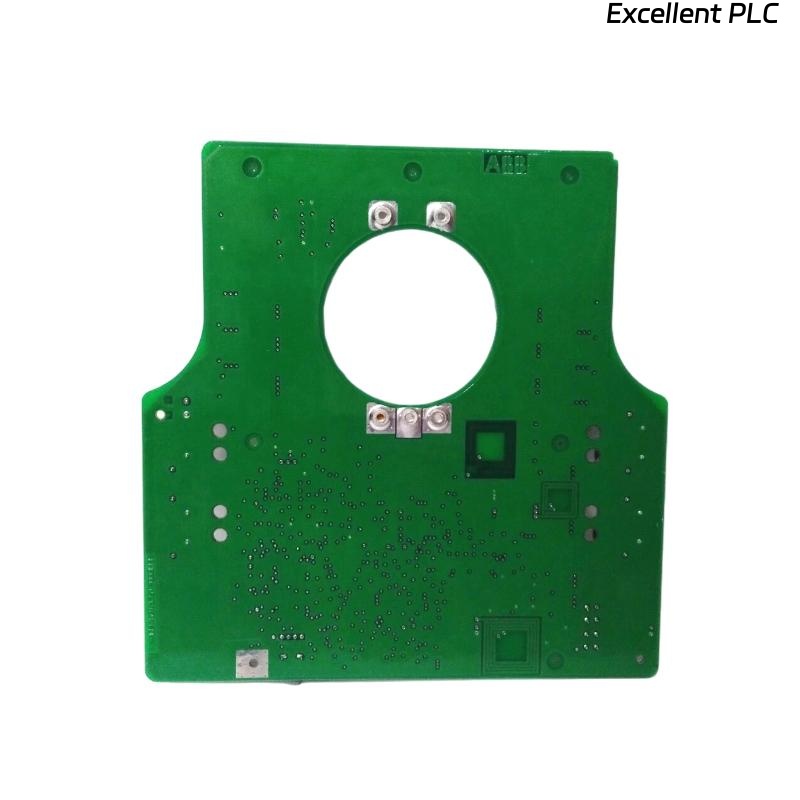

The ABB GV C700 AE01 Drive Board (3BHB004027R0101) is a high-performance electronic module designed for ABB C700 series drive systems. This drive board manages and regulates motor control signals, providing precise speed and torque control for industrial machinery.
Engineered for reliability in demanding environments, the GV C700 AE01 board supports both AC and DC drive configurations, ensuring seamless integration with existing ABB drive modules. It is widely used in manufacturing, processing plants, and automation systems where precision motion control is critical.
This board offers advanced diagnostics, fast response times, and robust protection features to maintain operational stability and prevent damage to connected motors or systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GV C700 AE01 Drive Board |
| ABB Part Number | 3BHB004027R0101 |
| Function | Motor control and drive signal management |
| Drive Compatibility | ABB C700 series AC and DC drives |
| Input Voltage | 24–48 V DC control input |
| Output Voltage | Regulated according to motor requirements |
| Control Signals | Analog, digital, and PWM outputs |
| Mounting Type | Rack or panel mount |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 5% to 95% non-condensing |
| Material | Industrial-grade PCB and metal enclosure |
| Dimensions (H × W × D) | 150 × 120 × 30 mm |
| Weight | 0.5 kg |
| Certifications | CE, UL, RoHS |
| Integration | Compatible with ABB C700 drive controllers and expansion modules |
Applications
The ABB GV C700 AE01 Drive Board is applied in various industrial settings, including:
-
Motor control in automated manufacturing lines for precise speed and torque regulation.
-
Pumps and fans in process industries requiring smooth start/stop and controlled acceleration.
-
Conveyor systems for accurate motion synchronization.
-
HVAC systems with variable-speed drives.
-
Packaging machinery, ensuring precise and repeatable motion cycles.
-
Industrial robotics, integrating with ABB controllers for motion management.
Product Advantages
-
Precision Control: Offers accurate speed, torque, and position management for industrial motors.
-
High Reliability: Industrial-grade components ensure stable operation under demanding conditions.
-
Advanced Diagnostics: Provides real-time monitoring and fault detection for predictive maintenance.
-
Flexible Mounting: Supports rack or panel installation for versatile system integration.
-
Compatibility: Works seamlessly with ABB C700 series drives and expansion modules.
-
Fast Response: High-speed PWM outputs enable rapid motor response.
-
Protection Features: Overcurrent, overvoltage, and short-circuit protections prevent damage.
-
Energy Efficient: Optimizes motor performance while reducing power losses.
-
Scalable: Supports multiple drive boards in modular setups for large systems.
-
Certified: CE, UL, and RoHS compliant for industrial safety and environmental standards.
FAQ
1. Which ABB drive systems is the GV C700 AE01 compatible with?
It is compatible with the ABB C700 series AC and DC drives for industrial motor control.
2. What types of motor control signals does the board handle?
The board handles analog, digital, and PWM signals for precise motor operation.
3. Can multiple drive boards be used in one drive rack?
Yes, multiple GV C700 AE01 boards can be integrated in modular drive systems to expand control capabilities.
4. Does the board provide built-in protection features?
Yes, it includes overcurrent, overvoltage, and short-circuit protections for safe operation.
5. How is the drive board powered?
It uses a 24–48 V DC control input to power the board and its control circuitry.
6. Is the board suitable for high-speed motor applications?
Yes, it supports high-speed PWM outputs for rapid motor response.
7. Can this drive board interface with other ABB modules?
Yes, it is designed to integrate seamlessly with ABB C700 series controllers and expansion modules.
8. How is the drive board mounted?
The board supports both rack-mounted and panel-mounted configurations.
9. Does it provide diagnostic feedback?
Yes, it features advanced diagnostics for real-time monitoring and fault detection.
10. Is the board compliant with industrial safety standards?
Yes, it is CE, UL, and RoHS certified for industrial safety and environmental compliance.
Related Models (Same Series)
| Model | Description | Function | Weight |
|---|---|---|---|
| 3BHB004028R0101 | GV C700 AE02 Drive Board | Motor control module | 0.87 kg |
| 3BHB004029R0101 | GV C700 AE03 Drive Board | Enhanced PWM control | 0.90 kg |
| 3BHB004030R0101 | GV C700 AE04 Drive Board | Multi-motor control | 0.92 kg |
| 3BHB004031R0101 | GV C700 AE05 Drive Board | Integrated diagnostics | 0.88 kg |
| 3BHB004032R0101 | GV C700 AE06 Drive Board | High-speed response board | 0.91 kg |
| 3BHB004033R0101 | GV C700 AE07 Drive Board | Modular expansion interface | 0.89 kg |
Popular ABB Models
| Model | Product Type | Application | Weight |
|---|---|---|---|
| 3BHB004020R0101 | GV C700 CPU Module | Central processing unit | 1.2 kg |
| 3BHB004021R0101 | GV C700 I/O Board | Digital/analog interface | 0.75 kg |
| 3BHB004022R0101 | GV C700 Power Supply | Rack power module | 1.0 kg |
| 3BHB004023R0101 | GV C700 Communication Board | Network integration | 0.65 kg |
| 3BHB004024R0101 | GV C700 Control Panel | Operator interface module | 1.1 kg |
| 3BHB004025R0101 | GV C700 Expansion Board | Additional motor control | 0.85 kg |
