Product Overview

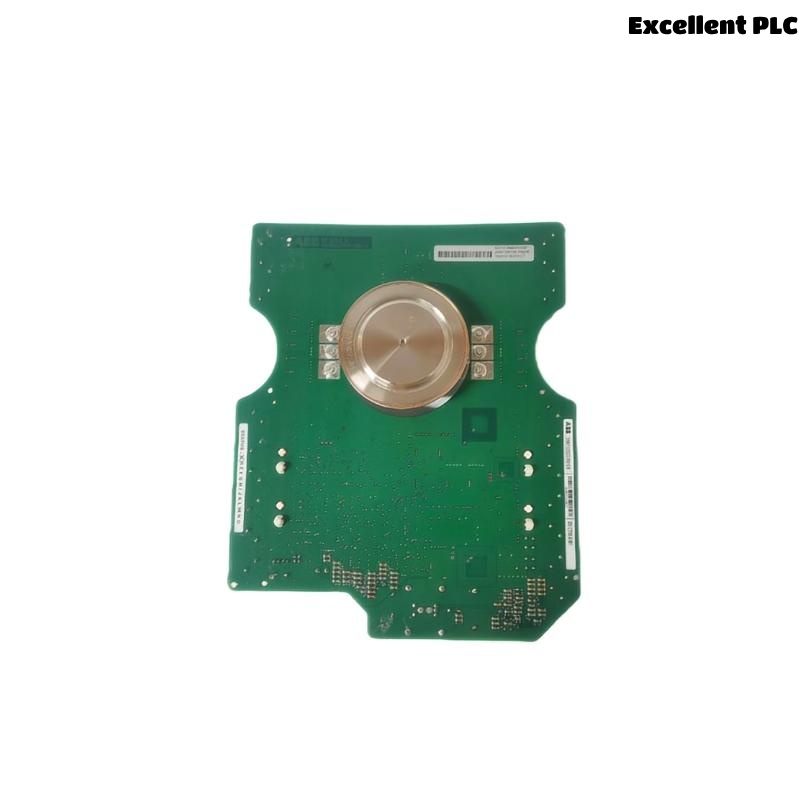

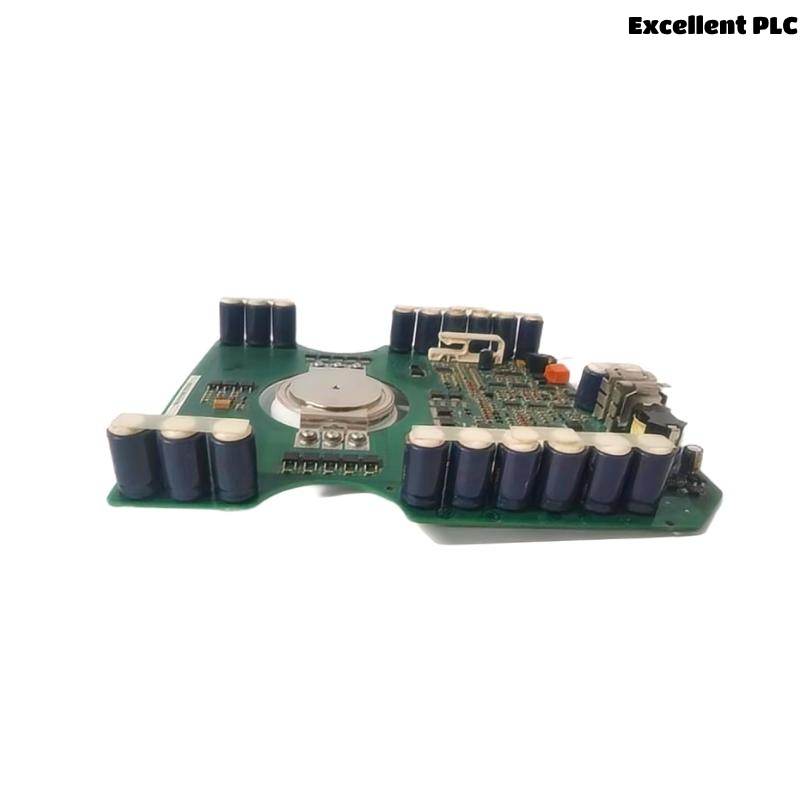

The ABB GVC713 A101 (5SHX0660F0002 / 3BHE022333R0101) is a highly advanced Integrated Gate-Commutated Thyristor (IGCT) module developed by ABB for use in high-power industrial and utility-scale power electronics applications. Designed to handle extreme switching capabilities and high current ratings, this IGCT module offers unparalleled robustness, efficiency, and reliability in demanding environments.
The GVC713 A101 module is part of ABB’s IGCT platform, renowned for reducing conduction and switching losses, making it ideal for applications such as medium voltage drives, frequency converters, power transmission systems, and other high-performance power electronic converters.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | GVC713 A101 IGCT Module |
| Manufacturer | ABB |
| Part Number | 5SHX0660F0002 / 3BHE022333R0101 |
| Type | IGCT (Integrated Gate-Commutated Thyristor) |
| Voltage Rating | 4.5 kV |
| Current Rating | 3000 A (typical) |
| Turn-Off Capability | High – fast turn-off switching |
| Switching Frequency | Typically up to a few kHz |
| Gate Drive | Integrated Gate Unit |
| Cooling Method | Forced air or liquid cooling (dependent on application) |
| Mounting | Press-pack |
| Housing | Fully insulated ceramic housing |
| Dimensions (L × W × H) | 190 x 140 x 38 mm |
| Weight | 1.2 kg |
| Operational Temperature Range | -40°C to +125°C |
| Storage Temperature | -55°C to +150°C |
| Insulation Voltage | 10 kV RMS |
| Lifetime | >20 years in controlled environments |
| Compliance | RoHS, CE |
Applications
The GVC713 A101 IGCT module is widely used in high-power and high-voltage industrial systems where reliable and efficient power switching is critical. Major application areas include:
-
Medium Voltage Drives
Used in controlling large motors in industrial plants, cement mills, and mining operations. -
HVDC Systems (High Voltage Direct Current)
Deployed in long-distance power transmission systems to reduce energy loss. -
Static VAR Compensators (SVC)
Used in power grid systems to stabilize and control voltage levels. -
Traction and Rail Systems
Suitable for locomotives and electric rail systems requiring efficient power control. -
Wind and Hydro Power Converters
Ensures smooth conversion and transmission of renewable energy sources. -
Power Inverters and Converters
Integrated in systems requiring precise switching, such as UPS and energy storage.
Product Advantages
-
High Current Handling Capability
Capable of managing large amounts of current with minimal loss, making it suitable for power-dense systems. -
Integrated Gate Driver
Reduces complexity in design and improves reliability and performance of the switching mechanism. -
Fast Switching with Low Losses
Combines the benefits of both IGBT and thyristor technologies, providing fast switching speeds with lower conduction losses. -
Thermal Robustness
Wide operating temperature range and high thermal cycling capability, ensuring stability in harsh industrial conditions. -
Long Service Life
Designed for longevity with minimal maintenance in mission-critical operations. -
Mechanical Robustness
Press-pack design provides excellent resistance to mechanical shock and vibration, crucial in mobile and rail applications. -
Compact Design
Smaller footprint and lower weight than traditional thyristor-based modules with equivalent ratings.
Frequently Asked Questions (FAQ)
-
What is the rated voltage and current of the GVC713 A101 module?
The module is rated for 4.5 kV and typically handles currents around 3000 A. -
Can the module be used in renewable energy systems?
Yes, it’s widely used in wind and hydro power inverters and converters. -
Is the gate driver integrated into the module?
Yes, it features an integrated gate unit, simplifying the system design. -
What is the cooling requirement?
Depending on the application, it supports both forced air and liquid cooling. -
How is the module mounted?
It utilizes a press-pack mounting technique, which provides strong mechanical stability. -
What are the advantages of using IGCT over IGBT in high power systems?
IGCT offers lower conduction and switching losses, and better robustness at higher power levels. -
Is this IGCT module RoHS compliant?
Yes, it meets RoHS and CE compliance standards. -
What industries commonly use this product?
Utilities, heavy industries, transportation, and renewable energy sectors. -
Can it be used in environments with high temperature fluctuations?
Absolutely. The module operates reliably in a wide temperature range (-40°C to +125°C). -
What is the expected operational lifespan of the module?
When used in optimal conditions, the module can exceed 20 years of operational life.
Related Models (Same Series or Functionally Similar)
| Model | Part Number | Voltage | Current | Type |
|---|---|---|---|---|
| GVC713 A102 | 5SHX0660F0003 | 4.5 kV | 3000 A | IGCT Module |
| GCT530 A170 | 5SHX1060L0001 | 4.5 kV | 4000 A | IGCT Module |
| GTO170A120 | 5STP20H2801 | 4.5 kV | 2000 A | GTO Thyristor |
| GVC750 B103 | 5SHX1445H0001 | 6.0 kV | 3500 A | IGCT Module |
| 5SHX1060L0002 | GCT600 A170 | 4.5 kV | 4000 A | IGCT Module |
| GVC900 B101 | 5SHX2660L0001 | 6.5 kV | 4500 A | IGCT Module |
