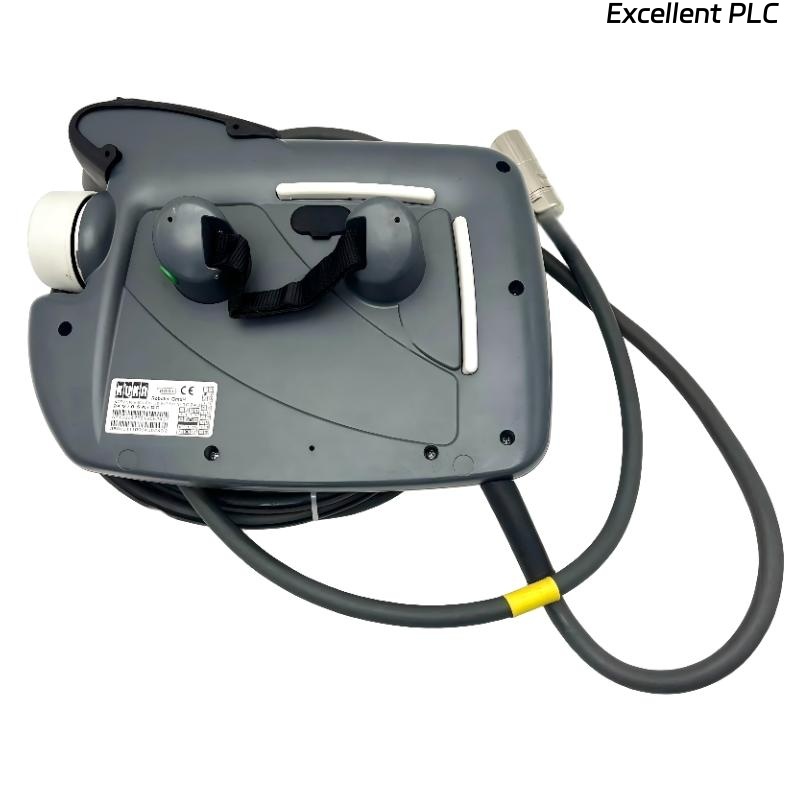

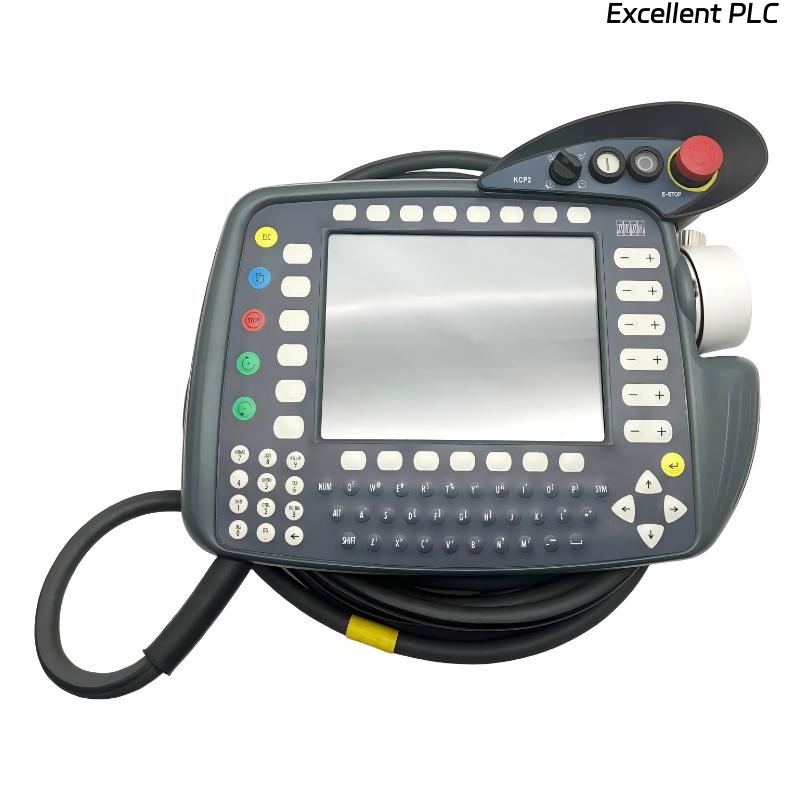

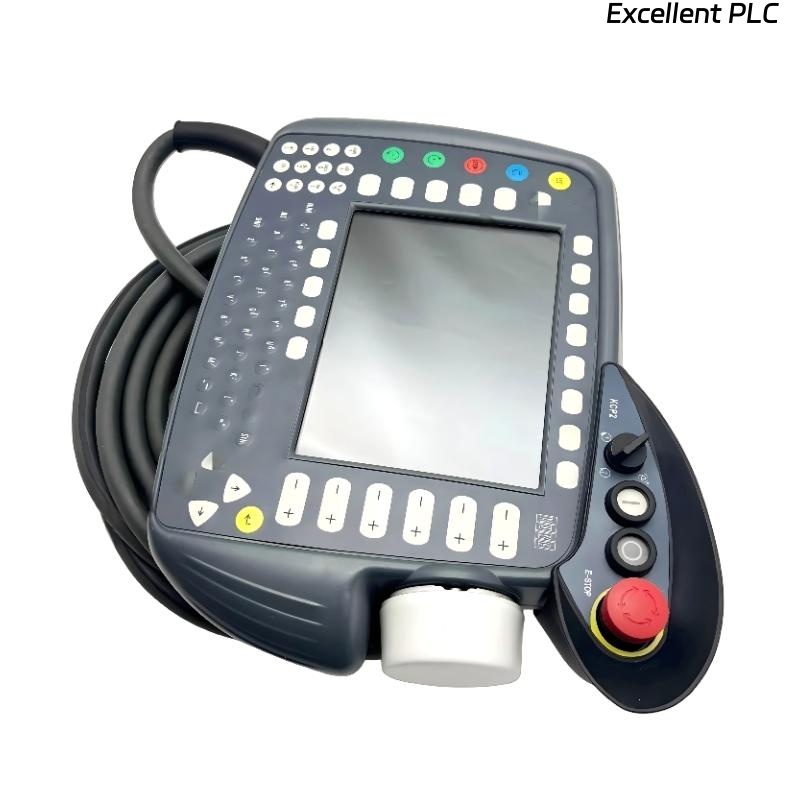

ABB (KUKA) 00-130-547 Teach Pendant Control Panel

Product Introduction

The ABB (KUKA) 00-130-547 Teach Pendant Control Panel (KCP2) is a high-performance operator interface designed for KUKA robots. It serves as a central control and programming unit, providing intuitive, precise, and safe robot operation. Equipped with a large color display, ergonomic 6D mouse, and integrated protection, the KCP2 teach pendant ensures both operator safety and efficient programming of industrial robots.

The device supports universal application across all KUKA robots running KSS and Sunrise.OS, allowing users to operate the robot in their preferred language. Its ergonomic design, intuitive control features, and simplified data handling make it suitable for both manual operation and complex programming tasks in industrial automation.

---

Product Specifications

---

Applications

• Robot operation and programming for all KUKA robots with KSS or Sunrise.OS

• Precise manual jogging using the ergonomic 6D mouse in three or six degrees of freedom

• Data transfer and program management via two easily accessible USB ports

• Multi-language operation for international manufacturing and automation facilities

• Safe robot handling, with integrated protectors reducing the risk of damage from accidental drops

• Maintenance and service operations, allowing simple cable replacement without disassembly

---

Advantages

• Ergonomic design, providing intuitive handling and reduced operator fatigue

• High-resolution color display, allowing clear visualization of programs and robot status

• Integrated protective features, ensuring device safety during operation

• Efficient data handling, enabling direct loading and saving of application programs

• Universal robot compatibility, supporting all KUKA robots running KSS or Sunrise.OS

• Capacitive touch interface, allowing quick and precise input operations

• Maintenance-friendly, with service flap for easy cable replacement

FAQ

1. What types of KUKA robots are compatible with this teach pendant?
   The KCP2 is compatible with all KUKA robots running KSS and Sunrise.OS.

2. What is the function of the 6D mouse?
   The ergonomic 6D mouse enables intuitive jogging and reorientation of the robot in three or six degrees of freedom.

3. How is data transferred to and from the teach pendant?
   Two USB ports allow direct saving and loading of programs and connection of supported USB devices.

4. Can the KCP2 operate in multiple languages?
   Yes, the device supports multilingual operation through the KUKA smartPAD interface.

5. What safety features are included?
   Integrated protectors provide drop protection to minimize damage in case of accidental falls.

6. How does the touchscreen improve operation?
   The capacitive touch display allows quick and precise input, improving programming and control efficiency.

7. Is the teach pendant easy to maintain?
   Yes, a service flap allows simple replacement of the cable as needed.

8. What is the maximum cable length available?
   The standard cable length for the KCP2 is 10 meters.

9. Can the teach pendant control multiple robots simultaneously?
   Typically, each KCP2 is dedicated to a single robot; multi-robot control requires additional system configuration.

10. Does the KCP2 support firmware updates?
    Yes, the teach pendant can receive updates via USB or system programming tools.
