Product Introduction

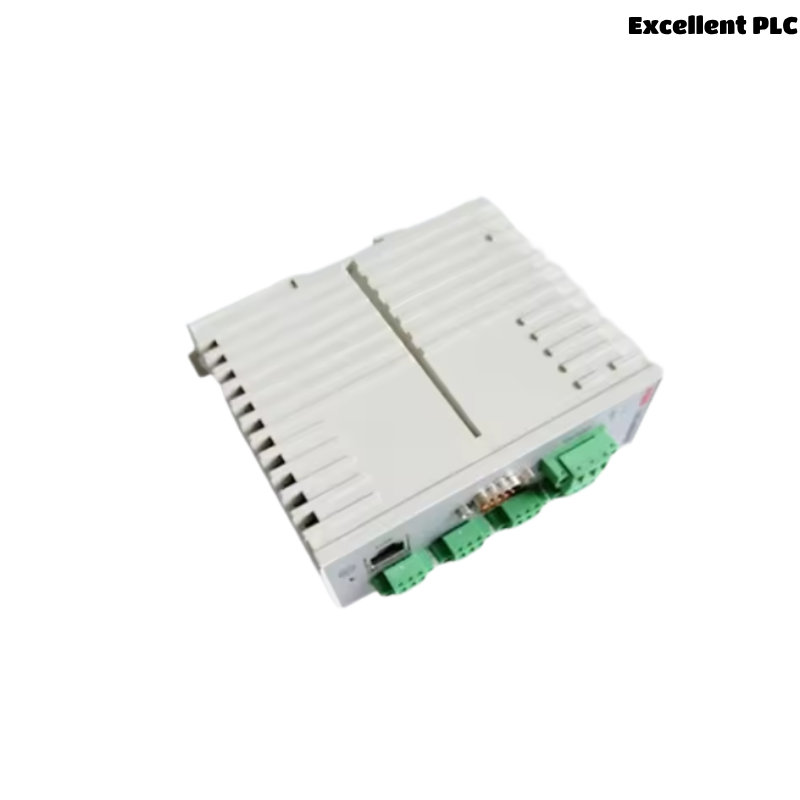

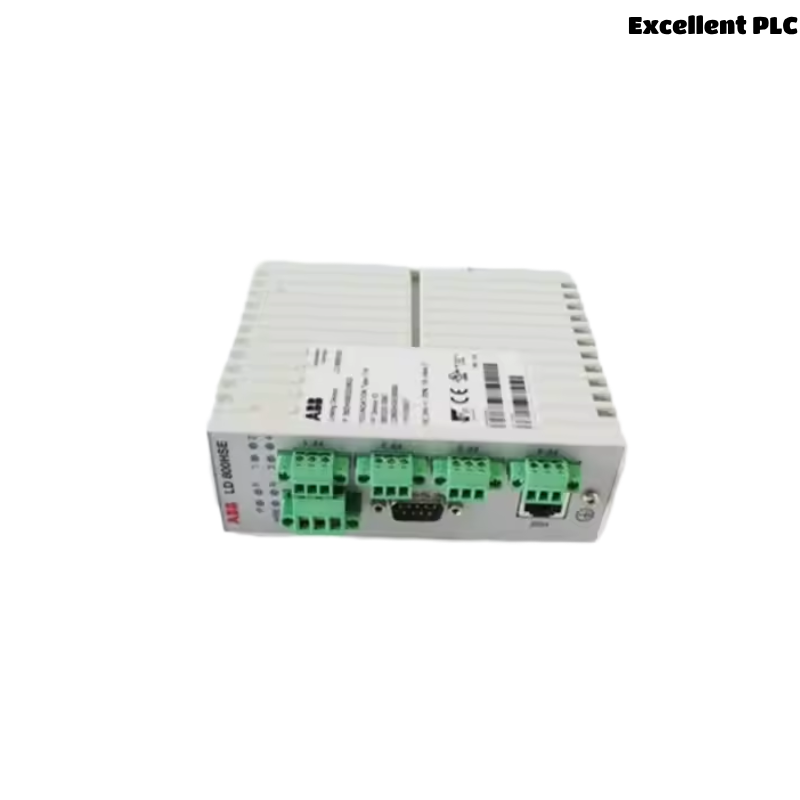

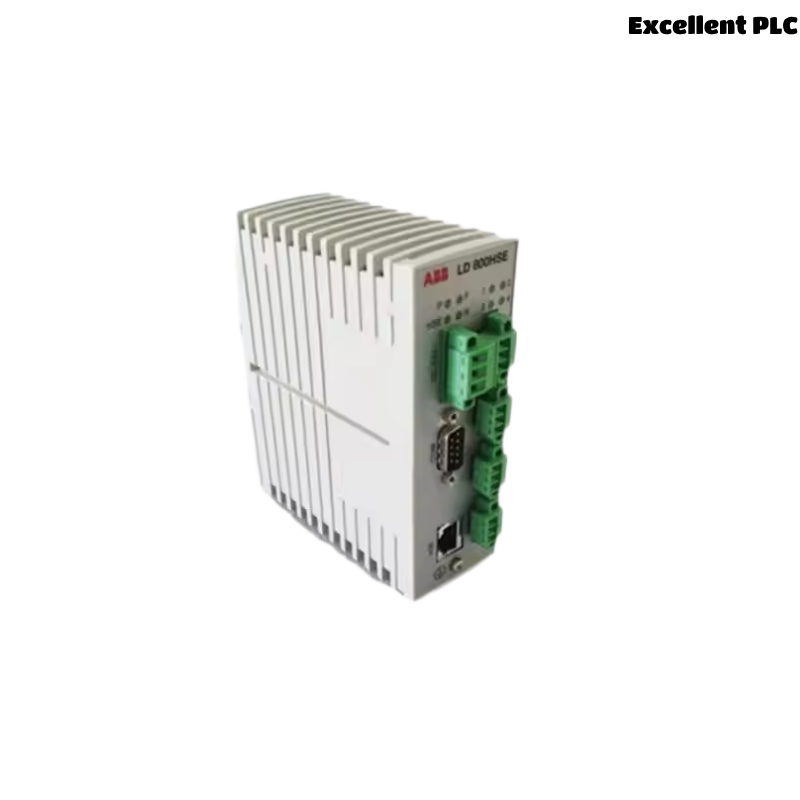

The ABB LD 810HSE EX 3BSE091722R1 is a robust and reliable linking device designed for use in industrial automation systems. It serves as a key component for enabling communication between distributed control systems (DCS) and various field devices in hazardous and complex environments. This model is part of ABB’s extensive range of linking devices, known for their exceptional performance, scalability, and compatibility with ABB’s automation systems.
The LD 810HSE EX is specifically engineered to meet the demands of industries that require real-time data exchange and high-speed communication while maintaining safety in hazardous environments. The device ensures smooth operation in environments with explosive risks, offering intrinsic safety features that comply with international standards. This is particularly important in industries like oil and gas, chemicals, and pharmaceuticals, where safety is paramount.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 105 × 100 × 35 mm |
| Weight | 0.25 kg |
| Operating Voltage | 24 V DC |
| Fieldbus Protocol | FOUNDATION fieldbus |
| Number of Ports | 4 ports |
| Communication Speed | 31.25 kbit/s |
| Temperature Range | -20°C to +60°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Ex Certification | Ex ia IIC T4 Ga |
| Compliance | CE, UL, CSA certified |
Applications
The ABB LD 810HSE EX linking device is designed for a variety of applications, especially in hazardous environments where safety is critical. Key uses include:
-
Process Control: Facilitating real-time communication between control systems and field devices such as sensors, actuators, and valves in industries such as oil & gas, chemical processing, and pharmaceuticals.
-
Hazardous Environments: Suitable for use in explosive atmospheres, the LD 810HSE EX complies with stringent intrinsic safety standards, ensuring it can be safely used in areas where combustible gases and vapors may be present.
-
Energy and Utilities: Used for monitoring and controlling devices in power plants, water treatment facilities, and other utility sectors where continuous communication and reliable data transmission are essential.
-
Manufacturing and Automation: Enhances communication between various field devices and control systems in automated manufacturing lines, improving efficiency and reducing downtime.
-
Smart Building Systems: Used for integrating smart field devices within building automation systems to control lighting, HVAC, and other building systems.
-
Marine and Offshore: With its explosion-proof certification, the LD 810HSE EX is ideal for use in marine and offshore platforms where hazardous conditions are prevalent.
Advantages
-
Intrinsically Safe Design: The LD 810HSE EX is certified for use in explosive environments, with Ex ia IIC T4 Ga protection, making it a safe and reliable choice for hazardous industries.
-
Compact and Space-Efficient: With its small dimensions (105 × 100 × 35 mm) and lightweight design (0.25 kg), the device can be easily integrated into space-constrained systems.
-
Robust Communication: Supporting FOUNDATION fieldbus protocol, it ensures high-speed, reliable data exchange between control systems and field devices.
-
Wide Temperature Range: The device operates in temperatures from -20°C to +60°C, ensuring reliable performance in a variety of industrial environments.
-
High-Speed Data Transfer: With a communication speed of up to 31.25 kbit/s, the device ensures fast and accurate data transmission between field devices and the control system.
-
Reliable and Durable: Built to withstand harsh environmental conditions, the LD 810HSE EX offers long-lasting performance and minimizes the need for maintenance.
-
Certified Safety Standards: The device meets key safety certifications including CE, UL, and CSA, ensuring its reliability and adherence to international safety standards.
FAQs
-
What is the fieldbus protocol used by the LD 810HSE EX module?
The LD 810HSE EX supports the FOUNDATION fieldbus protocol for communication between control systems and field devices. -
What certifications does the LD 810HSE EX have?
The module is CE, UL, and CSA certified, ensuring compliance with international safety standards. It also has Ex ia IIC T4 Ga intrinsic safety certification. -
What is the temperature range for the LD 810HSE EX module?
The module operates within a temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments. -
What is the weight of the LD 810HSE EX module?
The module weighs 0.25 kg, making it compact and easy to install. -
How many ports does the LD 810HSE EX module have?
The device has 4 ports for field device communication, supporting multiple devices in a network. -
Can the LD 810HSE EX module be used in hazardous environments?
Yes, the LD 810HSE EX is intrinsically safe and certified for use in explosive atmospheres, making it ideal for hazardous environments. -
What is the operating voltage for the LD 810HSE EX module?
The module operates at 24 V DC. -
What is the communication speed of the LD 810HSE EX?
The module supports a communication speed of 31.25 kbit/s. -
Is the LD 810HSE EX module easy to integrate with ABB control systems?
Yes, the module integrates seamlessly with ABB’s control systems, making it a versatile solution for automation needs. -
How is the LD 810HSE EX module mounted?
The device is designed for rail mounting, ensuring easy installation in control panels or other space-constrained environments.
Recommended Models (Same Series or Related Models)
| Model | Description | Dimensions (L x W x H) | Weight |
|---|---|---|---|
| LD 810HSE | Linking device for hazardous areas | 105 × 100 × 35 mm | 0.25 kg |
| LD 820HSE | Advanced linking device for fieldbus systems | 105 × 100 × 35 mm | 0.25 kg |
| LD 830HSE | High-performance linking device | 105 × 100 × 35 mm | 0.25 kg |
| LD 840HSE | Multi-protocol linking device | 105 × 100 × 35 mm | 0.25 kg |
| LD 810EX | Explosion-proof linking device | 105 × 100 × 35 mm | 0.25 kg |
| LD 820EX | Explosion-proof fieldbus device | 105 × 100 × 35 mm | 0.25 kg |
Popular ABB Models
| Model | Description | Dimensions (L x W x H) | Weight |
|---|---|---|---|
| KU D581 A101 | Digital I/O module with advanced features | 120 x 90 x 60 mm | 0.5 kg |
| KUB921A01 | Compact I/O module for industrial control | 110 x 80 x 55 mm | 0.45 kg |
| KUC711AE101 | High-speed data acquisition module | 130 x 100 x 70 mm | 0.6 kg |
| KU D582 A102 | Enhanced digital I/O module with higher capacity | 120 x 90 x 60 mm | 0.52 kg |
| KUB922A02 | Industrial I/O module with extended range | 110 x 80 x 55 mm | 0.48 kg |
| KUC712AE102 | Advanced data acquisition module for control | 130 x 100 x 70 mm | 0.62 kg |
