Product Introduction

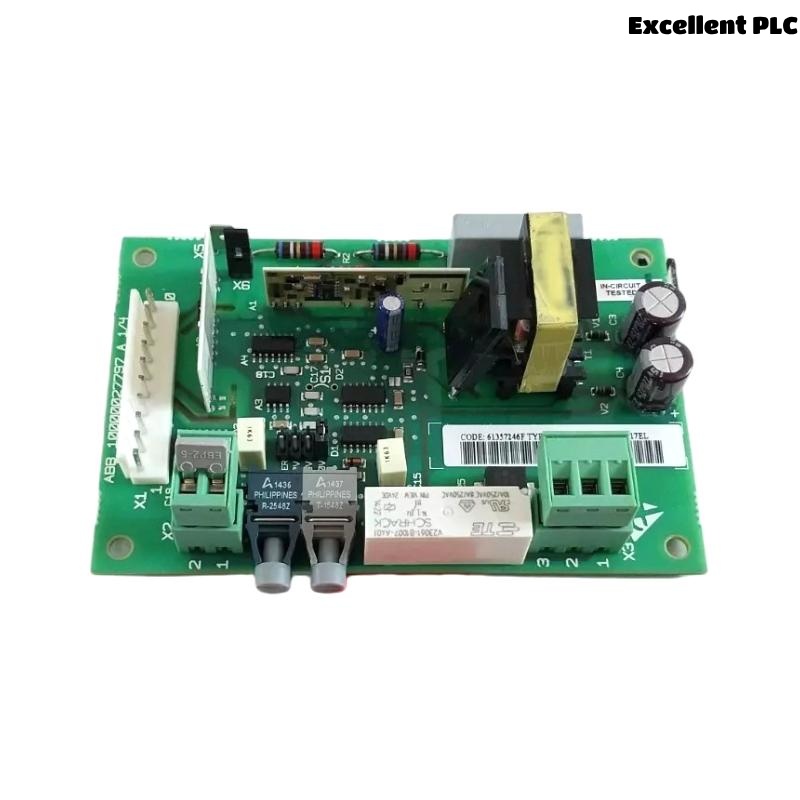

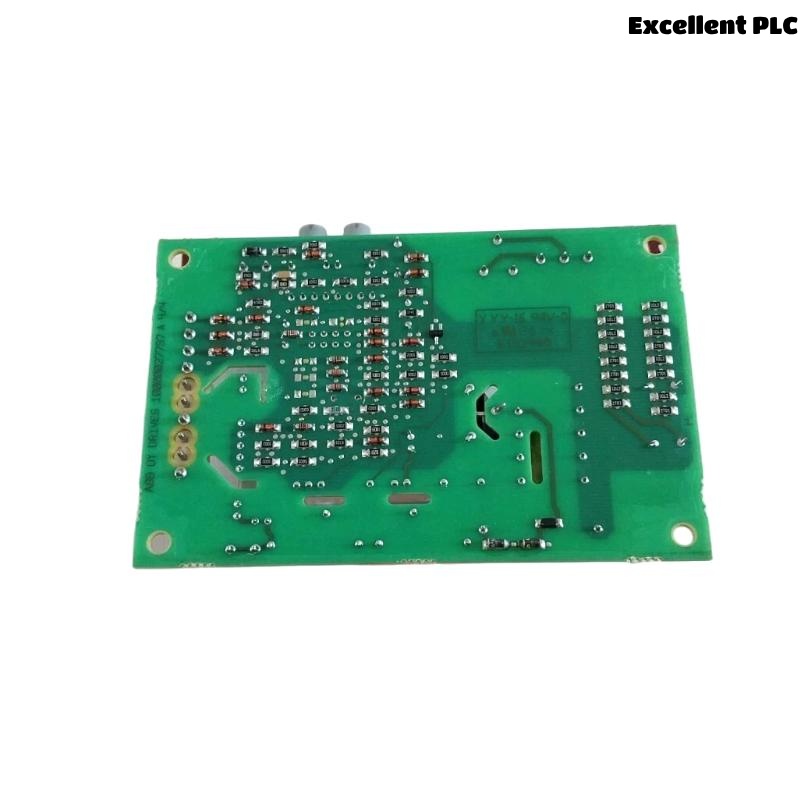

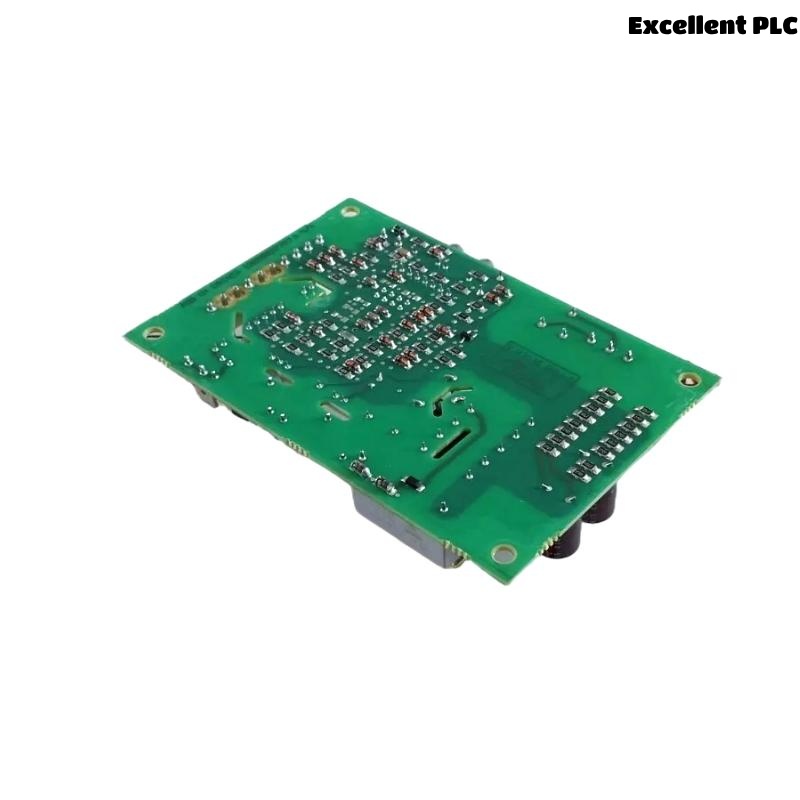

The ABB NBRC-61C (Part No. 61357246F) is a Chopper Brake Unit Control Board designed for use in braking resistor systems in variable frequency drive (VFD) applications. It forms a critical component within the dynamic braking system of ABB drives, managing the control of excess energy dissipation during regenerative braking.
When a motor decelerates, the kinetic energy of the rotating load is converted into electrical energy. The NBRC-61C board activates the braking resistor to safely dissipate this energy, ensuring system stability and preventing overvoltage conditions in the DC bus of the drive.
Highly reliable and engineered to operate under demanding industrial environments, the NBRC-61C is commonly found in motion control systems, elevators, hoists, conveyors, and heavy-duty motor drives where rapid braking is essential.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | NBRC-61C |
| Part Number | 61357246F |
| Function | Brake chopper control for VFD systems |
| Compatible Drives | ABB ACS600, ACS800, and selected industrial series |
| Voltage Range | 380 V – 690 V AC |
| Control Type | IGBT-based dynamic brake chopper control |
| Mounting Type | Panel or enclosure-mounted |
| Cooling Method | Natural air convection (passive) |
| Circuit Type | Gate driver & trigger control for chopper IGBT |
| Material | PCB with industrial-grade conformal coating |
| Protection Features | Overvoltage trigger, short circuit protection, thermal monitoring |
| Communication | Internal logic only (no external communication) |
| Ambient Operating Temp. | -10°C to +60°C |
| Humidity Range | 5% – 95% non-condensing |
| Certifications | CE, RoHS, IEC 61800 compliance |
| Dimensions (H x W x D) | 110 x 69 x 30 mm |
| Weight | 0.15 kg |
Applications
The NBRC-61C Brake Control Board is purpose-built for integration into industrial braking systems, offering a safe and controlled solution to dissipate regenerative energy. Typical application areas include:
-
Elevators and Hoists – Ensures smooth deceleration during rapid directional changes
-
Cranes and Winches – Manages braking loads under heavy-duty conditions
-
Conveyor Systems – Maintains controlled stopping in automated logistics
-
Centrifuges and Spindles – Helps in quick halting of rotational equipment
-
Rolling Mills – Handles braking energy in high-torque industrial applications
-
Machine Tools – For braking electric motors in CNC and automated systems
Advantages
-
Efficient Energy Dissipation: Protects VFD systems from overvoltage during motor deceleration.
-
Reliability in Harsh Environments: Built with industrial-grade PCB materials and robust components.
-
Precise Trigger Control: Advanced gate control for IGBT ensures fast and accurate activation of brake resistors.
-
Broad Compatibility: Works with several ABB drive families such as ACS600 and ACS800.
-
Compact and Lightweight Design: Optimized for panel integration with minimal space consumption.
-
No External Programming Required: Designed for plug-and-play internal operation.
-
Enhanced Safety Features: Equipped with protection circuitry for thermal and electrical anomalies.
-
Reduced Maintenance Downtime: High-quality build reduces wear-and-tear and increases MTBF.
-
Scalable for Multi-Drive Systems: Suitable for both standalone and multi-motor installations.
Frequently Asked Questions (FAQ)
1. What is the primary function of the ABB NBRC-61C board?
It serves as a control unit that manages the activation of braking resistors to dissipate excess regenerative energy from motors.
2. Which ABB drive models are compatible with the NBRC-61C?
It is commonly used with ACS600, ACS800, and similar ABB industrial VFD systems.
3. Does this board require external programming or configuration?
No, the NBRC-61C is designed for internal logic control without external programming.
4. How does this board connect with the braking resistor?
It interfaces through internal relay and gate driver circuits to control IGBT-based resistor switching.
5. What happens if the control board fails?
The drive will typically enter a fault mode or overvoltage protection will engage to safeguard the system.
6. Can the board operate in high humidity conditions?
Yes, it is rated for 5% to 95% relative humidity, non-condensing.
7. What is the mounting method?
It is panel-mounted inside a drive cabinet or enclosure.
8. Is the NBRC-61C user-serviceable?
No, it is a factory-assembled control board and should be replaced as a whole if malfunction occurs.
9. Does it require active cooling?
No, the board uses passive cooling and is designed for natural air convection.
10. What certifications does this product meet?
It is compliant with CE, RoHS, and IEC 61800 standards for industrial control equipment.
Related Models from the Same or Similar Series
| Model | Description | Voltage Range | Weight | Compatibility |
|---|---|---|---|---|
| NBRA-61 | Chopper Resistor Board for ABB Drives | 380–690 V | 0.80 kg | ACS600, ACS800 |
| NBRC-62C | Advanced Chopper Brake Control Board | 380–690 V | 0.90 kg | ACS880, ACS850 |
| NBRC-65 | High-Capacity Brake Chopper Board | 400–690 V | 1.00 kg | ACS800, DCS800 |
| NBRF-60 | Fast Response Braking Board | 380–500 V | 0.85 kg | ACS600 series |
| NBRC-67 | Dual Resistor Control Board | 400–690 V | 1.10 kg | Heavy-duty drives |
| NBRC-60B | Legacy Brake Control Module | 380–480 V | 0.75 kg | Older ABB drive models |
