Product Introduction

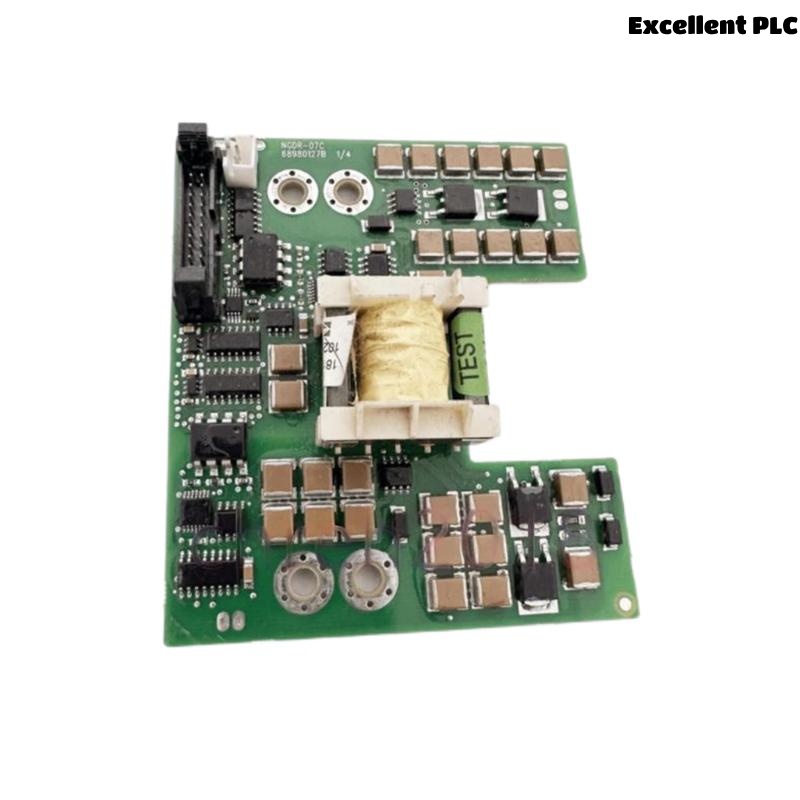

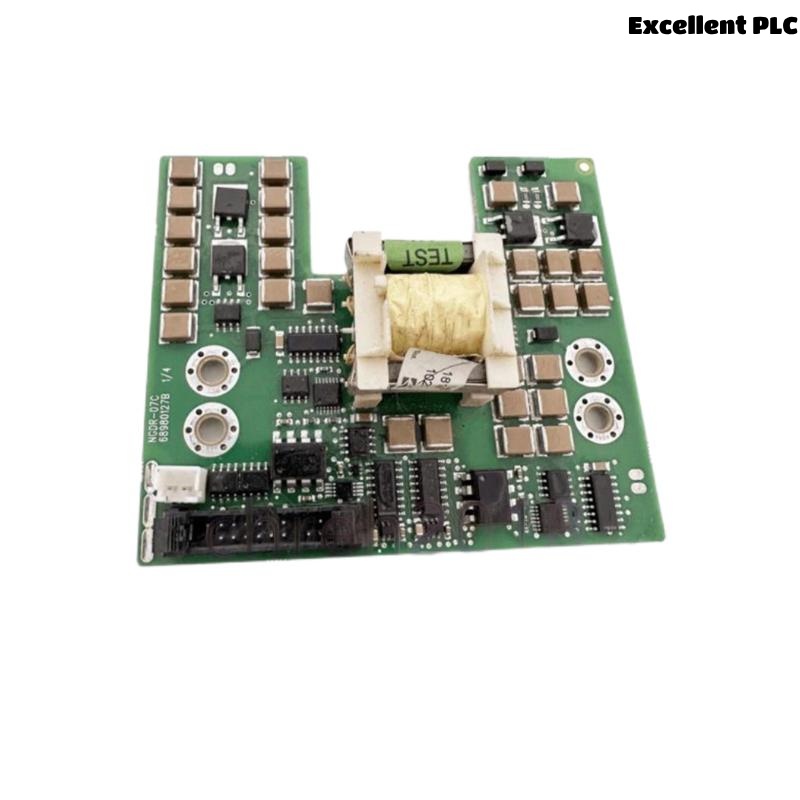

The ABB NGDR-07C 68980127B is an advanced inverter trigger board designed to enhance the functionality and reliability of ABB’s inverter systems. This component is engineered to provide precise control over the switching and triggering of power electronic devices within an inverter system, ensuring smooth operation and optimized performance.
The trigger board is integral to the efficient operation of power inverters, which are widely used in industrial automation, renewable energy systems, and various other applications requiring reliable power conversion. It plays a critical role in ensuring that the inverter operates within specified parameters, minimizing the risk of failure and improving the overall efficiency of the system.
Designed with high precision, the NGDR-07C 68980127B inverter trigger board provides enhanced protection and control for the system, ensuring that electrical components are triggered at the right time to maintain operational stability and avoid overheating or overloading.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | NGDR-07C 68980127B |
| Dimensions (L × W × H) | 159 × 149 × 20 mm |
| Weight | 0.11 kg |
| Voltage Range | 12V to 24V DC |
| Current Rating | 1 A |
| Operating Temperature Range | -10°C to +60°C |
| Power Consumption | 0.8 W |
| Mounting Type | DIN Rail Mounting |
| Protection Rating | IP20 |
| Communication Protocols | Modbus, CANBus |
| Compliance | CE, UL |
Product Applications
The ABB NGDR-07C 68980127B Inverter Trigger Board is used in various applications where precise control of power inverters is required. These applications include:
-
Industrial Automation: Used in automated manufacturing systems where inverters are needed to control motors, conveyors, and other equipment.
-
Renewable Energy Systems: Integral to solar power inverters and wind turbine systems, where precise power conversion is necessary for system efficiency.
-
HVAC Systems: Ensures the effective control of inverters used in heating, ventilation, and air conditioning systems.
-
Electric Vehicles (EVs): Plays a critical role in controlling power electronics in electric vehicles, ensuring smooth operation of the electric drive systems.
-
Uninterruptible Power Supply (UPS) Systems: Helps in managing the inverters within UPS systems to provide reliable backup power in case of failure from the main power source.
Product Advantages
-
High Efficiency: The NGDR-07C 68980127B trigger board is designed to improve the overall efficiency of inverter systems, reducing power losses and ensuring optimal performance.
-
Precise Control: With advanced triggering capabilities, it ensures that inverters function with precise timing, minimizing the risk of faults and enhancing the lifespan of the entire system.
-
Wide Operating Temperature Range: The board operates effectively in harsh environments with temperatures ranging from -10°C to +60°C, making it suitable for use in diverse industrial conditions.
-
Compact and Robust Design: The board is compact (159 × 149 × 20 mm) and lightweight (0.11 kg), allowing for easy integration into existing systems without taking up much space.
-
Versatile Communication Protocols: It supports Modbus and CANBus communication protocols, enabling easy integration with various industrial automation systems and offering flexibility in system design.
-
Enhanced Protection: The IP20 protection rating ensures that the trigger board is protected from dust and debris, making it a reliable component for industrial applications.
Frequently Asked Questions (FAQs)
Q1: What voltage range does the ABB NGDR-07C inverter trigger board operate within?
A1: The board operates within a voltage range of 12V to 24V DC.
Q2: What is the weight of the ABB NGDR-07C inverter trigger board?
A2: The board weighs 0.11 kg.
Q3: What are the typical applications of the NGDR-07C inverter trigger board?
A3: It is used in industrial automation, renewable energy systems, HVAC systems, electric vehicles, and uninterruptible power supply (UPS) systems.
Q4: What is the power consumption of the NGDR-07C inverter trigger board?
A4: The board consumes 0.8 W of power.
Q5: What is the operating temperature range for this board?
A5: The board can operate within a temperature range of -10°C to +60°C.
Q6: What mounting method is supported by the ABB NGDR-07C inverter trigger board?
A6: The board supports DIN rail mounting, which makes it easy to integrate into existing systems.
Q7: Is the NGDR-07C inverter trigger board compliant with international standards?
A7: Yes, the board complies with CE and UL standards, ensuring safety and reliability.
Q8: What protection rating does the NGDR-07C inverter trigger board have?
A8: The board has an IP20 protection rating, ensuring protection from dust and debris.
Q9: What communication protocols are supported by the NGDR-07C inverter trigger board?
A9: The board supports Modbus and CANBus communication protocols.
Q10: How can the NGDR-07C inverter trigger board improve inverter system performance?
A10: The board ensures precise triggering, reducing the risk of faults and improving the overall efficiency and longevity of the inverter system.
