Product Introduction

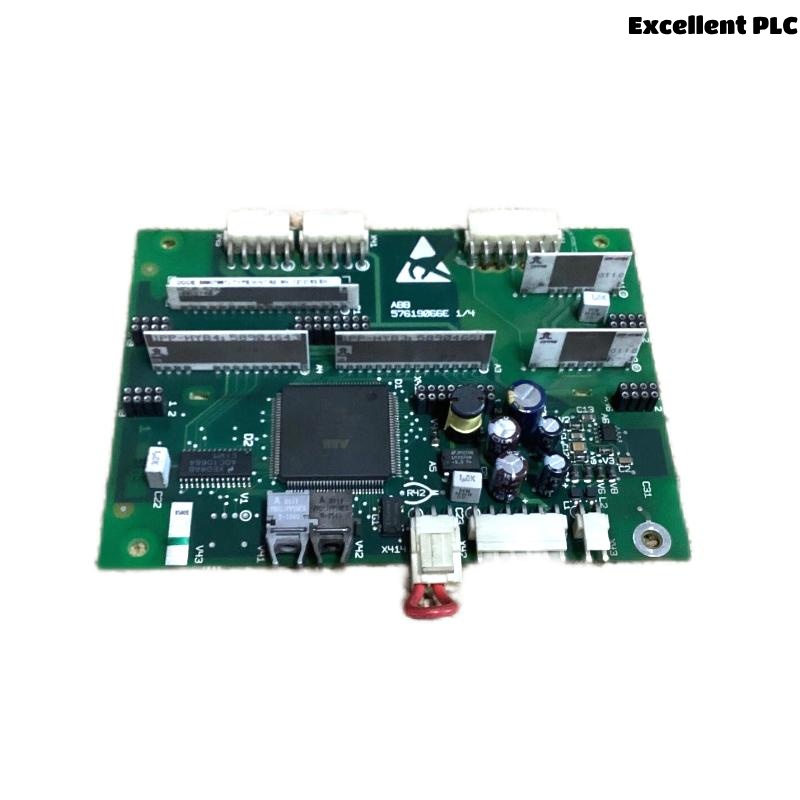

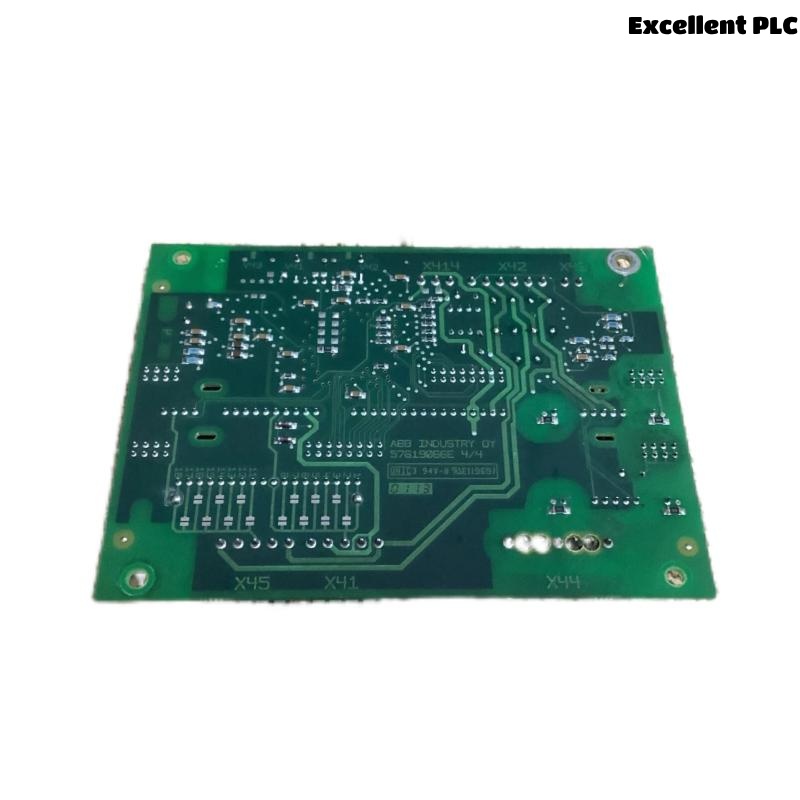

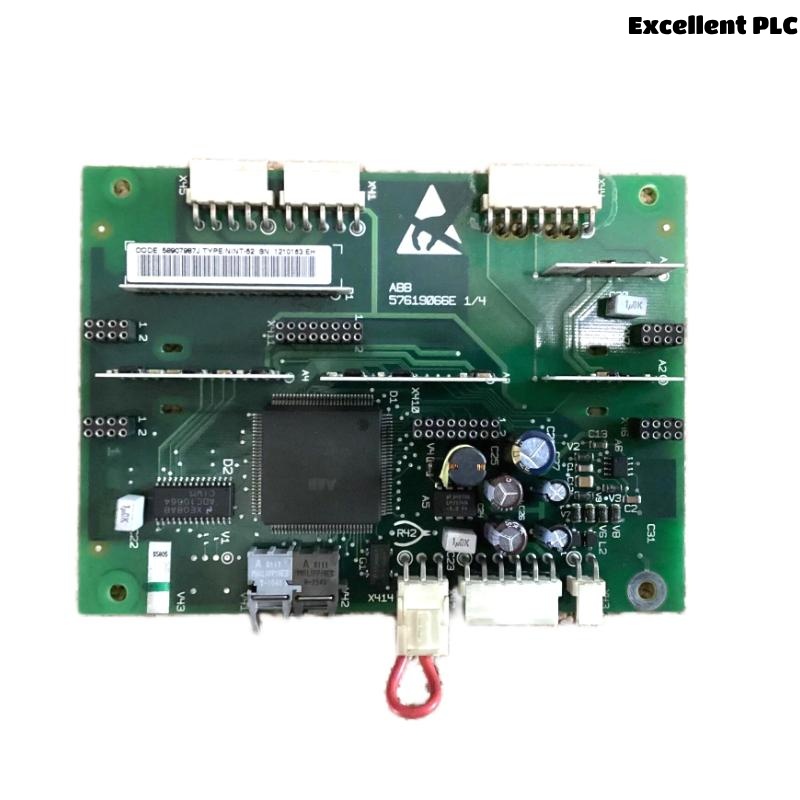

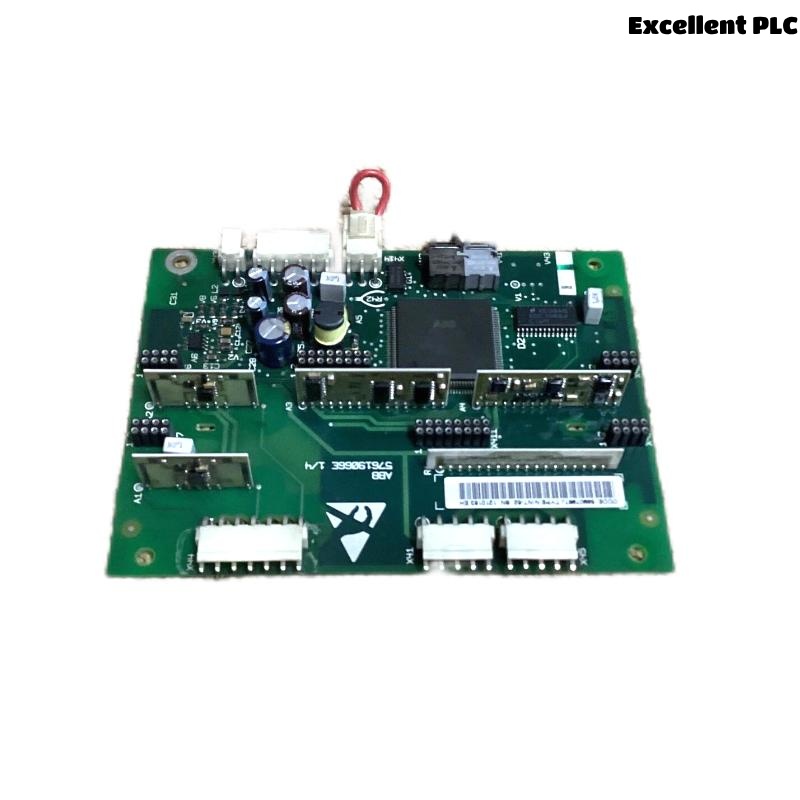

The ABB NINT-52C 58907987J Inverter Drive Board is a crucial component for controlling and optimizing the performance of electric motors in various industrial applications. Designed by ABB, this advanced drive board facilitates the smooth operation of motors by regulating the speed, torque, and other key parameters that affect motor performance. The NINT-52C board supports multiple control strategies and is engineered to be compatible with ABB’s wide range of inverter systems.
This drive board is integral to industries where efficiency, reliability, and performance are paramount, including manufacturing, HVAC, energy management, and automation systems. By providing high-precision control over motor operations, the NINT-52C enhances the reliability of industrial machinery while improving overall energy efficiency.
The board integrates seamlessly with ABB’s drive systems, offering flexibility for both simple and complex motor control applications. Its compact design, robust build, and versatile communication capabilities make it ideal for use in a variety of demanding industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | NINT-52C 58907987J |
| Dimensions (L × W × H) | 180 × 150 × 40 mm |
| Weight | 0.12 kg |
| Voltage Range | 220V to 480V AC |
| Current Rating | 6 A |
| Power Consumption | 12 W |
| Control Type | V/Hz Control, Vector Control |
| Frequency Range | 0-60 Hz |
| Mounting Type | DIN Rail Mounting |
| Protection Rating | IP20 |
| Operating Temperature Range | -10°C to +50°C |
| Compliance | CE, UL |
Product Applications
The ABB NINT-52C 58907987J Inverter Drive Board is suitable for a wide range of applications in industries where precise control over motors is essential. Common uses include:
-
Industrial Automation: The board is used in manufacturing facilities where motors are connected to conveyors, mixers, pumps, and other machinery. It provides precise motor control, enhancing productivity and minimizing downtime.
-
HVAC Systems: The NINT-52C is commonly used in HVAC systems for controlling fans, compressors, and other motor-driven components. It helps optimize energy usage by adjusting motor speeds according to load conditions.
-
Energy Management: It plays a key role in energy-saving initiatives, where variable speed drives help reduce power consumption and improve system efficiency.
-
Water and Wastewater Treatment: The board helps control pumps and other equipment used in water treatment processes, ensuring efficient operation and reducing energy costs.
-
Elevators and Lifts: The NINT-52C provides precise control of motor speeds in lift systems, ensuring smooth and reliable operation.
-
Pumping Stations: Widely used in agricultural, industrial, and municipal pumping stations to control the speed and performance of various types of pumps.
Product Advantages
-
Energy Efficiency: The NINT-52C optimizes energy consumption by precisely controlling motor speeds, leading to significant savings in energy costs, especially in high-load applications.
-
Compact Design: With its small footprint of 180 × 150 × 40 mm and lightweight of just 0.12 kg, the NINT-52C can be easily integrated into existing control systems without taking up much space.
-
Flexible Control Options: Supporting both V/Hz control and vector control, the NINT-52C provides a range of options for different types of motor control, from basic to complex applications.
-
Robust and Reliable: Built with durability in mind, the NINT-52C features an IP20 protection rating, making it suitable for industrial environments with moderate dust exposure.
-
Wide Temperature Range: The drive board operates within a temperature range of -10°C to +50°C, allowing it to function effectively in various environmental conditions.
-
Improved System Performance: By providing precise motor control, the NINT-52C enhances the overall performance of the system, improving both motor lifespan and efficiency.
-
Easy Integration: The DIN rail mounting option allows for quick and easy installation, making the NINT-52C compatible with existing electrical infrastructure.
Frequently Asked Questions (FAQs)
Q1: What is the voltage range of the ABB NINT-52C inverter drive board?
A1: The NINT-52C operates within a voltage range of 220V to 480V AC, suitable for a wide range of motor types.
Q2: What is the current rating for the NINT-52C?
A2: The NINT-52C can handle a current rating of up to 6 A.
Q3: What control methods are supported by the NINT-52C board?
A3: The board supports V/Hz control as well as vector control for precise motor speed and torque control.
Q4: What is the power consumption of the NINT-52C inverter drive board?
A4: The board consumes 12 W of power, making it energy-efficient.
Q5: What is the operating temperature range for the NINT-52C?
A5: The board operates within a temperature range of -10°C to +50°C, making it suitable for various industrial conditions.
Q6: How is the NINT-52C mounted?
A6: The NINT-52C is designed for DIN rail mounting, allowing for easy installation in control panels.
Q7: What is the protection rating of the NINT-52C board?
A7: The NINT-52C has an IP20 protection rating, providing protection against dust and debris in industrial environments.
Q8: Can the NINT-52C be used in renewable energy applications?
A8: Yes, the NINT-52C can be used in renewable energy systems, such as solar power or wind turbine systems, to efficiently control motor-driven components.
Q9: Is the NINT-52C CE and UL certified?
A9: Yes, the NINT-52C is CE and UL certified, ensuring that it meets international safety and quality standards.
Q10: What industries benefit from the NINT-52C inverter drive board?
A10: The NINT-52C is used in various industries, including manufacturing, HVAC, energy management, water treatment, and more, for controlling motors and optimizing energy use.
