Product Introduction

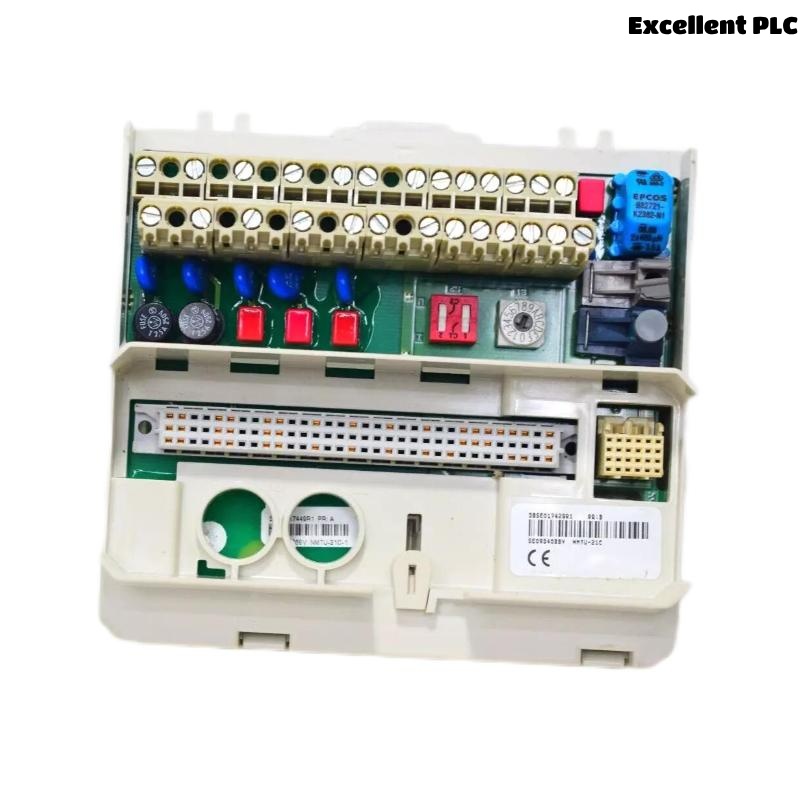

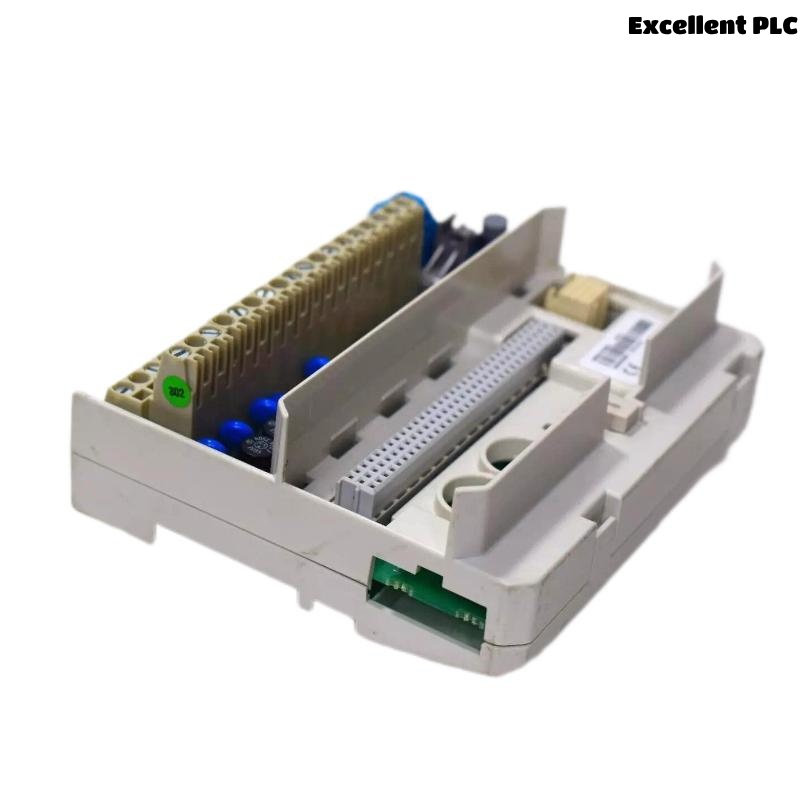

The ABB NMTU-21C 3BSE017429R1 Digital Output Module is an essential component designed for use in ABB’s control systems. This module plays a critical role in industrial automation by providing precise control over digital outputs. It converts the digital signals from the controller to high-speed electrical outputs, which can then be used to drive external devices such as actuators, relays, and other control systems.
With its robust design and high reliability, the NMTU-21C is widely used in a variety of industries where automation systems are required to control complex processes. This module is particularly suited for environments where there is a need for precise, high-speed digital signal transmission and robust system performance.
The NMTU-21C is part of ABB’s expansive range of automation and control solutions, offering seamless integration with other ABB modules, enabling efficient system design and operation. Whether in manufacturing, energy, or any other industrial application, this module helps optimize system performance, reduce downtime, and improve overall productivity.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | NMTU-21C 3BSE017429R1 |
| Dimensions (L × W × H) | 90 × 75 × 60 mm |
| Weight | 0.35 kg |
| Voltage Rating | 24V DC |
| Output Channels | 16 Channels |
| Output Type | Sinking (DC) |
| Maximum Load Current | 0.5 A per Channel |
| Response Time | 10 ms |
| Mounting Type | DIN Rail Mounting |
| Protection Rating | IP20 |
| Operating Temperature Range | -10°C to +60°C |
| Compliance | CE, UL, UL60950 |
Product Applications
The ABB NMTU-21C 3BSE017429R1 Digital Output Module is widely used in various industrial applications, including but not limited to:
-
Industrial Automation Systems: It provides the necessary control signals to external actuators and relays in automated manufacturing lines, helping to ensure smooth and efficient operations.
-
Process Control Systems: This module plays an integral role in controlling machinery and systems in chemical, pharmaceutical, and food processing industries, where high reliability and precision are required.
-
Building Management Systems (BMS): It is used in BMS for controlling HVAC systems, lighting, and security systems, offering precise control over building operations.
-
Energy Management Systems: In energy distribution networks, the NMTU-21C controls various switching devices like circuit breakers and protection relays, ensuring reliable operation of energy systems.
-
Water and Wastewater Treatment Plants: The module is utilized to manage pumps, valves, and other critical components that require high-speed digital output control.
-
Automated Material Handling Systems: It is used in the logistics and transport industry to control conveyors, sorters, and lifts, making the system more responsive and efficient.
Product Advantages
-
High Reliability: The NMTU-21C is designed for high reliability, ensuring that digital outputs are delivered consistently and without failure, even in demanding environments.
-
Compact and Efficient: With its compact design (90 × 75 × 60 mm) and lightweight construction (0.35 kg), the NMTU-21C offers efficient performance while saving space in control panels.
-
Fast Response Time: The module has a fast response time of just 10 ms, making it ideal for systems that require quick, real-time control signals.
-
Easy Integration: The module can be easily integrated into existing systems using DIN rail mounting, reducing installation time and cost.
-
Energy Efficient: Operating at 24V DC, the NMTU-21C ensures energy-efficient control without compromising performance.
-
Versatile Application Range: With 16 output channels, the NMTU-21C can handle a variety of applications, from simple control tasks to more complex industrial systems.
-
Protection and Durability: The IP20 protection rating provides adequate protection against dust, making the module durable and reliable for long-term use in industrial environments.
Frequently Asked Questions (FAQs)
Q1: What is the voltage rating of the ABB NMTU-21C module?
A1: The NMTU-21C operates at 24V DC.
Q2: How many output channels does the NMTU-21C have?
A2: The NMTU-21C features 16 output channels.
Q3: What is the maximum load current per output channel?
A3: Each output channel can handle a maximum current of 0.5 A.
Q4: What is the response time of the NMTU-21C?
A4: The response time of the NMTU-21C is 10 ms, which is ideal for high-speed operations.
Q5: How is the NMTU-21C mounted?
A5: The module is designed for DIN rail mounting, making installation straightforward and convenient.
Q6: What is the protection rating of the NMTU-21C?
A6: The NMTU-21C has an IP20 protection rating, providing adequate protection against dust.
Q7: What is the operating temperature range of the NMTU-21C?
A7: The NMTU-21C operates in a temperature range of -10°C to +60°C, suitable for most industrial environments.
Q8: Can the NMTU-21C be used in hazardous environments?
A8: The NMTU-21C is designed for use in non-hazardous environments, as it has an IP20 protection rating. It is not suitable for use in explosive or highly corrosive environments.
Q9: Is the NMTU-21C compliant with international standards?
A9: Yes, the NMTU-21C is CE and UL certified, ensuring it meets global safety and performance standards.
Q10: What type of output does the NMTU-21C provide?
A10: The NMTU-21C provides sinking (DC) digital outputs, commonly used for controlling external devices.
Recommended Models
| Model | Description | Output Channels |
|---|---|---|
| NMTU-31C | Digital Output Module with extended functionality | 32 Channels |
| NMTU-22C | Compact Digital Output Module for small-scale systems | 8 Channels |
| NMTU-23C | High-speed Digital Output Module for fast response applications | 16 Channels |
| NMTU-24C | Digital Output Module with enhanced protection features | 16 Channels |
| NMTU-40C | High-density Digital Output Module for large systems | 64 Channels |
| NMTU-50C | Advanced Digital Output Module for complex control systems | 32 Channels |
