Product Introduction

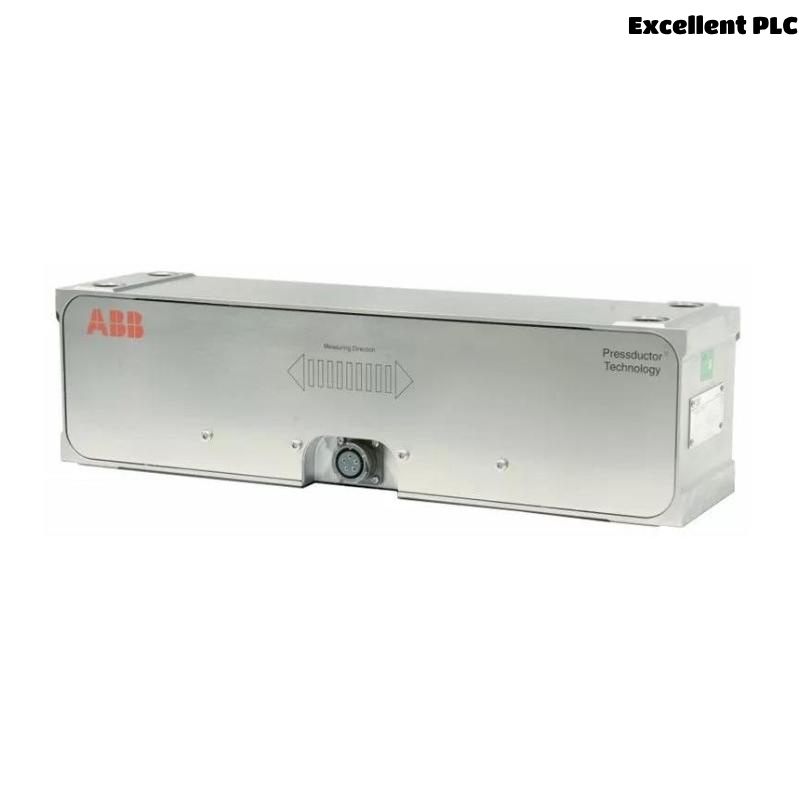

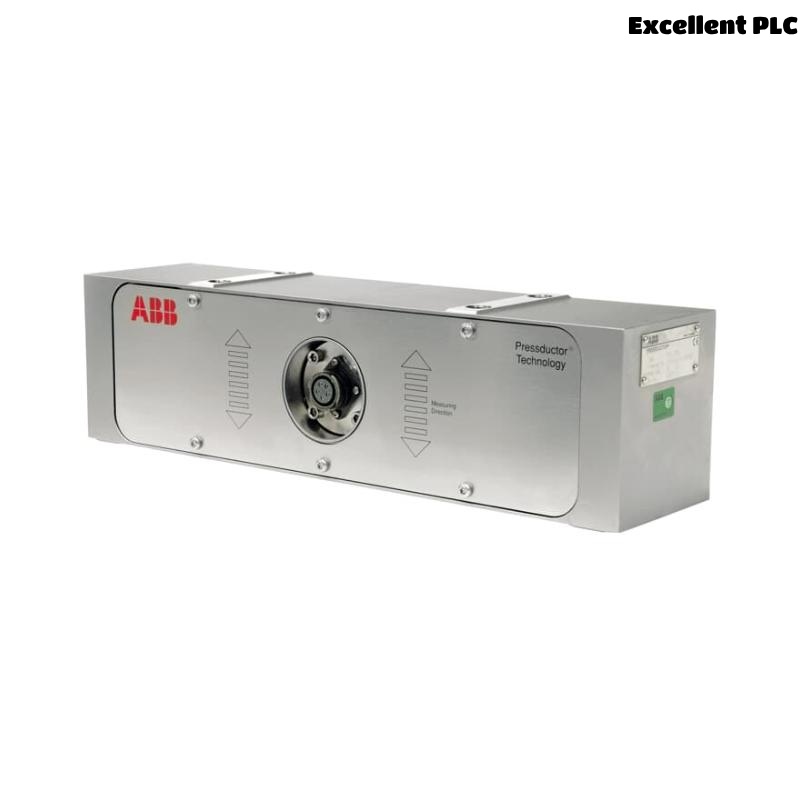

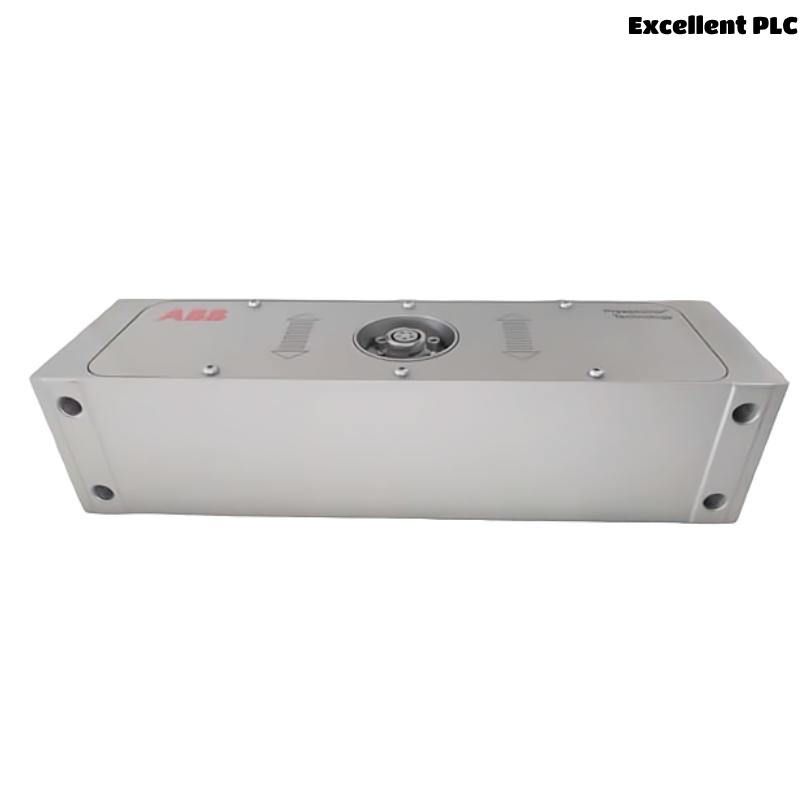

The ABB PFCL201CE (3BSX804008-108) load cell is a precision measurement device designed to accurately monitor force or weight in industrial applications. This load cell employs strain gauge technology and is renowned for its high accuracy, durability, and stability even under challenging environmental conditions. Manufactured by ABB, the PFCL201CE is built to provide consistent performance across a wide range of industrial sectors, ensuring reliable data for process control, safety, and quality management.
Its rugged construction and advanced signal processing capabilities make it a preferred choice for integration within ABB’s automation systems, such as the AC800M and System 800xA platforms. The PFCL201CE’s design focuses on ease of installation and maintenance, with dimensions and weight optimized for various mechanical configurations.
Product Specifications
| Parameter | Description |
|---|---|
| Model | PFCL201CE |
| Product Code | 3BSX804008-108 |
| Type | Load Cell (Strain Gauge Based) |
| Measurement Range | Typically from 1 kN up to 100 kN (varies by model variant) |
| Output Signal | mV/V analog signal |
| Nominal Sensitivity | Approx. 2.0 mV/V |
| Excitation Voltage | 5–10 VDC |
| Accuracy Class | ≤ ±0.05% FS |
| Linearity | ≤ ±0.1% FS |
| Repeatability | ≤ ±0.03% |
| Hysteresis | ≤ ±0.1% |
| Material | Stainless Steel |
| Protection Rating | IP65 |
| Operating Temperature Range | -10°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Connection Type | Shielded 4 or 6-wire cable |
| Dimensions (L × W × H) | 45 x 65 x 150 mm |
| Weight | 0.4 kg |
| Mounting | Flange mounting with bolt holes |
| Compliance | CE, RoHS compliant |
Applications
The ABB PFCL201CE load cell is widely used in industrial environments requiring precise force or weight measurements. Typical applications include:
-
Material Handling Systems – For weighing and force feedback in conveyors and hoists
-
Packaging Machinery – Load monitoring to ensure consistent product weight
-
Industrial Automation – Force measurement for presses, test rigs, and machines
-
Manufacturing Lines – Monitoring component assembly forces
-
Crane and Lifting Equipment – Load measurement for safety and control
-
Bulk Material Weighing – In silos, hoppers, and batching systems
Key Advantages
-
High Accuracy and Repeatability: Suitable for critical measurement tasks requiring tight tolerances.
-
Robust Mechanical Design: Stainless steel housing protects against corrosion and mechanical stress.
-
Wide Operating Temperature Range: Ensures stable operation across various industrial environments.
-
Easy Integration: Compatible with ABB control systems and standard industrial signal conditioners.
-
Low Maintenance: No moving parts and high durability reduce downtime.
-
Compliant and Certified: Meets global standards ensuring safety and reliability.
Frequently Asked Questions (FAQ)
-
Q: What type of load measurement does the PFCL201CE perform?
A: It measures force or weight using strain gauge technology. -
Q: What is the maximum load this sensor can measure?
A: Depending on the model variant, it can measure up to 100 kN. -
Q: Is the load cell suitable for outdoor installations?
A: Yes, with an IP65 rating, it can withstand dust and water splashes. -
Q: What output signal does the load cell provide?
A: It provides an analog output in mV/V proportional to the applied load. -
Q: Does ABB provide calibration services for this load cell?
A: Yes, ABB offers calibration and testing services to ensure accuracy. -
Q: Can this load cell be used in explosive environments?
A: It depends on the installation; it requires proper enclosures and certification for hazardous zones. -
Q: How is the load cell mounted?
A: It is mounted using flange bolts, designed for easy and secure installation. -
Q: What is the recommended excitation voltage?
A: The load cell operates best with 5 to 10 V DC excitation. -
Q: Is the PFCL201CE compatible with ABB DCS systems?
A: Yes, it is designed for easy integration with ABB control systems such as AC800M and System 800xA. -
Q: What maintenance is required?
A: Minimal maintenance is required; periodic inspection and cleaning are recommended.
Related Models or Similar ABB Load Cells
| Model | Max Load Capacity | Output Signal | Protection Rating | Typical Use Case |
|---|---|---|---|---|
| PFCL201C20KN | 20 kN | mV/V | IP65 | Tension measurement |
| PFCL301E | Up to 60 kN | 4–20 mA | IP66 | Strip tension control |
| PFCL101A | Up to 10 kN | mV/V | IP64 | Small load applications |
| PFCL501 | Up to 100 kN | Analog/Digital | IP67 | Heavy-duty load measurement |
| PFTL201C | Up to 40 kN | mV/V | IP65 | Vertical tension sensing |
| PFTL101A | Small loads | mV/V | IP64 | Foil and fabric tension |
