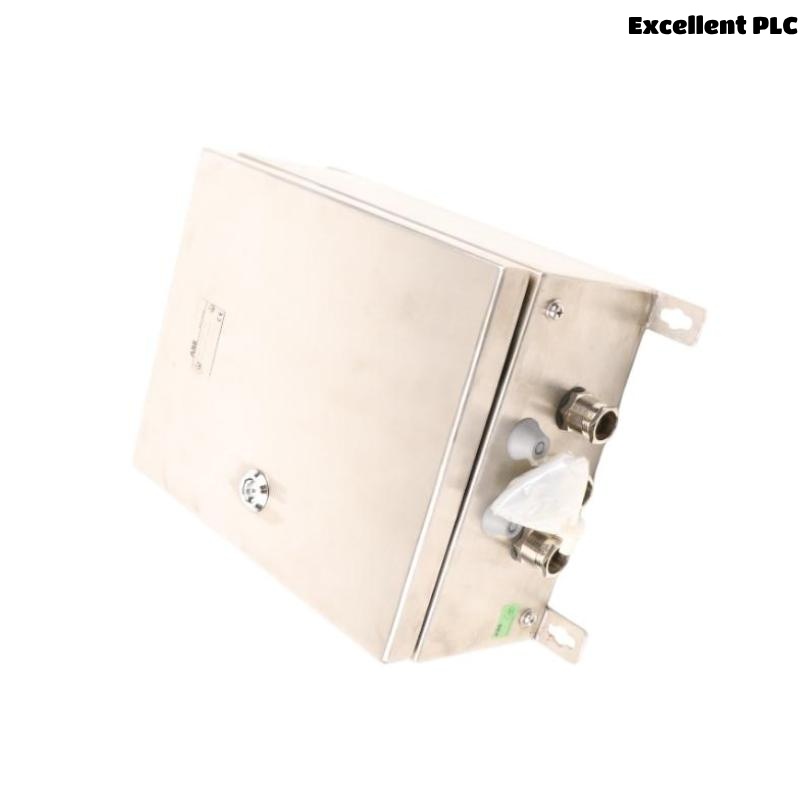

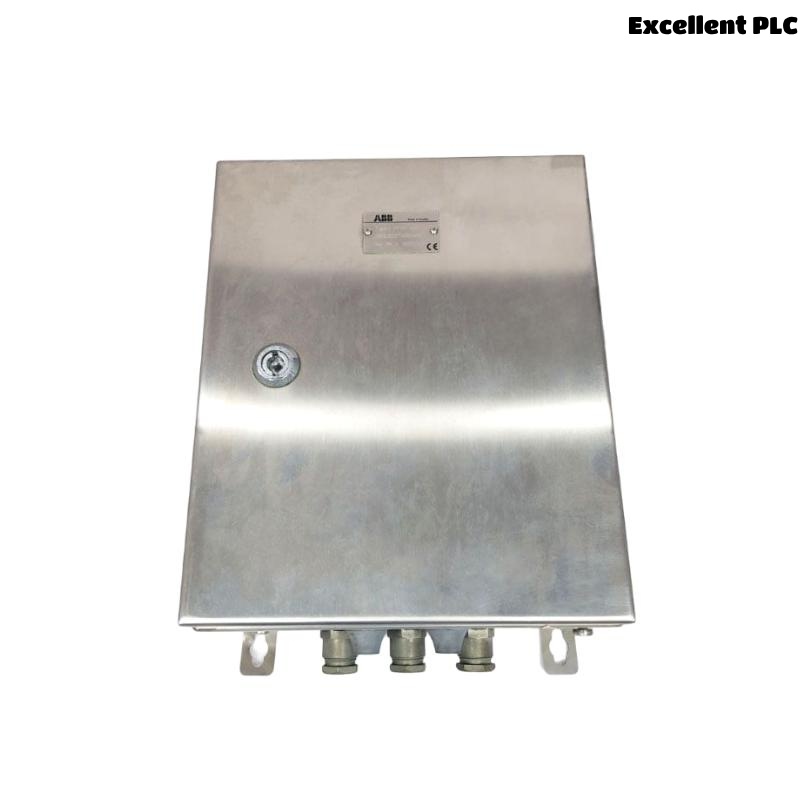

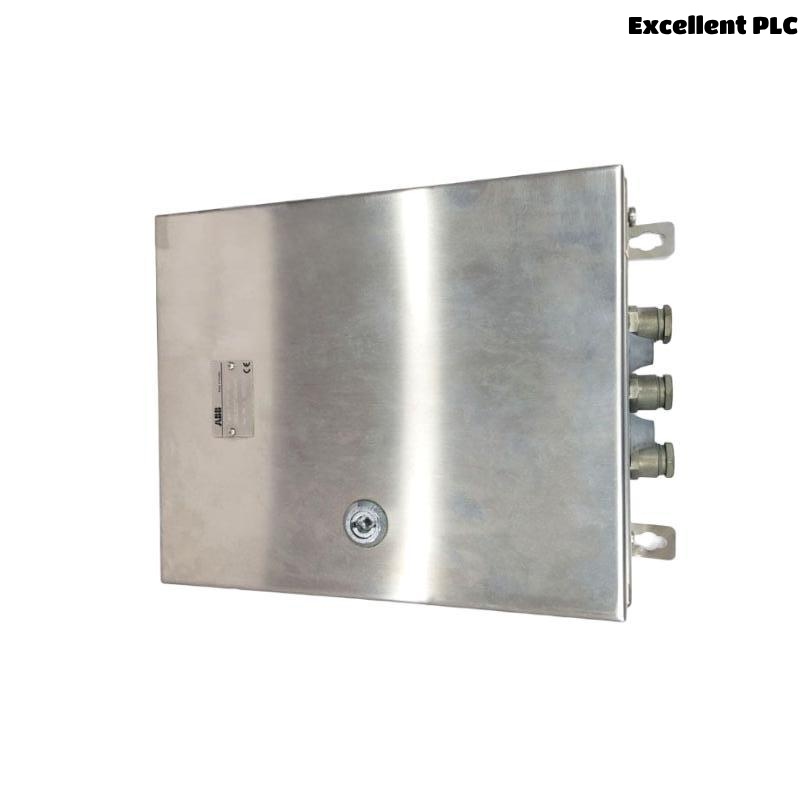

ABB PFEV142 3BSE023732R1 Matching Unit

Product Introduction

The ABB PFEV142 (part number 3BSE023732R1) is a signal matching unit designed for high-precision web tension systems, specifically tailored for integration with ABB’s PFEA tension electronics modules and load cells. Its primary function is to match the electrical output of a force transducer (load cell) with the input requirements of ABB tension amplifiers, ensuring optimal signal scaling, impedance matching, and signal integrity.

The PFEV142 plays a critical role in industrial applications where precise tension measurement and control are essential, particularly in processes involving continuous web material—such as paper, plastics, textiles, and metal strips. It is a passive module, meaning it requires no power supply and offers plug-and-play ease of installation.

Product Specifications

Applications

The PFEV142 is typically deployed in closed-loop tension control systems in conjunction with ABB PFEA electronics modules and force sensors. It ensures the load cell signal is properly matched to the electronic input stage, minimizing losses and maximizing precision.

Common applications include:

• Paper machines: Ensuring even web tension across rollers.

• Plastic and film extrusion lines: Stabilizing pull force during winding/unwinding.

• Textile production: Maintaining thread/fabric tension for uniform processing.

• Converting systems: For slitting, laminating, or coating operations.

• Metal processing lines: Controlling strip tension during rolling or recoiling.

• Packaging automation: Where consistent web feed tension is critical for accuracy.

Product Advantages

• Precision Matching: Provides correct electrical adaptation between sensors and tension amplifiers.

• Passive Operation: Requires no external power supply, reducing failure points and simplifying integration.

• Enhanced Signal Stability: Reduces electrical noise and mismatch issues that degrade tension feedback.

• Durable Construction: Housed in a robust aluminum enclosure suitable for demanding industrial environments.

• Simple Installation: Compact form factor allows easy mounting near sensors or control panels.

• Versatile Compatibility: Can be used across multiple ABB PFEA tension modules and supported load cells.

• Zero Maintenance: Passive device with no moving parts or power consumption, reducing lifecycle cost.

• Improves System Accuracy: Ensures reliable and accurate tension readings by eliminating signal attenuation.

• Environmental Tolerance: Designed to withstand industrial temperatures and humidity without performance loss.

• Reliable Integration: Backed by ABB’s automation standards and full compatibility with their drive systems.

Frequently Asked Questions (FAQ)

1. Q: What is the primary purpose of the PFEV142 in a tension system?
   A: The PFEV142 is used to match the electrical characteristics of a strain gauge load cell to the input stage of an ABB tension amplifier (like PFEA modules), ensuring accurate signal processing.

2. Q: Does the PFEV142 require any external power supply to operate?
   A: No. It is a passive unit and does not consume or require electrical power.

3. Q: Can I use the PFEV142 with non-ABB load cells?
   A: It is optimized for ABB load cells, but it may be compatible with third-party sensors if electrical characteristics are properly matched.

4. Q: Where should the PFEV142 be installed in the control system?
   A: It should be installed in-line between the load cell and the tension amplifier (PFEA module), ideally close to the sensor to minimize cable length and noise pickup.

5. Q: Is there any configuration or adjustment needed after installation?
   A: No. The PFEV142 is pre-calibrated and requires no manual setup or tuning.

6. Q: How do I know if the PFEV142 is functioning correctly?
   A: As it is a passive component, its functionality is generally verified by checking the accuracy and stability of the tension signal at the amplifier.

7. Q: What happens if I skip using the matching unit?
   A: Skipping the PFEV142 may lead to signal distortion, reduced accuracy, and impedance mismatches, negatively impacting tension control.

8. Q: Can the PFEV142 be used in high-temperature environments?
   A: Yes, it operates safely in environments up to +60°C, provided it’s installed in a ventilated or protected enclosure.

9. Q: Does it provide any electrical isolation or protection to the amplifier?
   A: While it helps stabilize the signal path, it does not serve as an isolation barrier. Use separate isolation modules if needed for high-voltage protection.

10. Q: Is it necessary to use one PFEV142 per load cell?
    A: Yes, for each independent load cell, a dedicated matching unit is required to ensure signal accuracy and proper load balancing.
