Product Introduction

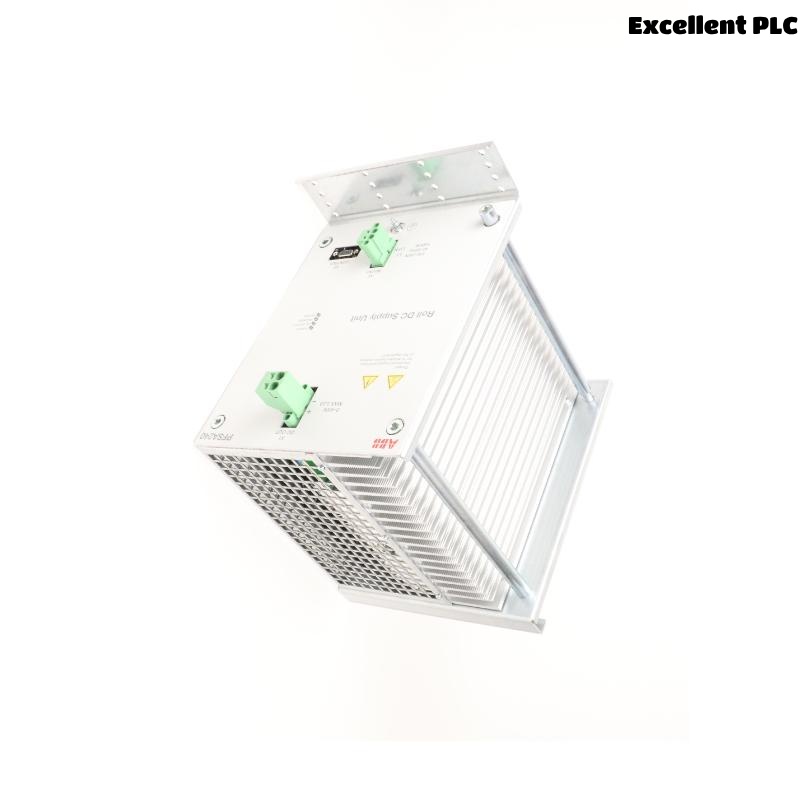

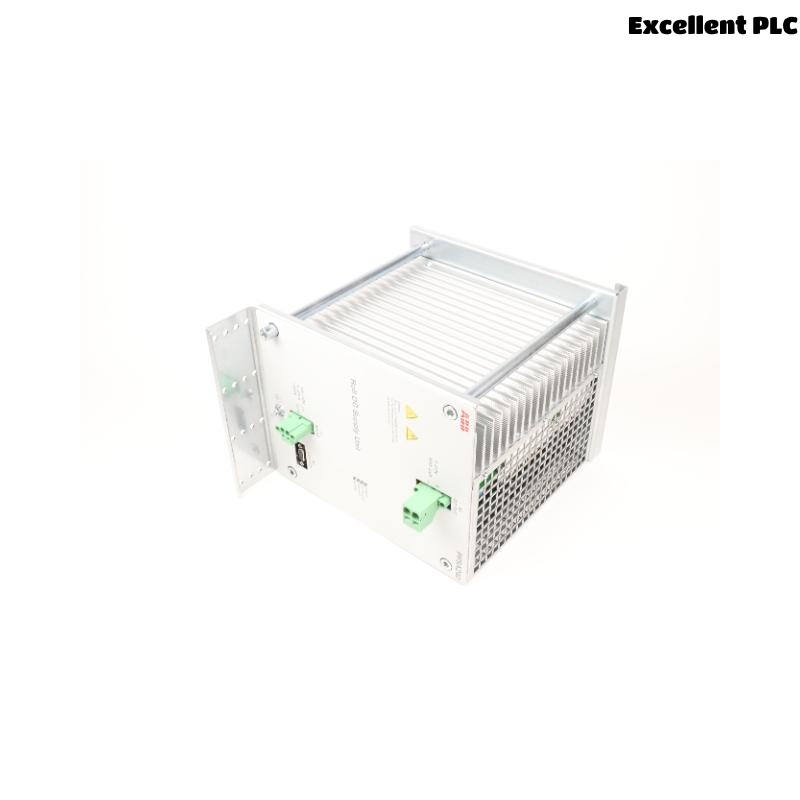

The ABB PFSA240 3BSE073476R1 is a high-performance I/O module designed for use in ABB’s AC 800M control system, a part of the renowned 800xA automation platform. It serves as a signal interface between the field devices and the controller, ensuring accurate and reliable signal processing in industrial applications. Built for harsh and mission-critical environments, this module combines robust design with exceptional data accuracy, playing a vital role in distributed control systems across a range of industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | PFSA240 |
| Product Code | 3BSE073476R1 |
| Type | Select I/O FCI module |
| System Compatibility | ABB AC 800M / System 800xA |
| Power Supply Voltage | 24 V DC |
| Current Consumption | Approx. 150 mA |
| No. of I/O Channels | Up to 16 Select I/O channels |
| Communication Protocol | IEC 61850 / Ethernet |
| Mounting | DIN-rail |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 |
| Housing Material | Polycarbonate/Plastic |
| Dimensions | 220 × 120 × 50 mm |
| Weight | 12 kg |
Product Applications
The ABB PFSA240 is widely deployed in various process and power automation scenarios. Key application areas include:
-
Power Generation Plants – Integration of field signals into turbine and boiler control systems.
-
Chemical and Petrochemical Plants – Accurate signal acquisition in harsh chemical processing units.
-
Pulp and Paper Industry – Real-time I/O data transmission for batch processing control.
-
Oil and Gas – Interface between safety instrumentation systems and controllers in offshore/onshore operations.
-
Water and Wastewater – Facilitates automation in water treatment plants and pump stations.
-
Metals and Mining – Used for controlling conveyors, crushers, and heavy-duty machines.
Product Advantages
-
Seamless Integration: Natively integrates with ABB’s AC 800M and 800xA systems without additional adaptation.
-
Scalability: Supports flexible expansion and modular installation, ideal for growing process systems.
-
Industrial-grade Durability: Built to withstand temperature extremes and vibration, ensuring reliability.
-
High Signal Integrity: Offers stable and accurate data acquisition with low latency.
-
Plug-and-Play Capability: Facilitates quick field wiring and commissioning, reducing downtime.
-
Diagnostic Functions: Onboard diagnostics for faster fault identification and maintenance efficiency.
Frequently Asked Questions (FAQ)
Q1: What systems is the ABB PFSA240 compatible with?
A1: It is compatible with ABB’s AC 800M controllers and 800xA automation systems.
Q2: How many I/O channels does the PFSA240 support?
A2: It supports up to 16 Select I/O channels per module.
Q3: What is the typical operating temperature range?
A3: The module operates reliably between -25°C and +70°C.
Q4: Can this module be mounted on any type of surface?
A4: It is designed specifically for DIN-rail mounting inside control cabinets.
Q5: What communication protocols are supported?
A5: The module supports Ethernet and IEC 61850 protocols for high-speed communication.
Q6: Is the PFSA240 resistant to industrial environments?
A6: Yes, it features IP20 protection and a rugged housing for industrial usage.
Q7: Does the module support hot-swapping?
A7: No, the module must be powered down before removal or replacement.
Q8: Is configuration software required?
A8: Yes, configuration through ABB’s Control Builder or Fieldbus tool is required.
Q9: What maintenance is needed for the PFSA240?
A9: Minimal maintenance; periodic visual inspection and firmware updates are recommended.
Q10: Is the PFSA240 used in safety instrumented systems (SIS)?
A10: While not certified for SIL, it can be used in general-purpose automation where SIS is not a requirement.
Recommended Related or Similar Models (Same Series/Function)
| Model Number | Description | Channels | Protocol | Voltage |
|---|---|---|---|---|
| PFSA241 3BSE073477R1 | Select I/O module with enhanced features | 16 | Ethernet | 24 VDC |
| PFSA103 3BSE050198R1 | Select I/O FCI Compact Module | 8 | Fieldbus | 24 VDC |
| PFSS101 3BSE059068R1 | Select I/O Power Supply Module | – | – | 24 VDC |
| PFCL201 3BSE067871R1 | Select I/O Cluster Controller | – | Ethernet | 24 VDC |
| PFSK101 3BSE050090R1 | Select I/O Kit for System Integration | – | – | 24 VDC |
| PFRA101 3BSE072885R1 | Select I/O Redundancy Adapter | – | Redundant Link | 24 VDC |
