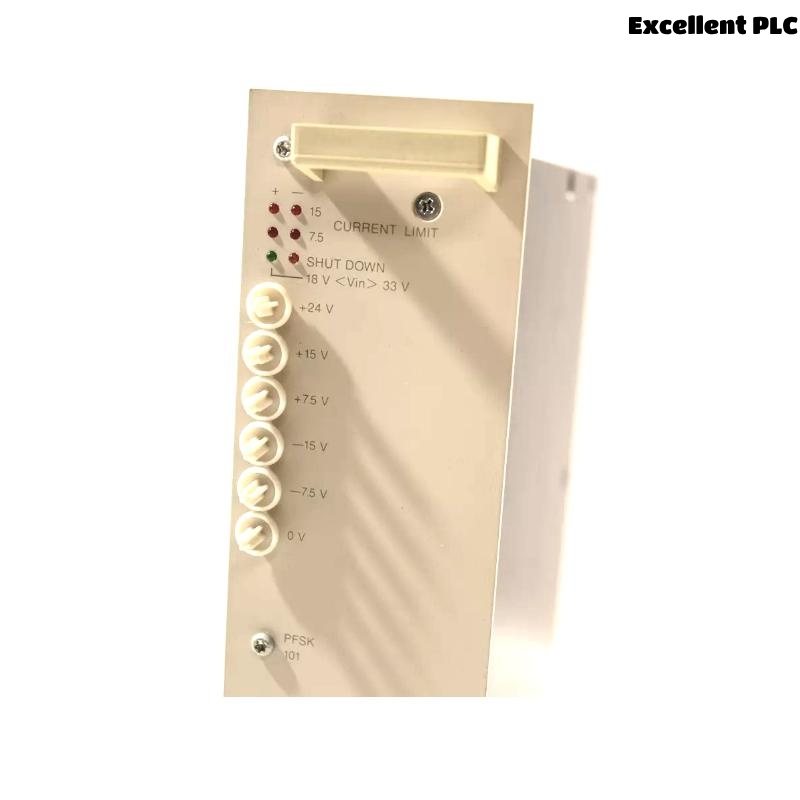

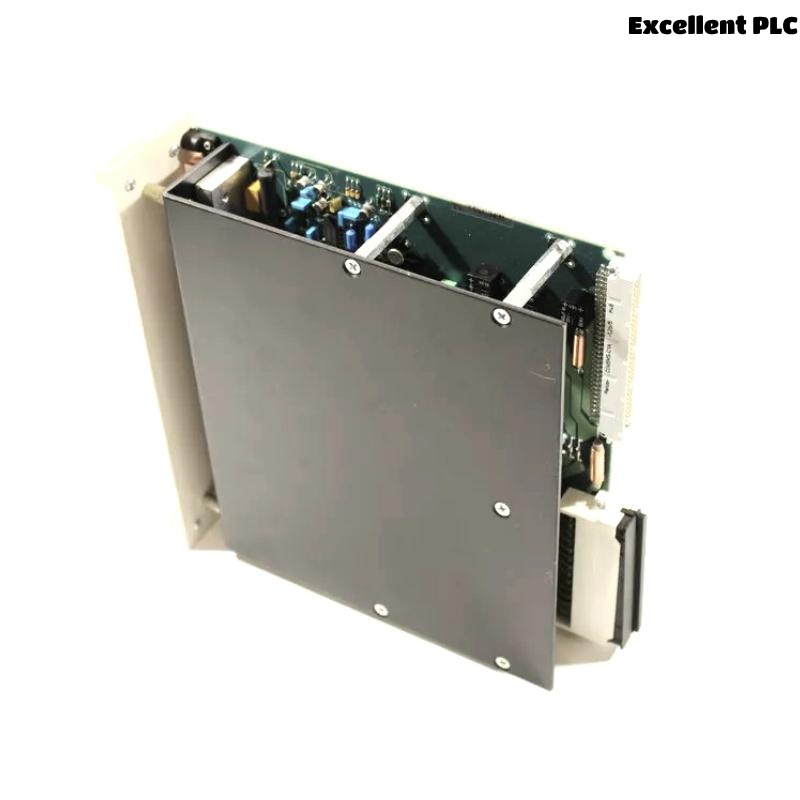

ABB PFSK101 YM322001-ED Product Introduction
The ABB PFSK101 YM322001-ED is a high-performance signal conditioning module designed for industrial automation and process control applications. This module ensures accurate signal conversion, isolation, and transmission, enhancing system reliability and safety. It is widely used in harsh environments where precise signal handling is critical. The PFSK101 YM322001-ED is part of ABB’s extensive range of signal conditioners, known for their durability and advanced functionality.
Product Parameters
| Parameter | Value |
|---|---|
| Input Signal | 4-20 mA, 0-10 V, etc. (configurable) |
| Output Signal | 4-20 mA, 0-10 V, etc. (configurable) |
| Isolation | Up to 1500 V AC/DC |
| Accuracy | ±0.1% of full scale |
| Operating Temperature | -20°C to +60°C |
| Power Supply | 24 V DC (±10%) |
| Dimensions | 90 x 36 x 66mm |
| Weight | 0.25kg |
| Mounting | DIN rail |
| Certifications | CE, UL, IEC 61010 |
Product Applications
The ABB PFSK101 YM322001-ED is ideal for:
-
Process Industries: Oil & gas, chemical, and pharmaceutical plants for signal isolation and conversion.
-
Power Generation: Ensures stable signal transmission in turbines and substations.
-
Manufacturing: Used in PLC systems for accurate sensor signal conditioning.
-
Water Treatment: Monitors and controls flow, pressure, and level signals.
-
HVAC Systems: Provides reliable signal processing for temperature and pressure sensors.
Product Advantages
-
High Precision: ±0.1% accuracy ensures reliable signal conversion.
-
Robust Isolation: 1500 V isolation protects against electrical noise and surges.
-
Wide Compatibility: Supports multiple input/output signal types.
-
Compact Design: DIN rail mounting saves space in control cabinets.
-
Durability: Operates in extreme temperatures (-20°C to +60°C).
-
Easy Configuration: Simple setup via dip switches or software.
Frequently Asked Questions (FAQ)
-
What is the input voltage range for PFSK101 YM322001-ED?
The module operates on a 24 V DC power supply (±10% tolerance). -
Can this module handle both current and voltage signals?
Yes, it supports configurable input/output signals (e.g., 4-20 mA, 0-10 V). -
What is the isolation voltage?
It provides up to 1500 V AC/DC isolation. -
Is the PFSK101 suitable for hazardous environments?
Yes, it meets CE and UL standards for industrial use. -
How do I mount the module?
It is designed for DIN rail mounting (standard 35 mm rail). -
What is the operating temperature range?
-20°C to +60°C. -
Does it require external calibration?
No, factory calibration ensures long-term accuracy. -
Can multiple modules be daisy-chained?
Yes, they can be installed side-by-side on a DIN rail. -
What certifications does it have?
CE, UL, and IEC 61010. -
What is the warranty period?
Typically 1 years.
Recommended Related & Popular Models
| Related Models (Same Series) | Description |
|---|---|
| PFSK102 YM322002-ED | Dual-channel signal conditioner |
| PFSK103 YM322003-ED | High-density version (4 channels) |
| PFSK104 YM322004-ED | Explosion-proof variant |
| PFSK105 YM322005-ED | With HART protocol support |
| PFSK106 YM322006-ED | Extended temperature range (-40°C to +70°C) |
| PFSK107 YM322007-ED | Wireless signal transmission option |
| Popular ABB Models (Same Brand) | Description |
|---|---|
| ABB CMA131 | Compact process controller |
| ABB CP635-T | Advanced touch panel HMI |
| ABB DCS800 | Industrial DC drive system |
| ABB REF615 | Protection relay for substations |
| ABB ACS880 | Modular industrial drive |
| ABB TA200-T | Temperature transmitter |
