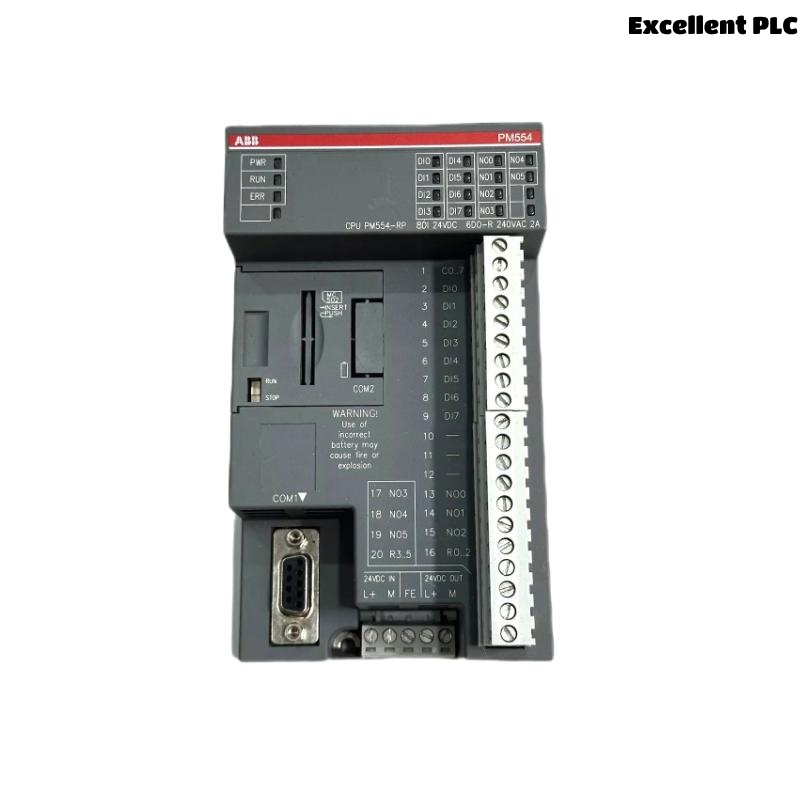

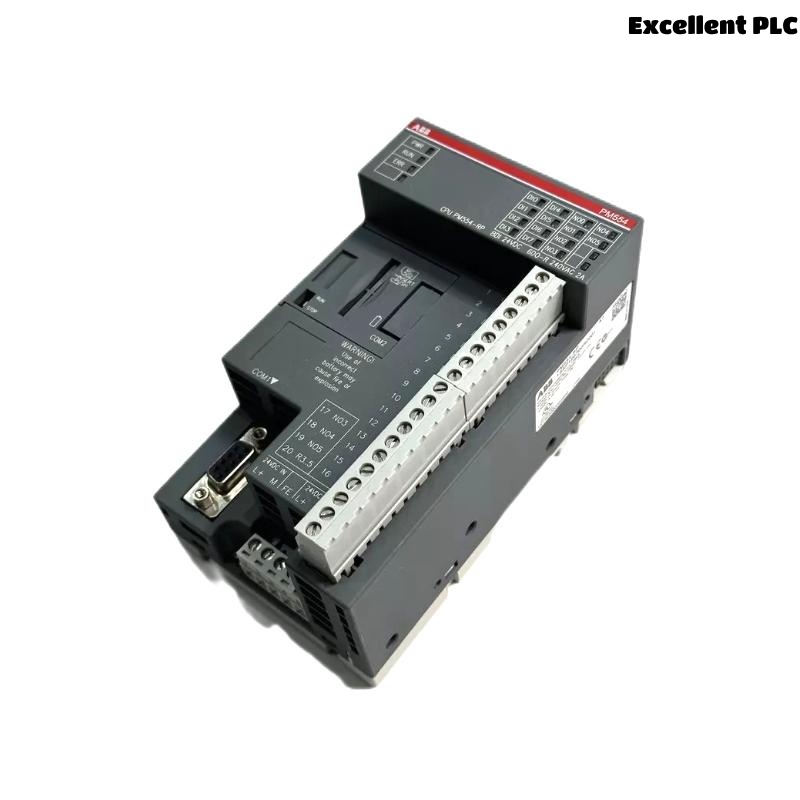

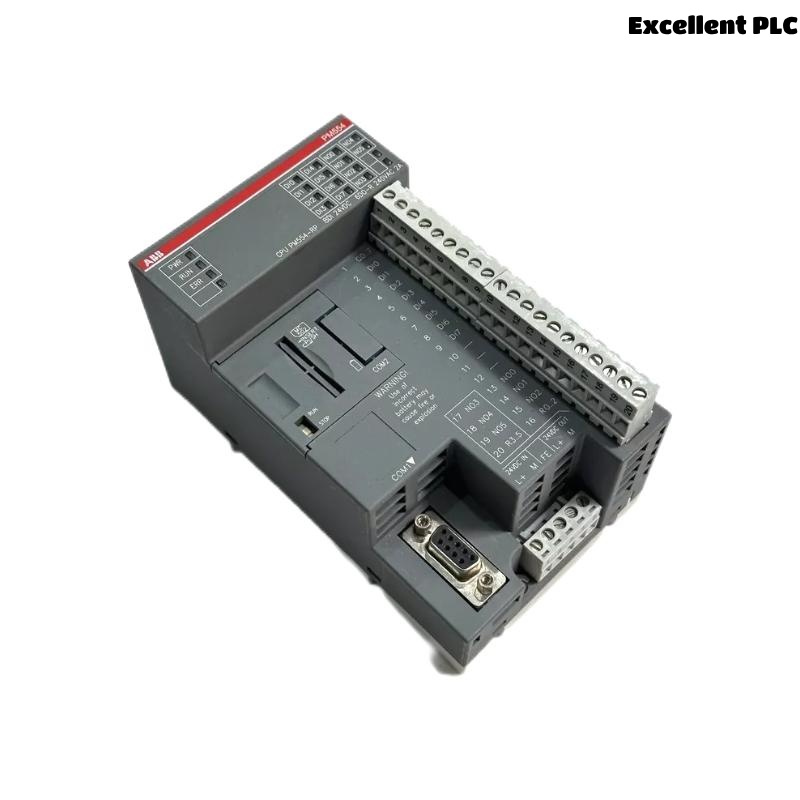

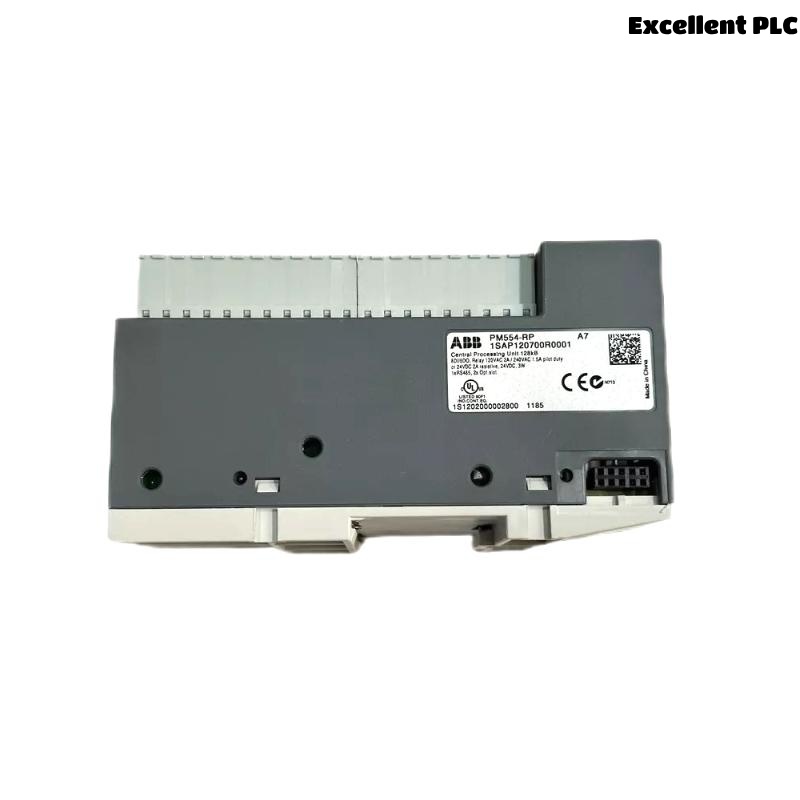

ABB PM554-RP 1SAP120700R0001 Programmable Logic Controller

Product Overview

The ABB PM554-RP (1SAP120700R0001) is a robust and versatile Programmable Logic Controller (PLC) belonging to the AC500-eCo series, designed to deliver dependable automation solutions in small to medium-scale industrial applications. As part of ABB’s cost-effective and scalable PLC range, the PM554-RP integrates a powerful CPU, built-in communication ports, and onboard I/O, making it an ideal choice for compact automation tasks.

This controller stands out for its fast processing capabilities, integrated communication features like Modbus, and its suitability for applications where reliability and ease of use are paramount. The PM554-RP supports structured programming via IEC 61131-3 compliant software (PS501 Control Builder), making it accessible for both experienced engineers and system integrators.

Technical Specifications

Applications

The ABB PM554-RP is ideally suited for a wide variety of industrial and commercial automation environments. It is frequently used in:

• Packaging Machinery – For controlling sequences and sensor-actuated mechanisms.

• Building Automation – HVAC, lighting, and access systems benefit from its reliability.

• Water Treatment Plants – Handles level monitoring, valve control, and pump automation.

• Material Handling Systems – Offers reliable logic processing for conveyors and sorting.

• OEM Machine Control – Compact design and integrated I/O make it perfect for embedded automation.

• Agricultural Automation – Controls irrigation, greenhouse lighting, and ventilation systems.

Its compact size and flexibility make it suitable for installation in constrained panels or modular control cabinets.

Key Advantages

• Compact and Integrated Design
  Built-in digital I/Os and communication ports reduce the need for additional modules, saving space and cost.

• Reliable and Durable
  Designed for continuous operation in industrial environments, with a solid track record for stability.

• Easy to Program
  Fully IEC 61131-3 compliant programming through ABB’s PS501 software ensures intuitive logic creation.

• Modbus Support
  Natively supports Modbus RTU and ASCII for smooth integration with HMI, SCADA, and third-party devices.

• Expandable
  Despite its small size, the controller supports expansion modules, allowing for future scalability.

• Cost-Effective Automation
  An excellent entry-level PLC offering ABB quality at a competitive price point.

Frequently Asked Questions (FAQ)

1. Is the PM554-RP suitable for first-time PLC users?
   Yes. With IEC standard programming and USB connectivity, it’s user-friendly for both beginners and professionals.

2. What kind of communication does the controller support?
   It supports RS-485 with Modbus RTU and ASCII protocols, and programming via USB.

3. Can I expand the I/O capacity?
   Yes, the PM554-RP allows up to 2 expansion modules to increase I/O channels.

4. Does it support analog inputs or outputs natively?
   No, the onboard I/O includes only digital inputs and relay outputs. For analog I/O, use external modules.

5. What software is used to program the PM554-RP?
   ABB’s PS501 Control Builder is the official software tool, fully compliant with IEC 61131-3.

6. Can I mount this PLC on a DIN rail?
   Absolutely. The PM554-RP is designed for DIN rail mounting and fits standard industrial panels.

7. Is it suitable for outdoor environments?
   Only if mounted in a properly rated enclosure. The unit itself is IP20 and requires protection from dust and moisture.

8. How long is the average lifecycle of this controller?
   When operated within specified conditions, the device can function reliably for over 10 years.

9. What happens during a power loss? Will it retain the program?
   Yes. It retains the program and critical variables in non-volatile memory.

10. Can the PM554-RP be used in applications that require precise timing control?
    Yes, it features internal timers and counters suitable for time-sensitive logic tasks. However, for applications with extremely tight timing tolerances (like high-speed motion control), a higher-end model from the main AC500 series may be more appropriate.
