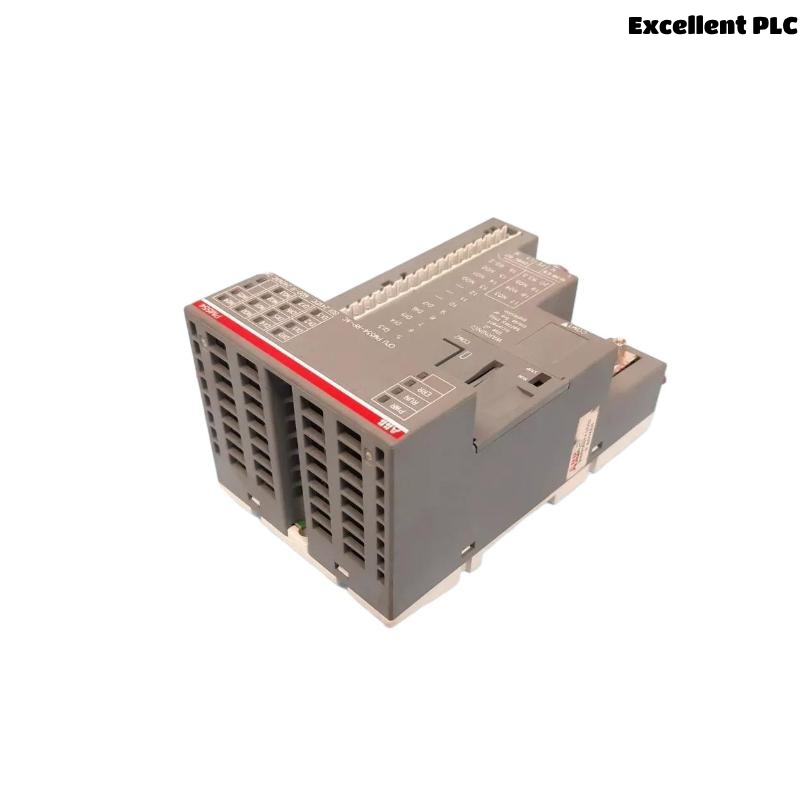

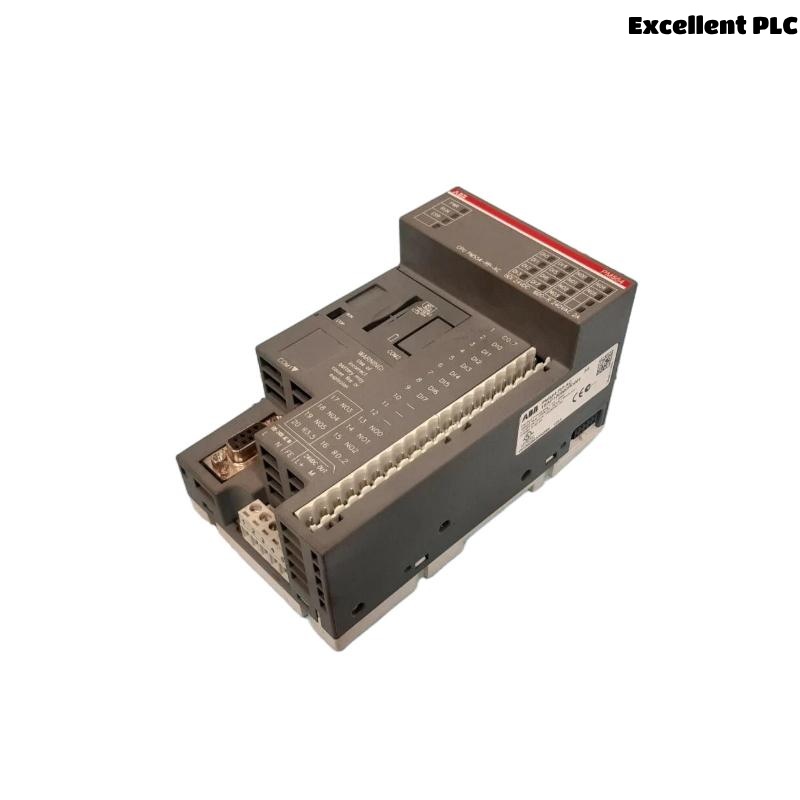

ABB PM554-RP-AC 1SAP120800R0001 AC500 Processor Module

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Description

The ABB PM554-RP-AC is a compact AC500-eCo processor module designed for cost-effective automation solutions. It integrates 8 digital inputs and 6 relay outputs, supports 128 kB program memory, and is powered by a 100–240 V AC supply. Ideal for small to medium-sized control systems, it provides robust performance and reliability within industrial environments.

---

Technical Specifications

---

Applications

• Building automation systems

• Small machine control

• Water treatment plants

• Packaging and labeling systems

• Conveyor and transport systems

• Light industrial process control

---

Advantages

• Operates directly on AC mains power (100–240 V AC)

• Integrated digital I/Os reduce system footprint

• Fast instruction cycle time for efficient logic execution

• Supports multiple IEC 61131 programming languages

• Space-saving design ideal for DIN rail installations

• Fully compatible with AC500-eCo accessories

---

Frequently Asked Questions (FAQ)

Q1: What is the power supply range for the PM554-RP-AC?
A1: It supports a wide-range AC input from 100 V to 240 V AC.

Q2: How many digital inputs and outputs are included?
A2: It features 8 digital inputs and 6 relay digital outputs.

Q3: What type of CPU is used?
A3: It uses a 32-bit Freescale ARM processor operating at 50 MHz.

Q4: Is the module suitable for horizontal and vertical mounting?
A4: Yes, both orientations are supported.

Q5: Can this module be used with Modbus?
A5: Yes, Modbus master and slave communication is supported over COM1.

Q6: What is the typical power consumption?
A6: 20 mA at 100 V AC and 12 mA at 240 V AC.

Q7: What programming languages are supported?
A7: IL, FBD, LD, SFC, ST, and CFC.

Q8: Does the unit include real-time clock functionality?
A8: RTC is optional via accessory TA561-RTC.

Q9: What protection class does this module meet?
A9: IP20.

Q10: Are accessories like memory cards or communication modules available?
A10: Yes, such as MC503 (memory card), TA562-RS (RS-485), TA561-RTC (real-time clock).

---
