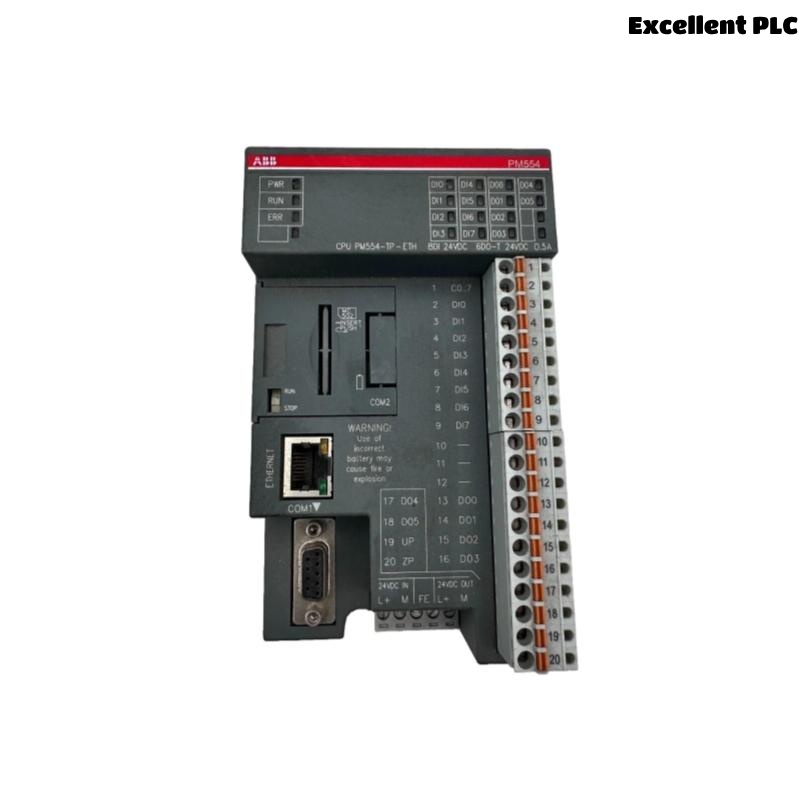

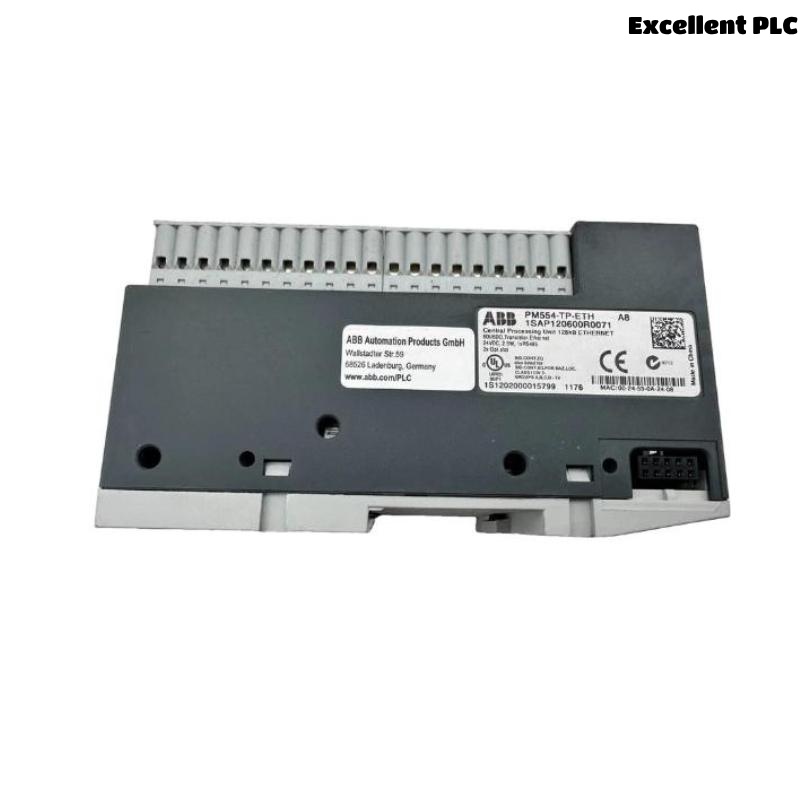

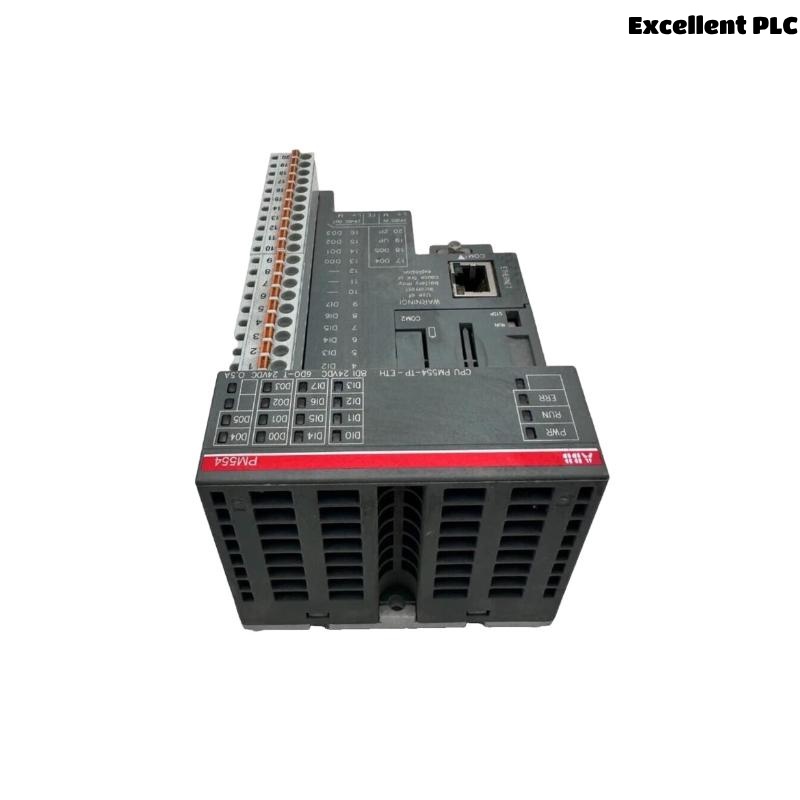

ABB PM554-TP-ETH 1SAP120600R0071 CPU Programmable Logic Controller

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The ABB PM554-TP-ETH 1SAP120600R0071 is a high-performance programmable logic controller (PLC) designed for small to medium-sized automation applications requiring reliable control, fast processing, and integrated communication. Part of ABB’s AC500-eCo PLC family, this compact controller combines flexibility, powerful functionality, and ease of integration, making it ideal for cost-sensitive control tasks in a wide range of industries.

Equipped with built-in Ethernet communication, digital and analog I/O channels, and expandable modules, the PM554-TP-ETH provides efficient control, monitoring, and communication within modern industrial environments. Its modular design allows for scalable system configurations, supporting various automation needs, from machinery control to building management and infrastructure automation.

---

Key Features

• Compact, all-in-one PLC for small to mid-sized automation tasks

• Integrated Ethernet port for fast communication and remote access

• Onboard digital inputs, digital outputs, analog inputs, and analog outputs

• High-speed CPU with efficient program execution for time-critical processes

• Fully compatible with ABB’s AC500 and AC500-eCo modular system architecture

• Supports standard IEC 61131-3 programming languages (ST, LD, FBD, SFC, IL)

• Expandable with additional I/O modules and communication interfaces

• User-friendly programming environment via ABB Automation Builder

• Proven reliability in industrial, infrastructure, and building automation

---

Technical Specifications

---

Product Applications

The ABB PM554-TP-ETH PLC is designed to meet diverse automation requirements across industries that demand compact, cost-effective, and scalable control solutions:

• Machine Automation: Ideal for packaging machines, textile equipment, material handling, and general industrial machinery

• Building Automation: Controls HVAC, lighting, access control, and energy management systems

• Infrastructure Projects: Automation of water treatment plants, pumping stations, and transport systems

• OEM Solutions: Embedded control for equipment manufacturers requiring integrated logic and communication

• Energy Management: Efficient control for renewable energy applications, monitoring, and optimization

• Small Process Control Systems: Local control for batch processes, mixers, and industrial subsystems

With its built-in Ethernet and modular expandability, the PM554-TP-ETH offers flexible integration into both new installations and existing automation infrastructures.

---

Product Advantages

• Compact All-in-One Design: Combines CPU, digital/analog I/O, and Ethernet communication in a single device

• Integrated Ethernet Port: Enables fast programming, remote diagnostics, and communication with higher-level systems

• Flexible System Expansion: Supports scalable architectures with ABB AC500-eCo I/O modules

• High Processing Speed: Fast logic execution ensures responsive control in time-critical applications

• Open Programming Standards: Supports all IEC 61131-3 languages for easy integration and maintenance

• Reliable Industrial Performance: Robust design withstands demanding environments and continuous operation

• Global Certification: CE, RoHS, and UL compliance ensures suitability for international projects

• Cost-Efficient Automation: Provides reliable control functionality at an attractive price point

---

Frequently Asked Questions (FAQ)

1. What is the primary use of the PM554-TP-ETH PLC?
It provides compact, reliable automation control for machinery, buildings, and industrial processes with integrated Ethernet communication.

2. How many onboard I/O channels does the controller offer?
It includes 8 digital inputs, 6 digital outputs, 2 analog inputs, and 2 analog outputs for basic control requirements.

3. Can the PLC communicate with SCADA or higher-level systems?
Yes, through its Ethernet port and supported protocols like Modbus TCP and OPC, it integrates with SCADA, HMI, and MES systems.

4. Is this controller expandable?
Yes, it supports ABB AC500-eCo I/O modules for system expansion as required.

5. What programming software is required?
ABB Automation Builder is used for programming, offering IEC 61131-3 standard languages.

6. Does the controller support real-time clock functionality?
Yes, it features an integrated RTC with optional battery backup for time-dependent operations.

7. What is the operating voltage for this PLC?
It operates on 24 VDC, typical for industrial control systems.

8. Can this PLC be used in harsh environments?
It is designed for industrial use but must be installed in a suitable enclosure to meet protection requirements.

9. Is remote access supported?
Yes, the Ethernet port allows remote programming, diagnostics, and monitoring when configured properly.

10. Does the controller comply with international standards?
Yes, it holds CE, RoHS, UL, and IEC certifications for global compatibility.

---
