Product Introduction

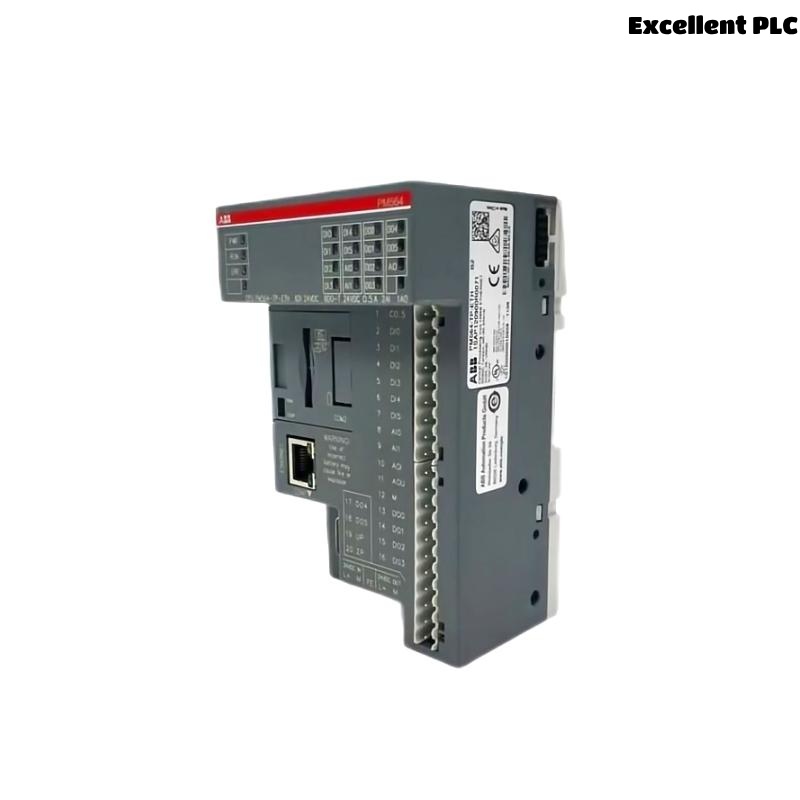

The ABB PM564 Programmable Logic Controller (PLC) is a compact and highly reliable automation controller designed to meet the demands of industrial control environments. As part of ABB’s AC500 series, the PM564 delivers robust performance, flexible configuration, and long-term dependability, making it suitable for a wide range of automation applications from manufacturing to infrastructure systems.
The PM564 CPU module is equipped with powerful processing capabilities and integrated communication ports, supporting Ethernet, serial, and expansion bus interfaces. With high-speed processing and a scalable modular design, it caters to small-scale systems while allowing future expansion for growing automation needs. It adheres to rigorous industrial standards for EMC and environmental endurance.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | ABB PM564 Programmable Logic Controller |
| Series | AC500 Series |
| Processor | 32-bit RISC processor |
| Program Memory | 512 KB Flash |
| Data Memory (RAM) | 128 KB |
| I/O Capacity | Up to 512 digital/analog I/Os via expansion modules |
| Communication Ports | 1 x Ethernet (10/100 Mbps), 1 x Serial (RS-232/RS-485) |
| Expansion Interface | CS31 bus, SD card slot, CAN optional |
| Supported Protocols | Modbus TCP, Modbus RTU, Ethernet/IP, OPC |
| Power Supply | 24 VDC |
| Cycle Time | < 0.2 ms/K instruction |
| Programming Software | PS501 Control Builder (IEC 61131-3 compliant) |
| Mounting | DIN rail (35 mm) |
| Protection Class | IP20 |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Certifications | CE, UL, cULus, RoHS |
| Dimensions (W x H x D) | 74 × 135 × 82 mm |
| Weight | 0.287 kg |
Applications
The ABB PM564 PLC is engineered for a broad array of automation applications across various sectors, including:
-
Industrial Manufacturing: Assembly lines, robotics control, process instrumentation.
-
Building Automation: HVAC control systems, lighting, security and fire safety management.
-
Water and Wastewater: Pump station control, flow monitoring, remote terminal units.
-
Power and Energy: Substation automation, renewable energy systems, grid integration.
-
Transportation: Tunnel automation, railway signaling systems, traffic control.
-
Food and Beverage: Packaging, bottling lines, temperature and mixing process control.
Its modularity allows for tailored configuration and easy adaptation for both simple and complex tasks.
Product Advantages
-
Scalability
Modular design allows seamless integration of additional I/O and communication modules to scale with system needs. -
Robust Communication
With built-in Ethernet and serial interfaces, plus support for widely-used protocols, PM564 ensures efficient data exchange in multi-vendor environments. -
IEC 61131-3 Compliance
Supports multiple programming languages (Ladder, Function Block, ST, IL, SFC) for flexibility in development. -
Compact and Durable
Small footprint ideal for control cabinets; meets industrial standards for temperature, vibration, and EMC. -
Efficient Processing
Fast cycle times ensure real-time responsiveness essential for high-speed automation processes. -
Cost-Effective
Offers high performance at a competitive price, making it ideal for both OEMs and system integrators. -
Long-Term Support
Backed by ABB’s global support network and documentation, ensuring long lifecycle and dependable supply chain.
