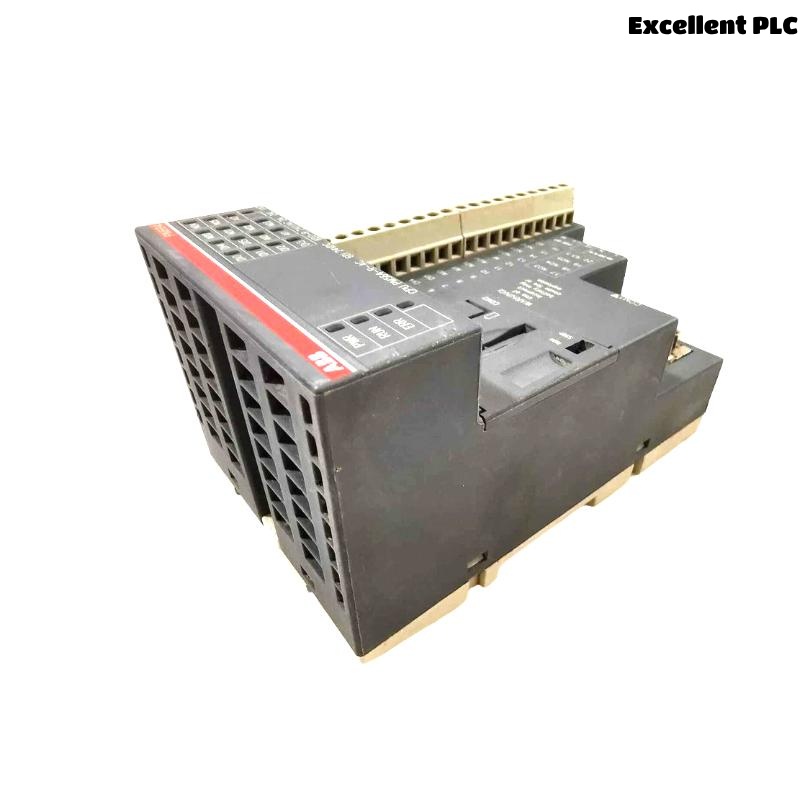

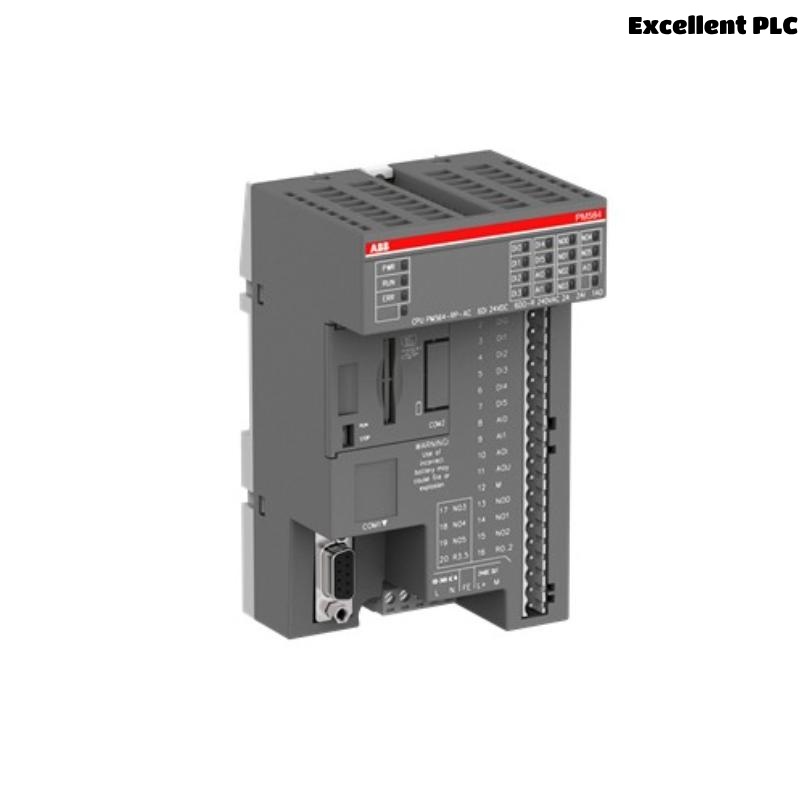

ABB PM564-R-AC 1TNE968900R1220 AC500 PLC Processor Module
ABB PM564-R-AC is a powerful and compact CPU module in the AC500 PLC series. It is designed for versatile automation solutions, offering reliable control in industrial environments.
Product Description
The PM564-R-AC CPU module provides high-performance processing capabilities with integrated communication interfaces, suitable for applications requiring flexibility, scalability, and system expansion. It is part of ABB’s modular AC500 PLC family, allowing easy integration and customization.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | PM564-R-AC |
| Order Code | 1TNE968900R1220 |
| Product Series | AC500 PLC |
| Processor Type | CPU with integrated communication |
| Memory | 512 KB program, 256 KB data |
| Communication Ports | 1x Ethernet, 1x Serial, 1x USB |
| Power Supply | 100–240 V AC |
| Operating Temperature | -10°C to +60°C |
| Mounting Type | DIN rail |
| Dimensions (W×H×D) | 74 × 135 × 82 mm |
| Weight | 0.23 kg |
Applications
-
Factory automation
-
Building management systems
-
Process control in water, HVAC, and energy industries
-
Machine control and robotics integration
-
Material handling systems
Key Advantages
-
Modular design: Supports system expansion and flexibility
-
Integrated communication: Offers multiple ports for connectivity
-
Wide voltage range: Operates on standard AC supply
-
DIN rail mounting: Simplifies installation in control panels
-
High reliability: Stable performance in industrial conditions
FAQ
1. What is the power supply requirement for the PM564-R-AC?
It operates on 100–240 V AC input.
2. Can I connect this module to an Ethernet network?
Yes, it includes an integrated Ethernet port.
3. What programming software does this module use?
It uses ABB’s Automation Builder software.
4. Is the PM564-R-AC suitable for high-temperature environments?
It supports temperatures up to +60°C.
5. How much user memory is available?
It offers 512 KB for programs and 256 KB for data.
6. What is the mounting method for this CPU?
It is designed for DIN rail mounting.

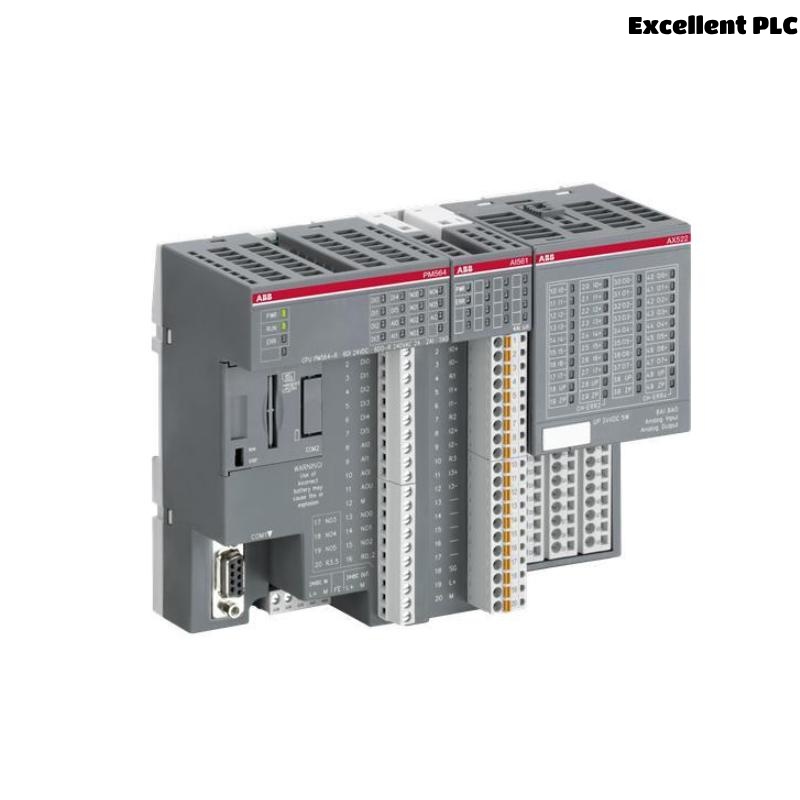

7. Can this CPU be expanded with I/O modules?
Yes, it supports a wide range of AC500 I/O modules.
8. Is USB communication supported?
Yes, it has an integrated USB port.
9. What is the typical use case of this module?
It is commonly used in automation, control, and energy management systems.
10. Does it support remote diagnostics?
Yes, via Ethernet and Automation Builder tools.
