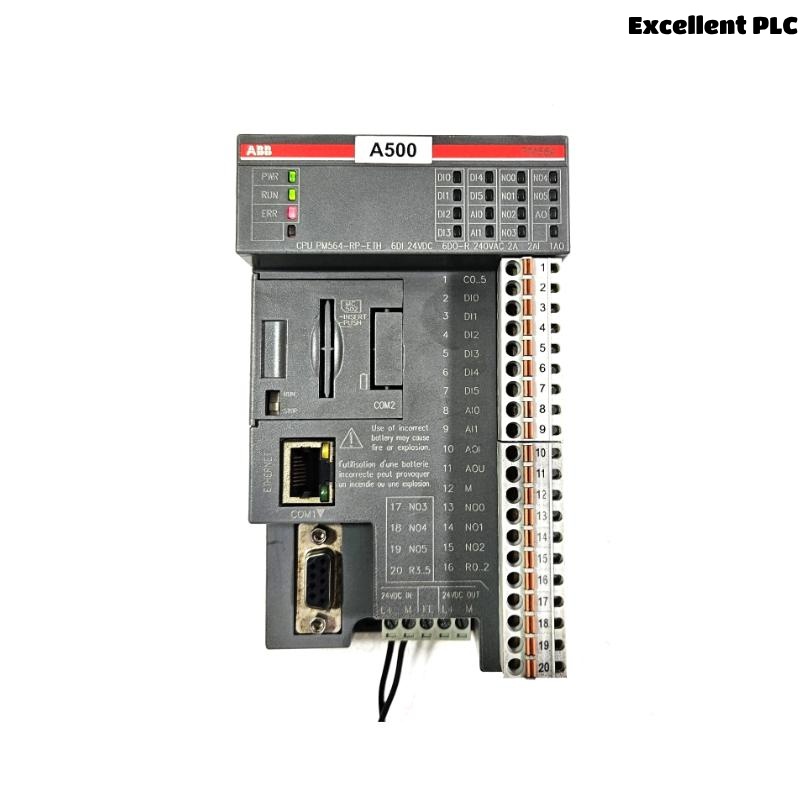

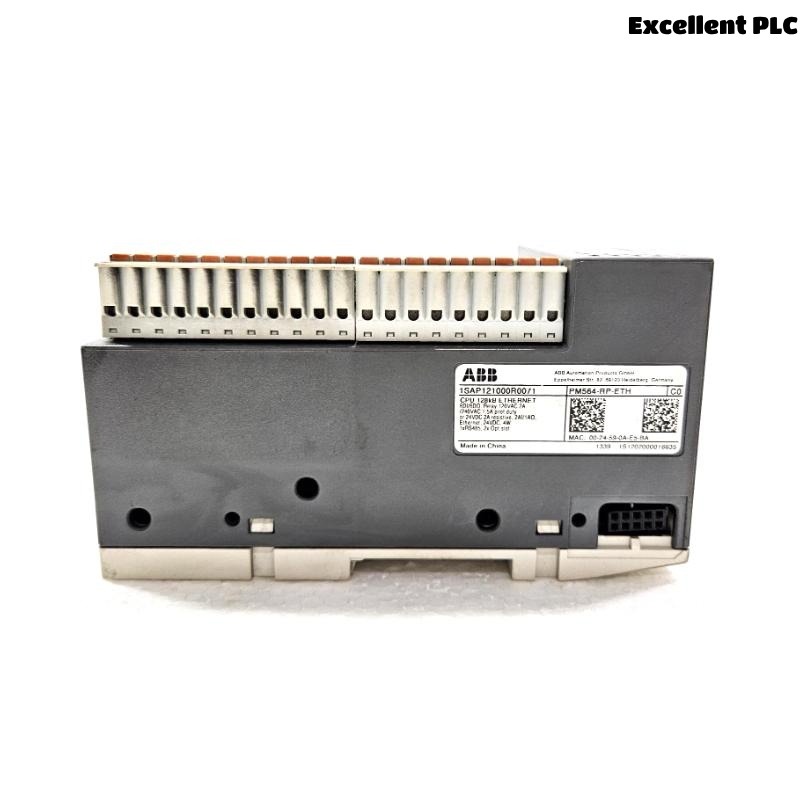

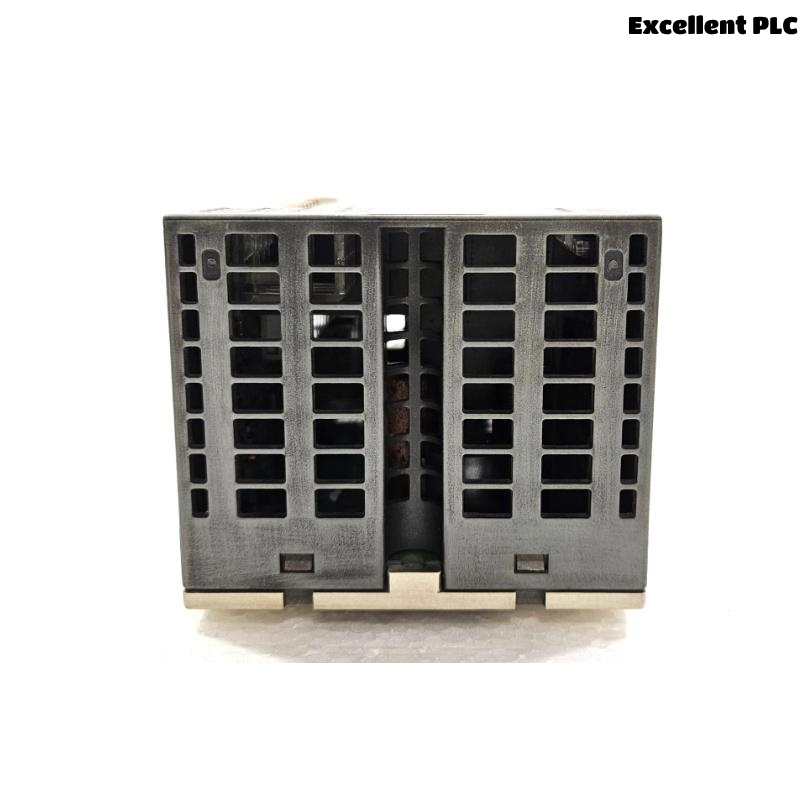

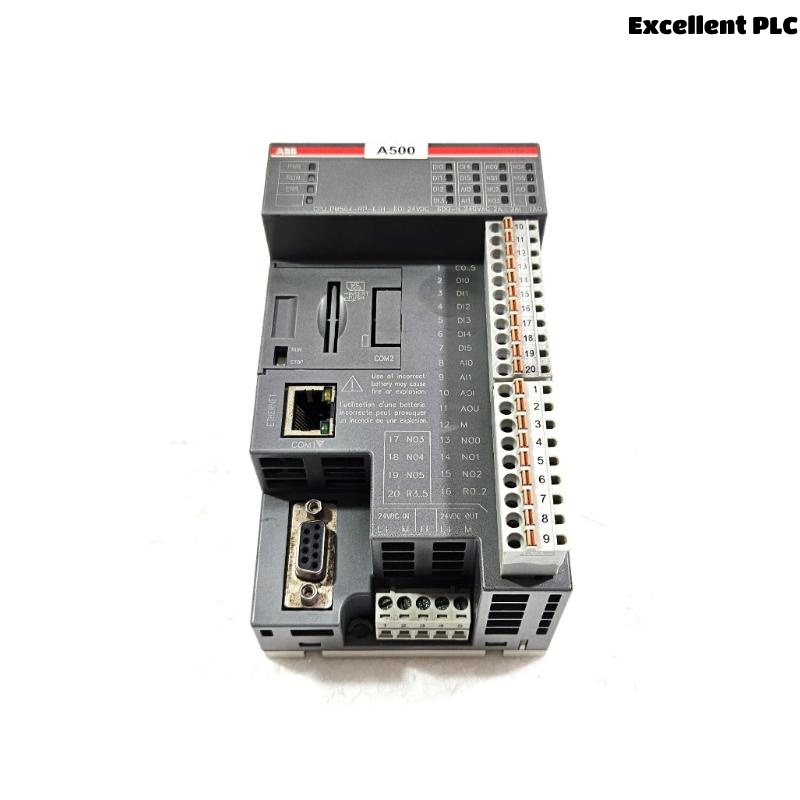

ABB PM564-RP-ETH 1SAP121000R0071 AC500 Programmable Logic Controller (PLC)

ABB PM564-RP-ETH 1SAP121000R0071 AC500 Programmable Logic Controller

The ABB PM564-RP-ETH is a compact, robust PLC in the AC500-eCo series. It features relay outputs, analog I/Os, Ethernet communication, and a 24V DC power supply. Designed for industrial automation, it combines reliability, flexibility, and ease of integration for control tasks.

---

Technical Specifications

---

Applications

• Industrial automation and control

• Machine building and packaging lines

• HVAC and energy management systems

• Process monitoring and distributed I/O networks

• Remote monitoring and maintenance

---

Advantages

• Compact design suitable for limited space installations

• Integrated Ethernet interface for modern communication

• Relay outputs for direct control of loads

• Supports standard IEC 61131-3 programming languages

• High electromagnetic compatibility and robust construction

• Easy installation with DIN rail or screw mounting

---

FAQ

Q1: What is the power supply voltage of the PM564-RP-ETH?
A1: It operates on 24 V DC.

Q2: How many digital inputs and outputs are available?
A2: It provides 6 digital inputs and 6 relay digital outputs.

Q3: Does the controller support Ethernet communication?
A3: Yes, it has an onboard Ethernet interface.

Q4: What is the memory size of the CPU?
A4: The CPU has 128 kB program memory.

Q5: Can it be mounted vertically?
A5: Yes, both horizontal and vertical mounting are supported.

Q6: Is the unit suitable for high-vibration environments?
A6: Yes, it meets IEC 60068-2-6 and IEC 60068-2-27 standards for vibration and shock.

Q7: What type of processor is used?
A7: It uses a 32-bit Freescale ARM processor running at 50 MHz.

Q8: Does it include analog I/Os?
A8: Yes, it features 2 analog inputs and 1 analog output.

Q9: What programming languages are supported?
A9: Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Sequential Function Chart (SFC), Structured Text (ST), and Continuous Function Chart (CFC).

Q10: What is the IP rating of the device?
A10: The device has an IP20 protection rating.

---
