Product Overview

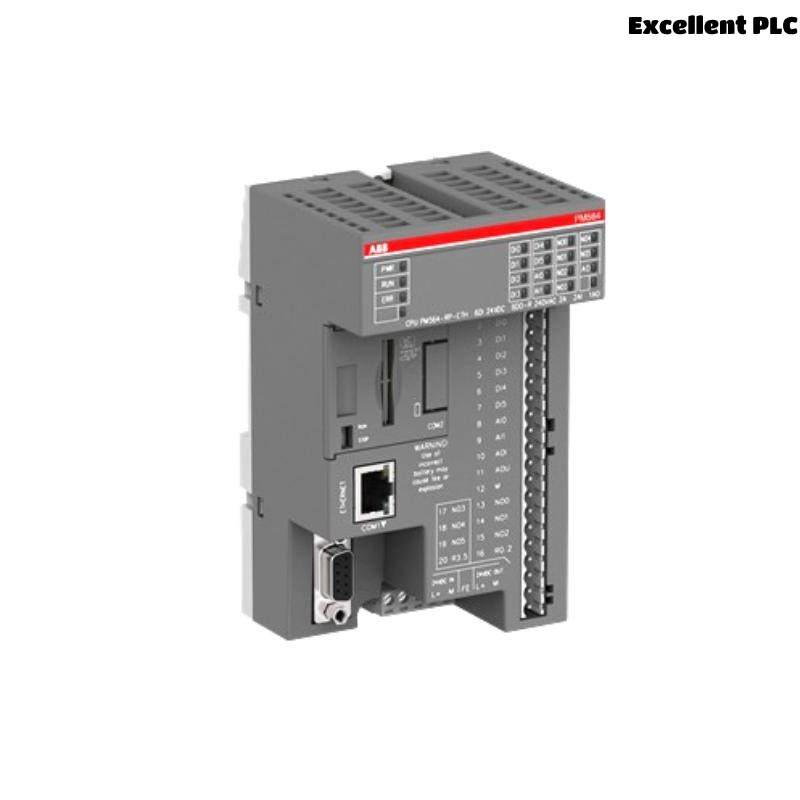

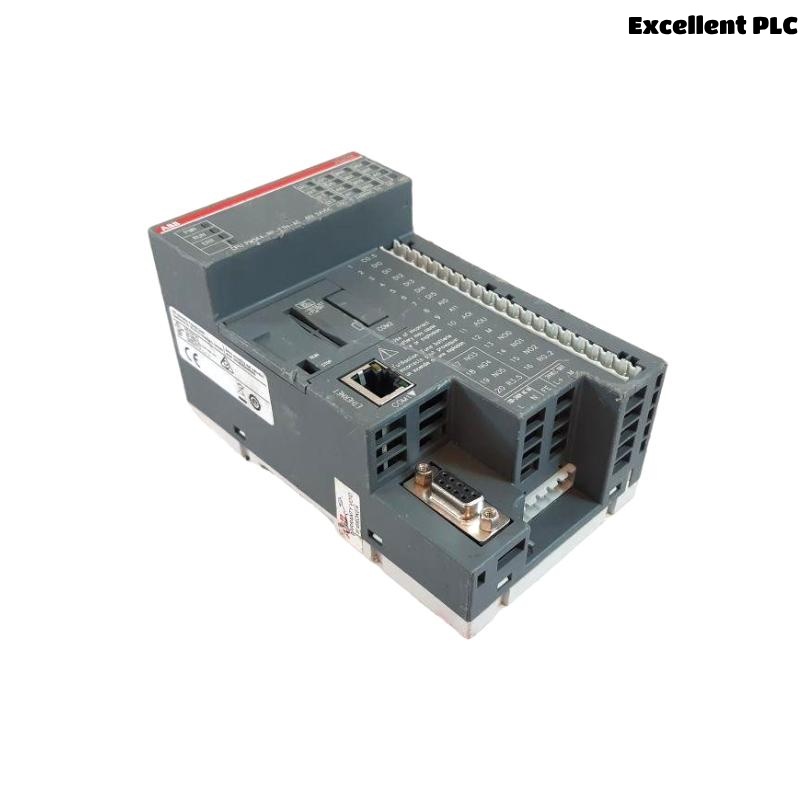

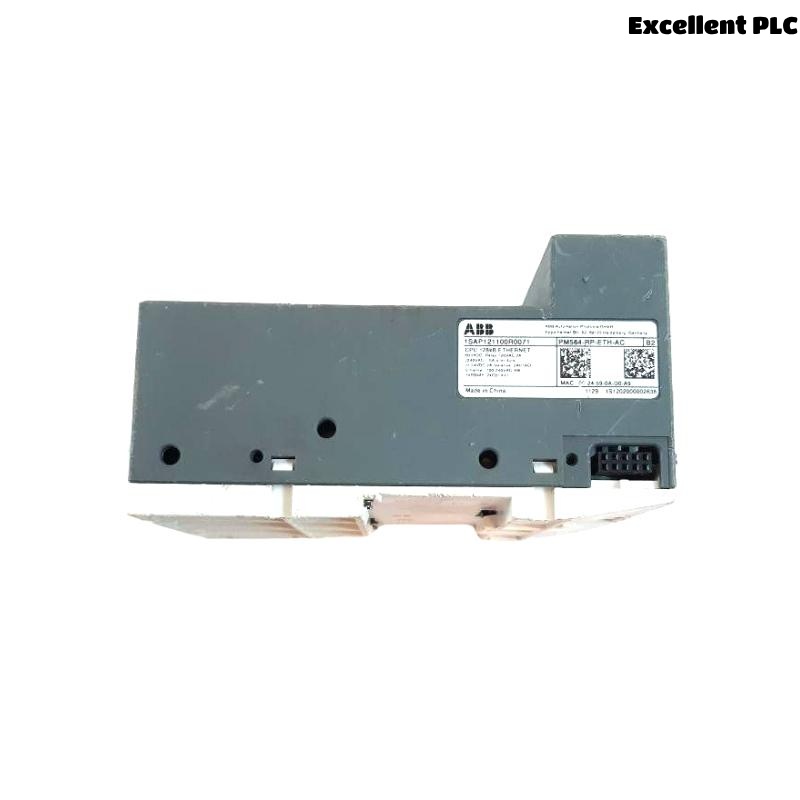

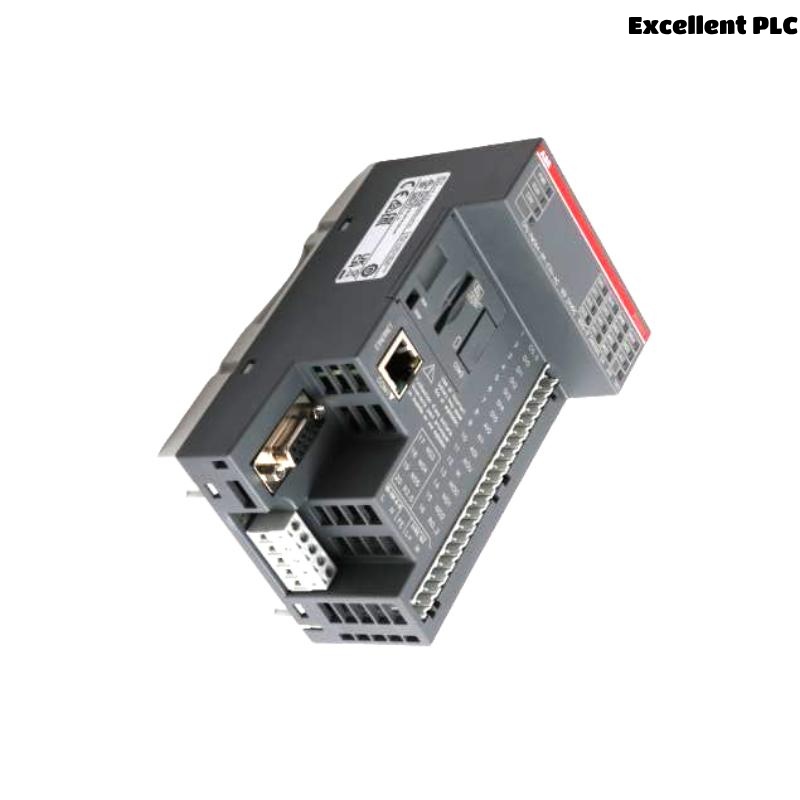

The ABB PM564-RP-ETH-AC is a compact and robust processor module from the AC500-eCo series, designed for industrial automation. It integrates relay outputs, analog I/O, Ethernet communication, and supports 100–240 V AC power supply, making it suitable for a wide range of control applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | PM564-RP-ETH-AC |
| Part Number | 1SAP121100R0071 |
| Power Supply | 100–240 V AC |
| Current Consumption (typ.) | 23 mA @ 100 V AC, 14 mA @ 240 V AC |
| Max Power Dissipation | 5.3 W |
| CPU | 32-bit Freescale ARM, 50 MHz |
| Program Memory | 128 kB Flash EPROM |
| Data Memory | 10 kB VAR, 1 kB VAR_RETAIN, 2 kB %MB |
| Digital Inputs | 6 |
| Digital Outputs | 6 (Relay) |
| Analog Inputs | 2 |
| Analog Outputs | 1 |
| Ethernet Interface | Yes |
| Serial Interfaces | 1 × RS-485 COM1, optional COM2 |
| Supported Languages | IL, FBD, LD, SFC, ST, CFC |
| Mounting | DIN rail (horizontal or vertical) |
| Dimensions (W×H×D) | 74 × 135 × 82 mm |
| Weight | 0.355 kg |
| Operating Temperature | 0 °C to +60 °C |
| Protection Class | IP20 |
| Certifications | IEC 61131-2, CISPR11 Class A, UL94 V-2 |
Applications
-
Small to medium industrial automation systems
-
Building automation
-
Process control with Ethernet connectivity
-
Decentralized control in distributed installations
-
Retrofit projects where AC supply is required
Advantages
-
Integrated Ethernet interface for fast communication
-
Relay outputs suited for switching higher loads
-
Compact and lightweight for space-constrained panels
-
Wide input voltage range (100–240 V AC) for flexible installation
-
Support for multiple IEC 61131 programming languages
-
Reliable performance in harsh industrial environments
FAQ
Q1: What is the main difference between PM564-RP-ETH-AC and PM564-TP?
A1: The PM564-RP-ETH-AC has relay outputs, AC power input, and Ethernet, while PM564-TP has transistor outputs and DC power.
Q2: Can this PLC operate on 24 V DC?
A2: No, this model is designed specifically for 100–240 V AC.
Q3: How many onboard digital outputs does it have?
A3: It has 6 onboard relay digital outputs.
Q4: Does it include an Ethernet port by default?
A4: Yes, the PM564-RP-ETH-AC includes an Ethernet interface.
Q5: Is a real-time clock included?
A5: It is optional, not included by default.
Q6: Can it be programmed using ABB Automation Builder?
A6: Yes, it is fully supported by ABB Automation Builder software.
Q7: What is the protection rating of this PLC?
A7: The unit is rated at IP20 when fully assembled.
Q8: Is it suitable for vertical mounting?
A8: Yes, but with a reduced output load.
Q9: What type of communication protocols are supported?
A9: It supports Modbus (master/slave), serial ASCII, and Ethernet protocols.
Q10: Does it have built-in battery backup?
A10: Battery backup is not included, but a warning for low battery is available if a battery is installed.
