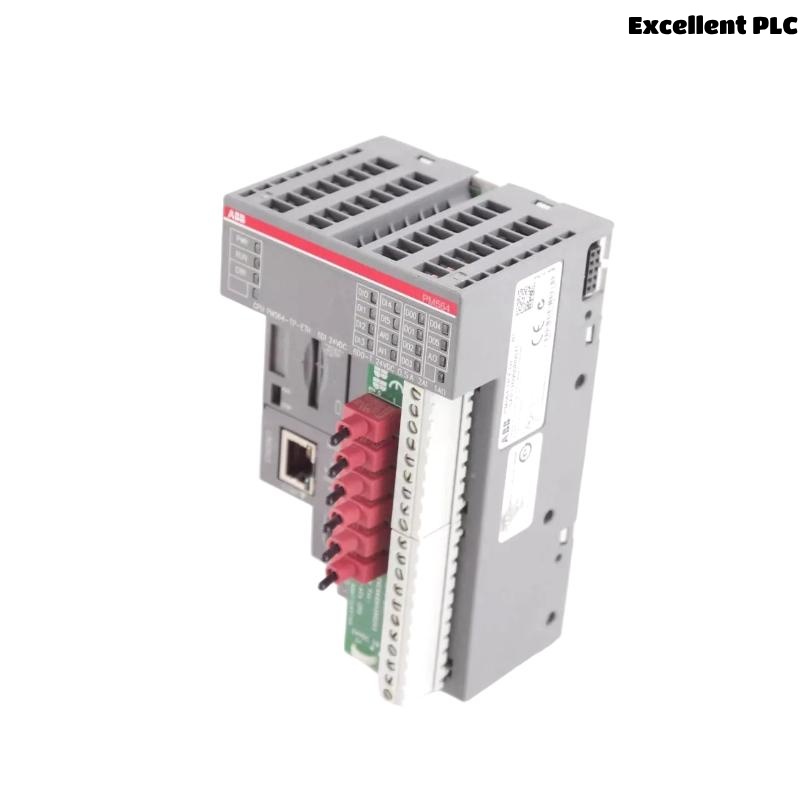

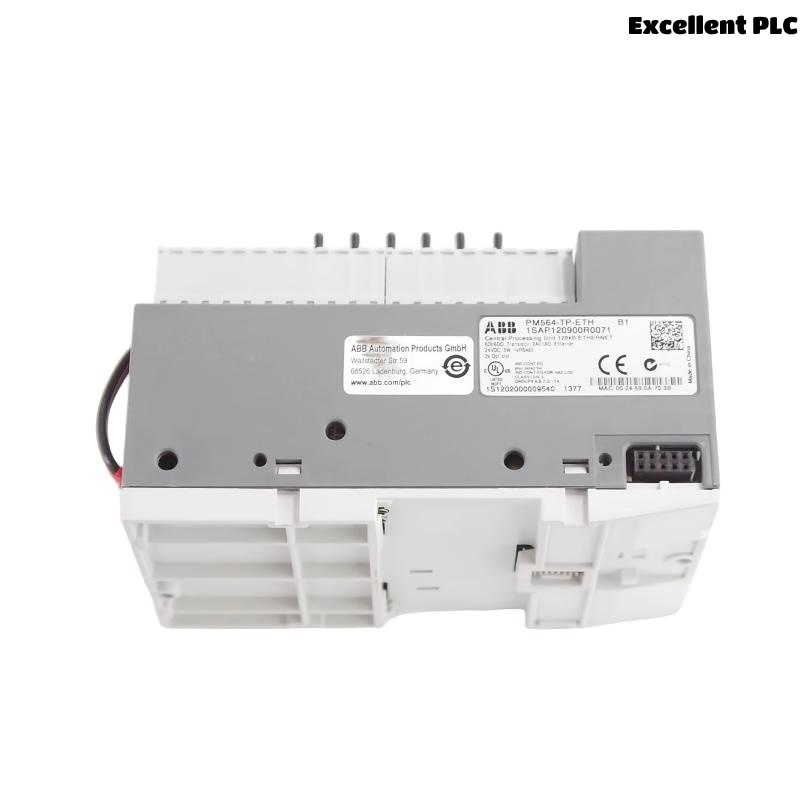

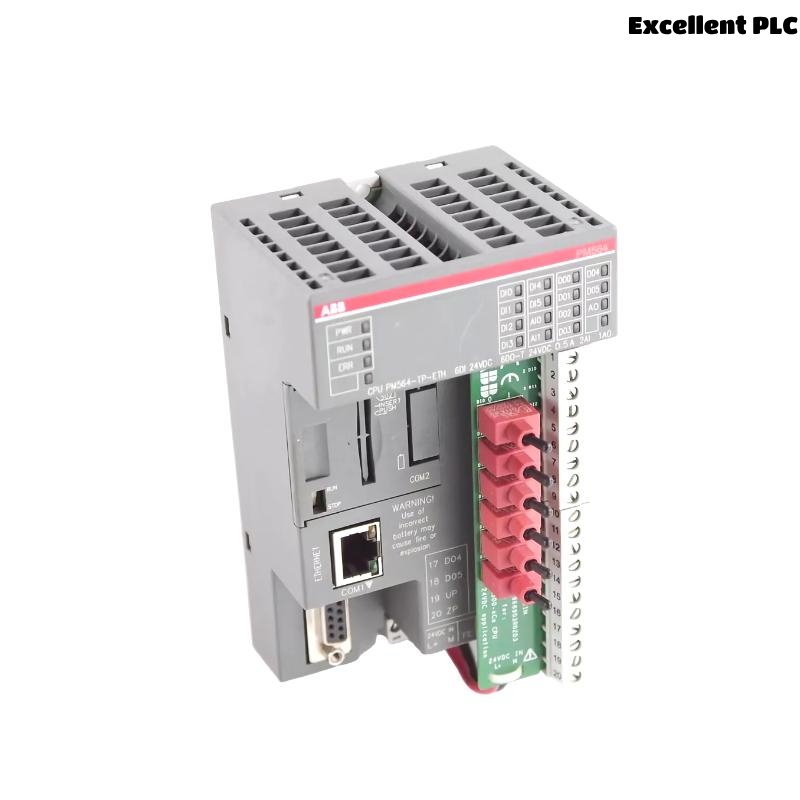

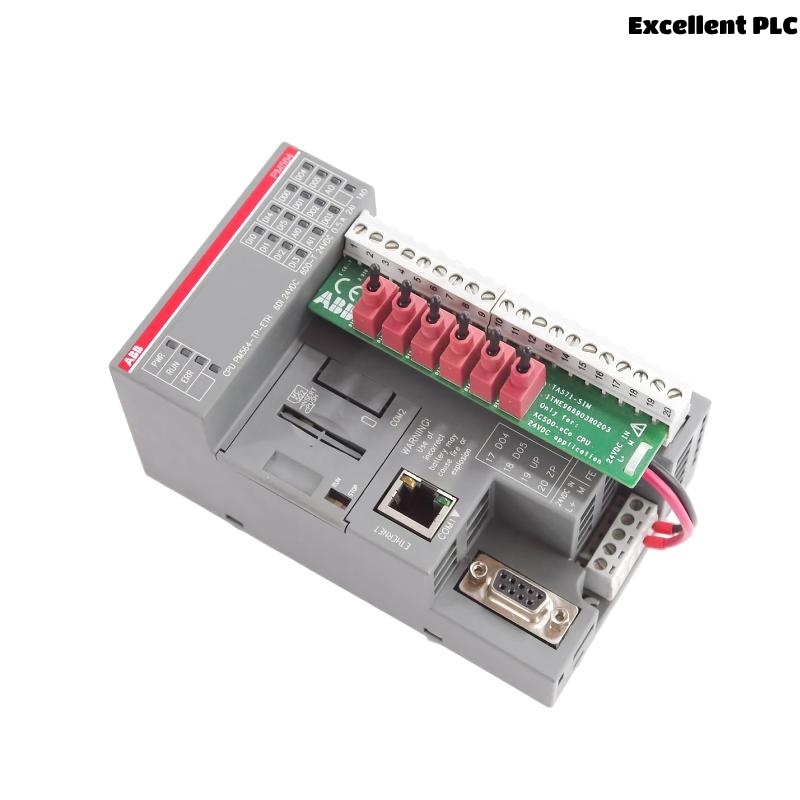

ABB PM564-TP-ETH 3ABD00033169 Programmable Logic Controller

Product Introduction

The ABB PM564-TP-ETH (Order Code: 3ABD00033169) is a high-performance Programmable Logic Controller (PLC) from the ABB AC500 series. Designed for advanced industrial automation applications, this modular PLC combines flexibility, reliability, and powerful communication capabilities in one compact unit. It features integrated Ethernet connectivity and multiple I/O expansion possibilities, making it ideal for complex control systems in manufacturing, energy, infrastructure, and process industries.

The PM564-TP-ETH controller supports IEC 61131-3 programming languages and is engineered for harsh environments with robust EMC protection and wide operating temperature ranges. Its scalability and integration readiness with SCADA and DCS platforms position it as a future-proof solution in digital transformation initiatives.

Product Specifications

Product Applications

The PM564-TP-ETH PLC is widely used across industries due to its scalability and reliability. Key application areas include:

• Factory Automation: Assembly lines, packaging systems, robotics control.

• Energy and Utilities: Power plant control, water/wastewater treatment.

• Infrastructure: Intelligent traffic systems, tunnel automation.

• Building Management: HVAC systems, access control, lighting automation.

• Renewable Energy: Wind turbine control, solar PV plant monitoring.

Product Advantages

• Integrated Ethernet Communication
  Seamless connectivity to networks, SCADA, and third-party systems.

• Modular and Scalable Architecture
  Allows flexible I/O expansion tailored to specific automation needs.

• IEC 61131-3 Programming
  Industry-standard languages increase programming flexibility and compatibility.

• Robust and Industrial-Grade
  Operates reliably in challenging industrial environments with wide temperature support.

• Low Power Consumption
  Energy-efficient operation for sustainable system design.

• Field Proven Reliability
  Trusted by global industries for consistent performance and uptime.

Frequently Asked Questions (FAQ)

1. What programming software is used for PM564-TP-ETH?
   It is programmed using ABB’s Automation Builder software suite.

2. Does the PM564-TP-ETH support Ethernet communication?
   Yes, it features an integrated Ethernet port supporting Modbus TCP, HTTP, SNMP, and more.

3. Can the PM564 be expanded with I/O modules?
   Yes, up to 10 local I/O modules can be added for system expansion.

4. Is it suitable for harsh environments?
   Yes, it operates from -10°C to +60°C and has EMC protection.

5. How is the PLC mounted?
   The unit is mounted on a standard DIN rail.

6. Is remote programming or diagnostics possible?
   Yes, via Ethernet or USB interfaces using Automation Builder.

7. Can it be integrated into SCADA or DCS systems?
   Yes, using supported protocols like Modbus TCP and OPC.

8. Does it support SD cards for memory expansion?
   Yes, it includes an SD card slot for additional application and firmware storage.

9. What is the main difference between PM564 and PM554 models?
   PM564 has enhanced Ethernet support and more I/O expansion capability.

10. Is this PLC compliant with global standards?
    Yes, it is certified with CE, UL, cUL, and ATEX Zone 2 compliance.
