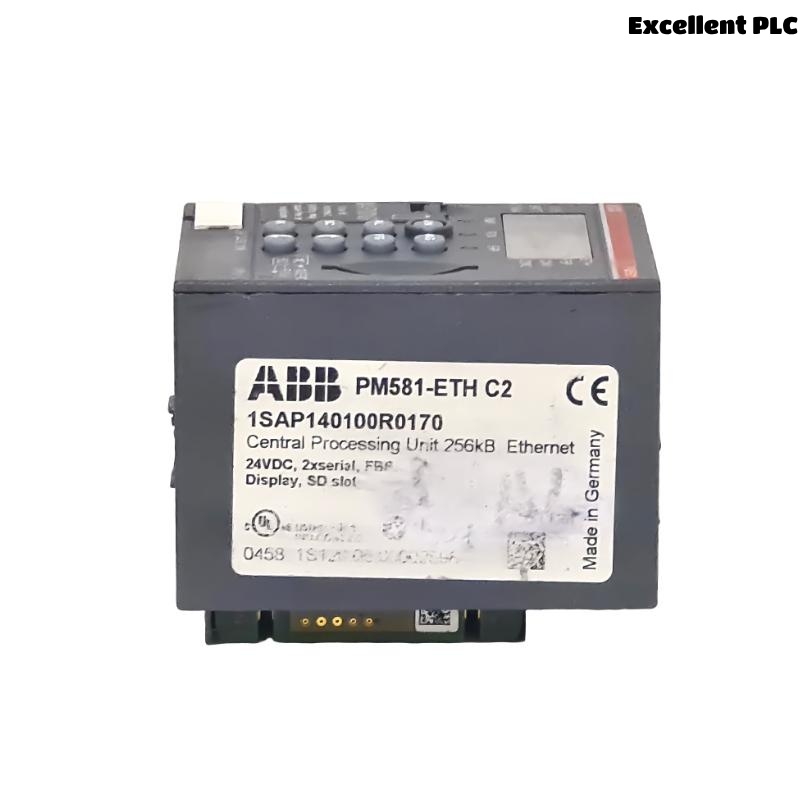

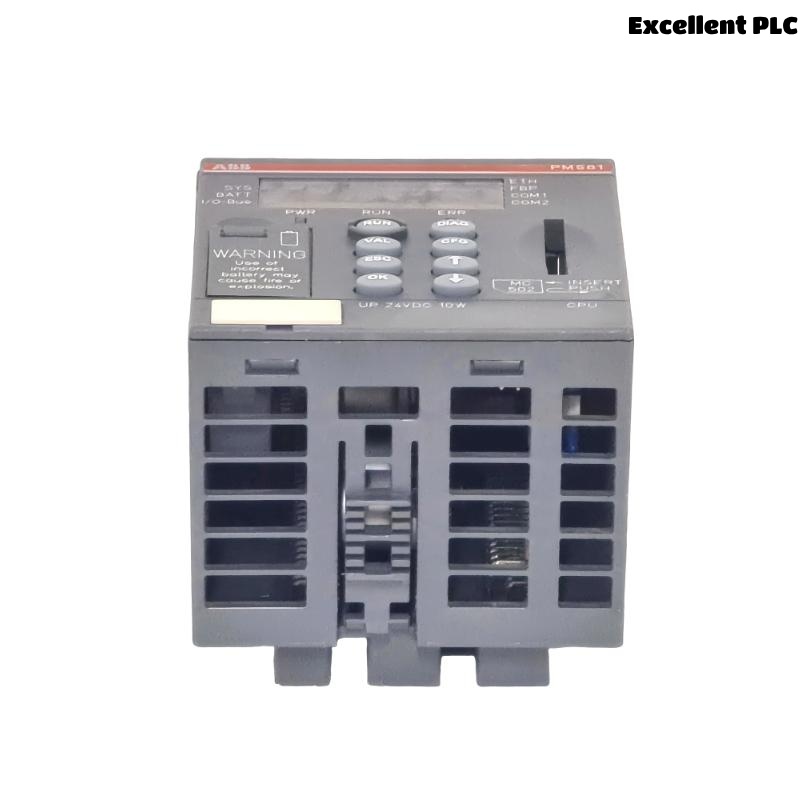

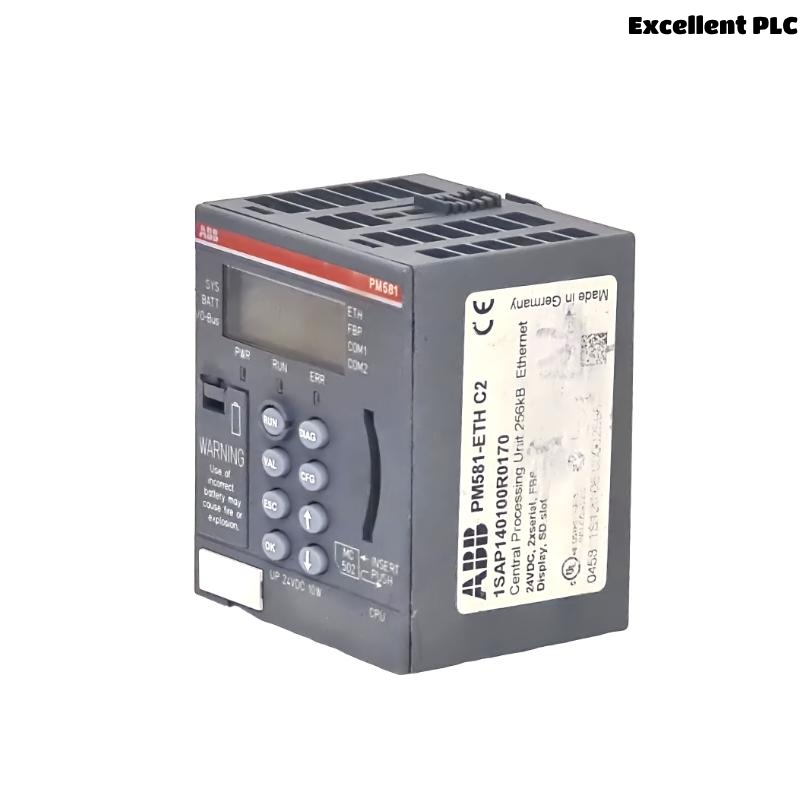

ABB PM581-ETH 1SAP140100R0170 Programmable Logic Controller

Product Introduction

The ABB PM581-ETH (1SAP140100R0170) is a high-capacity Programmable Logic Controller designed to meet the demands of modern industrial automation. It delivers enhanced processing power with increased memory, making it ideal for complex control tasks that require speed, precision, and reliability.

Built for flexibility and robustness, the PM581-ETH integrates dual Ethernet ports to facilitate efficient network communication, offering redundancy and high-speed data exchange capabilities. This model supports a broad range of expansion modules, allowing for tailored system configurations to suit various automation needs.

Its compact and sturdy design ensures ease of installation in control cabinets, while the advanced diagnostics and user-friendly programming tools make maintenance and troubleshooting straightforward. Widely applied across multiple industries, the PM581-ETH is a dependable choice for scalable and future-proof automation systems.

Product Specifications

Product Applications

The ABB PM581-ETH PLC is suitable for a wide array of industrial automation scenarios, including:

• Advanced Manufacturing: Controlling high-speed production lines, robotics, and assembly processes.

• Process Automation: Managing complex chemical, pharmaceutical, and food & beverage processes requiring precise regulation.

• Energy Sector: Automation of power plants, substation controls, and grid management systems.

• Infrastructure: Supervising HVAC, water treatment, and building management systems in commercial and industrial facilities.

• Material Handling Systems: Coordination of conveyors, packaging machines, and sorting systems for efficiency and reliability.

• Machine Automation: Integration with CNC machines, presses, and other industrial machinery demanding high control precision.

Product Advantages

• Enhanced Processing Power: The ARM Cortex-M7 CPU and increased memory support complex, time-critical automation tasks.

• Dual Ethernet Ports: Provide network redundancy and support for seamless communication and data transfer.

• Scalable and Modular: Supports a wide range of digital and analog expansion modules to fit specific project requirements.

• User-Friendly Programming: Compatible with ABB’s Automation Builder software and standard IEC 61131-3 languages, simplifying development and maintenance.

• Robust Industrial Design: Built to operate reliably in harsh environments with wide temperature tolerance.

• Compact Size: Enables installation in tight control cabinets without sacrificing performance.

• Advanced Diagnostics: Facilitates efficient troubleshooting and reduces downtime.

• Energy Efficient: Low power consumption ensures cost savings in continuous operations.

• Compliance and Certification: Meets international standards for safety and electromagnetic compatibility, assuring safe and legal operation worldwide.

Frequently Asked Questions (FAQ)

1. Q: What programming environments can be used with the PM581-ETH?
   A: The PLC is programmed using ABB Automation Builder and supports all IEC 61131-3 standard programming languages, such as Ladder Diagram, Structured Text, and Function Block Diagram.

2. Q: How does the PM581-ETH handle network communication?
   A: It features dual Ethernet ports that allow for daisy chaining and network redundancy, ensuring uninterrupted communication.

3. Q: Can I expand the input/output capabilities of the PM581-ETH?
   A: Yes, the system supports various expansion modules for digital and analog inputs and outputs.

4. Q: What is the maximum operating temperature for the PM581-ETH?
   A: It can reliably operate in environments from -20°C up to +60°C.

5. Q: Does the PM581-ETH have built-in safety features?
   A: While it has robust diagnostic and error-checking capabilities, for certified safety functions, ABB offers specific safety PLC models.

6. Q: What are the dimensions and weight of the PM581-ETH?
   A: The controller measures 62 × 76 × 67.5 mm and weighs 0.15 kg.

7. Q: Is remote programming possible?
   A: Yes, the Ethernet connectivity allows for remote programming and monitoring through ABB’s software.

8. Q: How much program memory is available?
   A: The PM581-ETH provides 4 MB of program memory, suitable for demanding automation projects.

9. Q: How is power supplied to this PLC?
   A: It operates on a 24 V DC nominal power supply, standard in industrial automation.

10. Q: What diagnostic features are included?
    A: It offers detailed diagnostic information accessible via the programming software to aid troubleshooting and system health monitoring.

Related Models from the Same Series or Related ABB Models

Popular ABB PLC Models from the Same Brand

Frequently Asked Questions (FAQ)

1. Q: What programming environments can be used with the PM581-ETH?
   A: The PLC is programmed using ABB Automation Builder and supports all IEC 61131-3 standard programming languages, such as Ladder Diagram, Structured Text, and Function Block Diagram.

2. Q: How does the PM581-ETH handle network communication?
   A: It features dual Ethernet ports that allow for daisy chaining and network redundancy, ensuring uninterrupted communication.

3. Q: Can I expand the input/output capabilities of the PM581-ETH?
   A: Yes, the system supports various expansion modules for digital and analog inputs and outputs.

4. Q: What is the maximum operating temperature for the PM581-ETH?
   A: It can reliably operate in environments from -20°C up to +60°C.

5. Q: Does the PM581-ETH have built-in safety features?
   A: While it has robust diagnostic and error-checking capabilities, for certified safety functions, ABB offers specific safety PLC models.

6. Q: What are the dimensions and weight of the PM581-ETH?
   A: The controller measures 62 × 76 × 67.5 mm and weighs 0.15 kg.

7. Q: Is remote programming possible?
   A: Yes, the Ethernet connectivity allows for remote programming and monitoring through ABB’s software.

8. Q: How much program memory is available?
   A: The PM581-ETH provides 4 MB of program memory, suitable for demanding automation projects.

9. Q: How is power supplied to this PLC?
   A: It operates on a 24 V DC nominal power supply, standard in industrial automation.

10. Q: What diagnostic features are included?
    A: It offers detailed diagnostic information accessible via the programming software to aid troubleshooting and system health monitoring.
