Product Overview

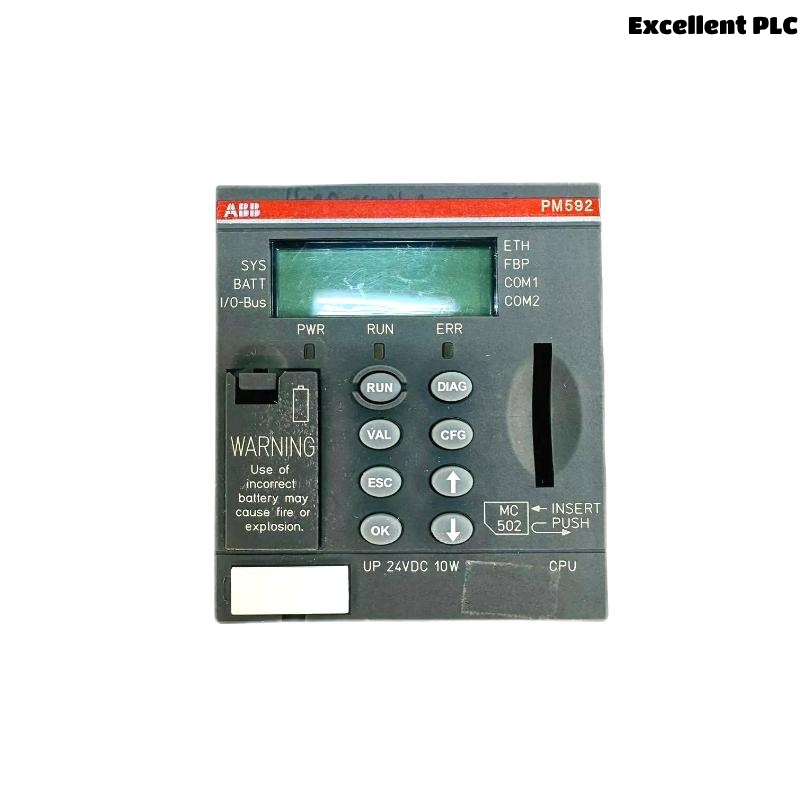

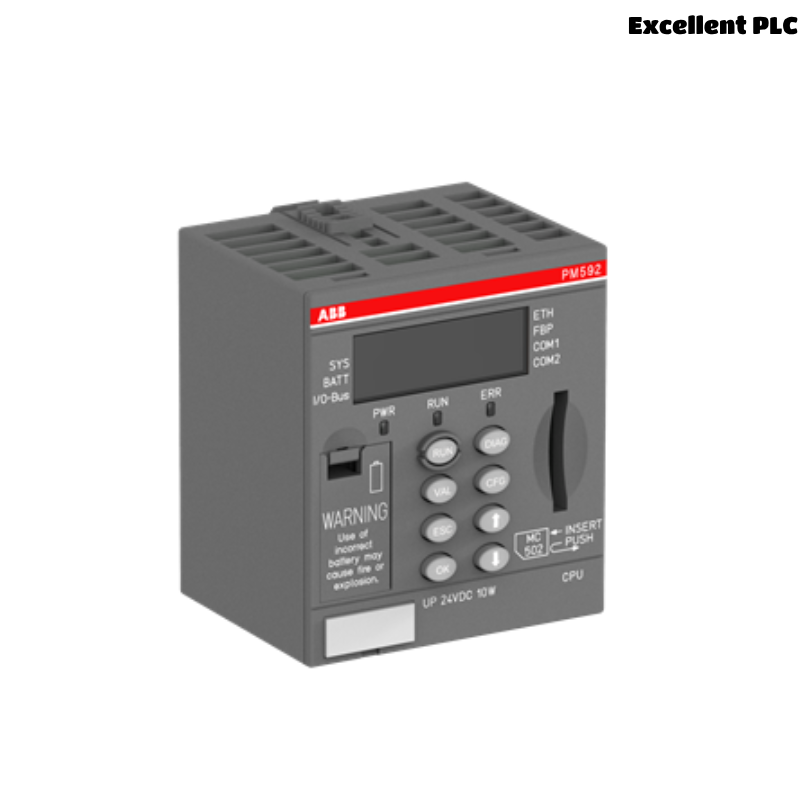

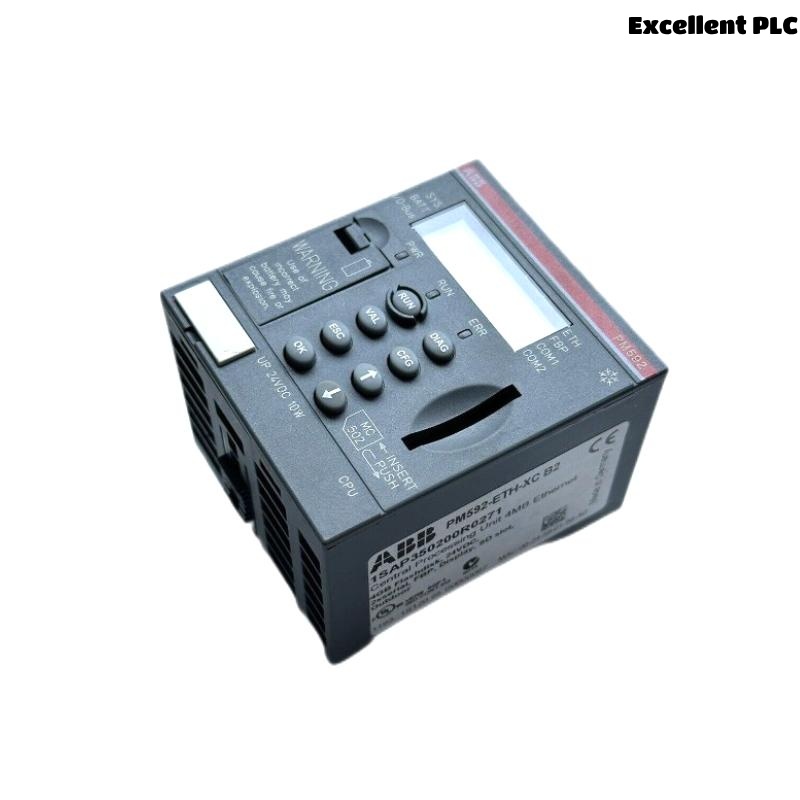

The ABB PM592-ETH 1SAP150200R0271 is a high-performance CPU programmable logic controller (PLC) designed for industrial automation and control applications. This compact and reliable controller is part of ABB’s AC500 series, offering an advanced platform for controlling complex processes and systems across various industries.
With integrated Ethernet communication capabilities, the PM592-ETH offers superior connectivity for remote monitoring, diagnostics, and system integration. Its robust design ensures high durability in demanding environments, providing both flexibility and performance to meet the control needs of modern industrial systems.
The PM592-ETH is capable of handling multiple tasks simultaneously, ensuring efficient management of input and output signals, system logic, and communications. This makes it ideal for applications requiring fast processing speeds and precise control.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PM592-ETH 1SAP150200R0271 |
| Model Type | CPU Programmable Logic Controller |
| Series | ABB AC500 Series |
| Processor Type | 32-bit processor |
| Communication Ports | 1 x Ethernet, 1 x RS232/RS485 |
| Operating Voltage | 24 VDC |
| Dimensions (L x W x H) | 62 × 76 × 67.5 mm |
| Weight | 0.153 kg |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 (for use in control panels) |
| CPU Processing Speed | Fast, real-time processing for complex systems |
| Program Memory | 1 MB (Expandable) |
| I/O Capacity | Expandable with ABB I/O modules |
| Programming Languages | IEC 61131-3 compliant (Ladder Diagram, FBD, STL, etc.) |
| Real-time Clock | Yes, integrated real-time clock |
Applications
The ABB PM592-ETH CPU is ideally suited for a wide range of industrial automation applications, including but not limited to:
-
Manufacturing Automation: Control of assembly lines, robots, and machines in factories.
-
Process Control: Regulation of process systems in industries like chemical, oil, and pharmaceuticals.
-
Energy Management: Managing energy consumption and optimizing power distribution in large industrial plants.
-
Building Automation: Control of HVAC systems, lighting, and other environmental systems in buildings.
-
Water Treatment: Automation of water purification, distribution, and sewage treatment facilities.
-
Transportation: System control for traffic management, railway signaling, and other transportation infrastructure.
Key Advantages
-
Advanced Processing Power: The PM592-ETH features a high-speed 32-bit processor, capable of handling complex tasks and offering faster response times.
-
Ethernet Connectivity: The integrated Ethernet port provides robust and flexible communication for remote monitoring, diagnostics, and control, enhancing system flexibility.
-
Scalable I/O System: The controller is highly scalable, enabling easy expansion through additional I/O modules to meet growing system needs.
-
Compact and Robust Design: Its compact form factor (62 × 76 × 67.5 mm) and lightweight (0.153 kg) make it easy to integrate into tight spaces, while its industrial design ensures high reliability even in harsh environments.
-
Real-Time Operation: With real-time processing capabilities, the PM592-ETH ensures quick execution of control tasks, crucial for time-sensitive industrial applications.
-
IEC 61131-3 Compliant: Supports various programming languages, including Ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text (ST), providing flexibility in programming.
-
Versatile Communication: Offers both Ethernet and RS232/RS485 communication ports for easy integration with other devices and networks.
-
Durable and Reliable: With an operating temperature range of -25°C to +60°C, the PM592-ETH is built to perform in demanding industrial conditions.
Frequently Asked Questions (FAQ)
-
What communication ports are available on the PM592-ETH?
The PM592-ETH includes one Ethernet port and one RS232/RS485 communication port. -
What is the operating voltage for this controller?
The controller operates at 24 VDC. -
What is the weight of the PM592-ETH?
The weight is 0.153 kg. -
What is the operating temperature range of the PM592-ETH?
It operates between -25°C and +60°C. -
How much program memory does the PM592-ETH have?
The controller has 1 MB of program memory, which is expandable. -
Can the PM592-ETH be used in industrial environments?
Yes, it has an IP20 protection class and is designed for use in industrial control panels. -
What programming languages are supported?
The PM592-ETH supports IEC 61131-3 compliant programming languages, including Ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text (ST). -
Is the PM592-ETH compatible with other ABB products?
Yes, it is fully compatible with ABB’s AC500 I/O modules and other automation devices. -
Can the PM592-ETH be expanded with additional I/O modules?
Yes, the PM592-ETH is highly scalable and can be expanded with ABB I/O modules to meet system requirements. -
Is the PM592-ETH suitable for process control applications?
Yes, the PM592-ETH is ideal for a wide range of process control applications, including chemical, pharmaceutical, and energy management systems.
Recommended Related or Series Models
| Model | Description |
|---|---|
| PM592-ETH02 | Advanced CPU with extended communication capabilities |
| PM591-ETH | CPU with Ethernet port and extended I/O options |
| PM593-ETH | High-performance CPU with additional I/O ports |
| PM591 | Base model CPU for standard PLC applications |
| PM594 | High-performance CPU for large-scale automation |
| PM590 | Compact PLC CPU for small-scale automation |
