Product Introduction

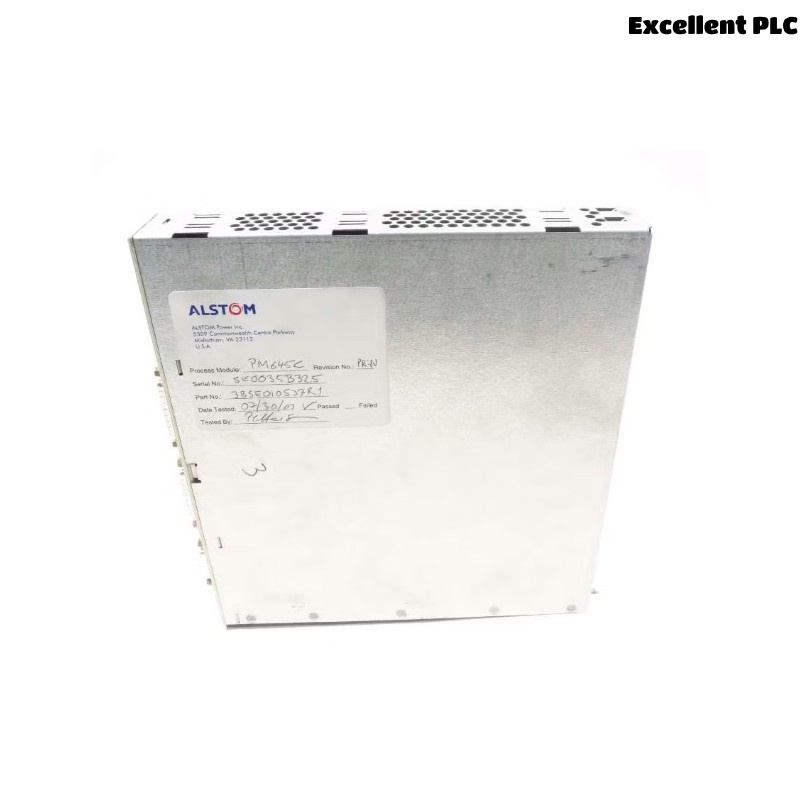

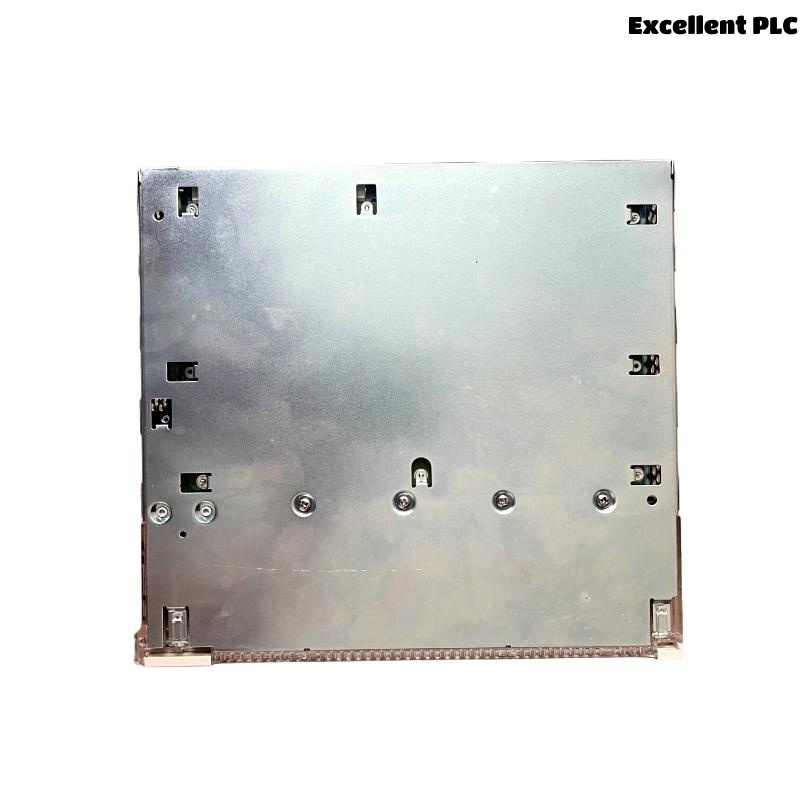

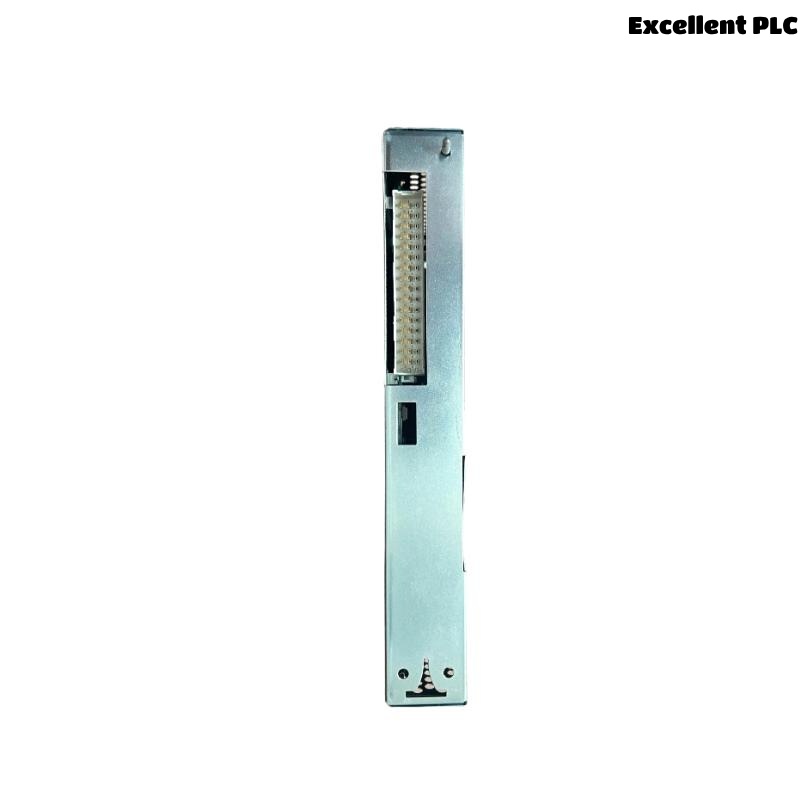

The ABB PM645C (Order Code: 3BSE010537R1) is a high-performance processor module designed for ABB’s AC 800M controller series within the System 800xA distributed control system (DCS) platform. It is built to handle complex and demanding industrial control tasks in mission-critical environments, offering excellent speed, memory, and communication flexibility.
The PM645C module serves as the central processing unit in automation architectures and delivers seamless integration with I/O modules, communication interfaces, and field devices. With a robust design certified for use in industrial settings, it meets the stringent requirements of industries like oil & gas, chemicals, power generation, marine, and manufacturing.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ABB PM645C Processor Module |
| Order Code | 3BSE010537R1 |
| Controller Family | AC 800M / System 800xA |
| Processor Type | 32-bit RISC processor |
| Clock Frequency | 300 MHz (typical) |
| Internal RAM | 32 MB |
| Non-volatile Memory (Flash) | 16 MB |
| Backplane Communication | ModuleBus |
| Supported Protocols | PROFIBUS, MODBUS, Ethernet/IP, IEC 61850 |
| Redundancy Support | Yes (CPU redundancy supported) |
| Firmware Update | Via Control Builder M |
| Operating Voltage | Supplied via base unit |
| Power Consumption | Approx. 5.5 W |
| Mounting Type | DIN rail (inside control cabinet) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Tolerance | 5%–95% non-condensing |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 51 x 279 x 279 mm |
| Weight | 1.7 kg |
| Certifications | CE, UL, RoHS, ATEX (Zone 2), Marine approvals (DNV, ABS, LR) |
Product Applications
The ABB PM645C processor module plays a pivotal role in Distributed Control Systems (DCS) and is widely adopted across diverse industrial sectors:
-
Oil & Gas: Supervisory and field-level control for offshore platforms and refineries.
-
Power Generation: Boiler control, turbine automation, and substation integration.
-
Chemicals and Petrochemicals: Process control in continuous and batch systems.
-
Pulp & Paper: Control of paper machines, digesters, and environmental systems.
-
Marine and Offshore: Automation of ship propulsion and ballast water systems.
-
Water & Wastewater: SCADA integration and control of treatment processes.
Product Advantages
-
Reliable High-Speed Processing
Fast data processing for real-time control in mission-critical applications. -
Scalable System Integration
Seamlessly integrates with System 800xA and supports large-scale automation systems. -
Flexible Communication Support
Enables smooth interaction with field devices via Ethernet, PROFIBUS, MODBUS, and more. -
Redundancy-Ready Design
Built to support CPU redundancy for high-availability systems. -
Long Lifecycle and Support
Industrial-grade component design with ABB’s long-term product lifecycle policies. -
Certified for Harsh Environments
With ATEX Zone 2 and marine certifications, it suits the most demanding use cases.
Frequently Asked Questions (FAQ)
-
What system is the PM645C compatible with?
It is part of the ABB System 800xA and operates within the AC 800M controller environment. -
Is redundancy supported in the PM645C module?
Yes, the PM645C fully supports CPU redundancy for high-availability applications. -
How is the module programmed and configured?
Configuration is done via ABB Control Builder M, part of the 800xA suite. -
Can the PM645C be used in hazardous zones?
Yes, it holds ATEX Zone 2 certification and marine approvals, making it suitable for such use. -
What communication protocols are supported?
It supports PROFIBUS, MODBUS, Ethernet/IP, and IEC 61850 among others. -
How is firmware updated on the PM645C?
Firmware updates are managed through the Control Builder software over the network. -
What is the role of the ModuleBus in this system?
ModuleBus facilitates high-speed communication between controller and I/O modules. -
Does the PM645C support HART or Foundation Fieldbus?
While the processor does not directly support HART, it can integrate with appropriate I/O modules that do. -
What’s the typical lifecycle of the PM645C?
ABB ensures long-term availability and support, with lifespans typically exceeding 10 years. -
Can it be integrated into an existing DCS setup?
Yes, the PM645C is designed for backward compatibility and system scalability.
