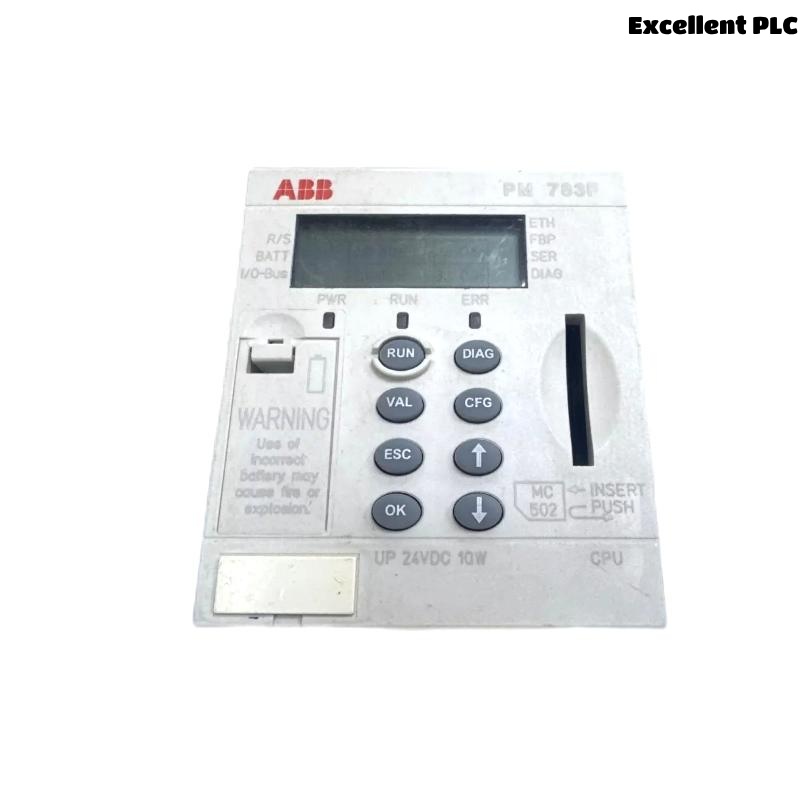

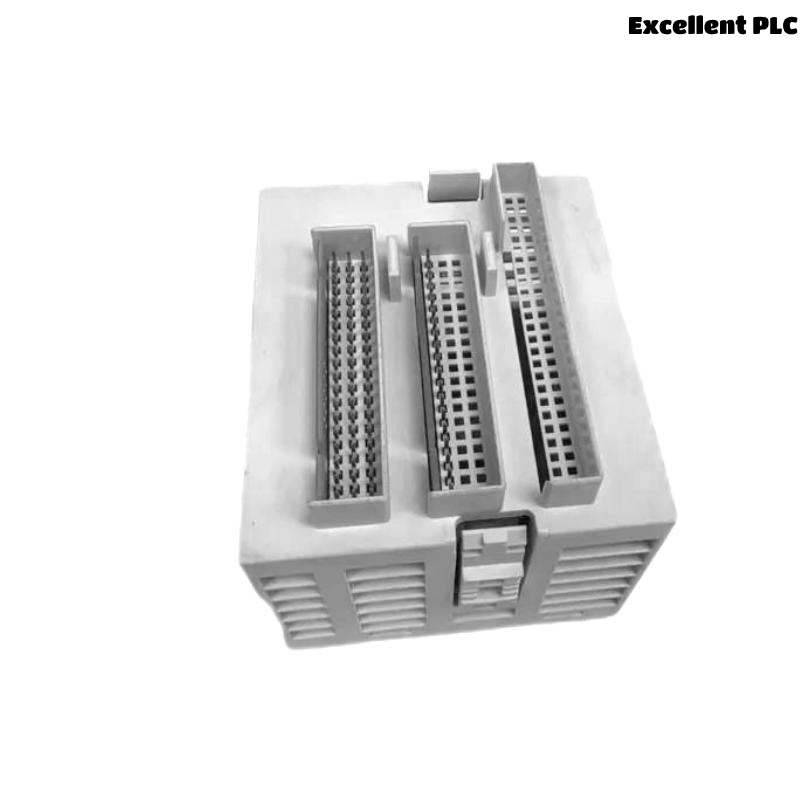

ABB PM783F 3BDH000364R0005 CPU Control Processor Unit

Product Overview

The ABB PM783F 3BDH000364R0005 is a high-performance CPU control processor unit designed for use in industrial automation systems. This processor is part of ABB’s AC 800M family of controllers, providing efficient control and processing capabilities for a wide range of applications. The PM783F is engineered to meet the needs of demanding control environments and supports various communication and networking protocols for seamless integration into existing systems.

This CPU unit features advanced processing power, high-speed performance, and a compact form factor. The PM783F is built to deliver exceptional performance in both real-time control applications and complex automation tasks. With robust design, it is ideal for industries such as manufacturing, process control, energy management, and other critical applications that require reliable and efficient control systems.

The PM783F CPU unit allows for flexible expansion, easy integration with ABB’s range of I/O modules, and offers seamless communication with external devices and systems. Designed to optimize system performance, it offers both speed and reliability while ensuring smooth operation.

---

Technical Specifications

---

Applications

The ABB PM783F CPU Control Processor Unit is ideal for a variety of industrial automation applications that require high-speed processing, flexible communication, and real-time control. Some of the most common applications include:

• Manufacturing Automation: Control of production lines, robotic systems, and machine processes in factories.

• Process Control: Regulation of industrial processes in sectors such as chemical, pharmaceutical, oil & gas, and power generation.

• Energy Management: Monitoring and controlling energy usage and distribution in large-scale industrial facilities.

• Building Automation: Managing systems like HVAC, lighting, and security within commercial buildings and facilities.

• Water Treatment: Automation of water purification, sewage systems, and wastewater treatment plants.

• Transportation Systems: Control systems for traffic management, railways, and other transportation networks.

---

Key Advantages

• High-Speed Processing: The PM783F provides fast processing capabilities, making it ideal for applications that require real-time decision-making and control.

• Flexible Communication: Equipped with multiple communication options such as Ethernet, Fieldbus, RS232/RS485, and Profibus, it ensures easy integration into various networks and devices.

• Compact Design: With a compact form factor of 67.5 x 76 x 54 mm, the PM783F can be easily integrated into space-constrained installations.

• Reliability and Durability: Designed for industrial environments, the PM783F can withstand harsh conditions, ensuring long-term reliability and low maintenance.

• Real-Time Control: Integrated real-time clock and processing allow the system to handle time-sensitive operations without delays.

• Expandable I/O System: Supports scalability by allowing easy addition of ABB’s I/O modules, making it suitable for growing system requirements.

• IEC 61131-3 Compliance: Supports a wide range of programming languages, such as Ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text (ST), giving users flexibility in system design.

• Energy Efficiency: Helps in optimizing energy usage and reducing operational costs in industrial processes.

• Seamless Integration: Works perfectly with ABB’s other systems, ensuring smooth operation and interaction between devices and modules.

• Safety and Compliance: The PM783F complies with international safety standards, including UL, CE, IECEx, and ATEX, making it suitable for use in hazardous environments.

---

Frequently Asked Questions (FAQ)

1. What communication protocols are supported by the PM783F?
   The PM783F supports Ethernet, Fieldbus, RS232/RS485, and Profibus communication protocols.

2. What is the power supply requirement for the PM783F?
   The PM783F operates with a 24 VDC power supply.

3. What is the weight of the PM783F?
   The PM783F weighs approximately 0.4 kg.

4. What are the dimensions of the PM783F?
   The dimensions of the PM783F are 67.5 x 76 x 54 mm.

5. What is the operating temperature range for the PM783F?
   The PM783F operates in a temperature range of 0°C to +60°C.

6. Can the PM783F be expanded with additional I/O modules?
   Yes, the PM783F can be expanded with ABB I/O modules to accommodate growing system requirements.

7. What programming languages are supported by the PM783F?
   The PM783F supports IEC 61131-3 compliant programming languages, including Ladder Diagram (LD), Function Block Diagram (FBD), and Structured Text (ST).

8. What memory does the PM783F have?
   The PM783F has 1 MB of program memory, which is expandable.

9. Is the PM783F suitable for use in hazardous environments?
   Yes, the PM783F is compliant with UL, CE, IECEx, and ATEX standards, making it suitable for hazardous locations.

10. How does the PM783F ensure real-time control?
    The PM783F includes an integrated real-time clock and processing capabilities, ensuring timely execution of time-critical tasks.

---
