Product Introduction

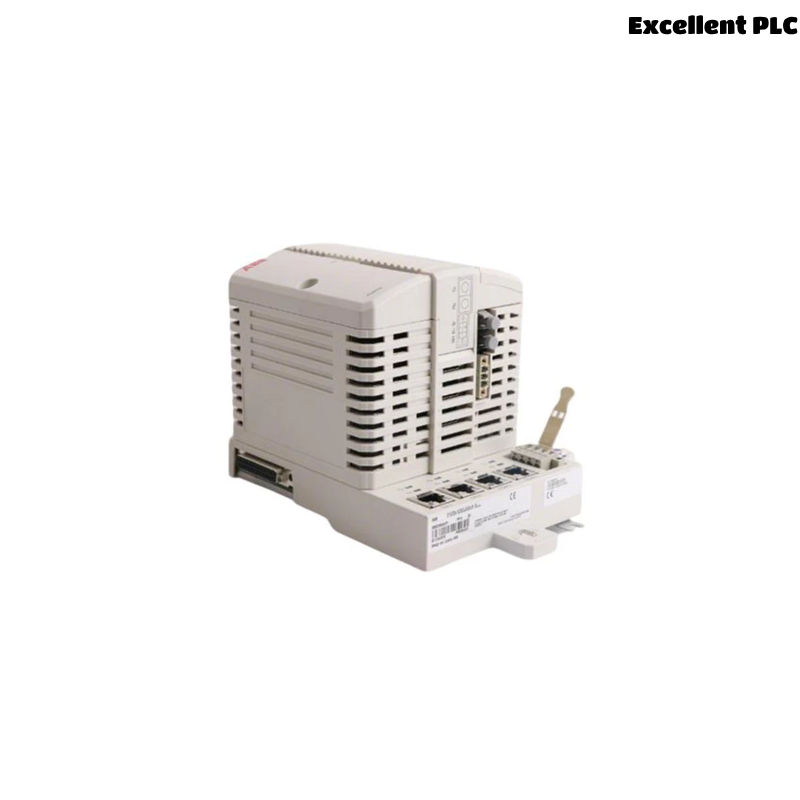

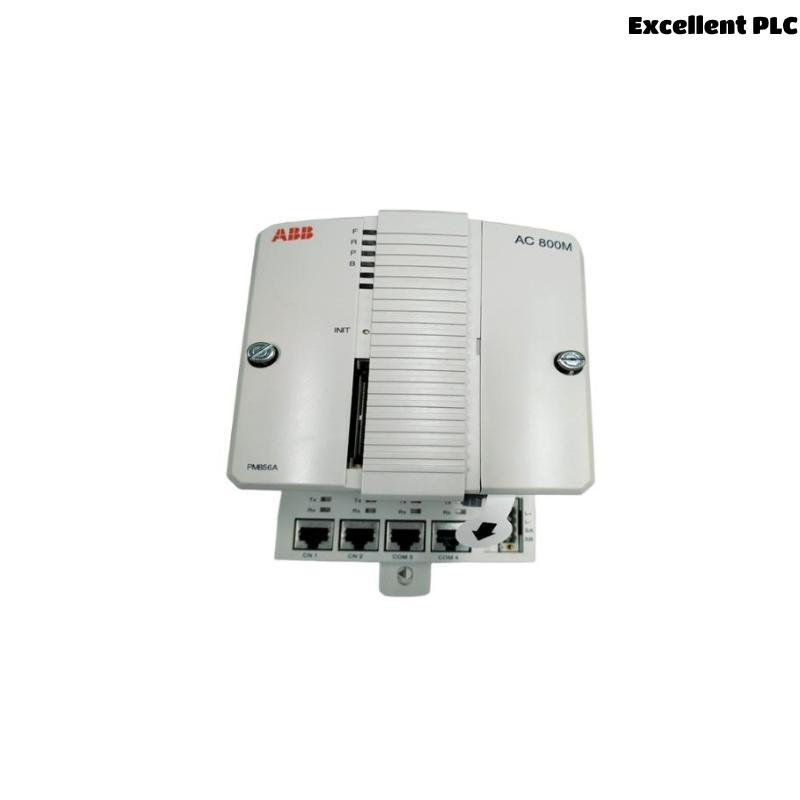

The ABB PM856AK01 3BSE066490R1 CPU Controller Unit is a high-performance, compact processor designed to provide efficient control and management in industrial automation systems. This unit is part of ABB’s renowned 800xA series, which is specifically designed to handle the most demanding control tasks, delivering high-speed processing and reliability in complex industrial processes.
The PM856AK01 unit integrates seamlessly with ABB’s control systems, supporting real-time data processing, sophisticated control algorithms, and reliable communication with other modules. It is built to operate in a wide range of industrial environments, from manufacturing facilities to energy plants, offering advanced features such as high-speed inputs/outputs (I/O), robust communication options, and seamless integration with both local and remote systems.
This controller is designed to deliver high processing power, real-time control, and maximum reliability, ensuring that automated systems operate at peak performance, even in the most complex applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | PM856AK01 |
| Product Code | 3BSE066490R1 |
| Dimensions (L x W x H) | 155 × 200 × 130 mm |
| Weight | 1.1 kg |
| Processor Type | Multi-core processor |
| Rated Voltage | 24 V DC |
| Power Consumption | 15 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity (non-condensing) | 5% to 95% RH |
| Input/Output Interfaces | Ethernet, Serial, USB |
| Communication Ports | 2 × Ethernet, 1 × RS232/RS485 |
| Mounting Method | DIN Rail |
| Certifications | CE, UL, RoHS |
| Material | Flame-retardant plastic |
Product Applications
The ABB PM856AK01 CPU Controller Unit is designed to provide high-performance control in a wide range of industrial automation applications. Its versatility and processing power make it ideal for industries requiring real-time processing and robust control, including:
-
Manufacturing Automation: The PM856AK01 is used in automated production lines, robotic systems, and machinery control, where high-speed processing and data handling are required to maintain production efficiency.
-
Energy Management Systems: The controller is well-suited for energy plants, power distribution networks, and smart grid systems, where precise control over power generation and consumption is essential.
-
Oil & Gas Industry: In critical operations such as extraction, refining, and pipeline control, the PM856AK01 ensures continuous monitoring and control of complex processes.
-
Water Treatment: The unit is used in water and wastewater treatment facilities, where it manages various control tasks such as chemical dosing, filtration, and water flow regulation.
-
Building Automation: For smart building systems, the PM856AK01 manages HVAC, lighting, and security systems, optimizing energy use and ensuring optimal building performance.
Thanks to its flexibility, processing power, and broad compatibility with ABB’s range of automation solutions, the PM856AK01 is a key component in ensuring optimal performance across a variety of industrial sectors.
Product Advantages
The ABB PM856AK01 CPU Controller Unit provides several key advantages that make it a top choice for industrial applications requiring high processing power, reliability, and seamless integration:
-
High Processing Power: The multi-core processor ensures rapid data processing and decision-making capabilities, enabling the PM856AK01 to handle complex control algorithms and large volumes of data in real-time.
-
Compact and Space-Saving: With dimensions of 155 × 200 × 130 mm, the PM856AK01 provides powerful control in a compact form factor, making it ideal for installations with space constraints.
-
Flexible Communication: The unit is equipped with multiple communication ports, including Ethernet, RS232, and RS485, allowing seamless integration into different systems and enabling both local and remote control.
-
Wide Operating Temperature Range: The PM856AK01 can operate in environments ranging from -20°C to +60°C, making it suitable for use in a variety of industrial settings, from hot factory floors to cold environments.
-
Low Power Consumption: With only 15 W of power consumption, the PM856AK01 is an energy-efficient solution for demanding industrial control systems.
-
Robust and Reliable: Made from flame-retardant plastic, the PM856AK01 is built to withstand harsh environments and ensure long-lasting, reliable performance.
-
Ease of Installation: The PM856AK01 can be easily mounted on a DIN rail, streamlining the installation process and reducing setup time.
-
Global Certifications: Certified with CE, UL, and RoHS, the PM856AK01 meets international safety and environmental standards, making it suitable for use in various regions worldwide.
These advantages make the ABB PM856AK01 an ideal solution for industries that require high-performance, reliable, and flexible CPU controllers for their automation systems.
Frequently Asked Questions (FAQ)
1. What is the main function of the ABB PM856AK01 CPU controller?
The PM856AK01 is designed to provide high-performance control and management for industrial automation systems, enabling real-time data processing, decision-making, and communication with other control modules.
2. How does the PM856AK01 differ from other ABB controllers?
Compared to other ABB controllers, the PM856AK01 offers higher processing power, more communication options, and a compact design, making it ideal for applications requiring fast data handling and efficient control.
3. What types of communication ports are available on the PM856AK01?
The PM856AK01 has two Ethernet ports and one RS232/RS485 serial communication port, allowing it to connect to a wide range of devices and systems.
4. What is the power consumption of the PM856AK01?
The PM856AK01 has a low power consumption of only 15 W, making it an energy-efficient solution for industrial applications.
5. What is the operating temperature range for the PM856AK01?
The PM856AK01 operates within a temperature range of -20°C to +60°C, making it suitable for use in a variety of industrial environments.
6. Can the PM856AK01 be used outdoors?
Although the PM856AK01 is designed for industrial environments, it should be housed in a protective enclosure when used outdoors to ensure optimal performance and protect against environmental factors.
7. Is the PM856AK01 compatible with other ABB automation systems?
Yes, the PM856AK01 is designed to integrate seamlessly with other ABB control modules, allowing for flexible and scalable automation solutions.
8. What are the dimensions of the PM856AK01?
The PM856AK01 has compact dimensions of 155 × 200 × 130 mm, which allows for easy installation in tight spaces.
9. What certifications does the PM856AK01 have?
The PM856AK01 is CE, UL, and RoHS certified, ensuring it meets international safety and environmental standards.
10. How is the PM856AK01 mounted?
The PM856AK01 can be mounted on a standard DIN rail, making it easy to install in industrial control panels.
Related Models from the Same Series
| Model | Description |
|---|---|
| PM860 | A more advanced version with additional processing power and I/O capabilities. |
| PM861 | A higher-performance CPU module suitable for larger systems with extensive control needs. |
| PM863 | CPU module with enhanced memory and support for larger control applications. |
| PM864 | Advanced module with integrated diagnostic capabilities for critical systems. |
| PM865 | Multi-core CPU module designed for high-demand automation systems. |
| PM866 | High-performance processor with extensive network support for complex industrial applications. |
