Product Introduction

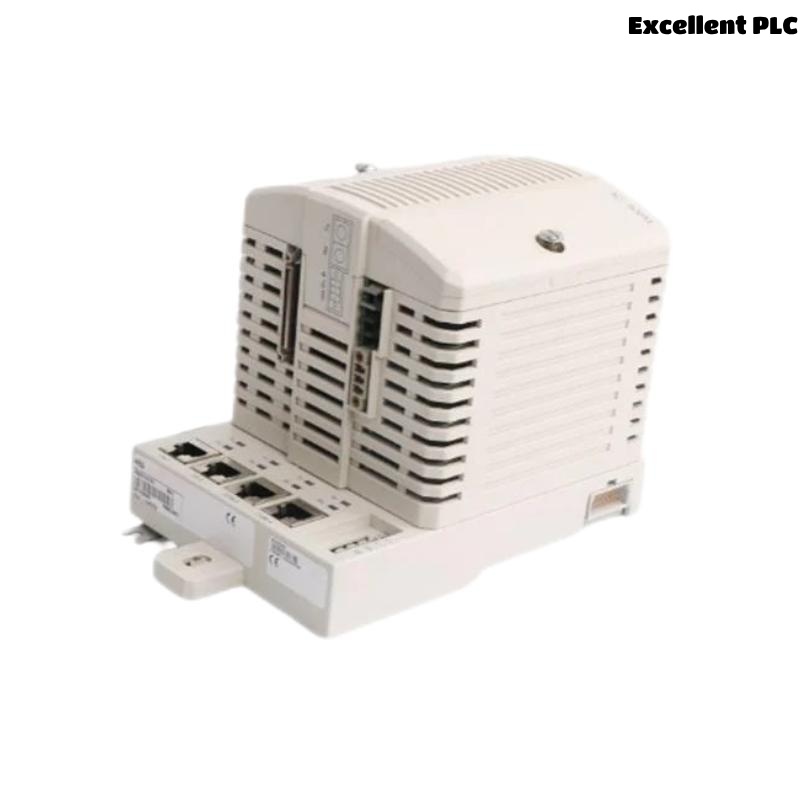

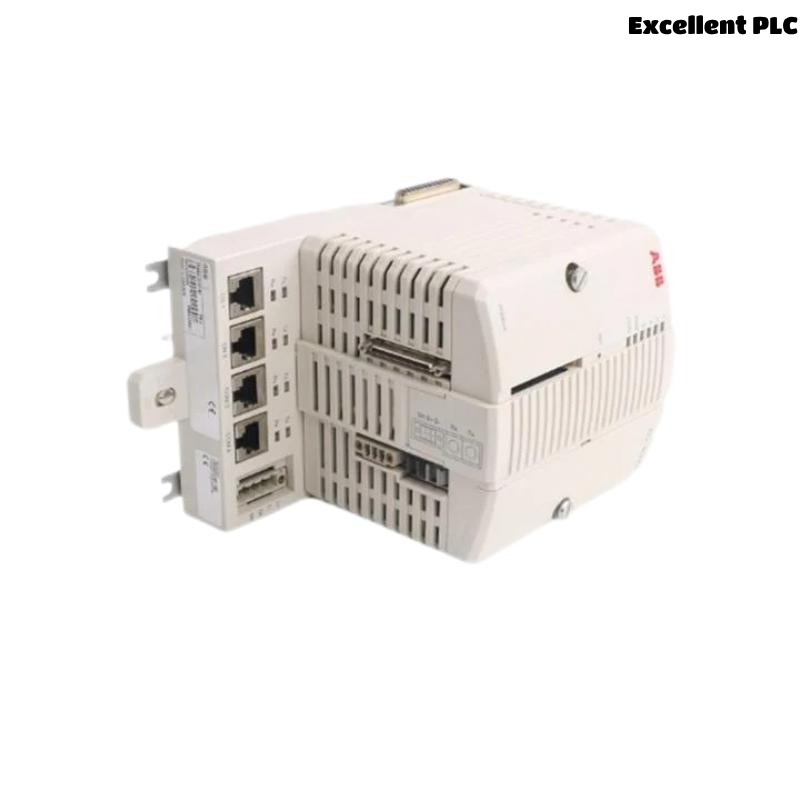

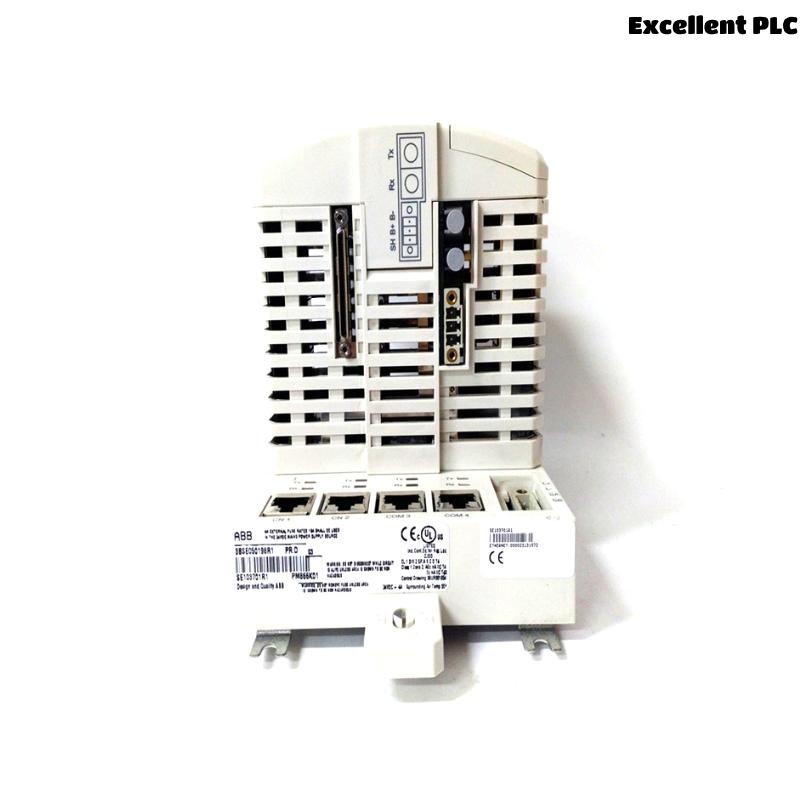

The ABB PM857K01 3BSE088385R1 is a high-performance Process Controller Module from ABB’s AC 800M series, designed for industrial automation and process control applications. It serves as a critical component in distributed control systems (DCS), offering robust processing power, reliability, and seamless integration with ABB’s automation solutions.
This module is widely used in industries such as oil & gas, power generation, chemical processing, and water treatment, where precision, stability, and real-time control are essential.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | PM857K01 3BSE088385R1 |
| Product Type | Process Controller Module |
| Series | AC 800M |
| Processor | High-speed industrial-grade CPU |
| Memory | Expandable (varies by configuration) |
| Communication Ports | Multiple Ethernet, serial, and fieldbus options |
| Operating Voltage | 24V DC (typical) |
| Power Consumption | <15W (typical) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 135 × 186 × 119 mm |
| Weight | 1.2 kg |
| Certifications | CE, UL, IEC standards compliant |
| Redundancy Support | Yes (optional) |
| Firmware Upgradable | Yes |
Product Applications
The PM857K01 is suitable for a wide range of industrial automation scenarios, including:
-
Process Industries: Chemical plants, refineries, and pharmaceutical manufacturing.
-
Power Generation: Control of turbines, boilers, and grid management systems.
-
Oil & Gas: Pipeline monitoring, offshore drilling, and refinery automation.
-
Water & Wastewater: Pump control, filtration systems, and distribution networks.
-
Manufacturing: Robotics, assembly lines, and quality control systems.
Product Advantages
-
High Reliability: Built for 24/7 operation in harsh industrial environments.
-
Scalability: Supports modular expansion for future system upgrades.
-
Fast Processing: Optimized for real-time control and data acquisition.
-
Seamless Integration: Compatible with ABB’s 800xA and other DCS platforms.
-
Redundancy Options: Ensures minimal downtime in critical applications.
-
Robust Communication: Multiple protocol support (Profibus, Modbus, OPC UA, etc.).
-
Easy Maintenance: Hot-swappable components and remote diagnostics.
-
Long Lifecycle: Designed for industrial longevity with extended support.
Frequently Asked Questions (FAQ)
-
What is the primary function of the PM857K01?
It acts as a central processing unit in ABB’s AC 800M series for industrial automation. -
Does it support redundant configurations?
Yes, it can be configured for redundancy to ensure high availability. -
What communication protocols are supported?
Ethernet/IP, Profibus, Modbus, and OPC UA are commonly supported. -
Can firmware be upgraded in the field?
Yes, firmware updates can be applied without hardware replacement. -
What is the typical lifespan of this module?
Designed for 5+ years of operation with proper maintenance. -
Is it compatible with third-party systems?
Limited compatibility; best performance is within ABB’s ecosystem. -
What are the environmental tolerances?
Operates in -20°C to +60°C and 5–95% humidity. -
How is the module mounted?
DIN rail or panel mounting options are available. -
Does it require external cooling?
No, it is passively cooled but needs proper ventilation. -
How long is the warranty period?
We provide one year warranty.
