Product Overview

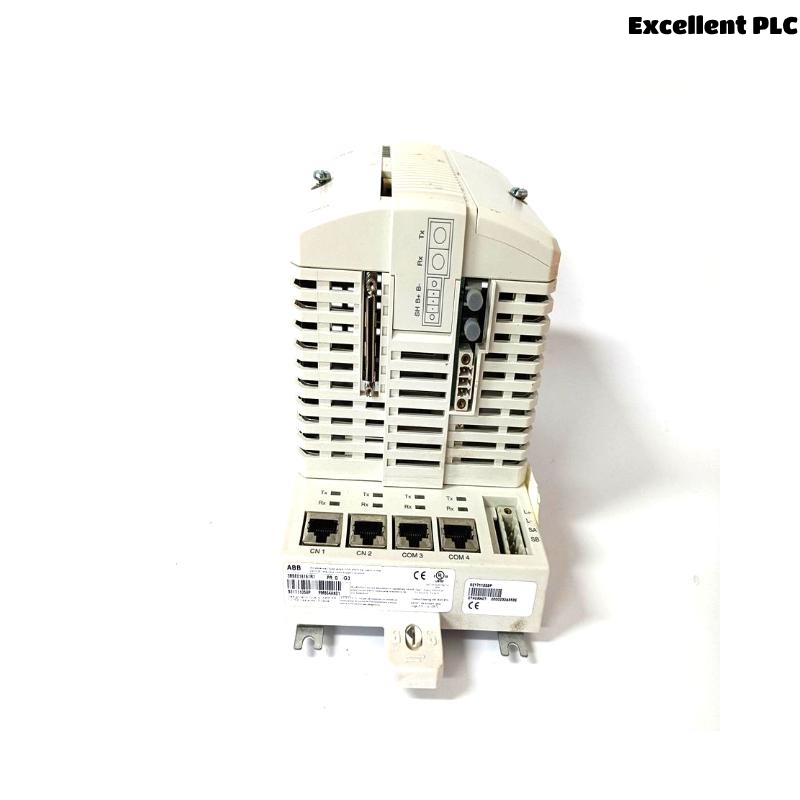

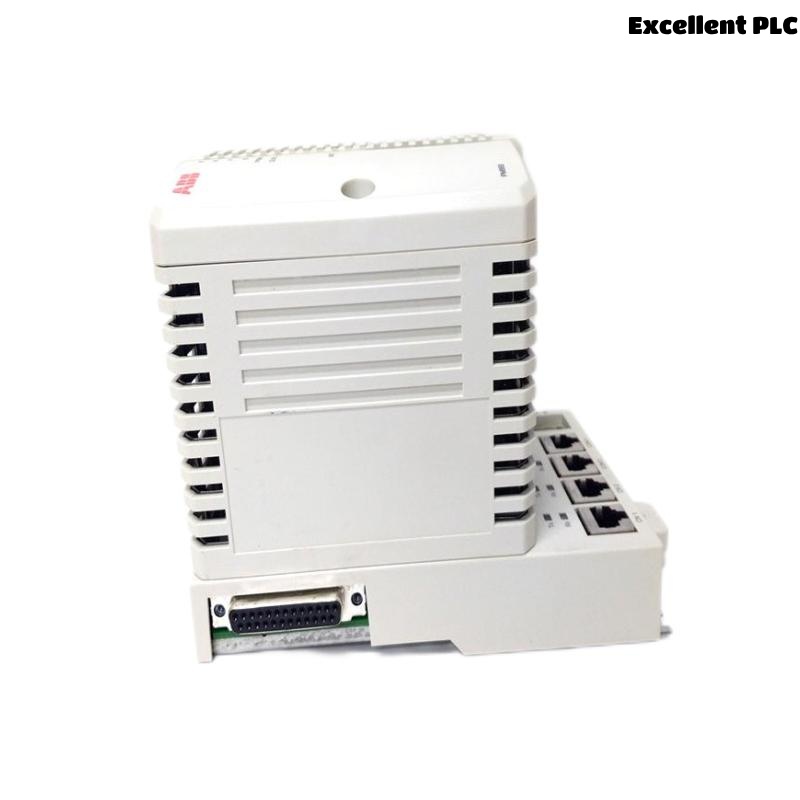

The ABB PM857K02 (3BSE088386R1) is a high‑integrity, rail‑mounted CPU module in the AC 800M control system family. Featuring a 96 MHz processor and 32 MB total memory, it supports up to 128 I/O signals and includes modular redundancy, making it ideal for safety‑critical industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / Part No. | PM857K02 / 3BSE088386R1 |
| Processor | MPC866, 96 MHz |
| Memory | 32 MB total, ~22.2 MB RAM for applications |
| Max I/O Signals | 128 signals |
| Redundancy | Yes – CPU, CEX‑Bus, communications, S800 I/O |
| Safety Certification | SIL‑3 capable with SM812/TÜV/IEC 61508 |
| Ethernet Ports | 2 × RJ‑45 (CN1/2), 10 Mbit/s |
| Serial Ports | COM3 (RS‑232C with modem), COM4 (isolated) |
| Power Supply | 24 V DC (19.2–30 V), typical 210 mA, max 360 mA |
| Power Dissipation | Typical 5.1 W, max 8.6 W |
| Backup Battery | Lithium 3.6 V real‑time clock |
| Dimensions | 135 × 186 × 119 mm |
| Weight | 2.7 kg |
| Operating Temp. | +5 °C to +55 °C |
| Certifications | EMC, CE, TÜV SIL‑2/3, ISA G3 corrosion |
Applications
The PM857K02 serves as a central processing unit in ABB System 800xA and AC 800M architectures. It is used for:
-
Critical industrial process control in oil & gas, power, chemical and refining
-
Integrated safety and process automation with SIL‑3 support
-
Systems requiring high availability via redundancy
-
Complex automation requiring up to 128 I/O points
It integrates seamlessly with S800 I/O, communication modules, and full 800xA Control Builder software.
Advantages
-
High Integrity & Safety: Achieves SIL‑3 certification with safety module support
-
Redundant Architecture: Multiple communication and CPU redundancy ensure minimal downtime
-
Flexible Connectivity: Ethernet + RS‑232 ensures legacy and modern system interfacing
-
Compact, Rugged Design: DIN‑rail mounting with compact footprint withstands industrial environments
-
Seamless Integration: Fully compatible with 800xA environment and Control Builder tool
-
Reliable Timekeeping: Built-in lithium RTC with battery backup ensures accurate timestamping
10 Frequently Asked Questions (FAQ)
-
Is it compatible with older PM857K01?
Yes—designed as a direct upgrade with similar form factor. -
What is included in the package?

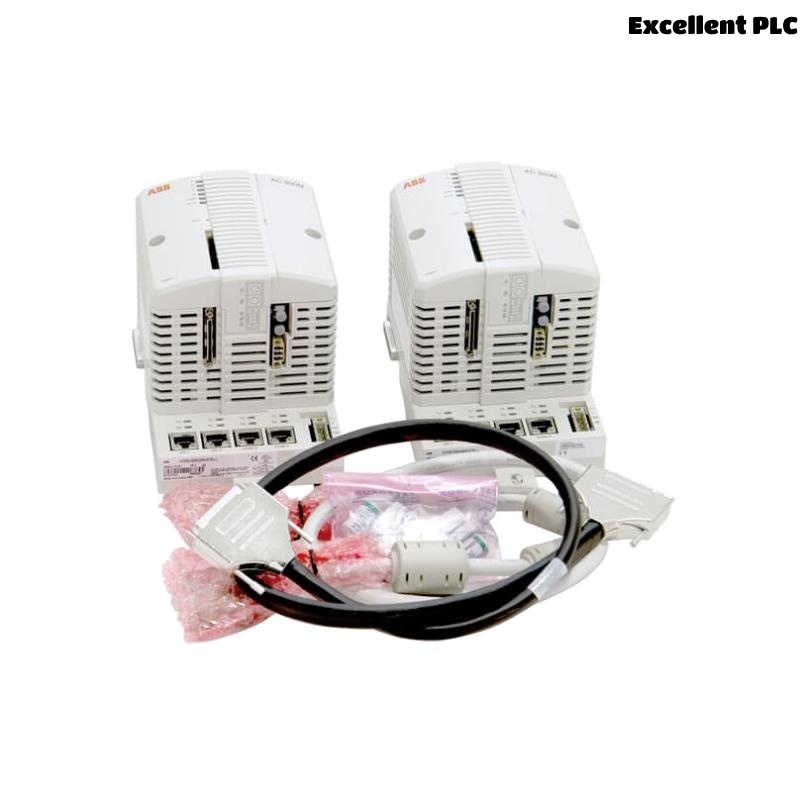

Generally shipped with 2 × PM857K01 safety modules, CEX-bus and RCU cables -
Can it run stand-alone without redundant CPU?
Yes—but redundancy must be disabled and configured in software. -
Does it include a Control Builder license?
No; programming tool license is purchased separately. -
How long is the warranty period?
We provide one year warranty -
What’s the power draw?
Approx. 210 mA typical; 360 mA max at 24 V DC -
Can I hot-swap it?
Supports hot-swap for communication and I/O modules; CPU swap requires controlled procedure. -
RTC lifetime?
Lithium battery typically lasts 5–7 years, field‑replaceable. -
What certifications does it hold?
SIL‑2/3, EMC, CE, TÜV, ISA G3 corrosion . -
Which software versions support it?
Compatible with System 800xA and AC 800M Control Builder spanning versions 5.x to current.
