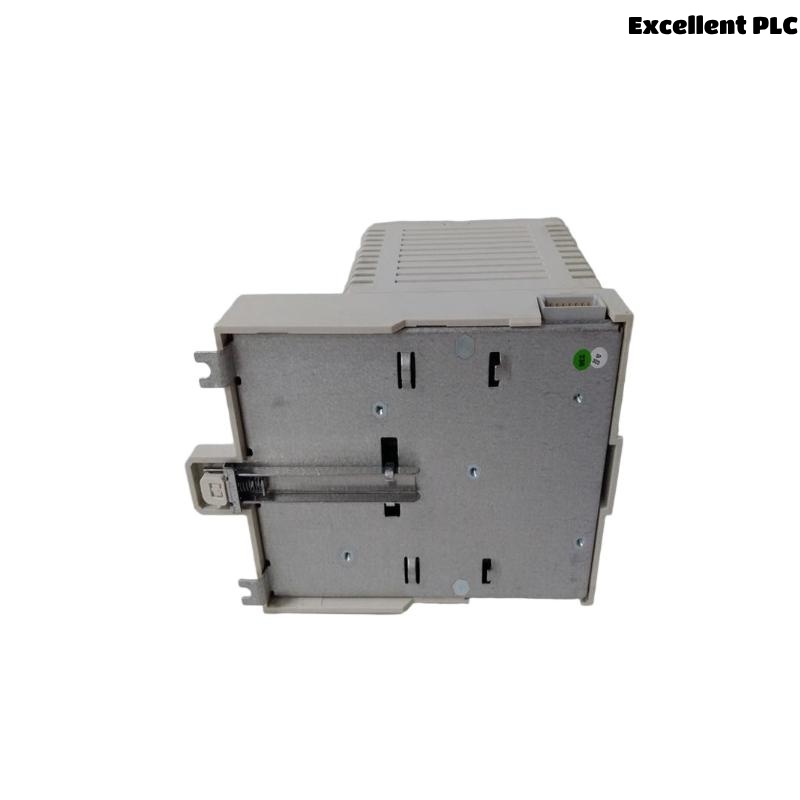

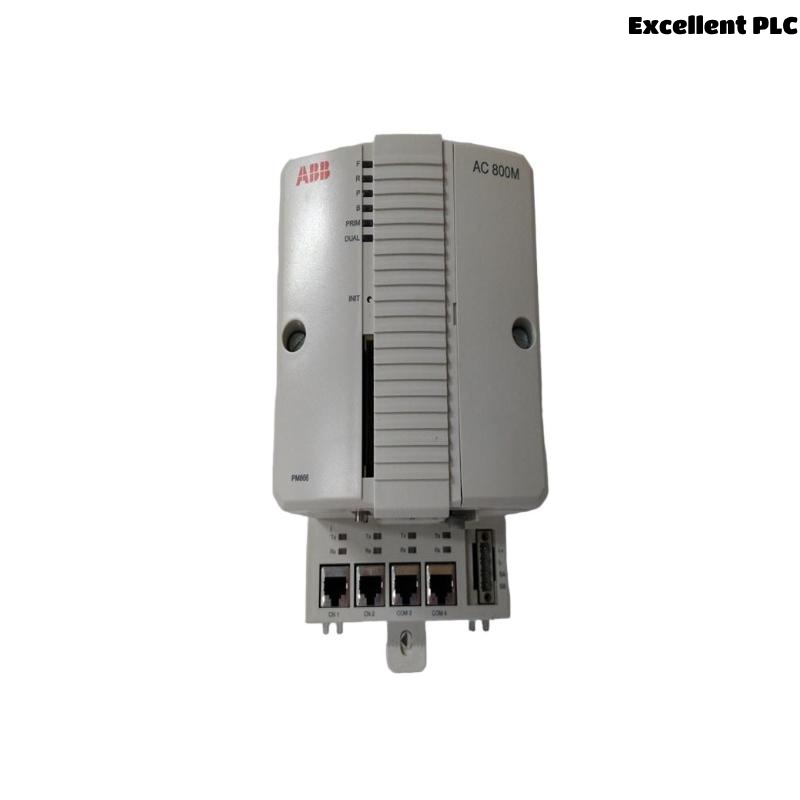

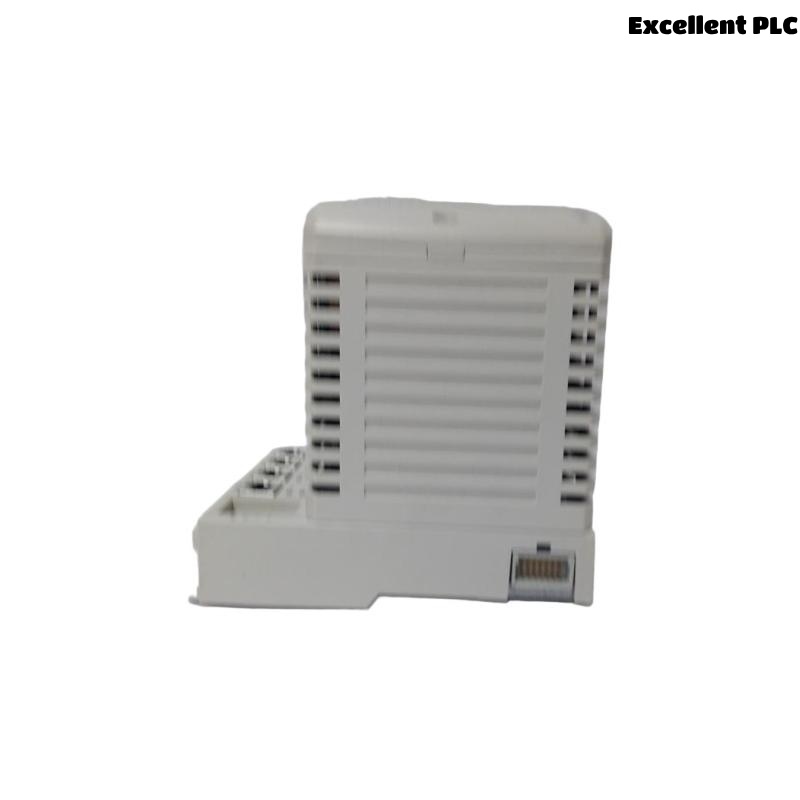

ABB PM862K01 3BSE076940R1 CPU Controller Unit

Product Overview

The ABB PM862K01 (3BSE076940R1) is a high-performance CPU controller unit designed for the AC 800M distributed control system. This module is part of ABB’s robust control platform and provides powerful processing capabilities, redundancy support, and flexible communication interfaces. It is primarily used in industries requiring precise and reliable control systems such as process automation, power generation, water treatment, and chemical production.

The PM862K01 delivers superior processing power with its advanced PowerPC architecture, ensuring real-time control and monitoring of complex industrial processes. It is ideal for applications where high system availability, seamless communication, and system scalability are essential.

Key Features

• PowerPC-based Architecture: Provides a powerful CPU at 48 MHz for fast processing.

• Redundant System Support: Ensures high availability with dual-CPU redundancy for critical applications.

• Flexible Communication: Supports Ethernet and serial communication, with dual Ethernet ports for network redundancy.

• CompactFlash Storage: Provides a slot for CompactFlash cards to store firmware and application data.

• Galvanic Isolation: Isolated communication ports for high signal integrity and reduced interference.

• Hot-Swappable Design: Allows for easy maintenance without shutting down the system.

• DIN-Rail Mounting: Simplifies installation in industrial environments with slide-lock mechanism.

• Wide Operating Temperature Range: Works in temperatures ranging from -20°C to +60°C, suitable for diverse environments.

• Global Compliance: Meets international standards such as CE, UL, and RoHS.

• Backup Battery: Ensures memory and real-time clock (RTC) retention.

Technical Specifications

Industry Applications

• Process Automation: Control of industrial processes such as chemical production, oil refining, and water treatment.

• Power Generation: Used in thermal, nuclear, and renewable energy plants for process control.

• Oil & Gas: Essential for managing complex systems in offshore and onshore oil and gas facilities.

• Manufacturing: Enhances control in large-scale production systems in industries like automotive, textiles, and electronics.

• Pharmaceuticals: Ensures precise and reliable control for pharmaceutical manufacturing processes.

• Water and Wastewater Treatment: Provides automation and monitoring in treatment plants, ensuring efficiency and compliance.

Product Advantages

• High Availability: Dual CPU configuration and automatic failover ensure zero downtime in critical applications.

• Scalability: Easily integrates with ABB’s extensive range of I/O modules, making it suitable for various system sizes.

• Flexible Connectivity: Dual Ethernet ports and isolated serial communication support diverse network architectures.

• Durability: Designed for harsh industrial environments with a wide operating temperature range and IP20-rated housing.

• Compact Design: Space-saving DIN-rail mounting with a slide-lock mechanism facilitates quick installation.

• Advanced Diagnostics: Real-time system monitoring and diagnostics for improved troubleshooting and performance optimization.

• Efficient Maintenance: Hot-swappable design reduces system downtime during maintenance activities.

• Compliance and Certification: Fully certified for use in global industrial applications with CE, UL, and RoHS certifications.

• Energy Efficiency: Supports energy-efficient operation through seamless integration with ABB’s energy management solutions.

Frequently Asked Questions (FAQ)

1. What is the processor speed and memory size of the PM862K01?
   The PM862K01 has a 48 MHz PowerPC processor and 32 MB of RAM.

2. Can this unit be used in redundant configurations?
   Yes, the PM862K01 supports dual-CPU redundancy with an automatic failover time of less than 10 ms.

3. What communication ports does the PM862K01 include?
   It features two Ethernet RJ45 ports (CN1, CN2) and two serial ports (COM3 RS-232C, COM4 isolated).

4. Is the PM862K01 suitable for hot-swapping?
   Yes, it has a hot-swappable design, allowing for easy replacement without system downtime.

5. What kind of storage does the PM862K01 support?
   The unit has a CompactFlash card slot for firmware and application data storage.

6. What is the temperature range for operating and storing the PM862K01?
   It operates in the range of -20°C to +60°C and can be stored at temperatures between -40°C and +85°C.

7. Does the PM862K01 include a backup battery?
   Yes, it includes a lithium battery for memory and real-time clock (RTC) backup.

8. What are the physical dimensions of the PM862K01?
   It has dimensions of 135mm × 186mm × 119 mm.

9. Is the PM862K01 RoHS compliant?
   Yes, it meets RoHS standards, ensuring environmental compliance.

10. What industries benefit the most from the PM862K01?
    Industries such as process automation, power generation, oil and gas, pharmaceuticals, and water treatment.
