Product Introduction

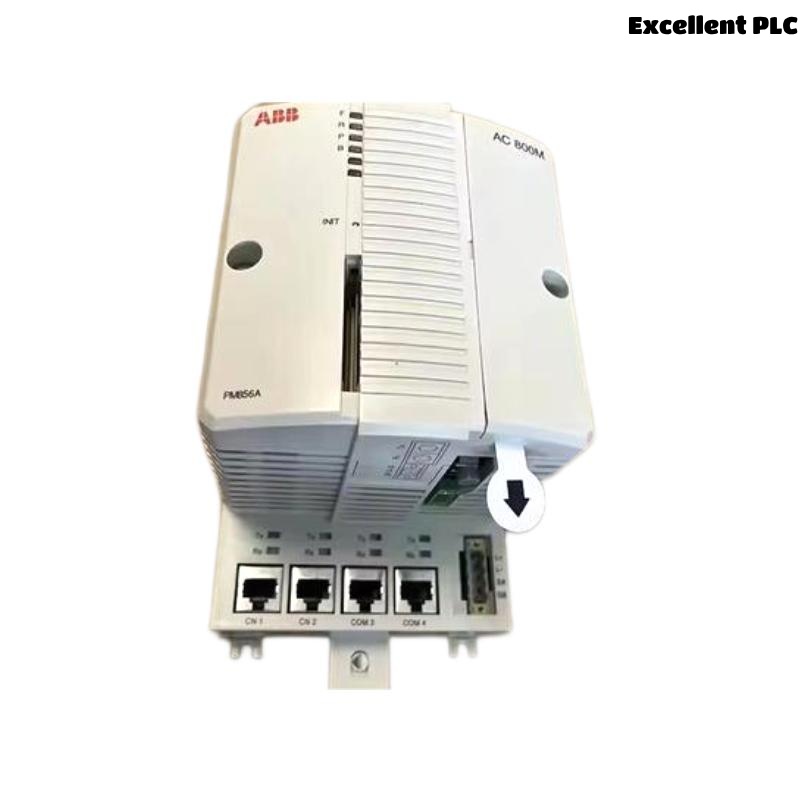

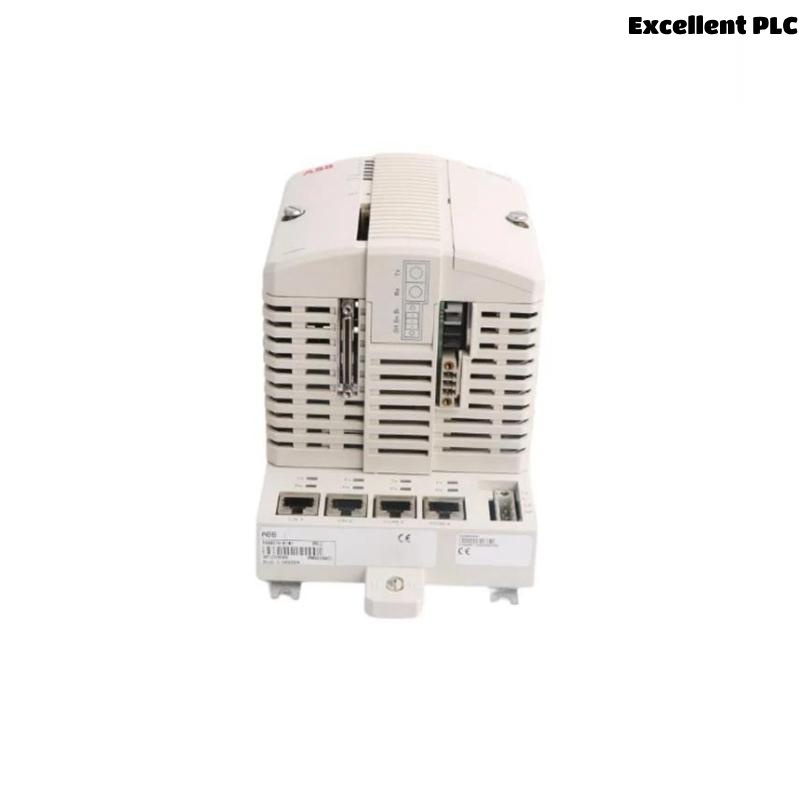

The ABB PM866AK01 3BSE076939R1 is a high-performance processor unit from ABB’s AC 800M series, designed for industrial automation and control systems. It serves as the brain of ABB’s 800xA distributed control system (DCS), offering robust processing power, reliability, and seamless integration with ABB’s automation solutions. This module is widely used in process industries, power generation, and other critical applications requiring precise control and scalability.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | PM866AK01 3BSE076939R1 |
| Product Type | Processor Unit |
| Series | AC 800M |
| Processor Speed | 1.2 GHz (approx.) |
| Memory | 1 GB RAM (expandable) |
| Flash Storage | 512 MB |
| Communication Ports | Ethernet, Serial, USB |
| Operating Voltage | 24V DC |
| Power Consumption | 15W (typical) |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 135 × 186 × 119 mm |
| Weight | 1.2 kg |
| Certifications | CE, UL, IEC 61131-2 compliant |
Product Applications
The PM866AK01 is engineered for demanding industrial environments, including:
-
Process Industries: Oil & gas, chemical, pharmaceutical, and pulp & paper.
-
Power Generation: Nuclear, thermal, and renewable energy plants.
-
Manufacturing: Automotive, food & beverage, and heavy machinery.
-
Infrastructure: Water treatment, transportation, and smart cities.
Its modular design allows for flexible deployment in both small-scale and large-scale automation projects.
Product Advantages
-
High Reliability: Designed for 24/7 operation in harsh conditions.
-
Scalability: Supports expansion with additional I/O modules and communication interfaces.
-
Seamless Integration: Compatible with ABB’s 800xA DCS and third-party systems.
-
Advanced Diagnostics: Built-in self-monitoring and fault detection.
-
Long Lifecycle: ABB guarantees long-term availability and support.
-
Energy Efficient: Low power consumption reduces operational costs.
Frequently Asked Questions (FAQ)
Q1: What is the difference between PM866AK01 and PM865AK01?
A1: The PM866AK01 offers higher processing speed and memory compared to the PM865AK01, making it suitable for more complex applications.
Q2: Is the PM866AK01 compatible with legacy ABB systems?
A2: Yes, it supports backward compatibility with older AC 800M modules.
Q3: What operating systems does it support?
A3: It runs on ABB’s proprietary real-time operating system (RTOS) for industrial automation.
Q4: Can I upgrade the memory of the PM866AK01?
A4: No, the memory is fixed, but external storage options are available.
Q5: What is the typical lifespan of this module?
A5: 5+ years, depending on operating conditions.
Q6: Does it support redundant configurations?
A6: Yes, it can be paired with a redundant processor for fail-safe operation.
Q7: What communication protocols are supported?
A7: PROFIBUS, Modbus, OPC UA, and Ethernet/IP.
Q8: Is fan cooling required?
A8: No, it is passively cooled but requires proper ventilation.
Q9: Can it be used in explosive environments?
A9: Only with additional certified enclosures (ATEX/IECEx).
Q10: Is the module certified for industrial compliance?
A10: Yes, it meets CE, UL, CSA, and RoHS standards
