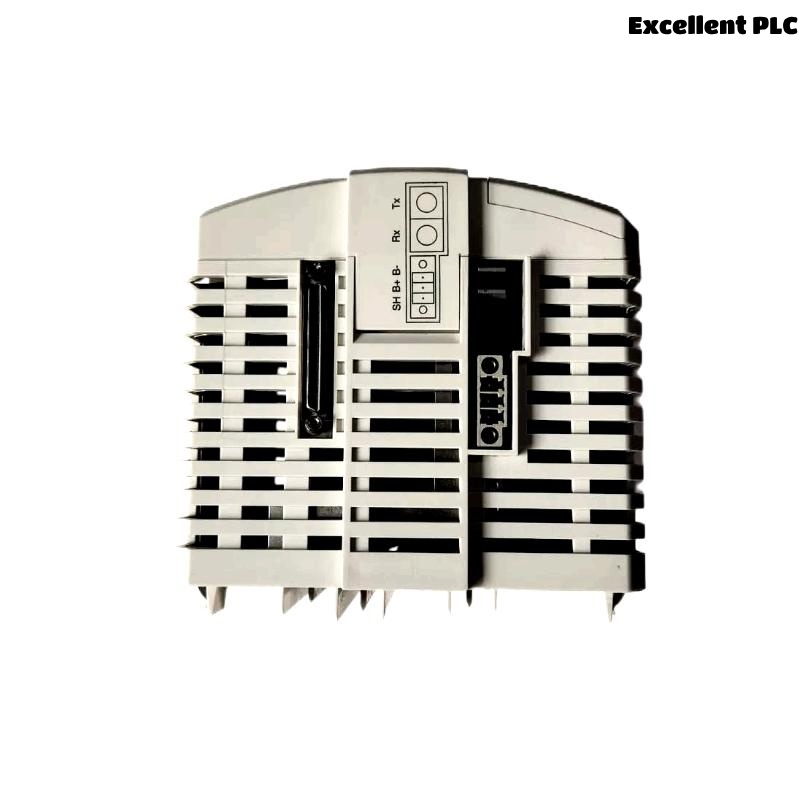

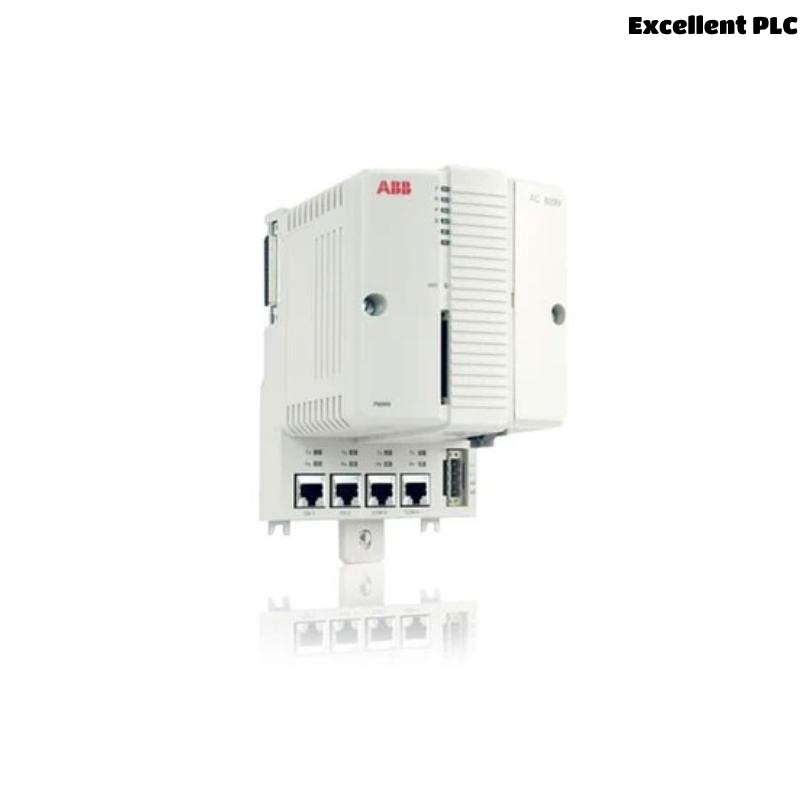

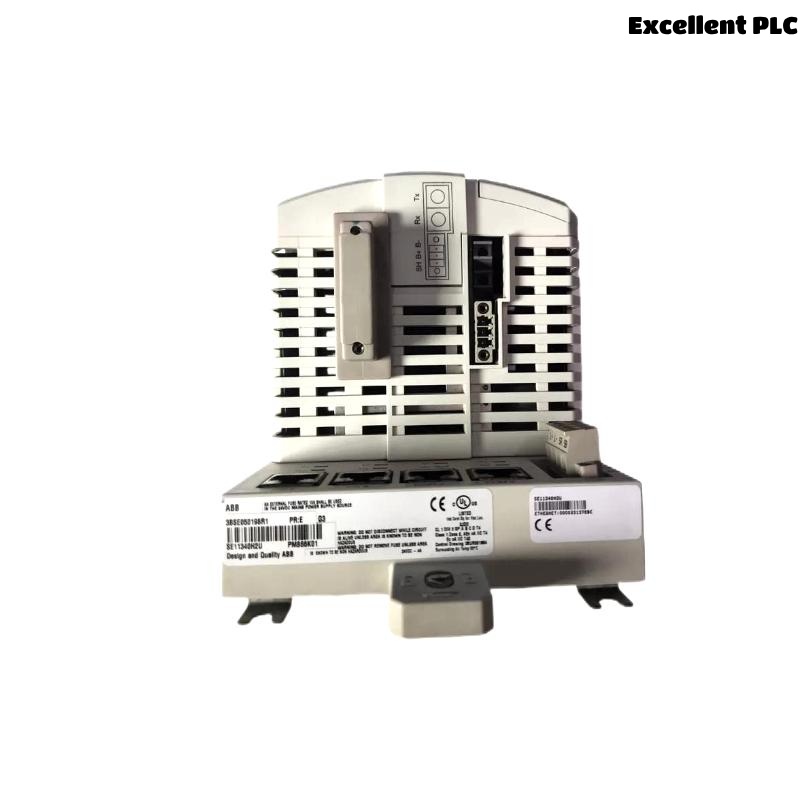

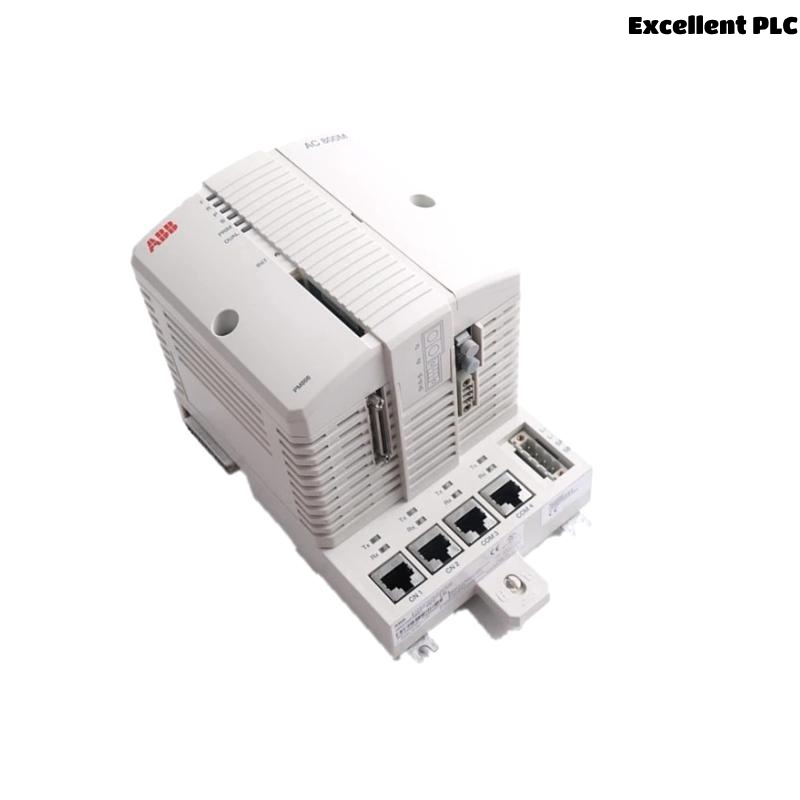

ABB PM866K01 3BSE050198R1 Product Introduction
The ABB PM866K01 3BSE050198R1 is a high-performance processor unit from ABB’s AC 800M series, designed for industrial automation and control systems. It serves as the brain of the control system, ensuring reliable and efficient operation in complex industrial environments. This module is widely used in process automation, power generation, and other critical applications where precision and durability are essential.
Product Parameters
The technical specifications of the PM866K01 are as follows:
| Parameter | Specification |
|---|---|
| Model Number | PM866K01 3BSE050198R1 |
| Processor Type | Dual-core, high-speed processor |
| Memory | 1 GB RAM (expandable) |
| Flash Storage | 512 MB |
| Communication Ports | Ethernet, serial, and fieldbus interfaces |
| Operating Voltage | 24 V DC |
| Power Consumption | 15 W (typical) |
| Operating Temperature | -20°C to +70°C |
| Dimensions (W x H x D) | 135 × 186 × 119 mm |
| Weight | 1.1 kg |
| Certifications | CE, UL, IEC 61131-2 compliant |
Product Applications
The PM866K01 is suitable for a wide range of industrial applications, including:
-
Process Automation: Controls complex manufacturing and chemical processes.
-
Power Generation: Manages turbine control and grid stability.
-
Oil & Gas: Ensures safe and efficient operation in upstream and downstream processes.
-
Water Treatment: Monitors and controls filtration and distribution systems.
-
Pharmaceuticals: Maintains precision in production lines.
Product Advantages
-
High Reliability: Designed for 24/7 operation in harsh environments.
-
Scalability: Supports expansion modules for additional I/O and communication.
-
Fast Processing: Dual-core processor ensures real-time control.
-
Compatibility: Integrates seamlessly with ABB’s 800xA and other control systems.
-
Robust Design: Resistant to vibrations, dust, and electromagnetic interference.
Frequently Asked Questions (FAQ)
Q1: What is the operating temperature range of the PM866K01?
A1: It operates between -20°C and +70°C.
Q2: Can the memory be expanded?
A2: Yes, the RAM is expandable up to 2 GB.
Q3: Is the PM866K01 compatible with third-party systems?
A3: It supports standard communication protocols but works best with ABB systems.
Q4: What certifications does this module have?
A4: It is CE, UL, and IEC 61131-2 certified.
Q5: How many communication ports are available?
A5: It includes Ethernet, serial, and fieldbus interfaces.
Q6: What is the typical power consumption?
A6: Approximately 15 W under normal operation.
Q7: Can it be used in explosive environments?
A7: No, it is not rated for hazardous areas.
Q8: What is the weight of the PM866K01?
A8: It weighs 1.1 kg.
Q9: Does it support redundant configurations?
A9: Yes, it can be used in redundant setups for high availability.
Q10: What is the expected lifespan of this module?
A10: Designed for 5+ years of continuous operation.
