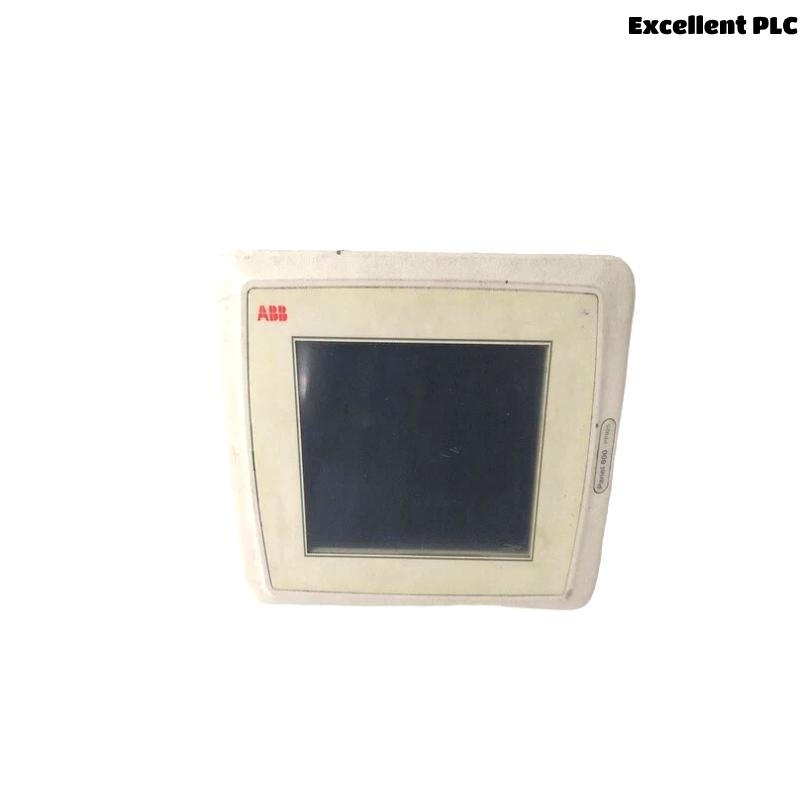

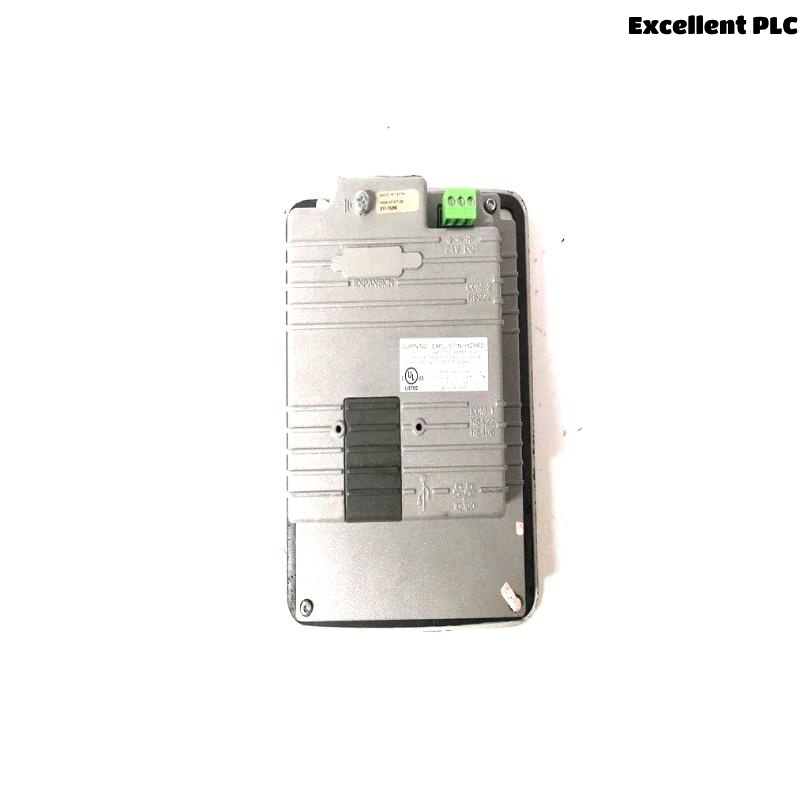

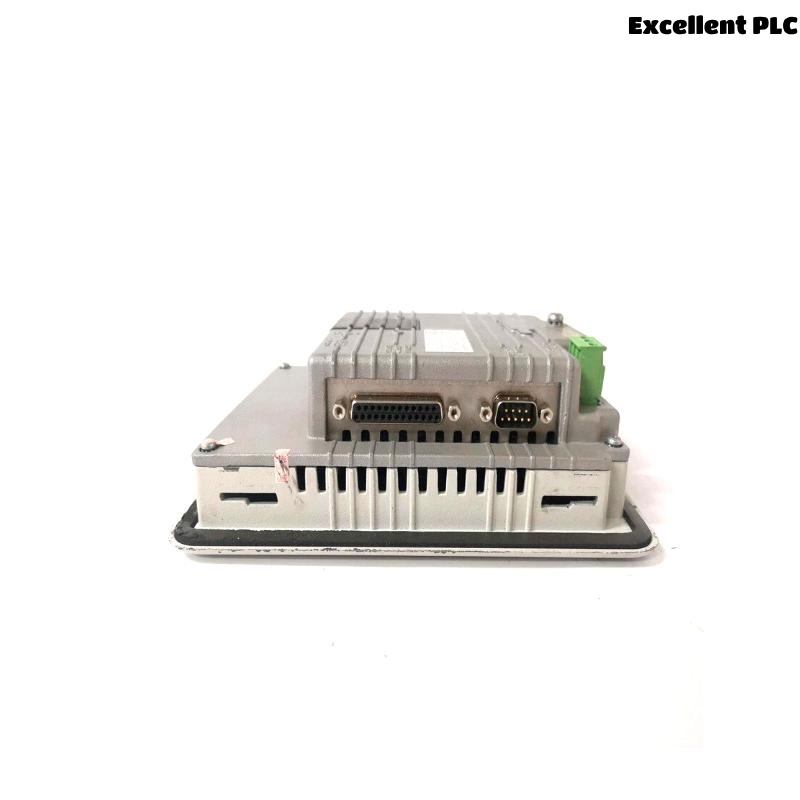

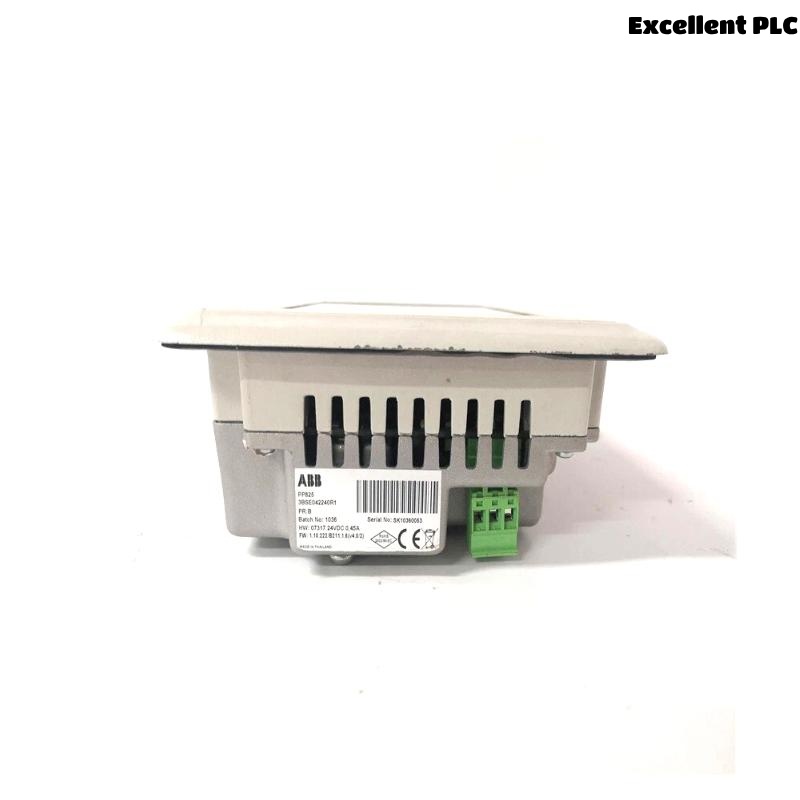

ABB PP825 3BSE042240R1 Panel 800 Operator Panel

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Overview

The ABB PP825 3BSE042240R1 is a robust operator panel from the Panel 800 series designed for efficient human-machine interaction. With object-oriented operation and a user-friendly interface, it enables monitoring, control, alarms, and recipe handling for various industrial automation systems.

---

Technical Specifications

---

Applications

• Human-Machine Interface (HMI) for industrial automation

• Process control in manufacturing plants

• PLC, servo, or drive communication interface

• Monitoring and controlling operational data in real-time

• Use in hazardous (Class I, Div 2) and standard environments

---

Advantages

• Compact and rugged aluminum casing with IP66 front protection

• Intuitive object-oriented design simplifies user interaction

• Supports multiple communication protocols (Ethernet, RS232, RS485)

• Built-in USB host port and 12 MB application memory

• Long-lasting display (CCFL backlight >75,000 h at 25 °C)

• Supports wide temperature and humidity conditions

• Certified for harsh industrial use

---

Frequently Asked Questions (FAQ)

Q1: What is the primary use of the PP825 panel?
A1: It serves as a human-machine interface (HMI) for controlling and monitoring industrial processes.

Q2: What kind of display does it use?
A2: It features a 5.7″ color STN-LCD with 320×240 resolution and CCFL backlight.

Q3: Is the panel suitable for hazardous areas?
A3: Yes, it’s certified for Class I, Division 2 hazardous locations.

Q4: How much internal memory is available for applications?
A4: The PP825 offers 12 MB of flash memory including fonts.

Q5: What interfaces are supported for communication?
A5: It supports RS232, RS422/RS485, and Ethernet (RJ45).

Q6: What is the panel’s protection rating?
A6: IP66 on the front panel and IP20 on the rear.

Q7: Can it be installed in a cabinet with other high-voltage devices?
A7: Yes, with proper grounding and cable separation as per guidelines.

Q8: What are the power requirements?
A8: +24V DC with current draw of 0.25 A typical and 0.45 A maximum.

Q9: Is the touch screen durable?
A9: Yes, it supports up to 1 million finger touch operations.

Q10: What software is used for configuration?
A10: The Panel Builder 800 configuration tool is used for setup.

---

Related Panel 800 Series or Compatible Models

---

Popular ABB Operator Panels

Frequently Asked Questions (FAQ)

Q1: What is the primary use of the PP825 panel?
A1: It serves as a human-machine interface (HMI) for controlling and monitoring industrial processes.

Q2: What kind of display does it use?
A2: It features a 5.7″ color STN-LCD with 320×240 resolution and CCFL backlight.

Q3: Is the panel suitable for hazardous areas?
A3: Yes, it’s certified for Class I, Division 2 hazardous locations.

Q4: How much internal memory is available for applications?
A4: The PP825 offers 12 MB of flash memory including fonts.

Q5: What interfaces are supported for communication?
A5: It supports RS232, RS422/RS485, and Ethernet (RJ45).

Q6: What is the panel’s protection rating?
A6: IP66 on the front panel and IP20 on the rear.

Q7: Can it be installed in a cabinet with other high-voltage devices?
A7: Yes, with proper grounding and cable separation as per guidelines.

Q8: What are the power requirements?
A8: +24V DC with current draw of 0.25 A typical and 0.45 A maximum.

Q9: Is the touch screen durable?
A9: Yes, it supports up to 1 million finger touch operations.

Q10: What software is used for configuration?
A10: The Panel Builder 800 configuration tool is used for setup.

Related Panel 800 Series or Compatible Models

---

Popular ABB Operator Panels
