Product Overview

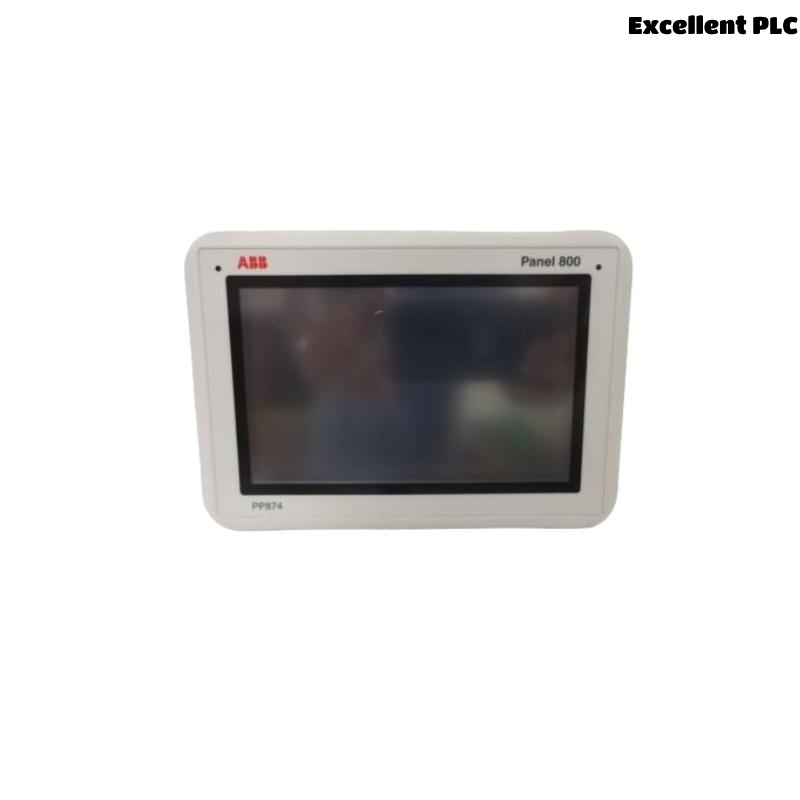

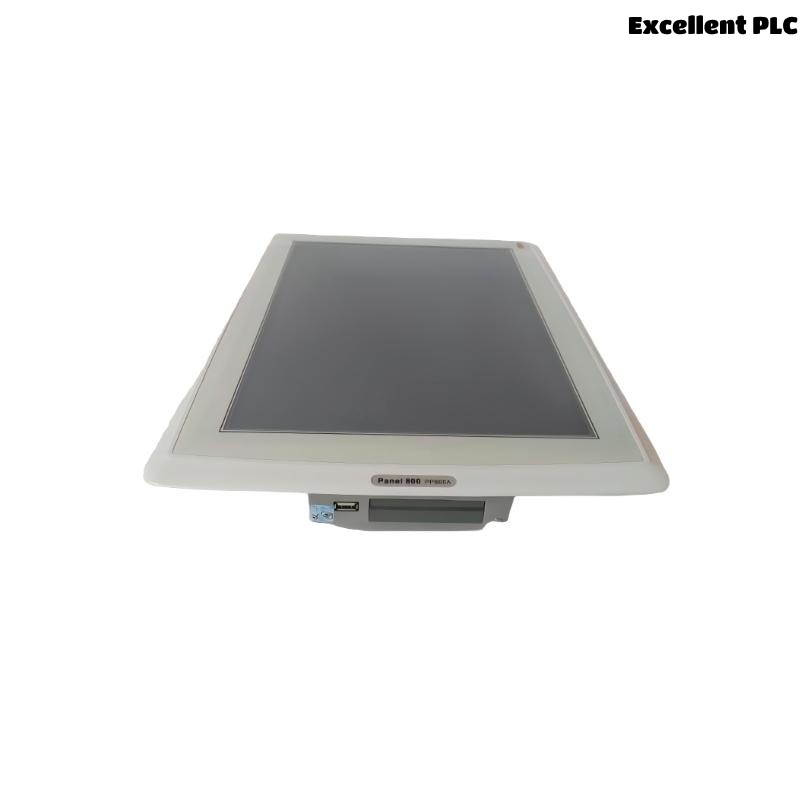

The ABB PP874K 3BSE069273R1 is a robust and versatile Human-Machine Interface designed to meet demanding visualization needs in industrial automation. With a compact 10.4-inch SVGA touchscreen, powerful communication capabilities, and seamless integration with ABB control systems, it provides users with real-time data monitoring, intuitive control, and enhanced system transparency.
Its rugged construction and IP65-rated front panel make the PP874K well-suited for harsh environments, while its compatibility with ABB’s engineering tools ensures quick commissioning and efficient operations. Whether used in manufacturing lines, energy systems, or utility applications, the PP874K enables smooth process supervision at both machine and plant levels.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Name | PP874K |
| Order Code | 3BSE069273R1 |
| Brand | ABB |
| Product Type | Operator Panel / HMI |
| Display Type | TFT LCD Touchscreen |
| Screen Size | 10.4 inches |
| Resolution | 800 × 600 pixels (SVGA) |
| Processor | ARM9 CPU |
| Memory | 128 MB RAM, 128 MB Flash |
| Interfaces | Ethernet, RS232/RS485 Serial, USB Host/Device |
| Mounting Method | Panel Mount |
| Power Supply | 24 V DC |
| Protection Rating | IP65 (front), IP20 (rear) |
| Operating Temperature | -10°C to +50°C |
| Operating System | Embedded OS compatible with Panel Builder |
| Dimensions | 280 × 228 × 51 mm |
| Weight | 1.7 kg |
Applications
Industrial Automation
PP874K serves as a central control and visualization point on factory floors, enabling operators to manage processes, troubleshoot faults, and adjust settings in real time.
Power Generation and Distribution
Used in substations, power plants, and grid control centers, it offers operators immediate access to electrical parameters, alarms, and command execution.
Chemical and Pharmaceutical Production
The panel provides visualization for batch control, recipe handling, and safety status display in tightly regulated environments.
Water and Wastewater Treatment
Helps operators monitor flow rates, tank levels, and treatment efficiency with real-time data and historical trends.
Infrastructure and Transportation Systems
Supports traffic systems, tunnels, rail networks, and utilities, where operator presence and quick interaction are essential.
Advantages
-
Clear Visual Interface: 10.4-inch SVGA screen with bright, responsive display for efficient process interaction.
-
Rugged Industrial Design: IP65-rated front and compact aluminum casing make it suitable for tough industrial environments.
-
Versatile Connectivity: Supports Ethernet, USB, and serial connections for wide-ranging integration.
-
Reliable Performance: ARM9 processor and ample memory ensure stable operation and quick response times.
-
Engineering Efficiency: Seamlessly works with ABB’s Panel Builder and Control Builder for reduced commissioning time.
-
Glove-Compatible Touchscreen: Resistive touch panel supports operation even with industrial gloves.
Frequently Asked Questions (FAQ)
Q1: What is the PP874K used for?
A1: It is an operator panel used for process visualization and control in industrial environments.
Q2: Can I use PP874K with non-ABB PLCs?
A2: Yes, it supports standard protocols like Modbus, making it compatible with many systems.
Q3: Is this panel suitable for outdoor use?
A3: The front is IP65-rated, but it should be used in an enclosure if placed outdoors.
Q4: What software is used to program the PP874K?
A4: ABB Panel Builder and Control Builder are typically used.
Q5: Can it display alarms and logs?
A5: Yes, it has built-in memory to store and display alarms, logs, and historical data.
Q6: How is it mounted?
A6: It is mounted from the front using a panel cutout and mounting clips.
Q7: Does it support remote access?
A7: With appropriate setup and network configuration, it can support remote diagnostics.
Q8: What is the startup time?
A8: Typically under 20 seconds depending on the project complexity.
Q9: Is the touch panel resistive or capacitive?
A9: It uses a resistive touchscreen, ideal for industrial applications.
Q10: What’s the expected lifespan of the display?
A10: The backlight typically lasts over 50,000 hours under standard conditions.
Related Models (Same Series or Functional Range)
| Model | Description | Screen Size | Weight | Dimensions |
|---|---|---|---|---|
| PP875K | High-resolution HMI with extended display | 12.1 inches | 2.0 kg | 312 × 240 × 51 mm |
| PP873K | Compact panel for space-limited installations | 7.0 inches | 1.5 kg | 240 × 180 × 48 mm |
| PP876K | Wide-screen operator interface | 15 inches | 2.5 kg | 360 × 280 × 60 mm |
| PP877K | Enhanced panel with higher memory capacity | 10.4 inches | 2.1 kg | 310 × 250 × 55 mm |
| PP878K | Rugged panel for extreme industrial environments | 10.4 inches | 2.3 kg | 330 × 260 × 65 mm |
| PP872K | Entry-level operator panel for basic control | 5.7 inches | 1.3 kg | 200 × 160 × 45 mm |
Popular ABB Models (Same Brand)
| Model | Description | Function | Weight | Dimensions |
|---|---|---|---|---|
| CI854A | Communication interface for PROFIBUS | Network module | 1.2 kg | 180 × 120 × 40 mm |
| PM865 | High-speed controller module | AC 800M CPU | 1.9 kg | 230 × 180 × 50 mm |
| AI810 | Analog input module (8 channels) | Signal acquisition | 1.0 kg | 120 × 100 × 35 mm |
| DO820 | Digital output module | Output interface | 1.1 kg | 120 × 100 × 35 mm |
| CI856 | Redundant interface for S800 I/O | Communication gateway | 1.5 kg | 185 × 125 × 45 mm |
| PM891 | High-performance control processor | Large-scale control | 2.3 kg | 240 × 160 × 60 mm |
