Product Overview

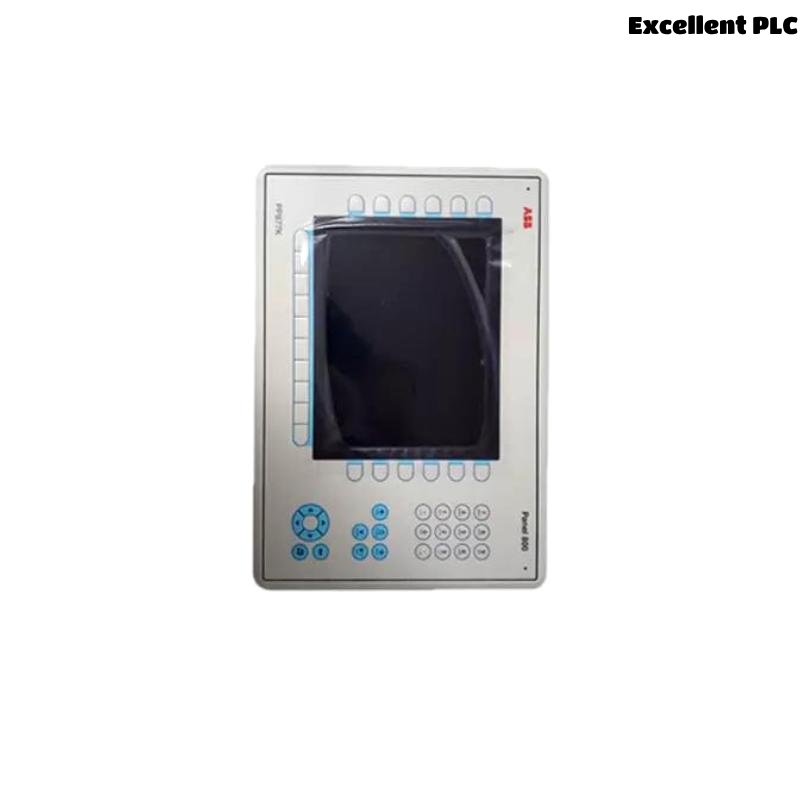

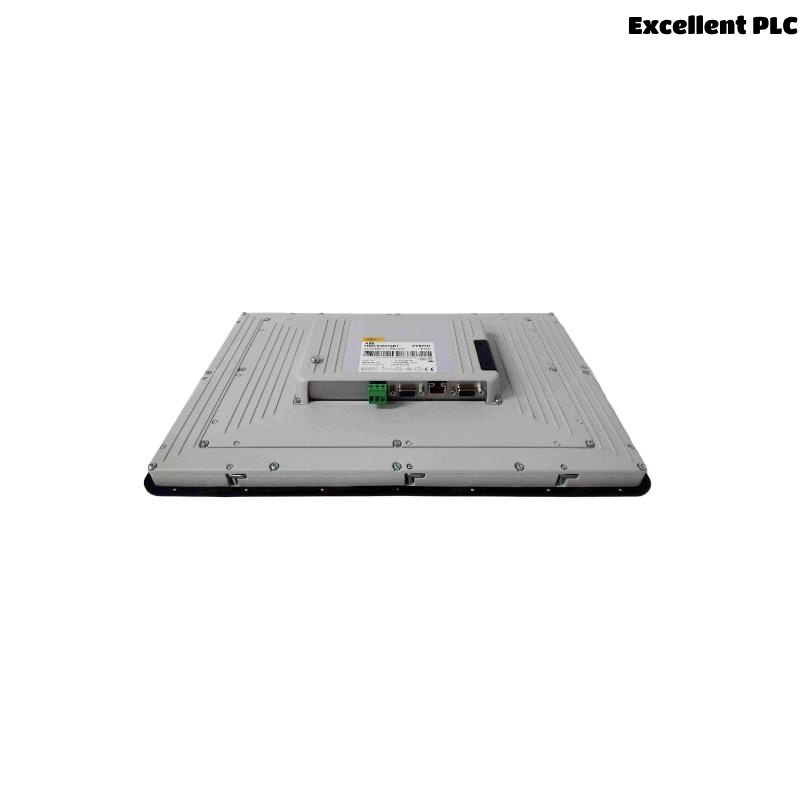

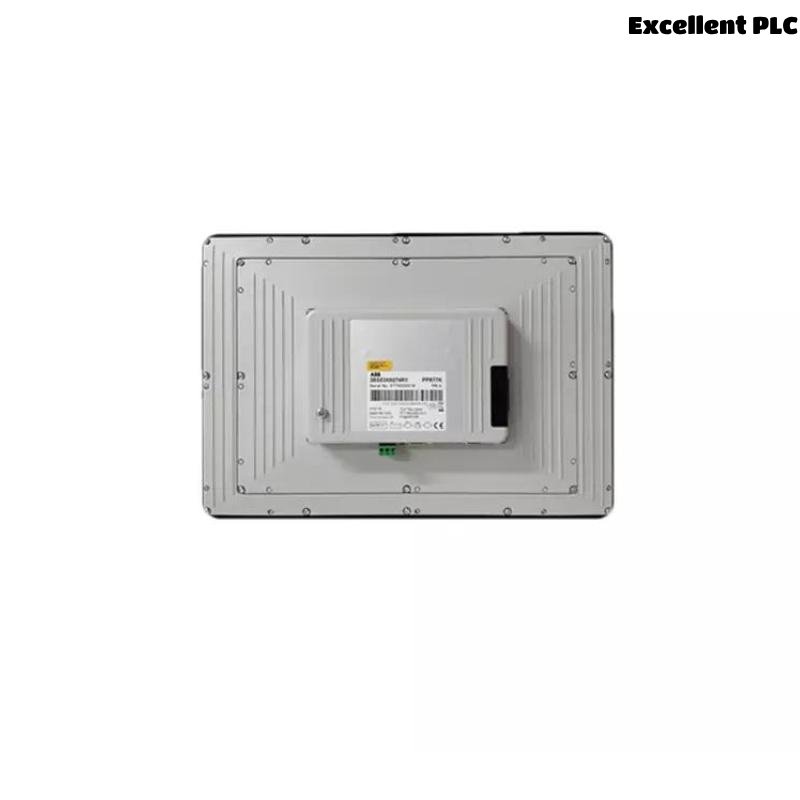

The ABB PP877K 3BSE069274R1 is a high-performance operator panel specifically developed for industrial process control, offering a clear, durable, and user-friendly interface. As part of ABB’s advanced Panel 800 family, this model integrates seamlessly with control systems to provide real-time monitoring, intuitive operation, and efficient visualization of complex processes.
Featuring a 15-inch TFT-LCD touchscreen, it delivers sharp SVGA resolution, multitouch functionality, and robust connectivity including Ethernet, serial, and USB interfaces. Designed to handle challenging environments, the PP877K supports wide operating temperatures and features a front IP65 protection rating, ensuring reliable performance in dusty, humid, or high-vibration areas.
Its powerful ARM-based processor, extended flash memory, and compatibility with ABB’s Control Builder tools make it an ideal choice for SCADA interfaces, machine control panels, and other automation scenarios that demand stability and responsiveness.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Name | PP877K |
| Order Code | 3BSE069274R1 |
| Brand | ABB |
| Product Type | Operator Panel / HMI |
| Display Type | TFT LCD Touchscreen |
| Screen Size | 15 inches |
| Resolution | 1024 × 768 pixels (XGA) |
| Processor | ARM9 CPU |
| Memory | 256 MB RAM, 512 MB Flash |
| Interfaces | Ethernet (2x), RS232/RS485, USB Host/Device |
| Mounting Method | Panel Mount |
| Power Supply | 24 V DC |
| Protection Rating | IP65 (front), IP20 (rear) |
| Operating Temperature | -10°C to +50°C |
| Operating System | Embedded Linux |
| Dimensions | 410 × 286 × 83 mm |
| Weight | 3.8 kg |
Applications
Industrial Automation
PP877K is commonly installed in production lines and factory automation systems, acting as the main interface for operators to control and monitor machinery.
Power Plants and Substations
In energy sectors, it supports SCADA systems and field interfaces for data visualization and command input in electrical distribution.
Oil and Gas
Used in process safety, compressor stations, and field monitoring systems for live data interaction and fault response.
Water Treatment and Distribution
The panel controls and supervises pumps, tank levels, and chemical dosing processes in water plants.
Pharmaceutical and Food Industries
Ensures compliance and efficiency by visualizing process workflows, alerts, and batch management with high reliability.
Marine and Transportation
Installed in ship automation systems and rail equipment for real-time equipment condition display and control.
Advantages
-
Large High-Resolution Display
15-inch XGA screen offers crisp visualization and user-friendly multitouch support. -
Industrial-Grade Durability
IP65 front sealing and wide temperature tolerance suit harsh working environments. -
High System Compatibility
Fully compatible with ABB’s AC 800M, Compact Control Builder, and other DCS/PLC systems. -
Improved Performance
With enhanced flash and RAM memory, it handles large graphical applications and fast refresh rates. -
Multiple Communication Ports
Built-in dual Ethernet, USB, and serial ports ensure flexible integration with external systems and networks. -
Long Lifecycle and Support
Backed by ABB’s industrial product lifecycle policies, ensuring stability for long-term installations.
Frequently Asked Questions (FAQ)
Q1: What is the primary purpose of the PP877K?
A1: It serves as an HMI for visualizing, controlling, and interacting with industrial processes in real time.
Q2: Can this panel be integrated with non-ABB systems?
A2: Yes, it supports open communication protocols like Modbus and OPC, making it compatible with various control systems.
Q3: Is it suitable for outdoor use?
A3: Not directly. It should be installed in enclosures if used in direct sunlight or rain, but its IP65 front panel allows use in dusty/humid indoor spaces.
Q4: How is it programmed or configured?
A4: It is configured using ABB Panel Builder and integrated with Control Builder tools for system development.
Q5: Does the panel support multi-language displays?
A5: Yes, it supports Unicode and multiple language sets, including Asian and European languages.
Q6: What are the power requirements?
A6: It operates on 24 V DC with internal regulation to power the CPU and backlight system.
Q7: What type of touchscreen is used?
A7: A resistive touchscreen, ideal for glove operation in industrial conditions.
Q8: Can it handle remote diagnostics?
A8: Yes, through its Ethernet interface, it supports remote access and diagnostics.
Q9: How is firmware updated?
A9: Firmware can be updated via USB or Ethernet using the engineering toolset.
Q10: What kind of software licensing is required?
A10: Basic functionality is license-free; advanced features may require ABB software activation depending on the application.
Related Models (Same Series or Functional Range)
| Model | Description | Screen Size | Weight | Dimensions |
|---|---|---|---|---|
| PP873K | Compact panel for tight installations | 7.0 inches | 1.5 kg | 240 × 180 × 48 mm |
| PP874K | Mid-size panel for moderate complexity systems | 10.4 inches | 1.7 kg | 280 × 228 × 51 mm |
| PP875K | High-performance HMI with larger screen | 12.1 inches | 2.0 kg | 312 × 240 × 51 mm |
| PP876K | Wide-screen version with extra I/O capacity | 15 inches | 2.5 kg | 360 × 280 × 60 mm |
| PP878K | Heavy-duty panel for rugged applications | 10.4 inches | 2.3 kg | 330 × 260 × 65 mm |
| PP879K | Extended memory version for complex projects | 15 inches | 4.1 kg | 420 × 300 × 90 mm |
Popular ABB Models (Same Brand)
| Model | Description | Function | Weight | Dimensions |
|---|---|---|---|---|
| CI854A | PROFIBUS DP communication interface | Network module | 1.2 kg | 180 × 120 × 40 mm |
| PM891 | High-performance processor for AC 800M series | Controller module | 2.3 kg | 240 × 160 × 60 mm |
| AI815 | Analog input module with 8 channels | Signal acquisition | 1.1 kg | 120 × 100 × 35 mm |
| DO840 | Digital output module (24 V DC) | Discrete output | 1.2 kg | 120 × 100 × 35 mm |
| CI860 | Redundant communication interface for S800 I/O | Redundancy link | 1.6 kg | 185 × 125 × 45 mm |
| TU849 | Extended termination unit for PM861/PM864 | Field connection base | 0.9 kg | 130 × 110 × 40 mm |
