Product Overview

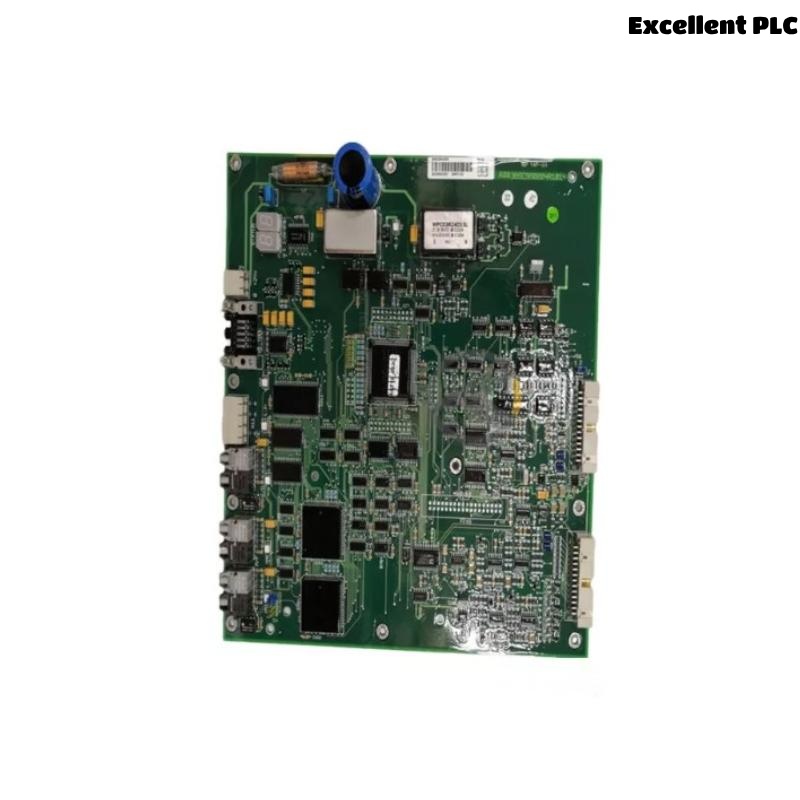

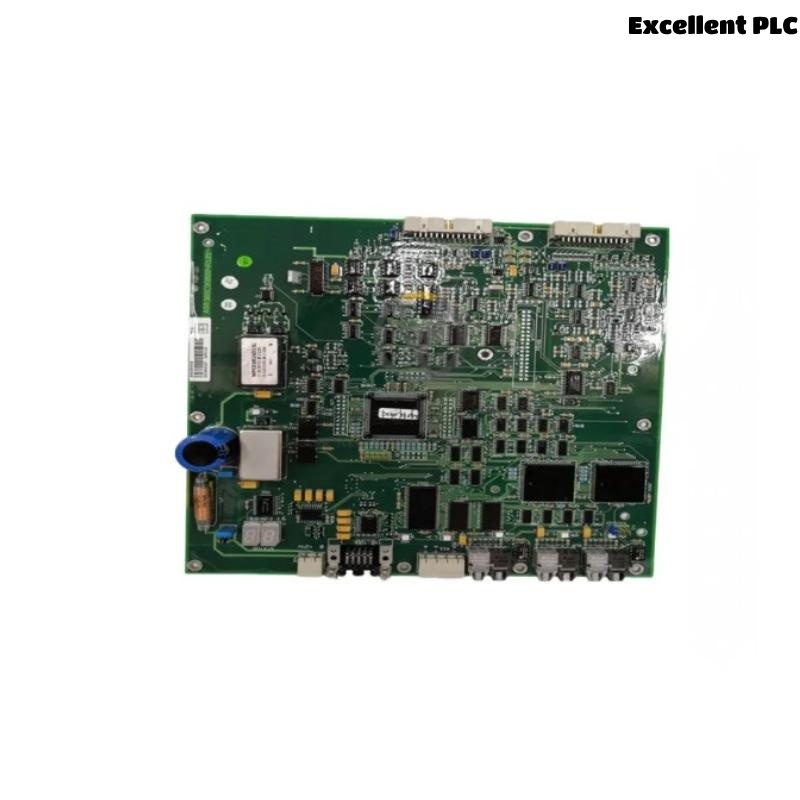

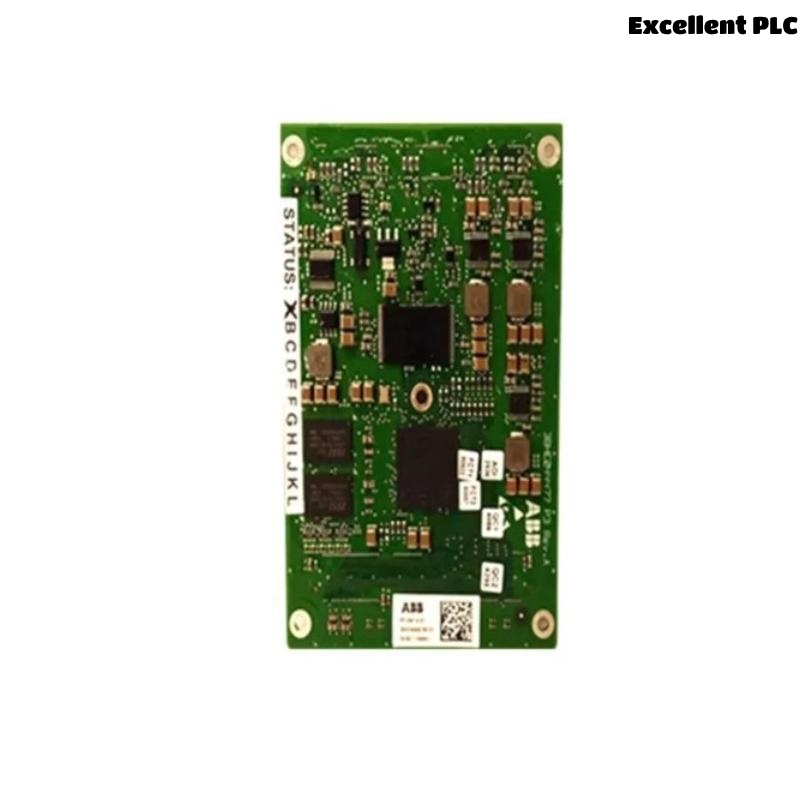

The ABB PPE091A101 3BHE044481R0101 is a high-performance controller module designed to serve as a key control and processing unit within ABB’s industrial automation systems. Tailored for real-time applications, this controller integrates seamlessly into ABB’s drive control platforms and distributed control systems (DCS), particularly in demanding environments such as power generation, process automation, and heavy industry.
This robust module features a compact, modular architecture, making it suitable for both standalone and redundant system configurations. It executes deterministic control algorithms, handles field communication, and performs critical diagnostic and coordination tasks essential for plant safety, efficiency, and uptime.
Key Features
-
Central control module for ABB drive and automation systems
-
Supports real-time control, sequencing, and communication tasks
-
Integrated fieldbus communication capabilities (e.g., Ethernet, PROFIBUS, etc.)
-
Designed for 24/7 operation in harsh industrial conditions
-
Compatible with ABB System 800xA and Control Builder tools
-
Can operate in redundant configurations for high availability
-
Built-in fault detection and diagnostics features
-
Compliant with international EMC, safety, and environmental standards
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Controller Module |
| Model Number | PPE091A101 |
| Part Number | 3BHE044481R0101 |
| System Compatibility | ABB drive systems, AC800 DCS, 800xA automation platform |
| Processor Type | Industrial-grade embedded processor |
| Memory | Integrated RAM and Flash (typ. 32–128 MB) |
| Control Capabilities | Continuous process control, sequencing, interlocking |
| Communication Protocols | Ethernet, PROFIBUS DP, Modbus, Serial (RS-232/485), CAN (optional) |
| Programming Environment | ABB Control Builder, 800xA Engineering Tools |
| Redundancy | Supports hot-standby CPU redundancy (if configured) |
| Diagnostics | Onboard health monitoring, error logging, system event reporting |
| Power Supply | 24 VDC (nominal) |
| Power Consumption | Approx. 10–15 W |
| Cooling Method | Passive convection |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% RH, non-condensing |
| EMC Compliance | EN 61000-6-2 (immunity), EN 61000-6-4 (emissions) |
| Mounting Type | DIN rail or panel mount within enclosure |
| Dimensions | 160 x 120 x 90mm |
| Weight | 1.2 kg |
| Environmental Compliance | RoHS, CE, UL |
Industry Applications
The ABB PPE091A101 Controller Module is widely used across various industries that demand precision control and system integration:
-
Power Generation – Boiler control, turbine coordination, substation automation
-
Oil & Gas – Compressor and pump control, refinery automation
-
Chemicals & Petrochemicals – Reactor management, safety interlocks
-
Mining & Metals – Smelter process automation, conveyor control
-
Pulp & Paper – Web handling, dryer section regulation
-
Water & Wastewater – Plant-wide SCADA integration, pump sequencing
Product Advantages
-
Real-time performance ensures accurate control and fast system response
-
Compatible with ABB’s distributed and modular architecture
-
Redundant operation minimizes downtime in mission-critical systems
-
Robust design tolerates electrical noise, thermal stress, and vibration
-
Simplifies integration with ABB’s 800xA and legacy platforms
-
Compact and space-efficient layout for dense control cabinets
-
Long lifecycle and global ABB support for maintenance and upgrades
-
Built-in tools reduce commissioning time and improve diagnostics
Frequently Asked Questions (FAQ)
1. What is the primary role of the PPE091A101 module?
It acts as a central controller, executing logic, handling communications, and managing I/O in ABB systems.
2. Can it be used in redundant control setups?
Yes, it supports hot-standby redundancy with automatic failover (if configured).
3. Which ABB systems is it compatible with?
Primarily ABB AC800, 800xA, and industrial drive systems.
4. Is programming done externally?
Yes, through ABB Control Builder or 800xA Engineering Workstation.
5. What fieldbuses are supported?
It supports Ethernet, PROFIBUS DP, Modbus, and RS-232/485 among others.
6. How is the unit powered?
It operates on 24 VDC power, typically supplied from a system power bus.
7. Are firmware upgrades possible?
Yes, through ABB’s engineering tools or field-service procedures.
8. Can it handle safety-critical logic?
It can, but safety certification depends on system-level architecture.
9. How is the module diagnosed?
Via self-diagnostics, system logs, and visual status indicators.
10. Is it suitable for hazardous locations?
Use in hazardous zones may require additional certification or housing.
