Product Overview

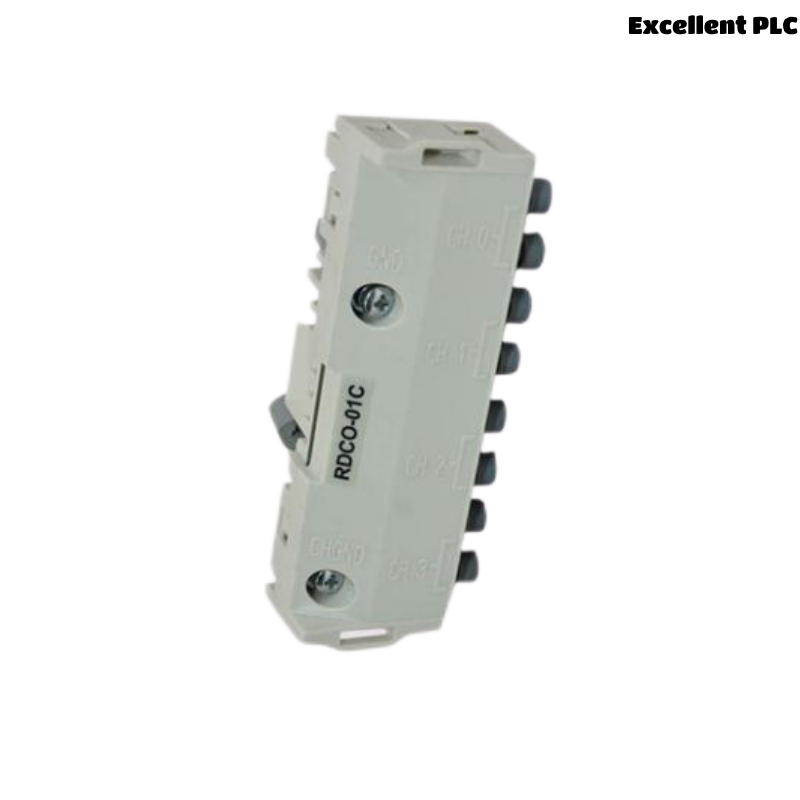

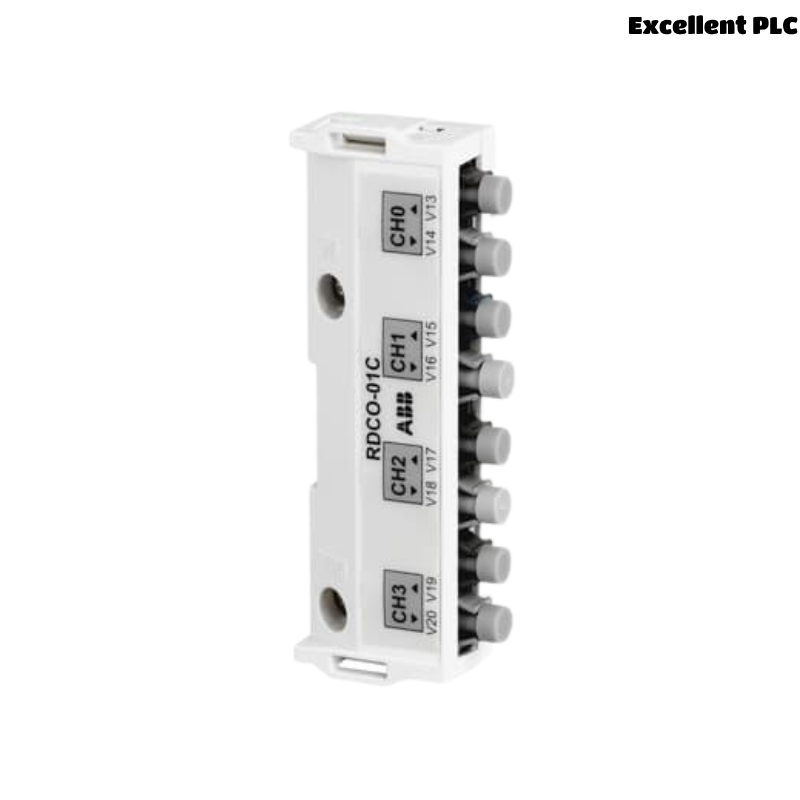

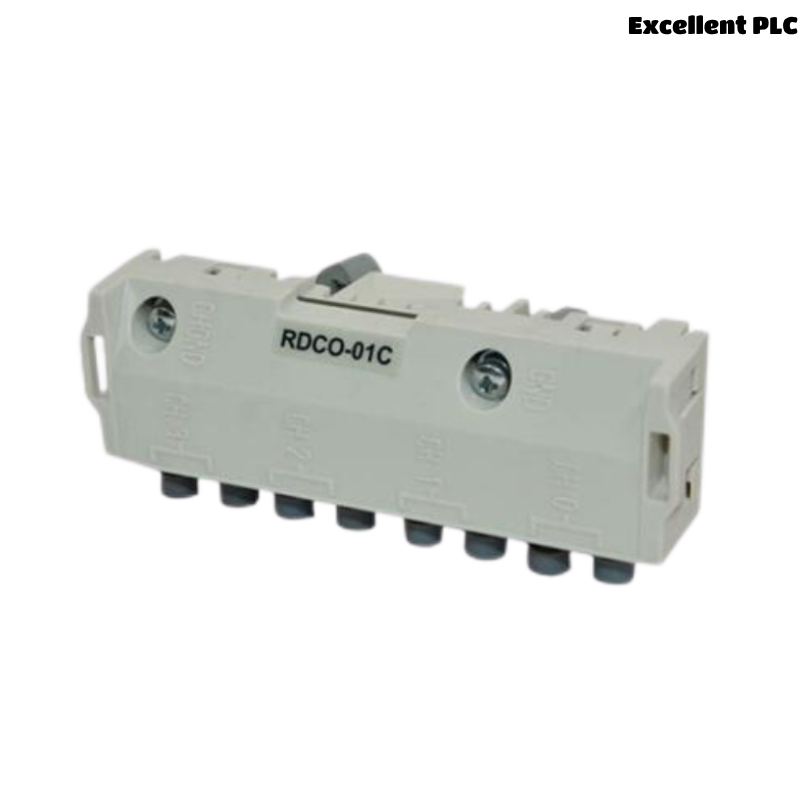

The ABB RDCO-01C 64492438 Inverter Accessory is a high-performance, plug-in communication module designed to enhance the connectivity and control flexibility of ABB’s ACS800 and other compatible inverter drives. This module provides advanced communication capabilities, enabling seamless integration of variable speed drives into industrial networks for process optimization, monitoring, and control.
The RDCO-01C offers an optical fiber communication interface, ensuring reliable and noise-immune data transmission over long distances. It is ideal for demanding industrial environments where robust, interference-free communication is critical for motor control and automation systems.
Key Features
-
Plug-in communication module for ABB ACS800 drives and other compatible inverters
-
Provides optical fiber communication interface for reliable long-distance transmission
-
Supports drive integration into ABB control systems and industrial networks
-
Ensures noise-immune, high-speed communication in harsh environments
-
Compact, modular design for easy installation and replacement
-
Enhances drive system flexibility, control, and monitoring capabilities
-
Fully compatible with ABB drive configurations and system architecture
-
Suitable for critical applications requiring reliable drive communication
-
Supports various industrial protocols when used with optional modules
-
ABB-certified accessory for global industrial deployment
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Inverter Communication Accessory |
| Brand | ABB |
| Model Number | RDCO-01C 64492438 |
| Compatible Drive Series | ABB ACS800 and other selected ABB drives |
| Function | Optical fiber communication interface for drive systems |
| Communication Interface | Optical fiber, noise-immune data transmission |
| Supported Protocols | System-dependent, customizable with additional modules |
| Installation | Plug-in module for ABB drive units |
| Power Supply | Powered via inverter drive system |
| Maximum Transmission Distance | Dependent on fiber optic specifications (typically >500 m) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity Range | 5% to 95% non-condensing |
| Shock Resistance | IEC 60068-2-27 compliant |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Certifications | CE, UL, CSA, RoHS compliant |
| Dimensions | 30 x 95 x 34mm |
| Weight | 0.25 kg |
Industry Applications
The ABB RDCO-01C Inverter Accessory is widely used in industries requiring reliable, interference-free drive communication:
-
Metals and Mining: Long-distance, noise-immune communication for motor control in harsh conditions
-
Oil & Gas: Reliable data transmission in offshore and onshore drive systems
-
Power Generation: Integration of inverter drives into plant-wide automation networks
-
Water and Wastewater Treatment: Secure drive communication for pumps, valves, and process control
-
Marine and Offshore Applications: Optical communication resistant to electrical interference
-
General Industrial Automation: Enhanced drive connectivity for large-scale production systems
Product Advantages
-
Robust Optical Communication: Ensures reliable, interference-free drive data transmission
-
Long-Distance Connectivity: Supports communication over extended distances without signal degradation
-
Compact Modular Design: Simplifies installation within ABB inverter drive enclosures
-
Enhanced System Integration: Provides flexible connection to ABB control platforms and networks
-
Noise Immunity: Ideal for electrically noisy environments typical in industrial applications
-
Increased System Reliability: Reduces communication faults and improves overall drive performance
-
ABB Compatibility: Seamless integration with ABB ACS800 and compatible inverter series
-
Reduced Downtime: Plug-in module simplifies maintenance and replacement
-
Global Certifications: Suitable for use in worldwide industrial installations
-
Supports System Expansion: Allows scalable integration of additional drives or control devices
Frequently Asked Questions (FAQ)
1. What is the function of the ABB RDCO-01C?
It provides an optical fiber communication interface for ABB inverter drives, enhancing connectivity and control.
2. Which ABB drive series is the RDCO-01C compatible with?
It is primarily designed for ABB ACS800 drives and selected compatible inverters.
3. Does the RDCO-01C support long-distance communication?
Yes, it enables reliable, noise-immune communication over extended distances via fiber optics.
4. How is the RDCO-01C installed?
It is a plug-in module that installs directly into the designated slot of ABB inverter drives.
5. What are the advantages of optical fiber communication in industrial environments?
It provides high-speed, interference-free data transmission ideal for electrically noisy environments.
6. Is the RDCO-01C suitable for outdoor or harsh environments?
Yes, when installed in properly rated ABB inverter enclosures, it operates reliably in harsh conditions.
7. Can the RDCO-01C be used for network integration?
Yes, it enables inverter drives to connect to ABB control systems and broader automation networks.
8. Does the RDCO-01C require external power?
No, it is powered directly by the inverter drive system.
9. Is the RDCO-01C certified for global use?
Yes, it holds CE, UL, CSA, and RoHS certifications for worldwide industrial applications.
10. Can I upgrade the communication capabilities with additional modules?
Yes, depending on system requirements, additional communication modules can be integrated.
