Product Introduction

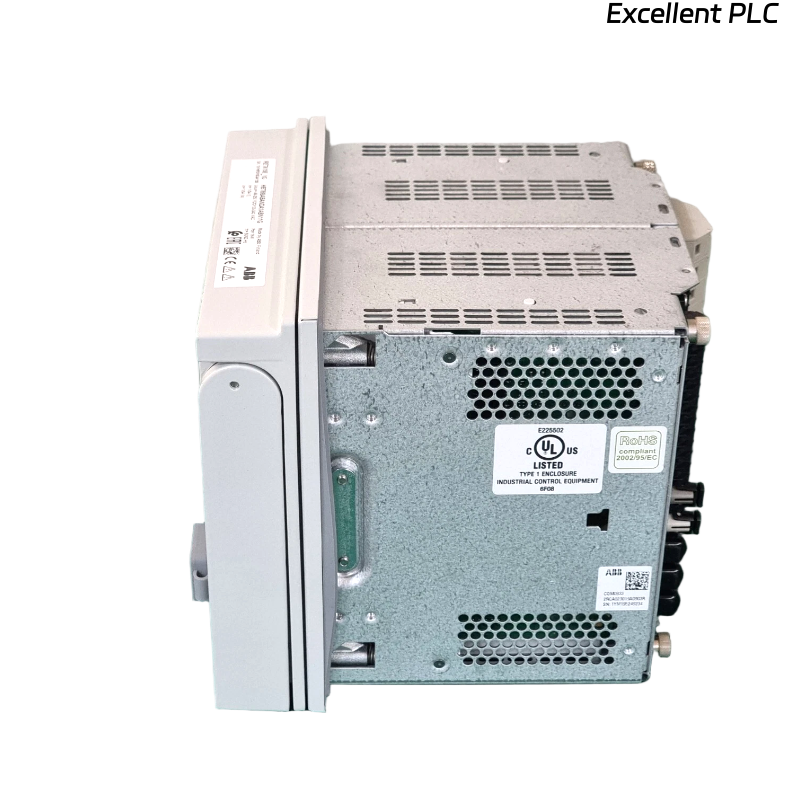

The ABB RET615E-1G Transformer Protection and Control Relay is an advanced, compact, and intelligent device designed to provide comprehensive protection, control, measurement, and supervision of power transformers. Belonging to ABB’s Relion 615 series, the RET615E-1G is engineered for medium-voltage and high-voltage distribution networks. It ensures reliable operation, high availability, and improved fault detection accuracy, making it an essential element in modern power system automation.
The relay supports IEC 61850 communication standards and integrates seamlessly with substation automation systems. It is widely used in both utility and industrial transformer protection schemes where high performance and flexible configuration are required.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ABB RET615E-1G |
| Function | Transformer Protection and Control Relay |
| Rated Voltage | 24 – 250 V DC / 100 – 240 V AC |
| Rated Current | 1 A / 5 A |
| Frequency | 50 / 60 Hz |
| Control Functions | Circuit breaker control, disconnector control, interlocking |
| Event & Disturbance Recording | Up to 1000 events, waveform capture, fault recording |
| Operating Temperature Range | –25 °C to +55 °C |
| Dimensions | 177 x 214 x 270 mm |
| Weight | 4.1 kg |
| Mounting | Flush mounting, panel installation |
| Compliance | IEC, ANSI, CE, RoHS standards |
Product Applications
The ABB RET615E-1G is designed for the protection and control of two-winding power transformers, including step-up and step-down configurations. Typical application areas include:
-
Medium-voltage substations
-
High-voltage distribution networks
-
Industrial transformer protection
-
Renewable energy grid integration (wind and solar substations)
-
Utilities requiring intelligent transformer management
Its versatile configuration makes it suitable for both single transformer units and complex substation automation systems.
Product Advantages
-
Comprehensive Protection: Provides transformer differential, overcurrent, thermal, and voltage protection in a single device.
-
Advanced Communication: Full support for IEC 61850, enabling seamless integration into digital substations.
-
High Reliability: Proven design with robust fault detection and selective tripping functions.
-
Flexible Configuration: Adaptable settings for different transformer ratings and system requirements.
-
Enhanced Monitoring: Built-in measurement, event logging, and disturbance recording features for precise diagnostics.
-
Compact Design: Small footprint with easy panel installation, reducing space requirements.
FAQ
Q1: What type of protection does RET615E-1G provide for transformers?
A1: It offers differential protection, overcurrent protection, thermal overload, voltage, and frequency supervision.
Q2: Can RET615E-1G be integrated into IEC 61850-based systems?
A2: Yes, it is fully compliant with IEC 61850, supporting GOOSE messaging and remote system integration.
Q3: Does this relay support redundant communication channels?
A3: Yes, RET615E-1G supports redundant Ethernet ports for reliable communication.
Q4: How many events can the relay record?
A4: It can record up to 1000 events, including fault data and operational records.
Q5: What current input ratings are supported?
A5: The relay supports 1 A and 5 A rated current inputs.
Q6: Can it control both circuit breakers and disconnectors?
A6: Yes, it provides full breaker and disconnector control with interlocking logic.
Q7: What is the typical response time of the differential protection?
A7: The differential protection operates within milliseconds to ensure fast fault clearance.
Q8: Does it support remote firmware updates?
A8: Yes, remote configuration and firmware updates are supported through its communication interface.
Q9: Is the relay suitable for renewable energy applications?
A9: Yes, it is widely used in wind and solar farm substations to protect step-up transformers.
Q10: What diagnostic features are available?
A10: It includes self-supervision, event logging, disturbance recording, and monitoring of transformer operating conditions.
