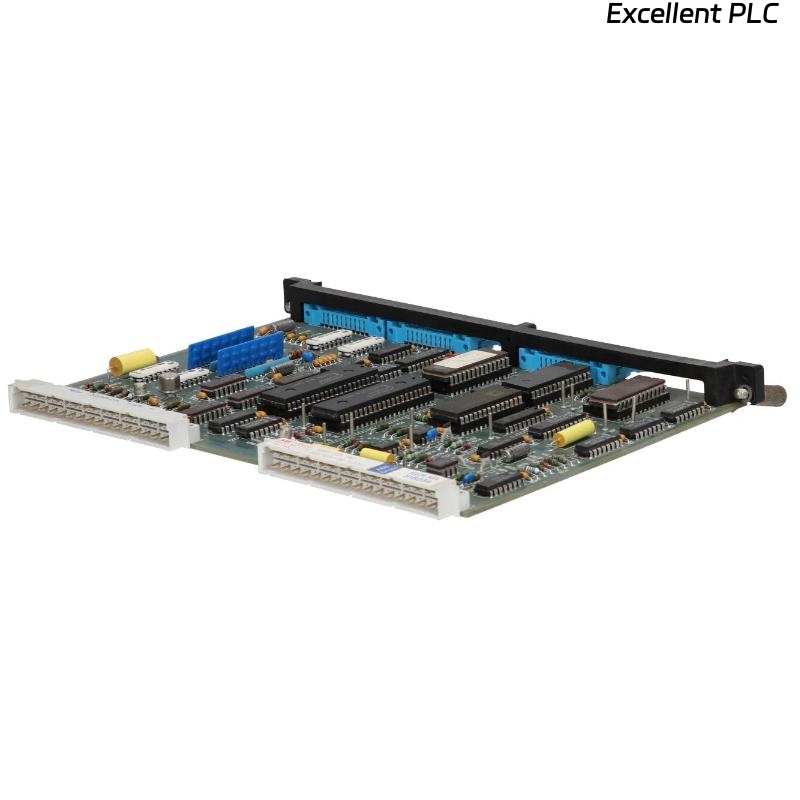

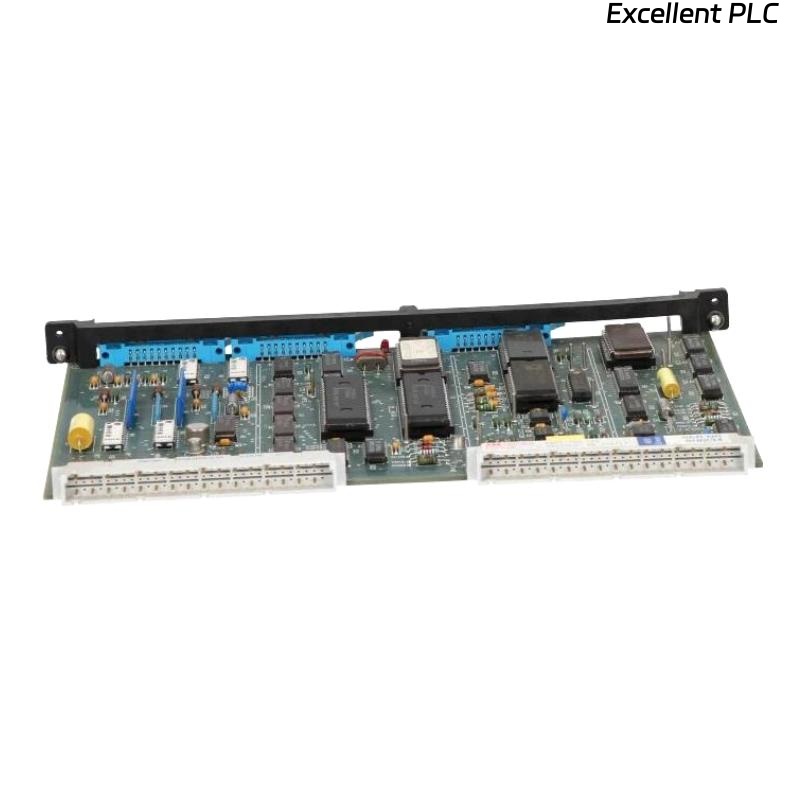

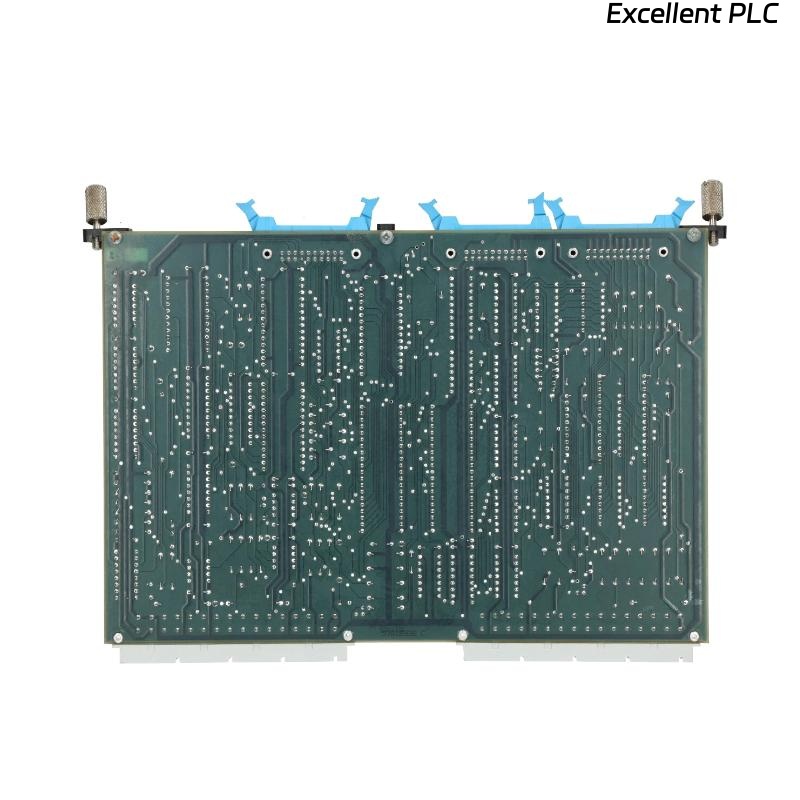

The ABB SAFT 185 TBC 58119687 Circuit Board is a robust and precision-engineered electronic control board designed for critical industrial automation and power management systems. As part of ABB’s SAFT series, this circuit board provides reliable signal processing, communication, and control capabilities in demanding environments. Built with industrial-grade components, it ensures stable operation, seamless integration with ABB control architectures, and long-term reliability for applications requiring high performance and continuous uptime.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | SAFT 185 TBC 58119687 |
| Type | Industrial Control Circuit Board |
| Input Voltage | 24 V DC nominal |
| Signal Interfaces | Multiple analog/digital I/O, serial communication ports |
| Processing Capability | High-speed microprocessor for real-time control |
| Protection Features | Over-voltage, reverse polarity, and thermal safeguards |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Range | 5 %–95 % non-condensing |
| Mounting | Rack or panel installation |
| Compliance | CE, RoHS, UL certified |
| Dimensions (L × W × H) | 150 × 120 × 30 mm |
| Weight | 0.34 kg |
Applications
-
Power Generation Plants – Provides core control logic for generator protection and excitation subsystems.
-
Industrial Automation – Supports precise signal processing and communication in manufacturing and process control systems.
-
Substation Control – Enhances data acquisition and protection for high-voltage switchgear and distribution equipment.
-
Marine and Offshore Systems – Ensures reliable monitoring and automation for shipboard power networks.
-
Heavy Industry – Ideal for mining, oil & gas, and chemical plants where robust circuit control is required.
Advantages
-
High Processing Reliability – Built with industrial-grade components for 24/7 operation in harsh environments.
-
Versatile Integration – Compatible with ABB’s extensive control systems and third-party equipment.
-
Comprehensive Protection – Safeguards against over-voltage, thermal stress, and wiring faults.
-
Fast Real-Time Response – High-speed microprocessor enables quick signal processing and accurate control.
-
Long Service Life – Rigid PCB design resists vibration and mechanical stress.
-
Modular Architecture – Simplifies maintenance, replacement, and upgrades.
-
Stable Communication – Multiple analog and digital interfaces support seamless data exchange across systems.
-
Compact Form Factor – Space-saving design for easy installation in dense control cabinets.
FAQ
-
What type of control signals can the SAFT 185 TBC board handle?
It supports both analog and digital signals, enabling versatile control of industrial sensors, actuators, and protective relays. -
Is the board compatible with ABB distributed control systems (DCS)?
Yes, it integrates smoothly with ABB DCS platforms, including legacy and modern systems, via standard communication protocols. -
How does the board ensure reliable operation in high-vibration environments?
The PCB is designed with reinforced layers and industrial soldering techniques to withstand continuous mechanical stress. -
What is the recommended input voltage range for stable performance?
The nominal input is 24 V DC, with a tolerance of ±10 % to accommodate power fluctuations without performance degradation. -
Can the SAFT 185 TBC board be used in redundant control configurations?
Yes, it supports hot-standby or parallel configurations for high-availability installations. -
What protection features are built into the circuit board?
Integrated over-voltage, reverse polarity, and thermal shutdown features protect both the board and connected devices. -
Does the board support remote diagnostics or monitoring?
Standard communication ports allow real-time data monitoring and diagnostics through plant SCADA or remote systems. -
What is the typical response time for signal processing?
The high-speed processor provides sub-millisecond response for critical automation tasks. -
How is heat dissipation managed in continuous operation?
The board utilizes a thermally optimized layout and high-efficiency components to minimize heat buildup during 24/7 use. -
Can it interface with non-ABB equipment?
Yes, the board supports open communication standards, allowing integration with third-party industrial control systems.
