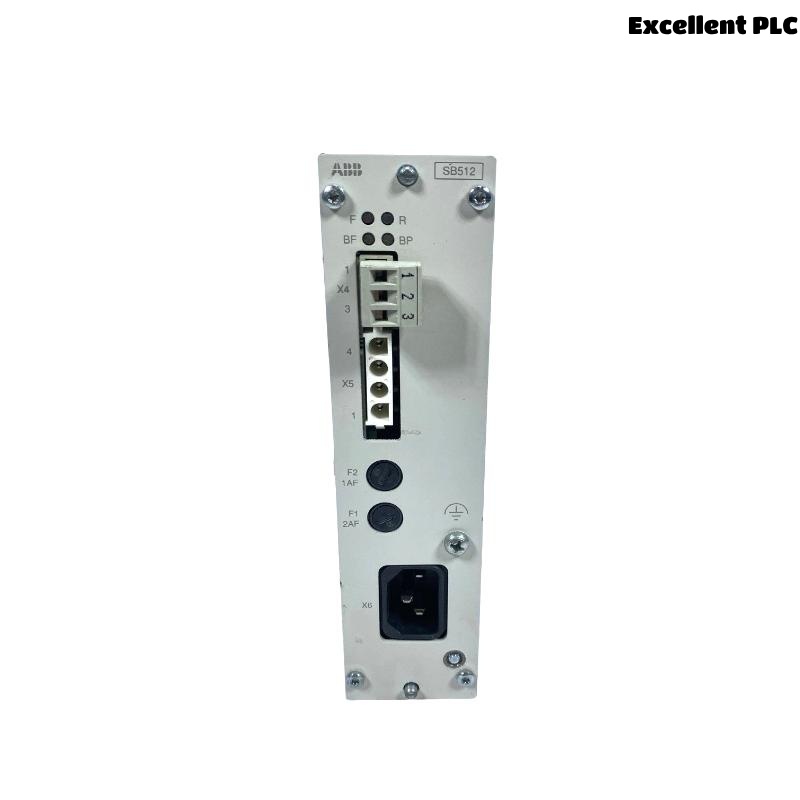

The ABB SB512 3BSE002098R1 Power Supply Module is a high-performance power supply unit developed to meet the demanding requirements of ABB’s industrial automation systems. Designed for the ABB Symphony Plus and AC800M series controllers, this module ensures stable and reliable power delivery for critical control components and industrial applications.
The SB512 Power Supply Module efficiently converts AC input power to regulated DC output, providing consistent and clean power for the controller system, CPUs, communication modules, and I/O components. ABB has engineered this unit to perform in harsh industrial environments, offering resilience against fluctuations, surges, and environmental stresses, thereby ensuring long-term operational stability.
Due to its compact form factor, high efficiency, and integrated protection features, the SB512 is well-suited for deployment in various industries, such as energy generation, oil & gas, petrochemical processing, water treatment, and heavy manufacturing.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | ABB SB512 3BSE002098R1 Power Supply Module |
| Series | AC 800M / Symphony Plus |
| Input Voltage | 100 – 240 VAC |
| Output Voltage | 24 VDC |
| Output Current | 10 A |
| Frequency Range | 50 – 60 Hz |
| Efficiency | > 88% |
| Ripple and Noise | < 100 mVp-p |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% – 95% non-condensing |
| Cooling Method | Natural convection |
| Protection Features | Overvoltage, Overcurrent, Short-circuit protection |
| Mounting Type | DIN rail / Panel mount |
| Dimensions (H x W x D) | 216 x 45 x 130.5 mm |
| Weight | 0.85 kg |
| Certifications | CE, UL, RoHS |
| Vibration Resistance | IEC 60068-2-6 compliant |
Product Applications
The ABB SB512 3BSE002098R1 Power Supply Module plays a key role in a wide range of industrial control and automation applications. Its ability to deliver clean and reliable power makes it an indispensable component in the following fields:
-
Energy and Power Generation: Supports power generation facilities by providing reliable power to DCS (Distributed Control Systems), turbine control systems, and auxiliary units.
-
Oil & Gas: Critical for powering drilling platforms, gas processing plants, and pipeline monitoring systems.
-
Petrochemical and Chemical Processing: Ensures consistent power for automation and control systems, enabling safe and efficient operation of chemical plants.
-
Water and Wastewater Treatment: Powers control panels and PLCs involved in process automation, ensuring compliance with environmental standards.
-
Heavy Manufacturing: Ideal for metal processing, paper production, and automotive industries, where uninterrupted control system power is essential.
-
Marine Applications: Used in shipboard automation systems, helping monitor and control ship propulsion, navigation, and safety systems.
Product Advantages
-
High Reliability: The SB512 Power Supply Module is designed for continuous operation, providing consistent and dependable power even in critical industrial environments.
-
Wide Operating Temperature Range: Operates effectively from -20°C to +70°C, making it suitable for both indoor and outdoor industrial settings.
-
High Output Power: Delivers a steady 24 VDC / 10 A output, capable of powering multiple controllers and modules simultaneously.
-
Robust Protection: Integrated overvoltage, overcurrent, and short-circuit protection ensures safe operation and protects connected equipment.
-
Efficient Design: With an efficiency of over 88%, it reduces energy consumption and minimizes heat generation.
-
Compact Form Factor: Its compact size allows easy integration into space-constrained control cabinets and panels.
-
Natural Cooling: The use of natural convection cooling eliminates the need for fans, reducing maintenance requirements and increasing system reliability.
-
Global Compliance: Certified to CE, UL, and RoHS standards, making it suitable for deployment in global markets.
-
Excellent EMC Performance: Designed to minimize electromagnetic interference, ensuring reliable operation of sensitive control systems.
-
Flexible Mounting Options: Can be mounted on DIN rail or directly onto control panels for versatile installation.
