Product Introduction

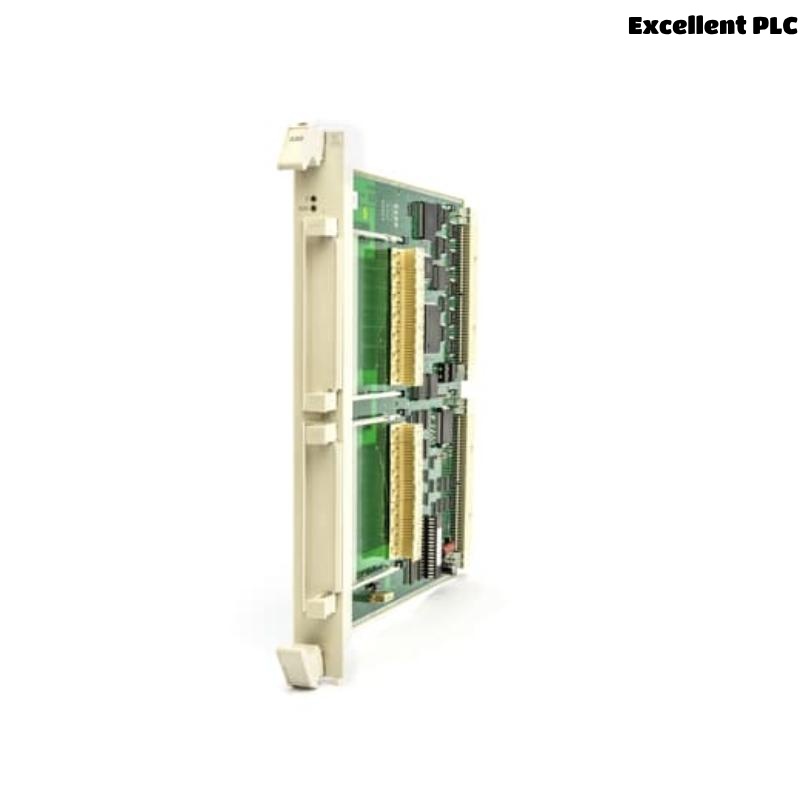

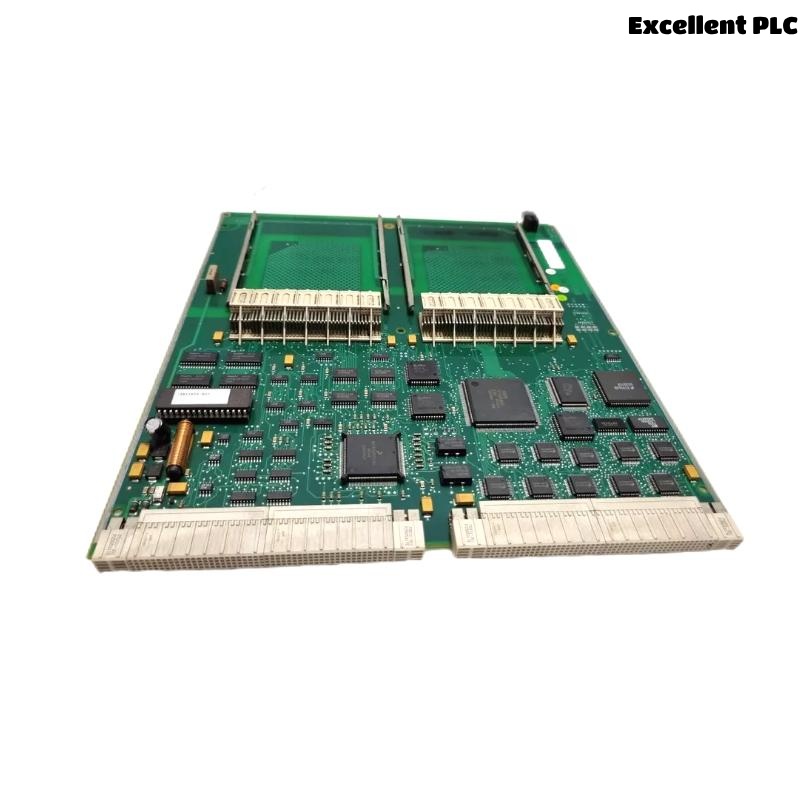

The ABB SC510 (3BSE003832R1) is a precision-engineered submodule carrier designed specifically for ABB’s industrial automation systems. It acts as a robust mechanical and electrical interface, providing reliable housing and secure connectivity for a variety of plug-in submodules. The SC510 carrier ensures modular flexibility and convenient maintenance, making it an essential component in the construction of scalable, high-performance control systems.
Its solid construction and optimized design allow it to withstand harsh industrial environments, while maintaining excellent electrical continuity and mechanical stability. Compatible with numerous ABB control modules, the SC510 supports efficient system assembly and flexible configuration changes. The module carrier is particularly suited for use in process control, manufacturing automation, and energy management systems where high reliability is mandatory.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | SC510 |
| Part Number | 3BSE003832R1 |
| Function | Submodule carrier for ABB automation systems |
| Compatible Modules | ABB AC500 series submodules |
| Material | High-quality, industrial-grade plastic and metal |
| Number of Slots | Supports multiple plug-in submodules (varies by design) |
| Dimensions (L × W × H) | 288 × 22.5 × 486 mm |
| Weight | 0.67 kg |
| Mounting Type | DIN rail or panel mounting |
| Operating Temperature | -25°C to +70°C |
| Electrical Connections | Spring-loaded connectors ensuring stable contact |
| Protection Class | IP20 |
| Compliance | CE, UL, and RoHS standards |
Product Applications
The ABB SC510 submodule carrier finds extensive use in multiple industrial sectors due to its adaptability and durability:
-
Process Automation: Facilitates modular assembly of input/output submodules in process control systems, ensuring streamlined maintenance and upgrades.
-
Manufacturing Industry: Used in production line controllers for flexible configuration of control modules, improving machine uptime.
-
Energy and Power Management: Supports submodules in power monitoring and distribution control panels, contributing to reliable grid management.
-
Building Automation: Provides a stable housing for submodules used in HVAC control and lighting management systems.
-
Water and Wastewater Treatment: Offers modular interface for I/O submodules controlling pumps, valves, and sensors.
-
Transportation Systems: Enables modular control of signals and switches in railway and traffic control infrastructure.
Product Advantages
-
Robust Construction
Built with industrial-grade materials that provide mechanical strength and durability. -
Compact and Space-Saving Design
The slim profile of 22.5 mm width maximizes cabinet space usage without sacrificing functionality. -
Easy Installation and Maintenance
Supports both DIN rail and panel mounting, with spring-loaded connectors ensuring reliable electrical contact and easy module replacement. -
Versatile Compatibility
Compatible with a wide range of ABB submodules, allowing flexible system configurations and upgrades. -
Reliable Electrical Connectivity
Spring-loaded contacts guarantee consistent and stable electrical connections even in environments subject to vibration. -
Wide Operating Temperature Range
Suitable for harsh industrial environments with a temperature tolerance from -25°C to +70°C. -
Protection and Safety
Designed with IP20 protection to safeguard internal electronics from dust and accidental contact. -
Standard Compliance
Conforms to international safety and quality standards including CE and UL certifications. -
Lightweight Design
Weighs only 0.67 kg, which facilitates handling and reduces load on mounting structures. -
Facilitates Modular Automation
Enables scalable and easily maintainable automation solutions by allowing quick swapping of submodules.
Frequently Asked Questions (FAQ)
-
Q: What is the primary function of the SC510 submodule carrier?
A: It provides mechanical and electrical housing for ABB automation submodules, facilitating modular system assembly. -
Q: What are the dimensions of the SC510?
A: The dimensions are 288 × 22.5 × 486 mm. -
Q: How much does the SC510 carrier weigh?
A: It weighs approximately 0.67 kg. -
Q: What type of mounting options does the SC510 support?
A: It supports DIN rail and panel mounting. -
Q: Is the electrical connection reliable in harsh conditions?
A: Yes, it uses spring-loaded connectors that maintain stable contact even under vibration. -
Q: What temperature range can the SC510 operate in?
A: It operates reliably from -25°C to +70°C. -
Q: Can the SC510 carrier accommodate multiple submodules?
A: Yes, it supports multiple plug-in submodules depending on system configuration. -
Q: What is the protection rating of the SC510?
A: It has an IP20 rating, protecting against dust and accidental contact. -
Q: Does the SC510 meet international standards?
A: Yes, it complies with CE, UL, and RoHS standards. -
Q: Is the SC510 compatible with all ABB automation systems?
A: It is compatible with the ABB AC500 series and other submodules designed for ABB automation platforms.
