Product Introduction

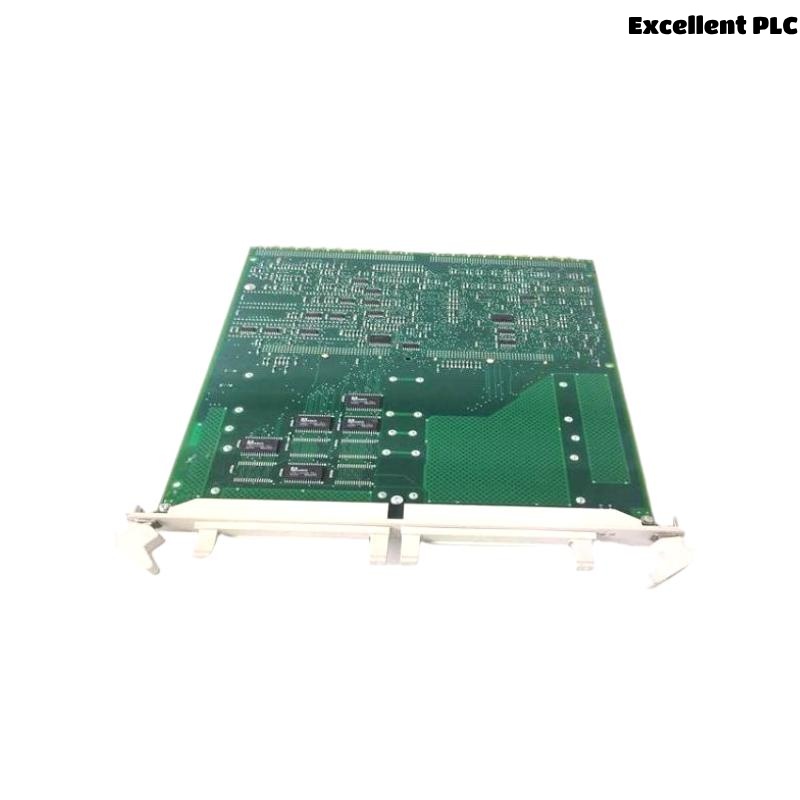

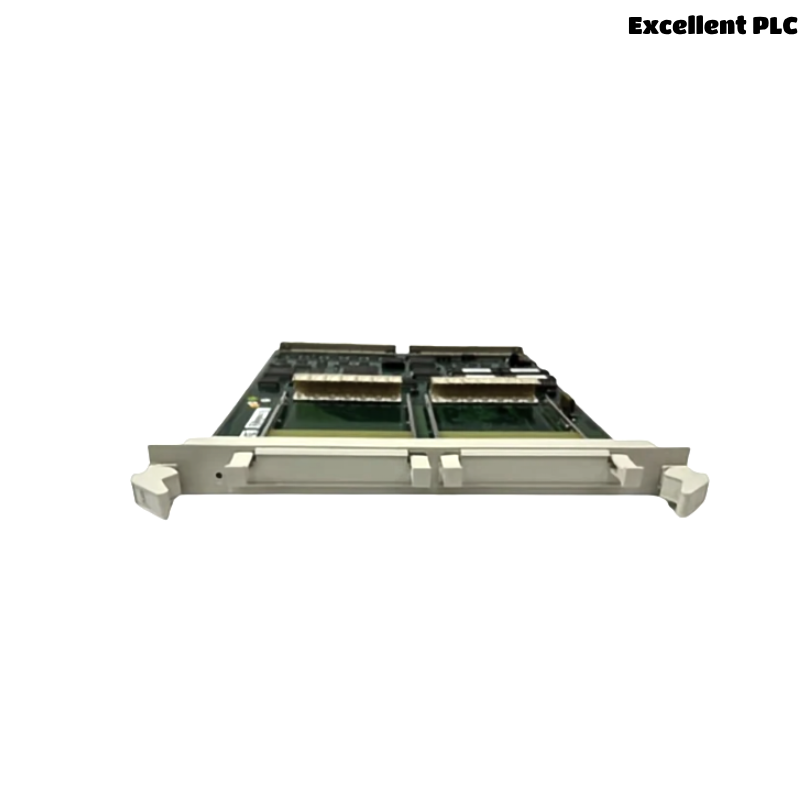

The ABB SC560 3BSE008105R1 is a robust and highly reliable submodule carrier designed for modular control systems, primarily used in ABB’s industrial automation platforms such as the Advant Master series. This submodule carrier serves as a structural and electrical backbone, providing support, power distribution, and communication pathways for various control and I/O submodules.
Manufactured with precision, the SC560 is engineered to withstand demanding industrial environments. Its design emphasizes durability, ease of installation, and compatibility with a broad range of ABB submodules. The carrier facilitates quick maintenance and upgrades while ensuring system integrity and efficient signal flow. By incorporating the SC560, engineers can build flexible and scalable control architectures tailored to specific industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Submodule Carrier |
| Model Number | SC560 |
| Part Number | 3BSE008105R1 |
| System Compatibility | ABB Advant Master Series |
| Material | High-strength industrial-grade aluminum |
| Dimensions (L x W x H) | 30 x 335 x 300 mm |
| Weight | 0.62 kg |
| Mounting Method | DIN rail mounting |
| Slot Capacity | 24 submodules |
| Power Supply Voltage | 24 V DC nominal |
| Backplane Current | Up to 6 A |
| Backplane Voltage | 24 V DC |
| Protection Class | IP20 |
| Operating Temperature | -40°C to +70°C |
| Communication Interfaces | Supports protocols based on installed submodules (RS-232, RS-485, PROFIBUS, MODBUS) |
Applications
The ABB SC560 submodule carrier is widely utilized in various sectors requiring reliable automation control systems:
-
Process Industry: Chemical plants, oil refineries, and power stations utilize the SC560 for precise control and monitoring.
-
Manufacturing Automation: Integrates into complex machinery systems for automotive, electronics, and consumer goods manufacturing.
-
Water and Wastewater Treatment: Ensures robust connectivity for SCADA and process control systems.
-
Building Automation: Supports control of HVAC, lighting, and energy management systems.
-
Renewable Energy: Used in wind turbines and solar panel plants for distributed control and monitoring.
-
Mining and Heavy Industry: Withstands tough environmental conditions, ensuring consistent operation in mines and steel plants.
Key Advantages
-
Durable Industrial Design: Constructed with heavy-duty materials to endure harsh conditions such as vibration, dust, and temperature extremes.
-
High Module Density: Accommodates up to 24 submodules, maximizing space utilization in control cabinets.
-
Simplified System Integration: Compatible with a wide range of ABB submodules and communication protocols, easing system design.
-
Reliable Power Distribution: Provides stable and uniform power to all connected submodules.
-
Ease of Installation and Maintenance: Designed for quick DIN rail mounting and easy access to submodules for service or replacement.
-
Scalable and Flexible Architecture: Supports system growth without major reconfiguration.
-
Reduced Wiring Complexity: Internal bus design cuts down on cabling requirements, resulting in cleaner and more reliable installations.
-
Optimized for ABB Control Systems: Seamless interoperability with ABB automation platforms guarantees enhanced performance.
-
Compact and Space-Saving: Efficient footprint facilitates installation even in tight spaces.
-
System Reliability and Redundancy: Supports configurations designed for fail-safe operation in critical environments.
Frequently Asked Questions (FAQ)
-
What is the primary function of the ABB SC560?
The SC560 serves as a carrier for submodules, providing mechanical support, power distribution, and communication pathways within ABB’s control systems. -
How many submodules can the SC560 accommodate?
It can hold up to 24 submodules. -
What are the physical dimensions of the SC560?
The dimensions are 30 x 335 x 300 mm. -
What is the weight of the SC560?
The carrier weighs about 0.62 kg. -
Is the SC560 suitable for harsh industrial environments?
Yes, it is designed to withstand temperatures from -40°C to +70°C and has an IP20 protection rating. -
How is the SC560 installed?
It is mounted easily on standard DIN rails. -
Which communication protocols does the SC560 support?
It supports various protocols through installed submodules, including RS-232, RS-485, PROFIBUS, and MODBUS. -
Does the SC560 provide power to submodules?
Yes, it distributes 24 V DC power to all installed submodules via its internal backplane. -
Can the SC560 be used outside ABB control systems?
While primarily designed for ABB systems, it may be compatible with some third-party modules, though ABB system compatibility is recommended. -
Is maintenance complicated for the SC560?
No, the design allows easy access for maintenance, replacement, or upgrades without dismantling the entire setup.
Related or Similar Models
| Model Number | Description |
|---|---|
| SC520 3BSE003816R1 | Submodule carrier with 20 slot capacity |
| SC570 3BSE009102R1 | Enhanced submodule carrier with additional redundancy |
| SB560 3BSE008106R1 | Smaller base carrier for compact module setups |
| CI560V2 3BSE010234R1 | Communication interface module compatible with SC560 |
| PM560V 3BSE008107R1 | Processor module for modular control applications |
| TU560 3BSE011345R1 | Terminal unit for wiring interface with SC560 |
