Product Introduction

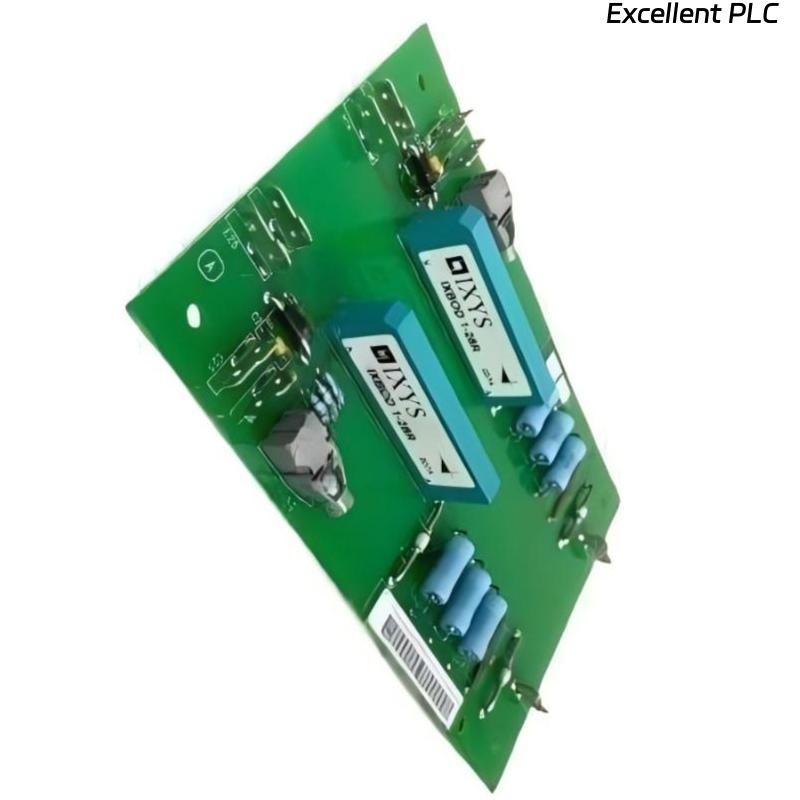

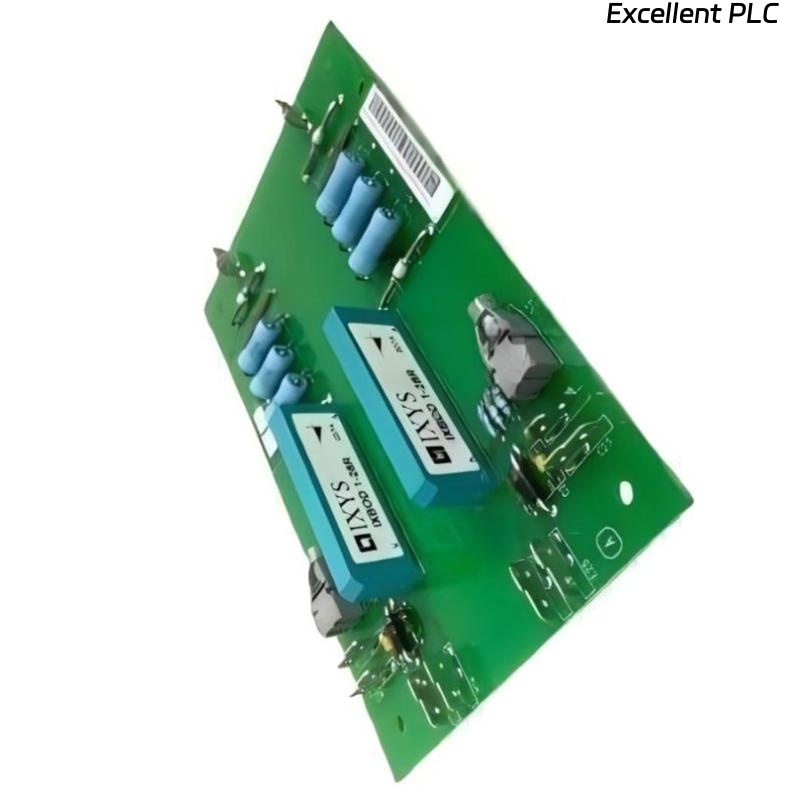

The ABB SCYC51213 63911607C Firing Unit is a high-performance industrial module designed to control and execute precise firing sequences in automation and power systems. It serves as a critical interface between control logic and high-power switching devices, ensuring accurate timing, synchronization, and safe operation of connected equipment.
Engineered for reliability, this firing unit can operate under demanding industrial conditions including electrical transients, dynamic loads, and environmental variations. Its robust construction and high-quality components provide stable performance in both continuous and intermittent operations, making it suitable for applications in power generation, industrial automation, and protective relay systems.
The compact and modular design allows for easy integration into existing control panels while maintaining high operational safety and signal integrity.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | SCYC51213 63911607C |
| Type | Firing Unit |
| Function | Precision firing control for switching devices |
| Operating Voltage | 24–48 VDC nominal |
| Operating Current | 1.2 A maximum |
| Temperature Range | -20°C to +70°C |
| Input Signal Type | Digital logic / PLC output |
| Output Type | Trigger pulse to power devices |
| Safety Features | Overcurrent protection, short-circuit suppression |
| Response Time | ≤ 5 ms |
| Mounting Type | DIN rail / panel mount |
| Dimensions | 160.5 × 35 × 110 mm |
| Weight | 0.51 kg |
Applications
• Industrial Automation Systems: Controls the precise timing of actuators and high-power switching devices.
• Power Generation Equipment: Used to fire protective relays and circuit breakers with exact timing.
• Robotics and Motion Control: Provides synchronized firing for high-speed robotic operations.
• Protective Relay Systems: Ensures coordinated triggering for safe operation under fault conditions.
• Switching and Control Panels: Interfaces directly with PLC outputs for automated control sequences.
• Testing and Calibration Rigs: Used in laboratories and test benches to validate firing sequences and protective logic.
Advantages
• High Precision Timing: Ensures firing occurs exactly at programmed intervals, minimizing errors.
• Robust Industrial Reliability: Designed to withstand electrical disturbances, temperature fluctuations, and dynamic loads.
• Integrated Safety Features: Includes overcurrent and short-circuit protection for secure operation.
• Compact Modular Design: Easy to install in panels or on DIN rails without occupying excessive space.
• Versatile Compatibility: Works with PLCs, digital control modules, and protective relays.
• Quick Response: Provides rapid triggering (≤ 5 ms) for high-speed control applications.
