Product Introduction

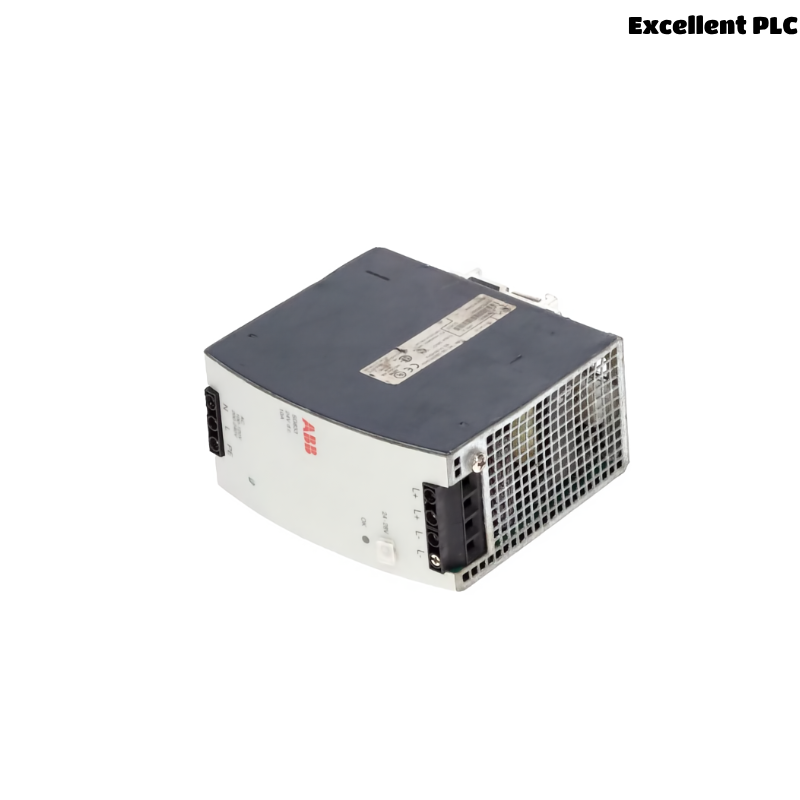

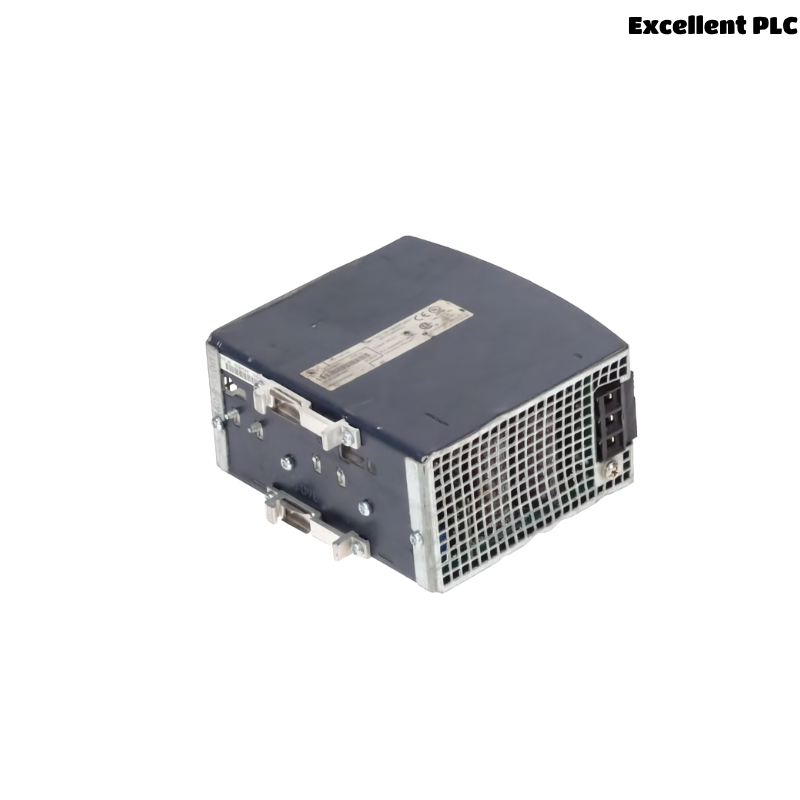

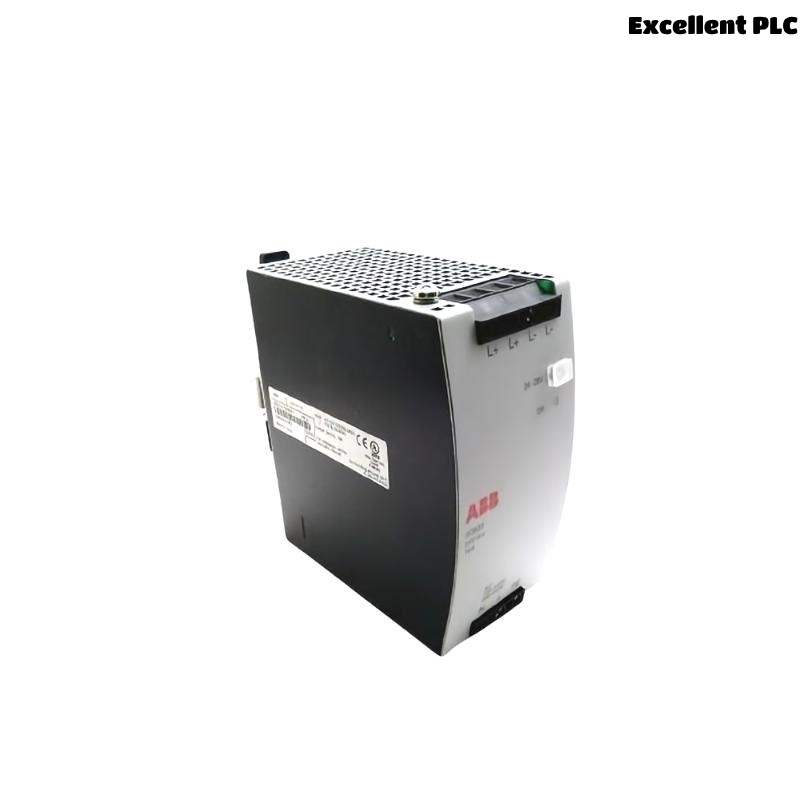

The ABB SD833 3BSC610066R1 is a high-efficiency, DIN rail-mounted power supply module designed for industrial automation systems. As part of ABB’s System 800xA, the SD833 provides a reliable 24 VDC output with a rated current of 10 A, ensuring stable power delivery for various control and I/O modules.
This module features an auto-select input voltage range, accommodating both 100–120 VAC and 200–240 VAC inputs, and offers high efficiency to minimize energy loss. Its robust design and compliance with international standards make it suitable for a wide range of industrial applications.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | SD833 |
| Manufacturer | ABB |
| Product Type | Power Supply Module |
| System Compatibility | ABB System 800xA |
| Rated Output Voltage | 24 VDC |
| Rated Output Current | 10 A |
| Rated Output Power | 240 W |
| Input Voltage Range | 100–120 VAC / 200–240 VAC (Auto-select) |
| Input Frequency | 50–60 Hz |
| Efficiency | 91% / 91.6% |
| Power Factor | 0.59 / 0.51 at rated output power |
| Heat Dissipation | 24 W / 22 W |
| Inrush Current at Power On | <10 A |
| Overvoltage Protection | Yes |
| Short Circuit Protection | Yes |
| Operating Temperature | 0 to +55°C |
| Storage Temperature | -40 to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions (W x D x H) | 117 x 124 x 60 mm |
| Weight | 0.8 kg |
| Mounting Type | DIN Rail |
| Protection Rating | IP20 according to IEC 60529 |
| Certifications | CE, UL 508, EN 50178, RoHS, WEEE |
| Marine Certifications | ABS, BV, DNV-GL, LR |
| Environmental Compliance | ISA-S71.04 G2, Pollution Degree 2 (IEC 60664-1) |
| Overvoltage Category | Category III (IEC/EN 60664-1) |
Applications
The ABB SD833 Power Supply Module is suitable for various industrial applications, including:
-
Process Automation: Providing stable power to control systems in chemical, pharmaceutical, and food processing industries.
-
Manufacturing Systems: Supplying power to automation equipment on production lines.
-
Energy Sector: Powering control and monitoring systems in power generation and distribution.
-
Water Treatment Facilities: Ensuring reliable operation of control systems in water and wastewater treatment plants.
-
Building Automation: Supporting HVAC, lighting, and security systems in commercial buildings.
-
Transportation Systems: Powering control and signaling equipment in railways and other transportation infrastructures.
Advantages
-
High Efficiency: Reduces energy consumption and minimizes heat generation.
-
Auto-Select Input Voltage: Compatible with various power sources, enhancing flexibility.
-
Compact Design: Saves space in control panels and facilitates easy integration.
-
Robust Protection Features: Includes overvoltage and short-circuit protection for enhanced safety.
-
Compliance with International Standards: Meets CE, UL, and RoHS requirements, ensuring global applicability.
-
Marine Certifications: Suitable for use in marine environments with certifications from ABS, BV, DNV-GL, and LR.
-
Easy Installation: Designed for DIN rail mounting, simplifying setup and maintenance.
-
Reliable Performance: Ensures consistent operation in demanding industrial environments.
FAQ – Frequently Asked Questions
-
What is the primary function of the ABB SD833 module?
The SD833 is a power supply module that provides a stable 24 VDC output for industrial control systems. -
What is the rated output current of the SD833?
The module delivers a rated output current of 10 A. -
What input voltage ranges are supported by the SD833?
It supports 100–120 VAC and 200–240 VAC input voltage ranges with auto-select functionality. -
What is the efficiency of the SD833?
The module offers an efficiency of 91% / 91.6%, reducing energy loss. -
Does the SD833 have overvoltage protection?
Yes, it includes overvoltage protection to safeguard connected equipment. -
What are the dimensions and weight of the SD833?
The module measures 117 x 124 x 60 mm, with a weight of 0.8 kg. -
Is the SD833 suitable for marine applications?
Yes, it has marine certifications from ABS, BV, DNV-GL, and LR, making it suitable for marine environments. -
What is the operating temperature range of the SD833?
The module operates reliably in temperatures from 0 to +55°C. -
How is the SD833 mounted?
It is designed for DIN rail mounting, facilitating easy installation. -
What certifications does the SD833 have?
The module is certified to CE, UL 508, EN 50178 standards and complies with RoHS and WEEE directives.
Related Models (Same Series or Functional Group)
| Model | Description | Key Features | System Compatibility |
|---|---|---|---|
| SD831 | Power Supply Module | 3 A output current, 72 W output power | System 800xA |
| SD832 | Power Supply Module | 5 A output current, 120 W output power | System 800xA |
| SD834 | Power Supply Module | 20 A output current, 480 W output power | System 800xA |
| SD853 | Power Supply Module | 10 A output current, enhanced efficiency | System 800xA |
| SD854 | Power Supply Module | 20 A output current, high efficiency | System 800xA |
| SS832 | Voter Module | For redundant power configurations | System 800xA |
