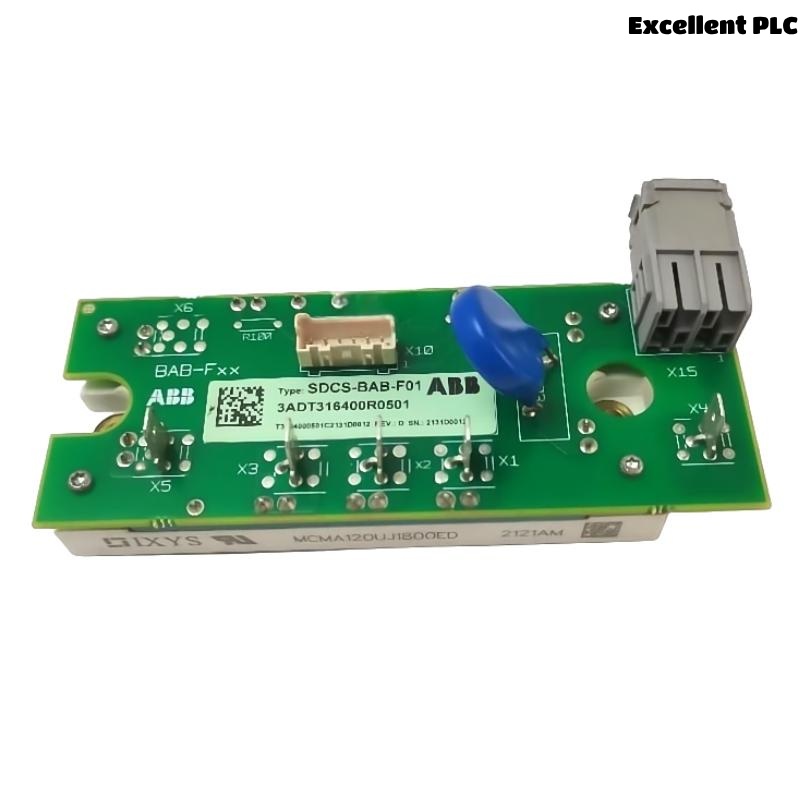

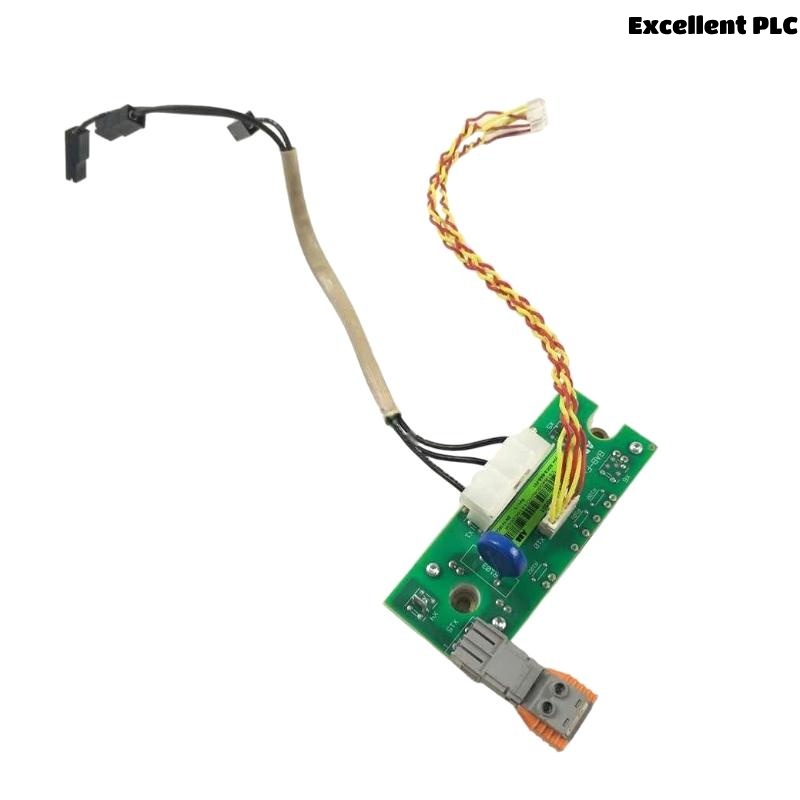

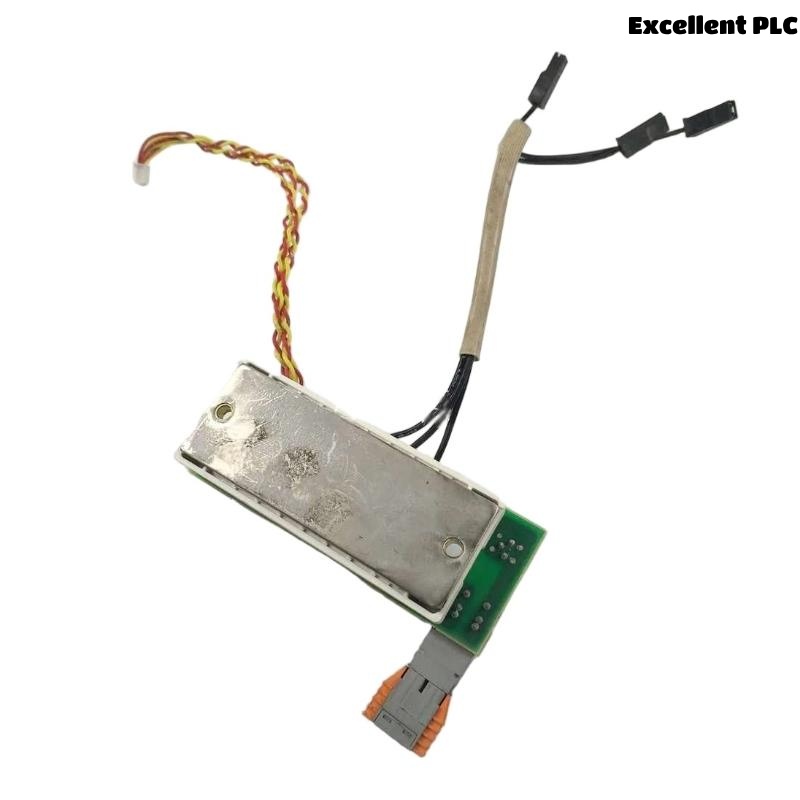

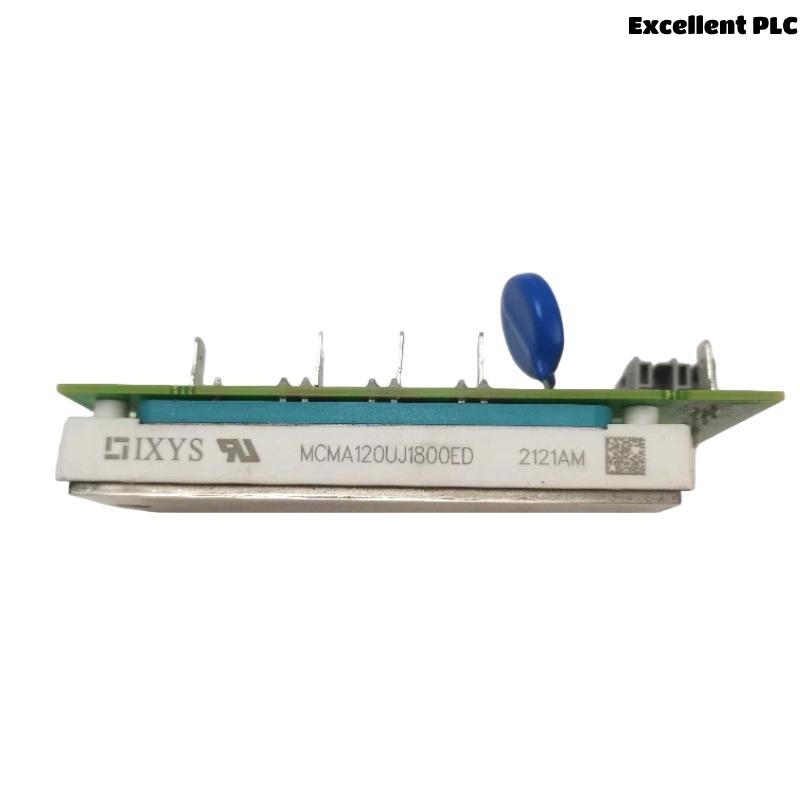

ABB SDCS-BAB-F01 3ADT316400R0501 Bridge Adapter Board

Product Introduction

The ABB SDCS-BAB-F01 (Part Number: 3ADT316400R0501) is a high-reliability bridge adapter board designed for use in ABB’s DCS (Drive Control System) configurations, particularly within the ABB DCS 500/600/800 series of DC drives. It acts as a key interface between the power bridge and the control electronics, ensuring accurate communication, signal transmission, and drive performance.

The SDCS-BAB-F01 serves as a replacement or upgrade component in legacy and active drive systems, helping maintain long-term operability of industrial DC drives. It supports signal isolation, feedback loop conditioning, and efficient current/voltage path interfacing. ABB has engineered this board to meet the toughest standards in heavy-duty and high-demand environments like metallurgy, mining, paper mills, and power generation.

As part of ABB’s extensive library of drive components, the SDCS-BAB-F01 delivers proven compatibility, quick installation, and extended system support for industrial customers seeking durability and precision in their automation infrastructure.

Technical Specifications

Product Applications

The ABB SDCS-BAB-F01 is widely deployed across various heavy-duty industrial settings where DC motor control is required. Its applications include:

• Steel and Aluminum Mills – Synchronization of rolling mill drives with fast feedback signals.

• Pulp & Paper Processing – Reliable control of winders, unwinders, and paper machine drives.

• Mining Operations – Used in conveyors, crushers, and hoist drive systems.

• Power Plants – Drives used for fuel feed, boiler systems, and turbine auxiliaries.

• Marine Propulsion Systems – Ensures smooth interface in variable-speed DC drive systems.

• Cement Plants – Assists in regulating rotary kilns, mixers, and crushers with accurate DC drive control.

Product Advantages

• Direct Compatibility: Tailored for use with ABB’s DCS500, DCS600, and DCS800 drive families.

• Stable Signal Interfacing: Ensures precise signal transmission between control logic and power sections.

• Simple Integration: Designed for straightforward mounting and electrical connection within the cabinet.

• High Build Quality: Uses industrial-grade PCB materials and robust connectors for long-lasting performance.

• Galvanic Isolation: Protects sensitive control electronics from transients and noise in power circuits.

• Minimal Downtime: Serves as a direct field-replaceable component, reducing drive repair time.

• Compact Form Factor: Fits efficiently in space-limited drive compartments.

• No Software Configuration: Passive board with plug-and-play functionality.

• Excellent Thermal Tolerance: Withstands wide operational temperatures for harsh environments.

Frequently Asked Questions (FAQ)

1. What does the SDCS-BAB-F01 board do?
   It serves as a signal adapter between the control board and power bridge in ABB DCS drive systems.

2. Which ABB drives are compatible with this adapter board?
   It is compatible with DCS500, DCS600, and DCS800 DC drive families.

3. Is it necessary to configure the board with software?
   No, the SDCS-BAB-F01 is a passive interface board and does not require configuration or programming.

4. Can I install the SDCS-BAB-F01 myself?
   Installation should be carried out by qualified personnel, but it is mechanically simple with provided screw holes and connectors.

5. Does the board include diagnostic indicators?
   No, this version does not include built-in LEDs or diagnostics; it’s purely a signal interface board.

6. What type of signal isolation does it offer?
   It provides galvanic isolation to protect control electronics from disturbances in the power section.

7. Is this board used in both regenerative and non-regenerative drives?
   Yes, it can be applied in both types depending on drive configuration.

8. What are the board’s main connection types?
   It typically uses multi-pin flat connectors and screw terminals for secure electrical contact.

9. Is this a replacement board for older SDCS systems?
   Yes, it can serve as a direct replacement for similar bridge adapter boards in older ABB DC drives.

10. Can I use this in non-ABB drive systems?
    No, it is designed specifically for ABB DCS drive systems and should not be used with third-party drives.
