Product Introduction

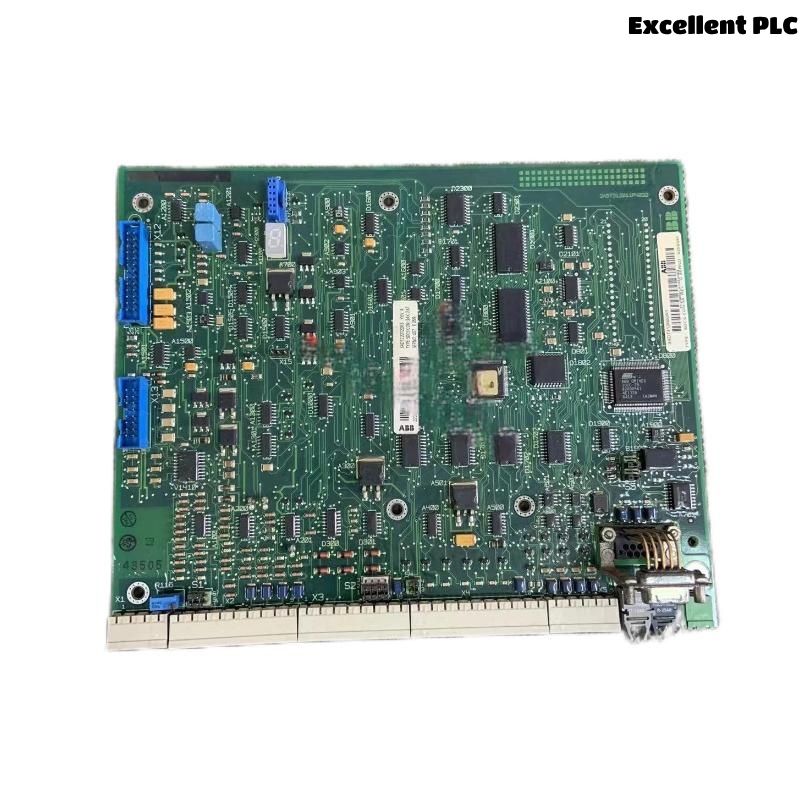

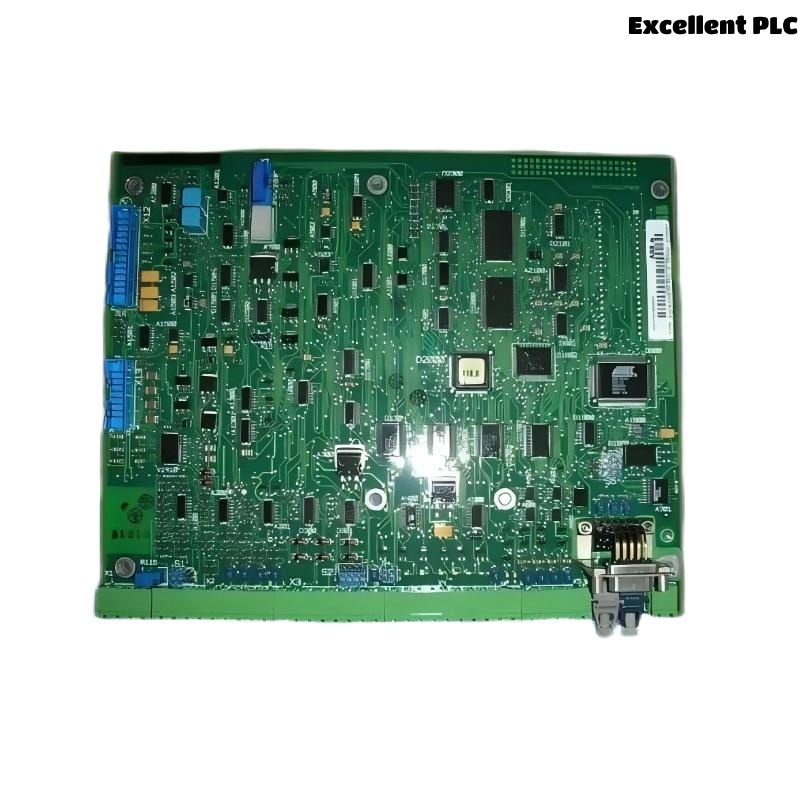

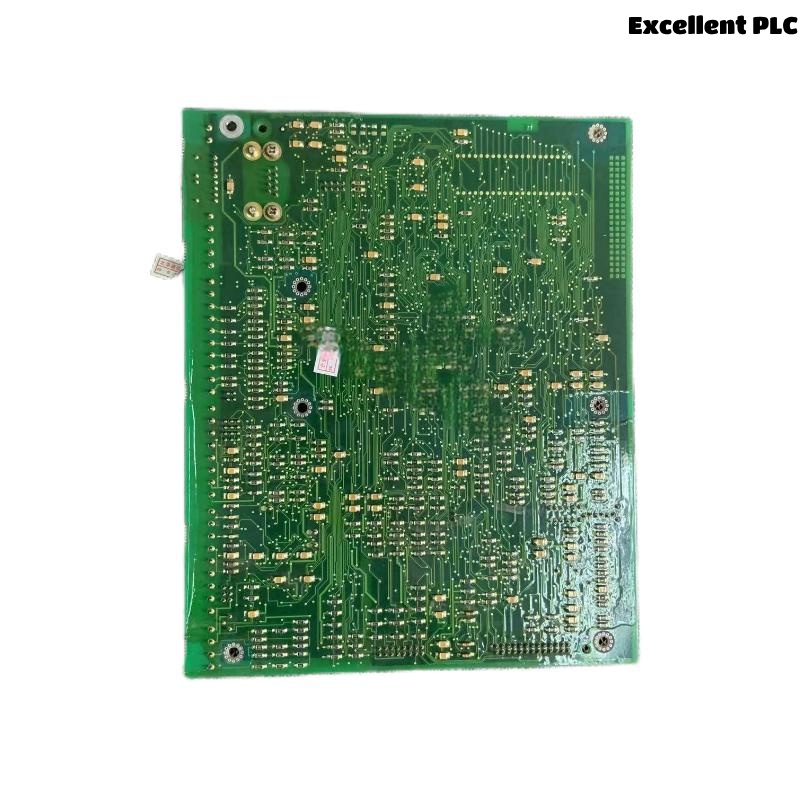

The ABB SDCS-CON-3 (3ADT310300R0001) is a powerful control board designed for use within ABB’s DCS drive systems, specifically compatible with the DCS500 and DCS600 series of DC drives. As a key interface between the control logic and drive power section, it enables precise motor control, signal processing, and integration with higher-level automation systems.
Manufactured to meet rigorous industrial standards, the SDCS-CON-3 ensures reliable performance in demanding environments, including manufacturing lines, paper mills, steel processing, and energy facilities. With embedded logic functions and diagnostic capabilities, it supports fieldbus communication and provides a stable base for drive management, feedback processing, and system coordination.
Product Advantages
-
High Compatibility: Seamlessly integrates with ABB DCS500 and DCS600 drives.
-
Enhanced Control: Offers precise speed and torque control for DC motors.
-
Long-Term Reliability: Built with robust components suitable for industrial harsh conditions.
-
Easy Replacement: Designed for fast installation and replacement in legacy systems.
-
Communication Ready: Supports various interface options for system integration (e.g., PROFIBUS via adapters).
-
Built-in Diagnostics: Provides clear fault indicators and self-monitoring features to reduce downtime.
-
Firmware Flexibility: Field-programmable for updates and customization.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | SDCS-CON-3 |
| ABB Order Code | 3ADT310300R0001 |
| Function | Drive control board for DCS500/DCS600 |
| Dimensions (W×H×D) | 300 x 156 x 30mm |
| Weight | 0.4kg |
| Input Voltage | 24 VDC (via internal/external supply) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Control Signal Interface | Ribbon cable, terminal block, CAN interface |
| Fieldbus Support | Optional via SDCS-IOB-3 or SDCS-IOE |
| Certifications | CE, UL, RoHS compliant |
| Application Compatibility | DCS500, DCS600 DC Drives |
| Mounting Type | Internal chassis mount |
Applications
-
Industrial Automation: Central control in ABB DC drive cabinets.
-
Steel and Metal Processing: Ensures torque and speed regulation for heavy DC motors.
-
Paper Mills: Controls large paper machine sections requiring synchronized motion.
-
Cement Plants: Used in kiln and grinding section motor control.
-
Cranes & Hoists: Integrated for secure lifting control in port or industrial settings.
-
Pulp and Textile Industries: Supports high-load, variable torque applications.
Installation Guidelines
-
Power Down All Equipment: Ensure full disconnection of main drive power supply.
-
Static Precautions: Use anti-static wristbands and grounding mats to prevent damage.
-
Mounting: Place the SDCS-CON-3 in its designated slot on the DCS drive chassis.
-
Connection: Attach ribbon cables securely to the corresponding terminals.
-
Check Fieldbus Modules: If communication expansion is needed, install compatible SDCS-IOB or SDCS-IOE modules.
-
Power-Up and Test: Apply power and verify LED diagnostics and system start-up.
-
Configuration: Program necessary firmware parameters using ABB configuration tools (e.g., DriveWindow).
Related/Compatible Models (Same Series or Functionally Similar)
| Model Number | Description |
|---|---|
| SDCS-CON-2B | Control board for DCS500 with extended I/O |
| SDCS-CON-4 | Enhanced CON board for larger drives |
| SDCS-IOB-3 | Digital/analog input-output board |
| SDCS-IOE-1 | Fieldbus interface expansion board |
| SDCS-PIN-3 | Pulse interface board for encoder inputs |
| SDCS-POW-1 | Power supply board for DCS drive systems |
Popular ABB Drive Components (Same Brand)
| Model Number | Function | Dimensions (mm) | Weight |
|---|---|---|---|
| RDIO-01C | Remote I/O Module | 95 × 105 × 40 | 0.4 kg |
| RET630 | Protection Relay | 260 × 195 × 160 | 3.2 kg |
| DCS800-S01-0650-05 | DC Drive Module | 660 × 400 × 330 | 32 kg |
| ACS880-01-07A6-3 | AC Drive | 393 × 195 × 237 | 9.2 kg |
| CP600-HMI | Operator Panel | 226 × 174 × 55 | 1.1 kg |
| DSAI130 | Analog Input Module | 100 × 110 × 45 | 0.35 kg |
| PM856K01 | CPU Module for Control Systems | 260 × 185 × 55 | 1.7 kg |
| AI810 | Analog Input 8-channel | 120 × 90 × 40 | 0.3 kg |
Frequently Asked Questions (FAQ)
Q1: What is the main function of the SDCS-CON-3?
A1: It serves as the central control board for ABB’s DCS500/DCS600 DC drives, managing control logic, signal processing, and communication.
Q2: Is the SDCS-CON-3 compatible with both DCS500 and DCS600?
A2: Yes, it’s designed to be fully compatible with both series.
Q3: Can I update the firmware on the SDCS-CON-3?
A3: Yes, firmware updates are possible through ABB tools such as DriveWindow.
Q4: How should the board be handled during installation?
A4: Use standard ESD protection and handle the board by its edges.
Q5: What does it mean if the LED on the board flashes red?
A5: A red flashing LED typically indicates a fault condition that needs diagnosis using ABB software.
Q6: Does the SDCS-CON-3 support fieldbus communication?
A6: Yes, with optional expansion modules like SDCS-IOB-3 or IOE.
Q7: Can it be used outside an ABB system?
A7: It is specifically engineered for ABB DCS systems and not suitable for third-party drives.
Q8: Is there a replacement for SDCS-CON-3 if it becomes obsolete?
A8: ABB may offer upgraded boards like SDCS-CON-4 as alternatives, depending on the system.
Q9: How long is the typical service life of this board?
A9: When used under recommended conditions, the service life can exceed 5+ years.
Q10: How long is the warranty period?
A10: The standard warranty is 1 years, subject to proper usage and conditions.
